Black Widow Folding Steel Shop Crane — 1-Ton Capacity, Three Extended Positions, Model# FSCRANE1

Item# 6694197
Black Widow Folding Steel Shop Crane — 1-Ton Capacity, Three Extended Positions, Model# FSCRANE1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Black Widow Folding Steel Shop Crane — 1-Ton Capacity, Three Extended Positions, Model# FSCRANE1

Click or Tap image to Zoom

$744.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Measures 63" L x 29-1/2" W x 58" H
  • 1-ton weight capacity

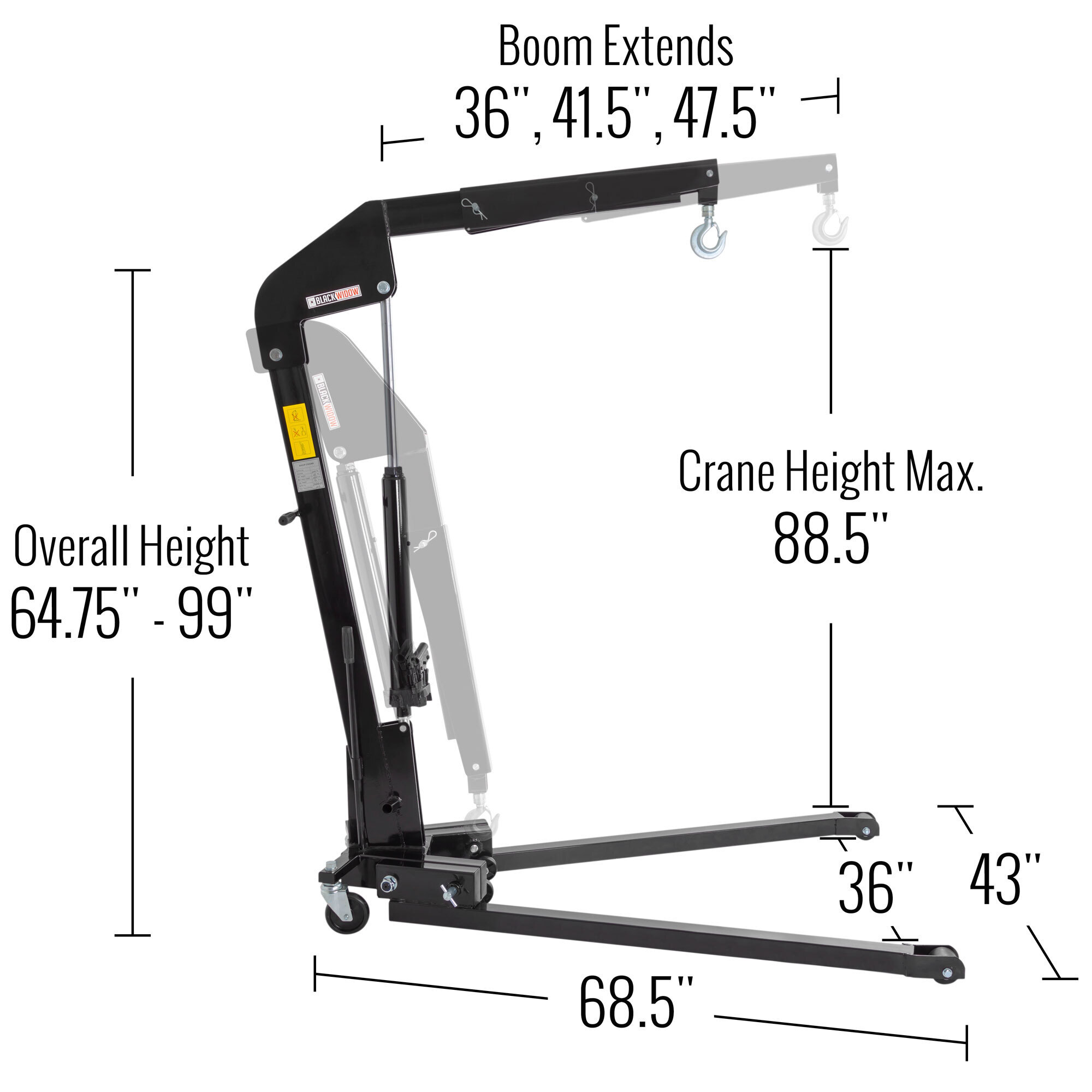

  • Boom arm extends from 36" to 47-1/2"
  • Crane height adjusts from 64-3/4" to 88-1/2"
  • Weight capacity varies depending on boom position; shortest is 2200 lbs.; middle is 1760 lbs.; longest is 1540 lbs.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Black Widow Hydraulic Folding Shop Crane delivers the lift you need, with the convenience of compact storage. With a weight capacity up to one ton, this engine hoist is ideal for a professional shop or your garage. Double bearing swivel casters provide smooth maneuvering throughout your work space. Please note that because the boom has three extended positions, the weight capacity varies based on the boom length. At its shortest position the weight capacity is 2,200 lbs.; the middle position has a 1,760 lb capacity and the longest position has a 1,540 lb. capacity.

What's Included

    (1) 1

Features + Benefits

  • Measures 63" L x 29-1/2" W x 58" H
  • 1-ton weight capacity
  • Boom arm extends from 36" to 47-1/2"
  • Crane height adjusts from 64-3/4" to 88-1/2"
  • Weight capacity varies depending on boom position; shortest is 2200 lbs.; middle is 1760 lbs.; longest is 1540 lbs.

Key Specs

AttributeSpecification

item#

6694197

Brand

Black Widow

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

263.0 LB
AttributeSpecification

Capacity

2,200 lb

Foldable

Yes

Product Weight

224.0000 lb

Dimensions L x W x H (in.)

63.0 x 29.5 x 58.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Can you adjust the bottom outrigger positions, or are they fixed? We often have to lift pumps that are in succession, very close together, and don't have a lot of room to go between them.

    1 answer

    1. The legs on the shop crane are not adjustable. They have a fixed width of 29.5 inches.

      Helpful?

  2. What is the height from the floor to the top of the outrigger bars/casters?

    1 answer

    1. The height to the outrigger bars from the floor would be 64.75".

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
