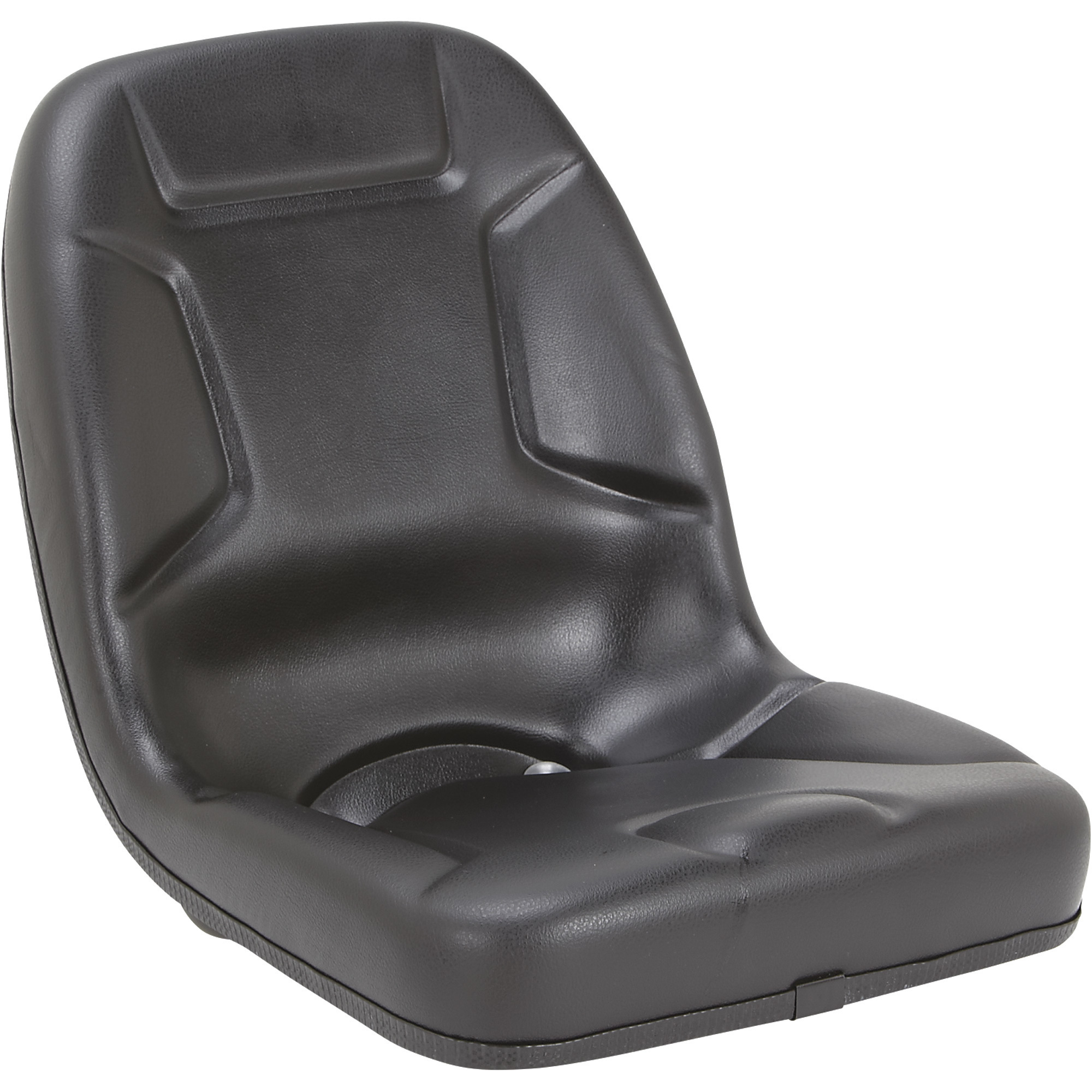

Black Talon Highback Kubota Tractor Seat, Black, Model# 530000BK

Item# 23246
Top Seller
Black Talon Highback Kubota Tractor Seat, Black, Model# 530000BK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Black Talon Highback Kubota Tractor Seat, Black, Model# 530000BK

Click or Tap image to Zoom

$159.99

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Durable steel pan with heavy-duty vinyl covering
  • Integrated vinyl and polystyrene foam molding for a clean look and fit
  • Slight bolstering on the sides of the seat to keep the operator in position
  • Contour lines on back and base of seat allow for air movement between the seat and operator
  • 19.4in.H back provides support for operator to reduce fatigue over long work periods

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Black Talon Highback Kubota Tractor Seat is a steel pan seat with heavy-duty vinyl covering and drain holes. Integrated vinyl and polystyrene foam molding gives a clean look and fit. Slight bolstering on the sides of the seat to keeps the operator in position. Contour lines on back and base of seat to allow for air movement between the seat and operator. 18in. back provides support for operator to reduce fatigue over long work periods. Drop-in fit for many Kubota compact tractors.

What's Included

    (1) Seat

Downloads

Additional Product Info
Play Item Video

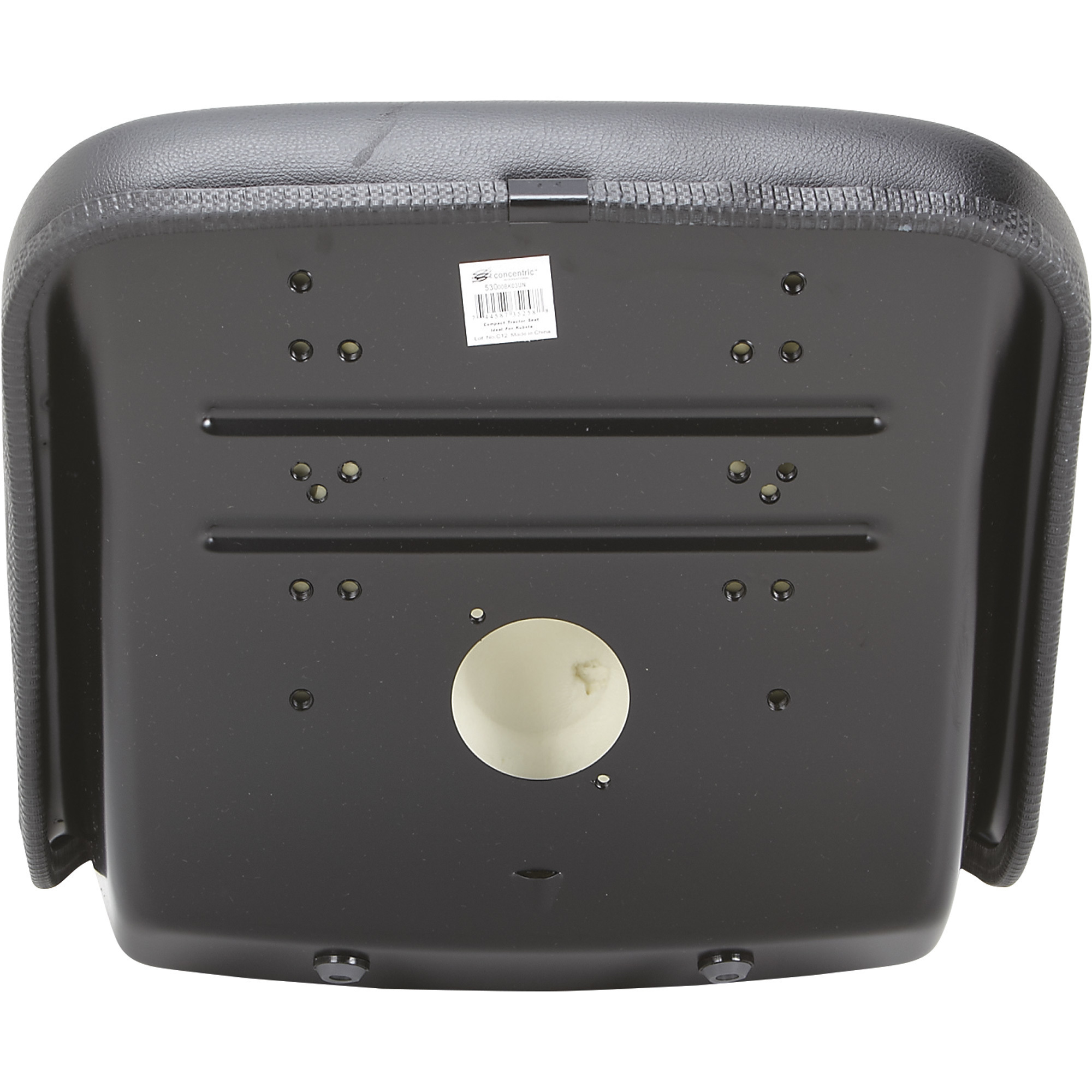

Bolt Pattern Details

bolt pattern

Bolt Pattern for Black Talon #530000BK

See Larger Image

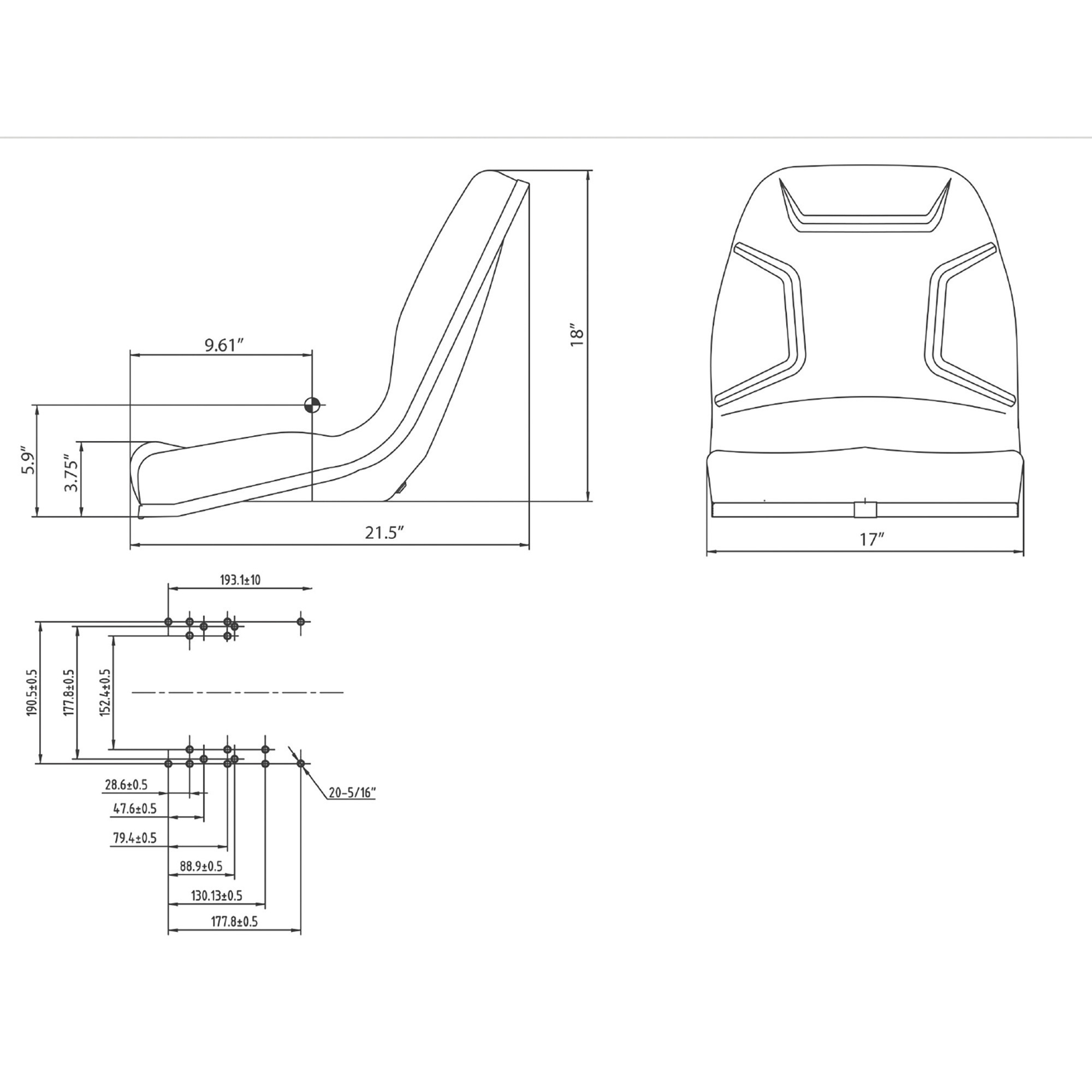

wise seat dimensions

Replacement Seat Dimensions

See Larger Image

Features + Benefits

  • Durable steel pan with heavy-duty vinyl covering
  • Integrated vinyl and polystyrene foam molding for a clean look and fit
  • Slight bolstering on the sides of the seat to keep the operator in position
  • Contour lines on back and base of seat allow for air movement between the seat and operator
  • 19.4in.H back provides support for operator to reduce fatigue over long work periods
  • Drain holes allow seat to dry quickly
  • Mounting pattern: 6" x2", 6" x 4", 7.5" x 1.25", 7.5" x 2", 7.5" x 3.125", 7.5" x 3.875", 7.5" x 4", 7.5" x 5.125", 7.5" x 5.875", 7.5" x 7". 11.25" x 9.875"
  • Drop-in fit for many Kubota compact tractors
  • Also fits select models from Kumiai, Mahindra, Massey Ferguson, Windrowers, Mitsubishi, Rhino, Satoh, White and Yanmar
  • Multiple mounting patterns are: 6in.W x 2in.D, 6in.W x 4in.D, 7in.W x 1 5/8in.D, 7 1/2in.W x 2in.D, 7 1/2in.W x 4in.D, 7 1/2in.W x 6in.D

Key Specs

AttributeSpecification

item#

23246

Brand

Black Talon Seats

Manufacturer's Warranty

3 month parts/no labor

Ship Weight

13.5 LB

Adjustable

Yes

Suspension

No
AttributeSpecification

Capacity

250 lb

Color

Black

Material

Vinyl

Frame Material

Alloy Steel

Arm Rests

No

Universal Fit

Yes

Reviews

Questions & Answers

189 Reviews This action will navigate to reviews.

Questions

1–10 of 37 Questions
Sort by:

  1. Wiill the seat bolt right into the Kubota B7500 or will it require modification

    1. This seat has many different pre-threaded holes in the bottom along with 4 bolts attached. As long as you have your old bracket you should be fine.

      Helpful?

    2. Fit my B7800 just fine. The seat itself has several different bolt patterns on it. I had to go buy the correct bolts for the seat though,,, the stock ones didn't fit.

      Helpful?

    3. There are many threaded holes at the bottom of the seat. So you may want to flip the seat you currently have and measure the hole pattern. Then check if the pattern you need appears in the item description. The 6"x2" pattern fits my Kubota L2550.

      Helpful?

    4. There are Many sets of mounting so you should be able to mount without any modification. It fit my (Kubota B6200.) Tractor perfect

      Helpful?

    5. This Highback Kubota Tractor Seat will fit most Kubota compact tractors, however to ensure a proper fit please compare the bolt pattern of your current seat to the bolt patterns provided by this seat.
      Bolt Patterns(Width X Depth):
      6 inches X 2 inches
      6 inches X 4 inches
      7.5inches X 6 inches
      7.5 inches X 7 inches
      7 inches X 1.625 inches
      7.5 inches X 2 inches
      7.5 inches X 4 inches

      Helpful?

  2. Does this seat have angle iron brackets on the bottom for flipseat pin to mount?

    Will it fit on a Kubota L2350?

    1. NO. It only has threaded attachment holes (5/16")

      Helpful?

    2. No it is flat on the bottom with recessed threads to bolt the seat to a tractor or an adapter plate. For the application you are inquiring about you will need to buy the flip bracket from the manufacturer.

      Helpful?

    3. No brackets. It will fit your L2350 by using your brackets to mount to the seat. Holes are properly spaced.

      Helpful?

    4. No angle iron brackets, just multiple threaded mounting Holes.

      Helpful?

    5. This seat does not come with brackets or any hardware. Must be purchased through the manufacturer directly.

      Helpful?

  3. What is the bottom of the seat made out of?

    1. The seat has a steel frame with molded hard foam padding and a plastic cover.

      Helpful?

    2. Solid metal seat bottom.

      Helpful?

    3. The bottom of the seat is a metal pan. There are many bolt holes and a 3 inch hole in it. See my review regarding seat height.

      Helpful?

    4. Metal exterior with mounted inserts for bolts

      Helpful?

    5. The High Back Tractor Seat is constructed with a steel pan bottom.

      Helpful?

  4. Will this seat except the original arm rest

    1. No, it is not compatible.

      Helpful?

    2. No provision for armrests.

      Helpful?

    3. no

      Helpful?

    4. This tractor seat is not designed for arm rests as it does not have any mounting provisions built into the seat for such an application to be attached.

      Helpful?

  5. I need extra mounting bolts. What size fits the preset holes in seat bottom?

    1. My bolts of a Kubota B7500 were 1/2 inch long 5/16 diameter 18 thread. Go to your local hardware store and match them up.

      Helpful?

    2. They are 5/16x18

      Helpful?

    3. They look like 5/16- 18 I converted mine to the 8mm metric of the standard seat.

      Helpful?

    4. This seat uses 5/16" in diameter standard thread bolts, the length would have to be
      determined by customer for the thickness of metal he/she is going through.

      Helpful?

  6. Does this Kubota Seat come with metal slider brackets so the seat can be moved forwarded and backwardss?

    1. No, you must re-use the original hardware to install the seat. The only hardware included are four standard thread bolts. The original bolts are metric.

      Helpful?

    2. There are no brackets or hardware included. Just the seat.

      Helpful?

    3. seat comes with no brackets you must use your pre exhisting brackets with american 5/16 coarse thread bolts

      Helpful?

    4. The sliding brackets are available through the manufacturer.

      Helpful?

  7. Will this seat fit a Kubota 7030DTN

    Or can you confirm the bolt pattern? This is to bolt onto a sliding track frame.
    Thanks,
    Ann

    1. Can't give you a definite answer, however, there are multiple bolt hole patterns on the seat. At least 12 maybe more. Hard time believing it wouldn't fit.

      Helpful?

    2. My B5200 has a sliding frame and the seat has two brackets that are held to the frame with pins and clips. This seat fit my brackets perfectly after I ran the tap thru the hole converting them to the metric screws.

      Helpful?

    3. This seat has multiple bolt patterns. They are 6"x2" 6"x4" 7"x1.625" 7.5"x2" 7.5"x4" 7.5"x6" 7.5"x7" (width x depth).

      Helpful?

  8. dose this come with the hardware to flip seat

    application?

    1. No, the seat does not come with the flip bracket but it comes with four bolts to instal the seat.

      Helpful?

    2. Comes with no hardware. Flipping hardware is part of seat mounting bracket, not seat, on Kubota.

      Helpful?

    3. The Hardware to flip seat forward is not included.

      Helpful?

  9. dimensions of bolt pattern?

    1. There is several bolt patterns for mounting the seat. I recommended that you make a copy of your bolt pattern and bring it to the store for comparison.

      Helpful?

    2. Many different bolt patterns. See specifications page and my review.

      Helpful?

    3. There are multiple bolt patterns available they are; 6"x2" 6"x4" 7"x1.625" 7.5"x2" 7.5"x4" 7.5"x6" 7.5"x7" (width x depth)

      Helpful?

  10. How thick is the metal in the shell?

    I have two different tractor seats(not this seat) that need to be replaced because the metal is cracked near the mounting brackets. I know this seat shell is metal, but how thick is the metal?

    What gauge is the metal?

    Anyone big(large/heavy) had one for several years?

    How is it holding up?

    1. Don't know exact gauge, but the metal seat shell is substantial. Just bought it, so can't tell you how it will stand up. So far, so good--impressed.

      Helpful?

    2. The thickness of the shell for this seat is 1.8 mm. The only feedback we have gotten on this is the reviews on the product page, but it got a 4.8 star rating out of 5 stars!

      Helpful?

Warranty

Manufacturer's Warranty

3 month parts/no labor
