Black Talon High-Back Suspension Seat with Folding Armrests, Black, Model# 36O0OBK02UN

Item# 174110
Top Seller
Black Talon High-Back Suspension Seat with Folding Armrests, Black, Model# 36O0OBK02UN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Black Talon High-Back Suspension Seat with Folding Armrests, Black, Model# 36O0OBK02UN

Click or Tap image to Zoom

$469.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

  • Seamless, UV-protected, black vinyl cushion is contoured for water drainage and air flow
  • 4in. low-profile integrated suspension with 1 3/4in. travel for maximum height clearance
  • Weight adjustable up to 286 lbs.
  • Fore and aft slides
  • Accepts delta-type operator presence switch and seat belts

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Comfortable Black Talon high-back seat with adjustable, folding arm rests. Seamless, UV-protected, black vinyl cushion is contoured for water drainage and air flow. 4in. low-profile integrated suspension for maximum height clearance. Weight adjustable up to 286 lbs. Fore and aft slides. Accepts delta-type operator presence switch and seat belts.

What's Included

    (1) Seat

Downloads

Additional Product Info

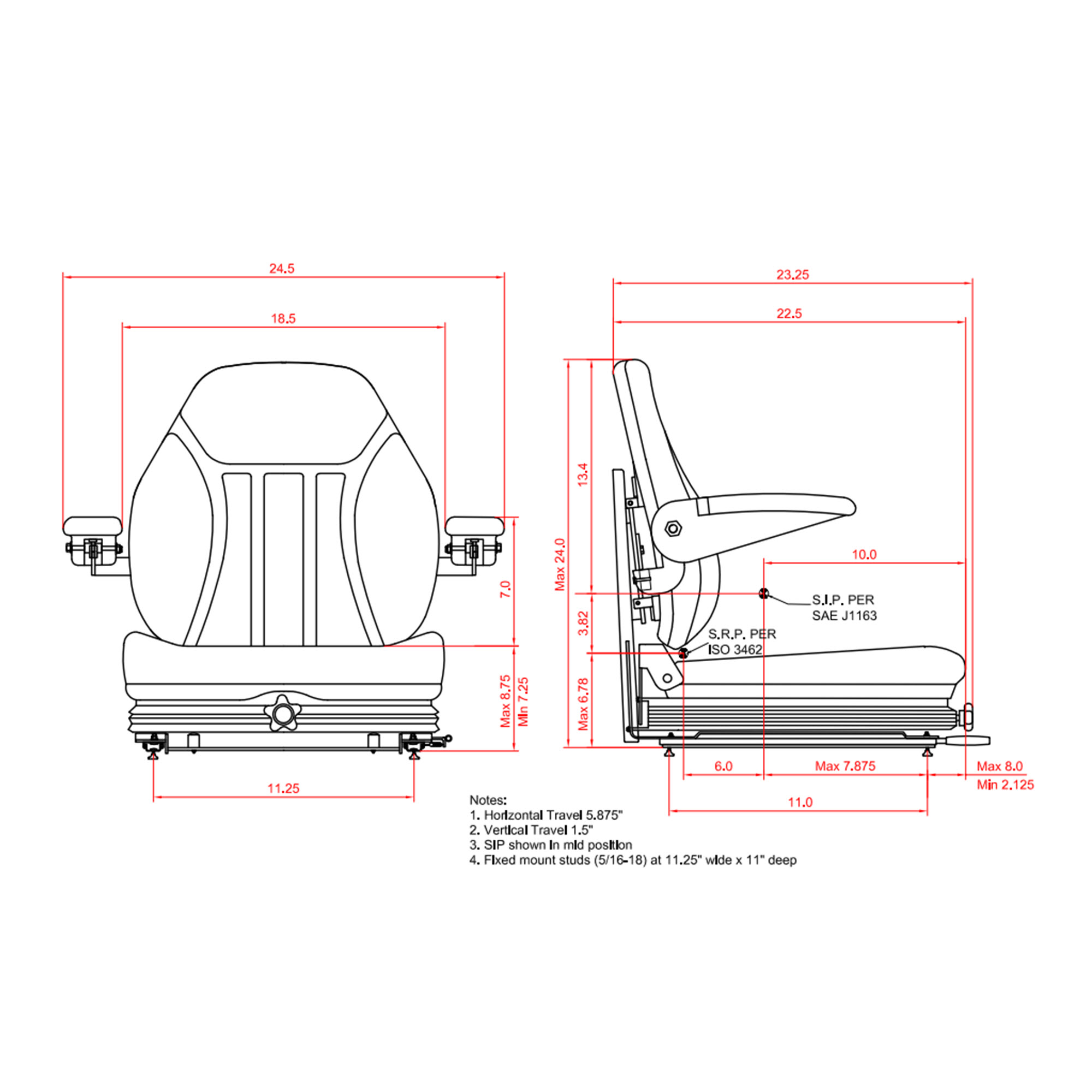

Replacement Seat Dimensions

bolt pattern

Replacement Seat Dimensions

See Larger Image

Features + Benefits

  • Seamless, UV-protected, black vinyl cushion is contoured for water drainage and air flow
  • 4in. low-profile integrated suspension with 1 3/4in. travel for maximum height clearance
  • Weight adjustable up to 286 lbs.
  • Fore and aft slides
  • Accepts delta-type operator presence switch and seat belts
  • Mounting pattern: 11.25" x 11"

Key Specs

AttributeSpecification

item#

174110

Brand

Black Talon Seats

Manufacturer's Warranty

3 month parts/no labor

Ship Weight

43.0 LB

Adjustable

Yes

Suspension

Yes
AttributeSpecification

Capacity

250 lb

Color

Black

Material

Vinyl

Frame Material

Alloy Steel

Arm Rests

Yes

Universal Fit

No

Reviews

Questions & Answers

47 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Does the seat swivel? And what is the height from the bottom of the base to the top of the horizontal part of the seat?

    1. The seat does not swivel

      Helpful?

    2. The Highback Suspension Seat with Foldup Armrests does not swivel. The height from bottom of seat base to the top of the seat cushion is 7.5 inches.

      Helpful?

  2. Seat back

    Does the seat back angle adjust?

    1. The back angle of the seat is fixed.
      I am using it on a Doosan Daewoo 470 Plus Skid steer. Perfect bolt up to my machine

      Helpful?

    2. The seat back angle does not adjust.

      Helpful?

  3. adjustable spring

    I have a JD z920a 60 inch zero turn mower.; very rough riding , bounces operator. does this seat adjust to eliminate the bumps thus the rough ride ?

    1. Suspension seats do not "eliminate" the bumps. But they do help to cushion the bumps. As does slower speeds.

      I have suspension seats on both mowers and our tractor. Also gave our son one for Christmas. They do help cushion the rough ride, and my lower back thanks me.

      k

      Helpful?

    2. This seat has a 4" suspension and may make your ride a little more comfortable. We could not guarantee that it would completely eliminate all the bumps.

      Helpful?

  4. what is the sliding adjustment range?

    1. Aprox 5”

      Helpful?

    2. This highback suspension seat has a slide adjustment with a 6" range.

      Helpful?

  5. Does the seat wire connection fit scag mowers? Is it a 4- prong connector?

    1 answer

    1. The seat has a 7" to 13.5" width with slotted sides for front to rear mounting. It can be bolted down within that range. It has a delta-type operator presence switch. It does not explicitly come with a pre-wired 4-prong connector, but is equipped to work on an operator presence switch, that can be purchased separately.

      Helpful?

  6. Will this fir a cat 226 skid steer?

    1 answer

    1. The seat would have 7" to 13.5" mounting pattern width with slotted slides for front and rear mounting. You would need to check the mounting pattern on your skid steel to see if it would fit. See the diagram for the seat in the PDF file below the product summary.

      Helpful?

  7. Will this fit on 2019 bad boy zt elite

    1 answer

    1. The seat has a slotted mounting pattern of 7" to 13.5" width with slides for front to rear mounting. You would need to check the existing seat mounting pattern to see if it would work.

      Helpful?

  8. Can I get a seat belt

    1 answer

    1. The seat will accept Delta type seat belts. We do not offer this style of seat belt at this time.

      Helpful?

  9. Base dimensions?

    1 answer

    1. The base dimensions are 24" W x 24.5" D x 24" H.

      Helpful?

  10. Is this seat a air suspension seat?

    1 answer

    1. This seat has mechanical spring suspension.

      Helpful?

Warranty

Manufacturer's Warranty

3 month parts/no labor
