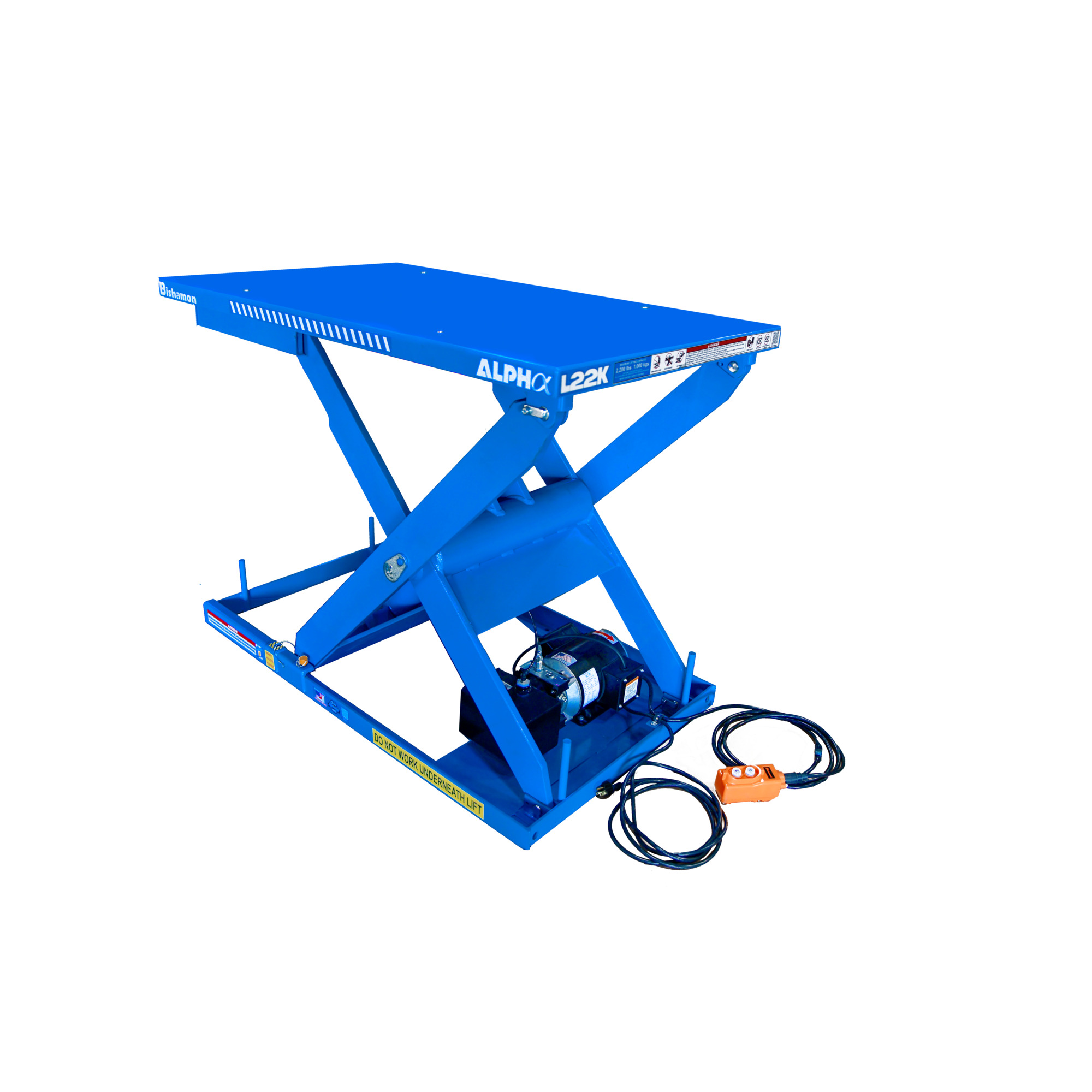

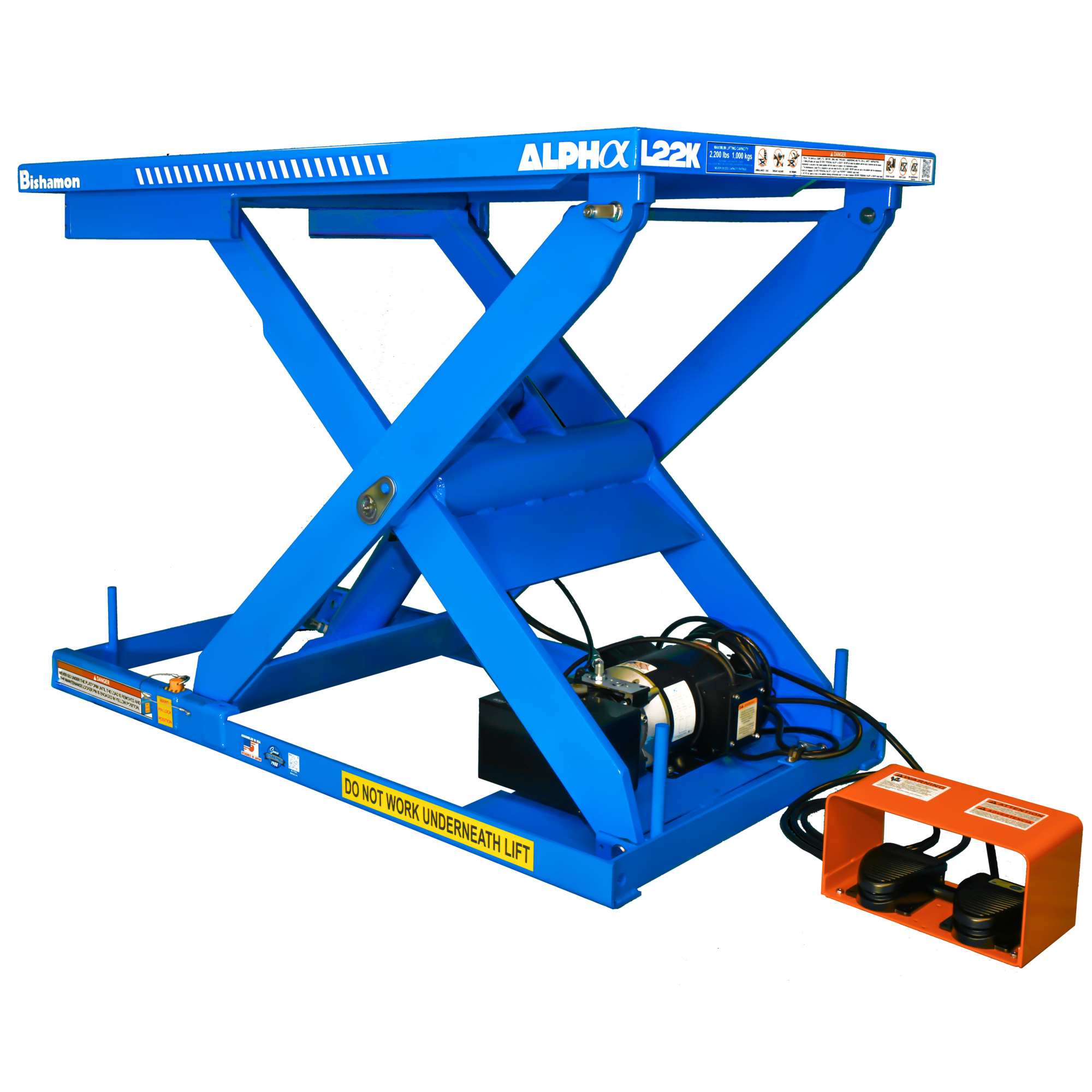

Bishamon Alpha Lift Table — 2,200-Lb. Capacity, 31in. x 53in. Top, 230V 3-Phase Motor, Hand Control, Model# L22K-3153-230-3-H

Item# 7009219
Bishamon Alpha Lift Table — 2,200-Lb. Capacity, 31in. x 53in. Top, 230V 3-Phase Motor, Hand Control, Model# L22K-3153-230-3-H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bishamon Alpha Lift Table — 2,200-Lb. Capacity, 31in. x 53in. Top, 230V 3-Phase Motor, Hand Control, Model# L22K-3153-230-3-H

Click or Tap image to Zoom

$5999.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Modular Design: Tailor the lift to your application with a range of accessories and add-ons. Flexibility comes standard with modular holes on the table tops.
  • Rugged Powder-Coated Finish: Resists scratches, corrosion, and wear—ideal for industrial use.
  • Maintenance-Free Operation: Self-lubricating bushings at all pivot points reduce wear and eliminate ongoing upkeep.
  • Fast, Reliable Lifting: A single heavy-duty cylinder offers quick raise times for improved efficiency without compromising control.
  • Durable Hydraulic System: 1 HP steel reservoir is leak-proof and built to withstand tough conditions.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Bishamon Alpha Lift Series is engineered for those who demand more from their equipment—more durability, reliability, and safety. Designed to thrive in harsh industrial environments, it combines precision engineering with premium materials to deliver consistent, high-performance lifting you can count on. Alpha Lift Series offers lasting and reliable operation, shift after shift. Its modular design provides flexibility to adapt to evolving workflows, while thoughtful features like self-lubricating bushings, controlled lowering, and minimal maintenance requirements reduce downtime and maximize productivity. Backed by UL/CSA-certified components, full ANSI MH29.1:2020 compliance, and an industry-leading 5-year parts and 2-year labor warranty, Bishamon puts your safety and long-term satisfaction first. Choose the Alpha Lift Series and invest in quality that raises the bar and your business.

What's Included

    (1) Lift Table

Features + Benefits

  • Modular Design: Tailor the lift to your application with a range of accessories and add-ons. Flexibility comes standard with modular holes on the table tops.
  • Rugged Powder-Coated Finish: Resists scratches, corrosion, and wear—ideal for industrial use.
  • Maintenance-Free Operation: Self-lubricating bushings at all pivot points reduce wear and eliminate ongoing upkeep.
  • Fast, Reliable Lifting: A single heavy-duty cylinder offers quick raise times for improved efficiency without compromising control.
  • Durable Hydraulic System: 1 HP steel reservoir is leak-proof and built to withstand tough conditions.
  • Stability You Can Trust: Encapsulated roller bearings and continuous axles ensure smooth, controlled movement and high overturning resistance.
  • Quick Maintenance Access: An easy-to-use maintenance pin allows safe access, reducing service time and downtime.
  • Smooth, High-Cycle Performance: Premium ball bearings in wheels and rollers support quiet, efficient operation over time.
  • Controlled Lowering: Flow Limiting Valves prevent sudden drops, ensuring consistent, safe descent.
  • Compact Power Unit: Integrated internal reservoir and power system save space without compromising performance.

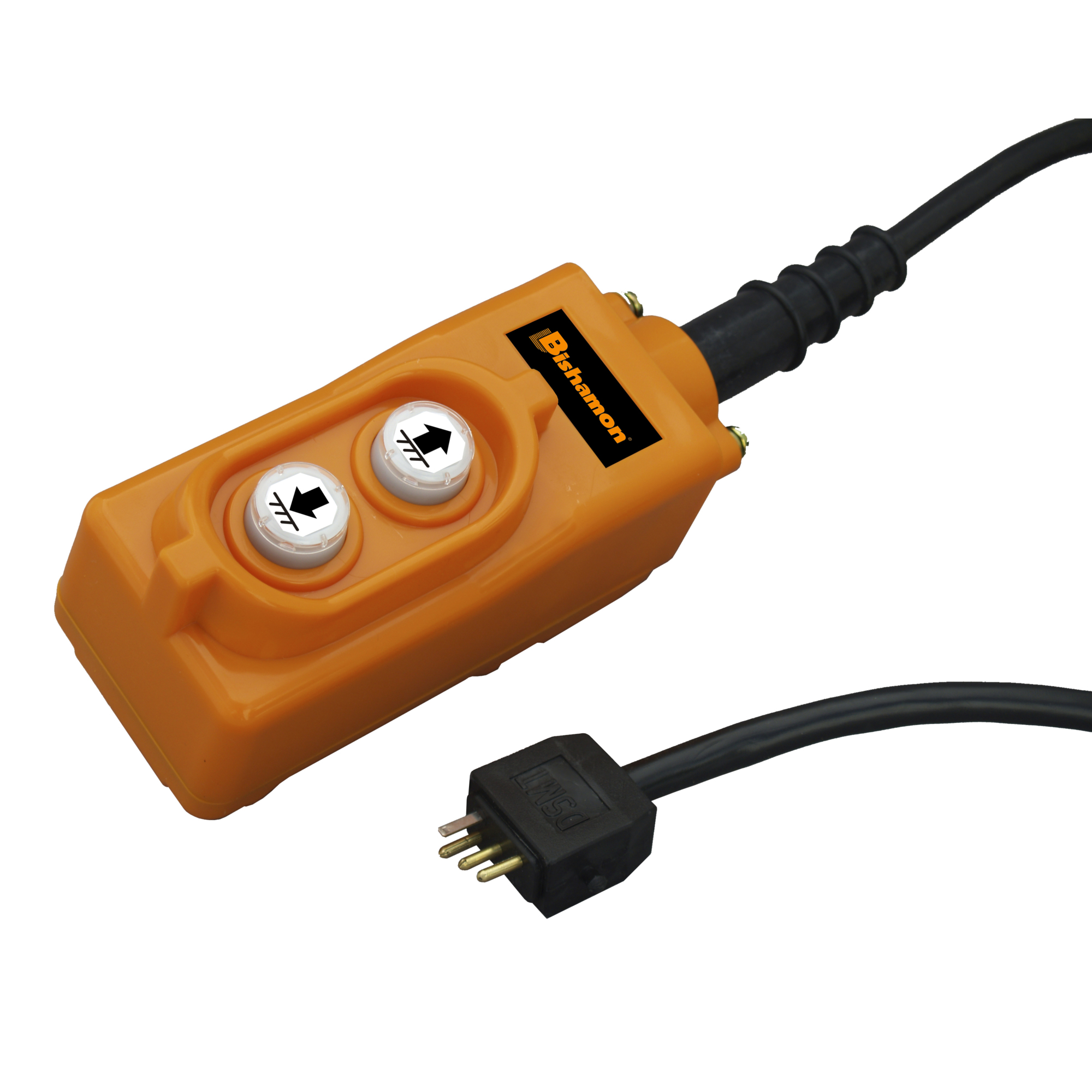

  • User-Friendly Controls: Intuitive plug-and-play operation simplifies use and reduces training time.
  • Certified Safety & Quality: Complies with ANSI MH29.1:2020 and includes UL/CSA-certified electrical components for reliable operation.
  • Industry-Leading Warranty: 5-year parts and 2-year labor coverage ensures long-term confidence in your investment.

Key Specs

AttributeSpecification

item#

7009219

Brand

Bishamon Industries

Manufacturer's Warranty

1 year limited warranty

Ship Weight

550.0 LB

Capacity

2,200 lb

Lowered Height

8.5 in

Raised Height

38.5 in
AttributeSpecification

Platform Length

53 in

Platform Width

31 in

Material

Steel

Tilting

No

Product Weight

550.0000 lb

Dimensions L x W x H (in.)

36.0 x 60.0 x 16.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
