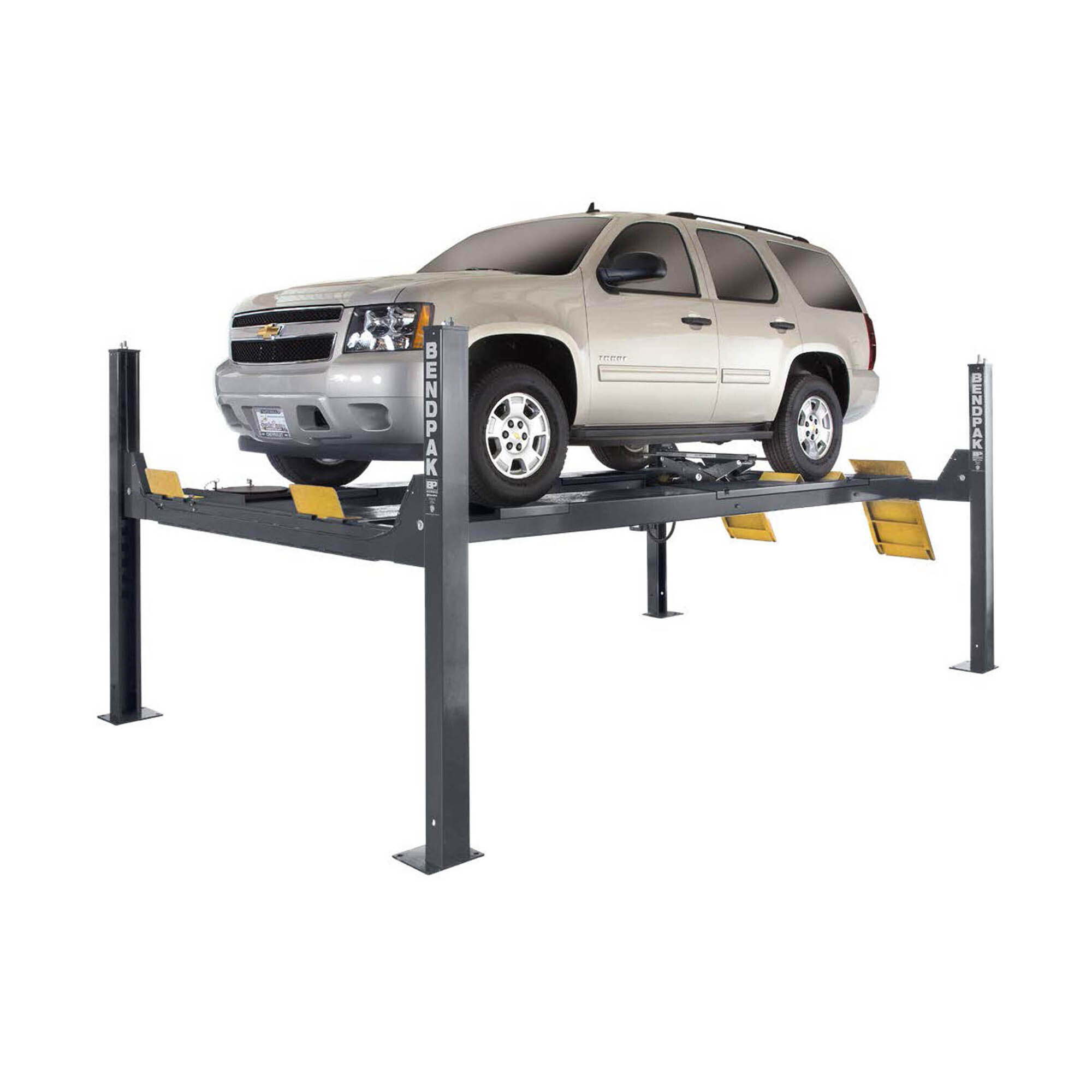

BendPak Alignment Lift, Limo-Extended, 14,000-Lb. Capacity, Model# HDS-14LSXE

Item# 5791171
BendPak Alignment Lift, Limo-Extended, 14,000-Lb. Capacity, Model# HDS-14LSXE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Alignment Lift, Limo-Extended, 14,000-Lb. Capacity, Model# HDS-14LSXE

Click or Tap image to Zoom

$12,370.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The HDS14LSXE alignment lift is the "limo style" version of the HDS14LSX. Compared to the standard length version, this lift extends the overall length of the lift, as well as the runways, by 30". This significant increase makes it possible to load longer cars, trucks, SUVs and even some limousines.
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
  • Forklift Required
  • Multi?position turn plate pockets
  • Automatic leveling system

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Extended-Length Alignment Lift Offers 14,000 lbs. of Power This model is essential for hundreds, if not thousands, of shops across the country. Busy bays are going to service a variety of vehicles, and depending where you work, you're likely to get some exceptionally big vehicles in need of alignment services. This model all but guarantees you'll be ready to handle anything. With a 14,000-lb. capacity, the HDS-14SLXE lifts virtually all residential vehicles, from sedans to heavy-duty pick-up trucks to municipal vehicles and farming equipment. Turn plates in the front and multi-caster slip plates in the back allow for perfectly precise, free-floating alignments. Aluminum-alloy construction turn plates are easily positioned using BendPak’s turn plate pockets. Larger and more robust than our previous slip-plate design, they're also lighter in construction and feature dual "popsicle gap stops" for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use your machine strictly as a maintenance or storage lift.

What's Included

    (1) (1) 4 Post Lift

Features + Benefits

  • The HDS14LSXE alignment lift is the "limo style" version of the HDS14LSX. Compared to the standard length version, this lift extends the overall length of the lift, as well as the runways, by 30". This significant increase makes it possible to load longer cars, trucks, SUVs and even some limousines.
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
  • Forklift Required
  • Multi?position turn plate pockets
  • Automatic leveling system
  • Runways include rail?kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway
  • Internal “Anti-Sway” slider blocks in each column
  • Features oversize sheaves and heavy?duty 1/2” aircraft cable
  • Runways adjust for different tread widths and feature a durable matte finish
  • Multi?position safety locks in each column with push?button safety release

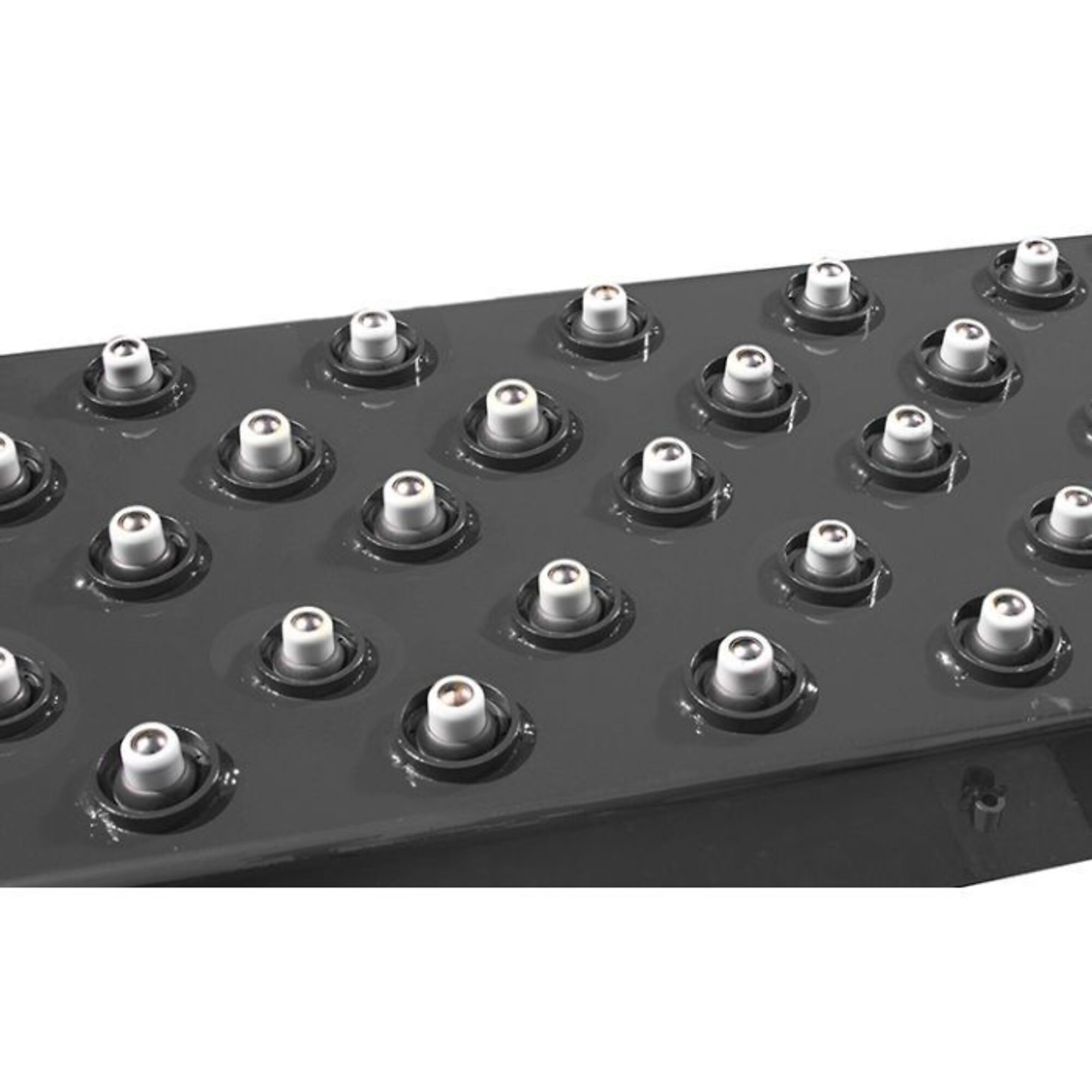

  • Heavy?duty turn plates and integrated rear slip?plates included

Key Specs

AttributeSpecification

item#

5791171

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

3368.0 LB

Capacity

14,000 lb

Max. Rise

6.3 ft

Horsepower

3 HP

Motor Phase

Single-phase
AttributeSpecification

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

15

Time of Full Rise

60 sec.

Drive-Thru Clearance

98 in

Material

Steel

Product Weight

3340.0000 lb

Dimensions L x W x H (in.)

272.0 x 130.0 x 95.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak Alignment Lift, Limo-Extended, 14,000-Lb. Capacity, Model# HDS-14LSXE
BendPak Open-Front Alignment 4-Post Vehicle Lift, 14,000-Lb. Capacity, Model# HDSO14AX
BendPak 4-Post Extended Truck Lift, 40,000-Lb. Capacity, Model# HDS-40X
BendPak 4-Post Extended Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14LSX
Capacity
Same

14,000 lb

14,000 lb

40,000 lb

14,000 lb

Max. Rise
Same

6.3 ft

6.5 ft

5.8 ft

6.4 ft

Horsepower
Same

3 HP

3 HP

5 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Lock Spacing
Same

4 in

4 in

4 in

4 in

Locking Position (qty.)
Same

15

15

13

15

Time of Full Rise
Same

60 sec.

60 sec.

75 sec.

60 sec.

Drive-Thru Clearance
Same

98 in

98 in

109 in

98.25 in

Material
Same

Steel

Steel

Steel

Steel

Product Weight
Same

3340.0000 lb

3,586 lb

-

-

Dimensions L x W x H (in.)
Same

272.0 x 130.0 x 95.0 in

-

-

-
