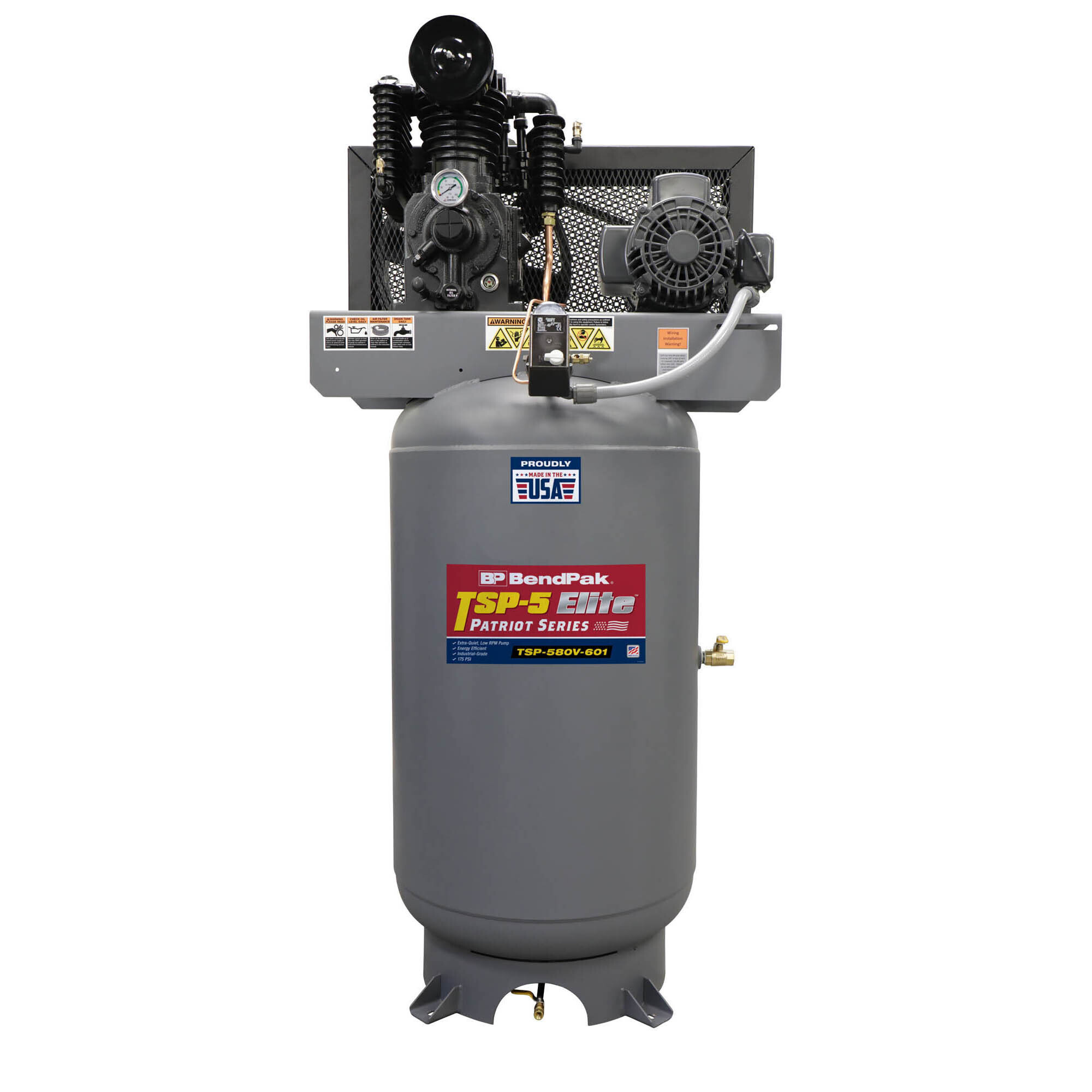

BendPak TSP-5 Air Compressor, 5 HP, 80-Gallon Vertical Tank, Model# TSP-580V-601

Item# 5888264
BendPak TSP-5 Air Compressor, 5 HP, 80-Gallon Vertical Tank, Model# TSP-580V-601

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak TSP-5 Air Compressor, 5 HP, 80-Gallon Vertical Tank, Model# TSP-580V-601

Click or Tap image to Zoom

$4395.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The TSP-5 Patriot air compressor is designed to save energy. Built for high productivity and lower operating costs, it produces more compressed air using an extremely efficient and low-energy-consuming 5 HP motor.
  • Made in USA
  • UL, CSA, ASME certified
  • Forklift Required
  • 5 HP energy?efficient motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TSP-5 is right up there among BendPak’s most popular air compressor. This expertly crafted, slow-running compressor pumps deliver proven longevity in the most demanding conditions. Since they run at a lower RPM than other units out there, they’re quieter, they run cooler, and they’ll end up costing significantly less to operate. The TSP-5 will give you the quality and performance that you’re going to need for heavy-use applications like automotive and body repair to manufacturing and industrial service. This massive V-Max pump comes standard with splash lubrication and a V-4 finned cylinder configuration for 360° cooling. Heavy-duty, disc-type valves have been engineered for absolute reliability, and users can even access them without having to perform complicated valve maintenance procedures or remove the cylinder. A built?in intercooler and air?cooled after-cooler chills the air to bring down the temperatures and keep condensation to a minimum. Still, at its heart, the V-Max Elite air compressor is all about big air with comparably little noise due to slower RPM speeds and a two-stage design.

What's Included

    (1) (1) Air Compressor

Features + Benefits

  • The TSP-5 Patriot air compressor is designed to save energy. Built for high productivity and lower operating costs, it produces more compressed air using an extremely efficient and low-energy-consuming 5 HP motor.
  • Made in USA
  • UL, CSA, ASME certified
  • Forklift Required

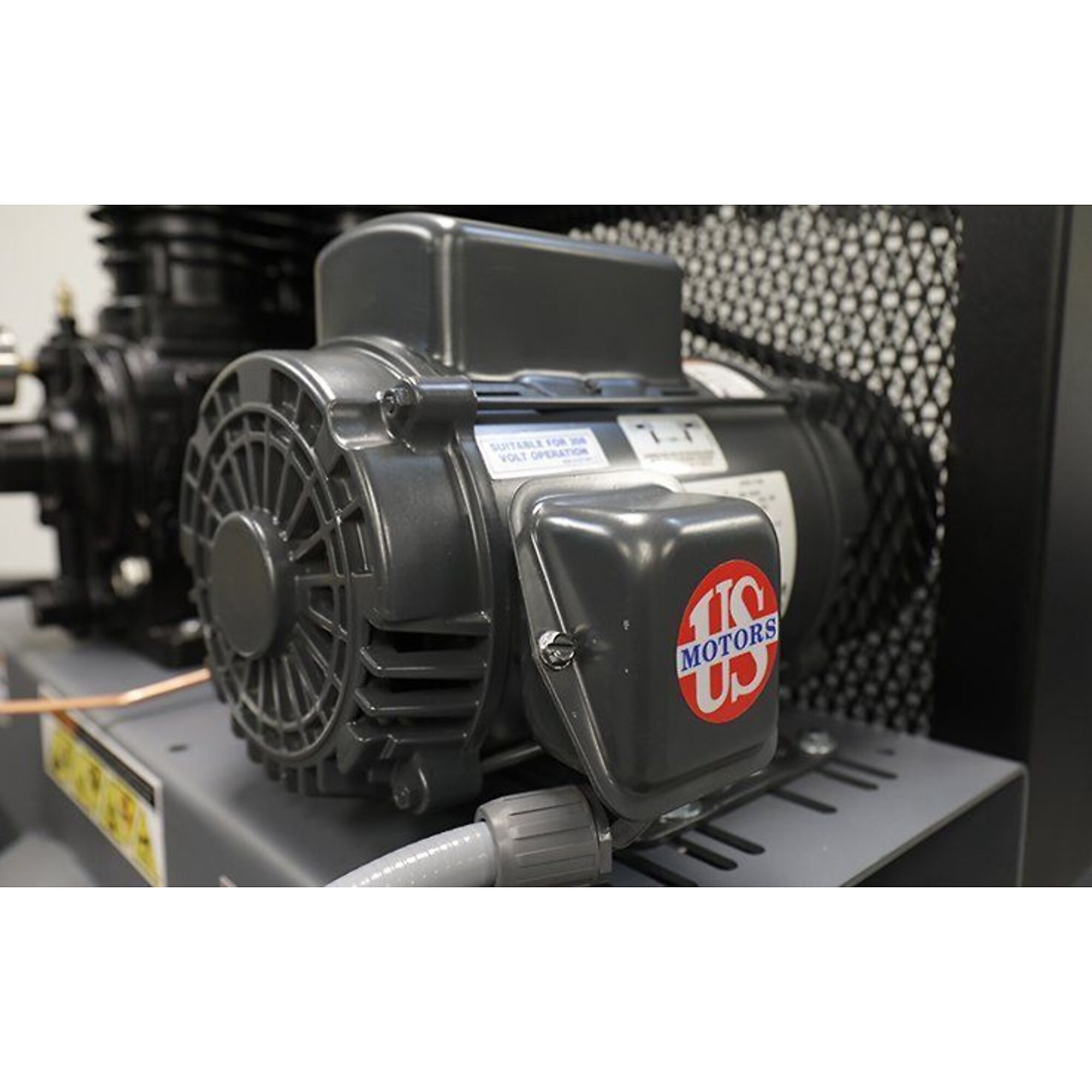

  • 5 HP energy?efficient motor

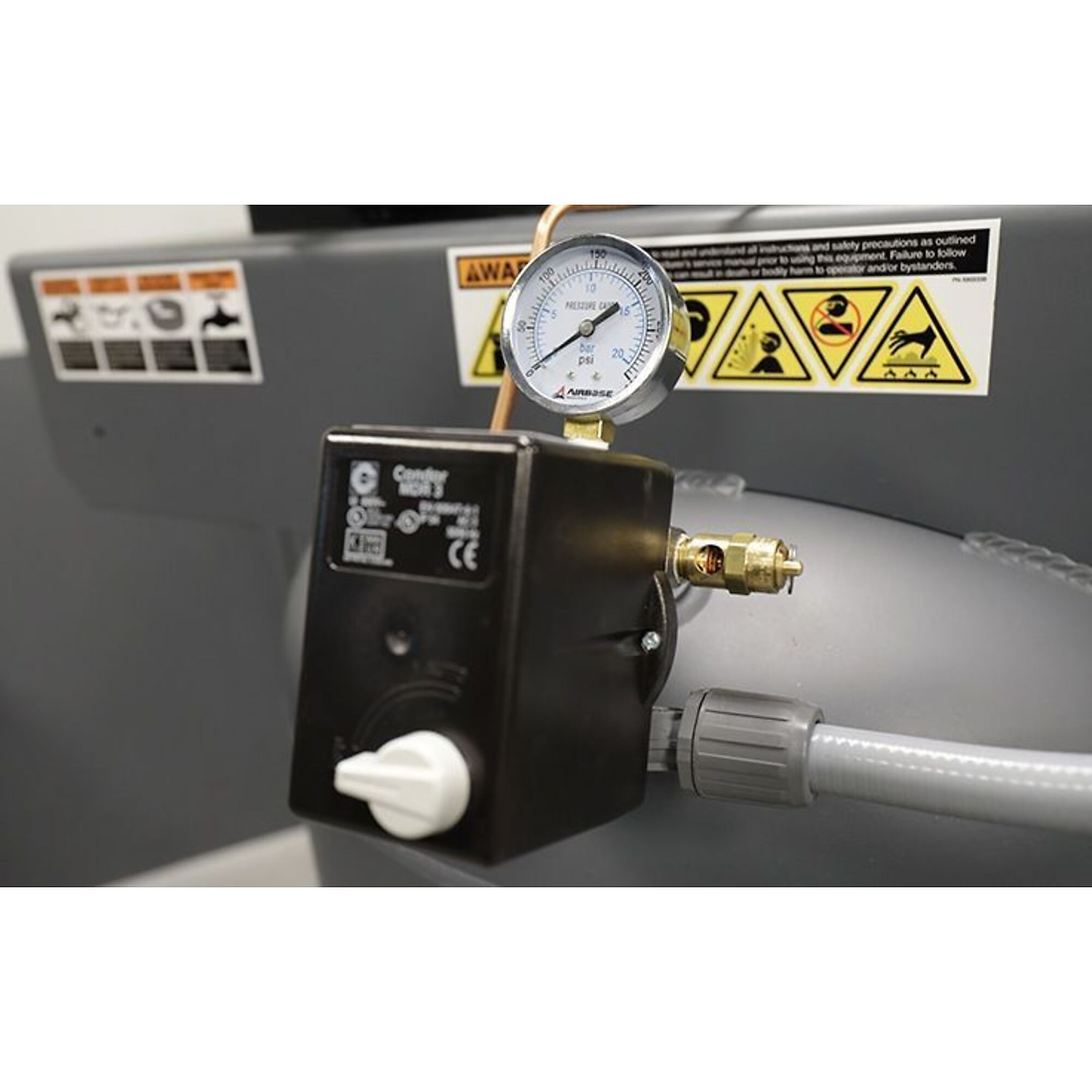

  • Pressure switch ensures efficient operation at all times with no wasted energy
  • Fully?enclosed belt guard
  • ASME-rated tank
  • Cast?iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed?in sleeves
  • ASME-rated safety valve protects the compressor from overpressure and safeguards the operator
  • Extra-quiet, low-RPM pump

Key Specs

AttributeSpecification

item#

5888264

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

602.0 LB

Air Tank Size

80 Gal

Volts

208-230

CFM at 90 PSI

16.15

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

175

Amps

24
AttributeSpecification

Motor RPM

1,750

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

Noise Level

72 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Drain Type

Automatic

Product Weight

590.0000 lb

Dimensions L x W x H (in.)

34.0 x 24.0 x 72.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

5 year limited warranty
