BendPak V-Max Patriot Air Compressor, 7.5 HP, 80-Gallon Vertical Tank, Model# VMP-7580V-603

Item# 5888281
BendPak V-Max Patriot Air Compressor, 7.5 HP, 80-Gallon Vertical Tank, Model# VMP-7580V-603

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak V-Max Patriot Air Compressor, 7.5 HP, 80-Gallon Vertical Tank, Model# VMP-7580V-603

Click or Tap image to Zoom

$5695.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Max Patriot 7580V air compressor from BendPak. V-Max Patriot air compressors meet and exceed your air system needs with high-efficiency technology and unrivaled quality. Made in the USA.
  • Made in USA
  • UL, CSA, ASME certified
  • Forklift Required
  • 7.5 HP energy-efficient motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

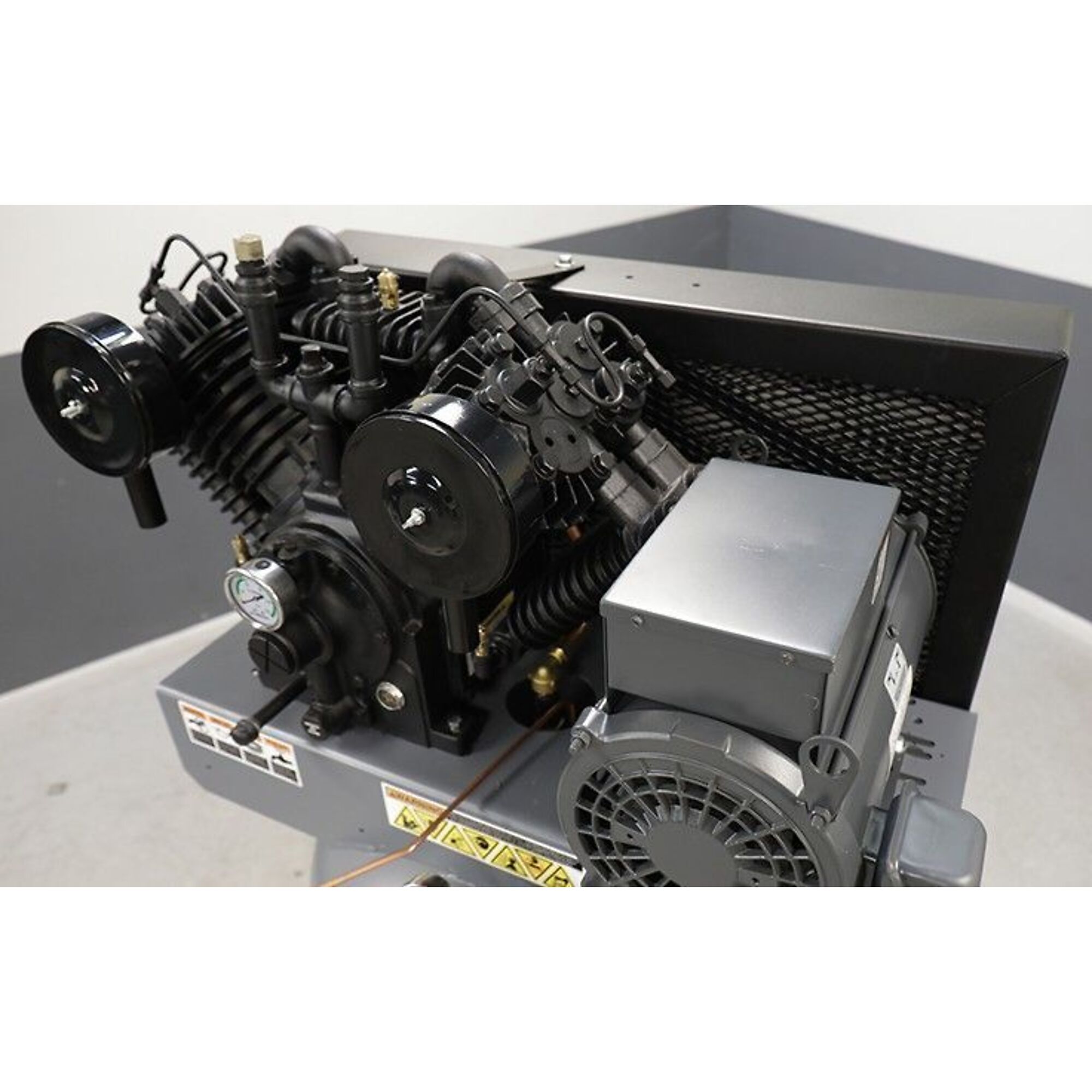

The V-Max Patriot 7580V, 3-phase air system. Like every member of the V-Max Patriot family, the 7580V features the rugged V-Max, four-cylinder pump designed for extreme duty and maximum efficiency under all load conditions. ?The BendPak 7580V is a 2-stage lubricated reciprocating air compressor built with 100% cast-iron pumps to provide the quality and performance required by heavy-use applications like automotive/body repair shops and industrial manufacturing and fleet services. 7.5 HP energy-efficient motor Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a “V-4” finned cylinder configuration that provides 360° cooling Proven air-cooled design is economical, reliable and environmentally friendly

What's Included

    (1) (1) V-Max Patriot Air Compressor

Features + Benefits

  • Max Patriot 7580V air compressor from BendPak. V-Max Patriot air compressors meet and exceed your air system needs with high-efficiency technology and unrivaled quality. Made in the USA.
  • Made in USA
  • UL, CSA, ASME certified
  • Forklift Required
  • 7.5 HP energy-efficient motor
  • Fully-enclosed belt guard
  • ASME-rated tank

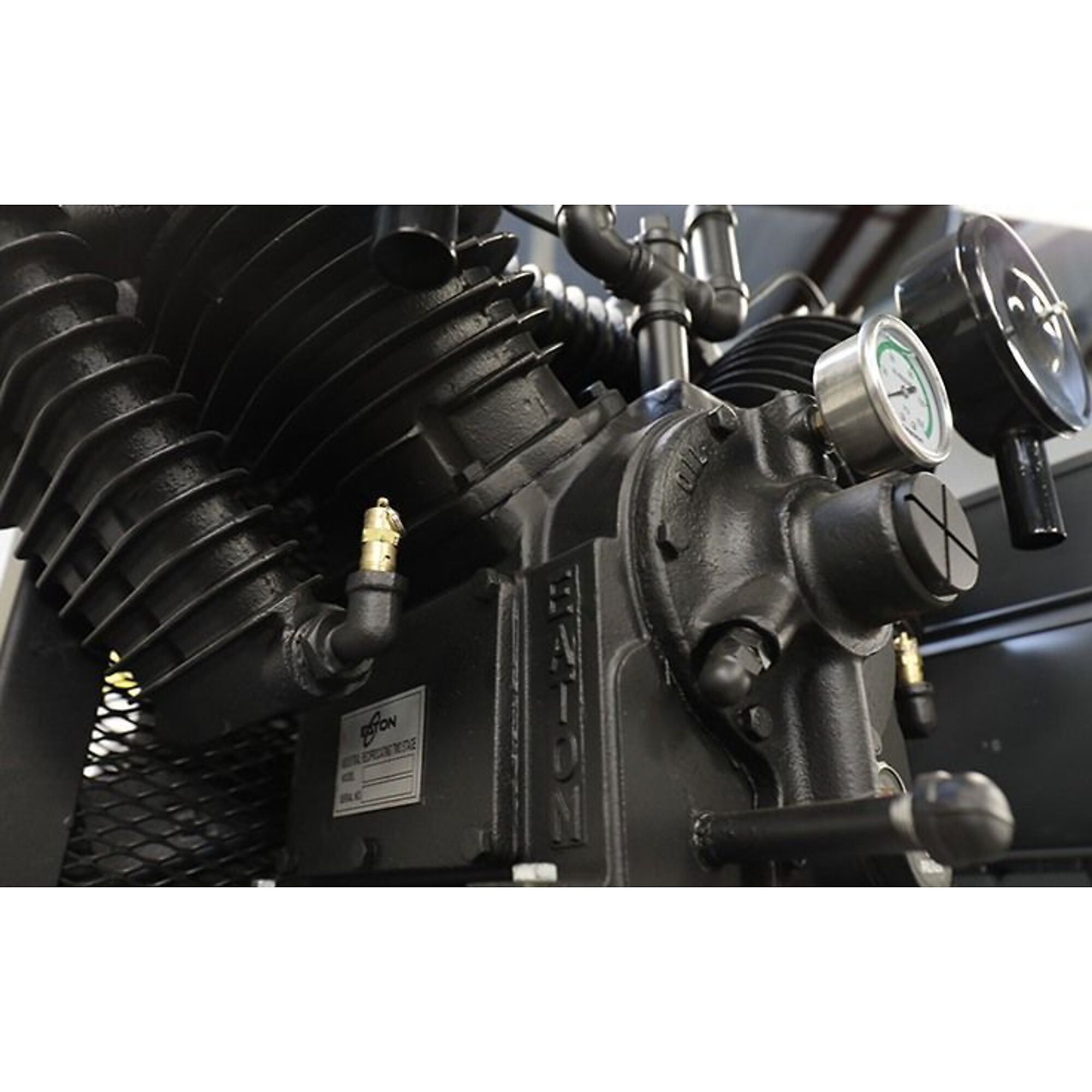

  • Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed-in sleeves
  • Corrosion-resistant tubing for coolers, separators and valves for longer life and reduced maintenance

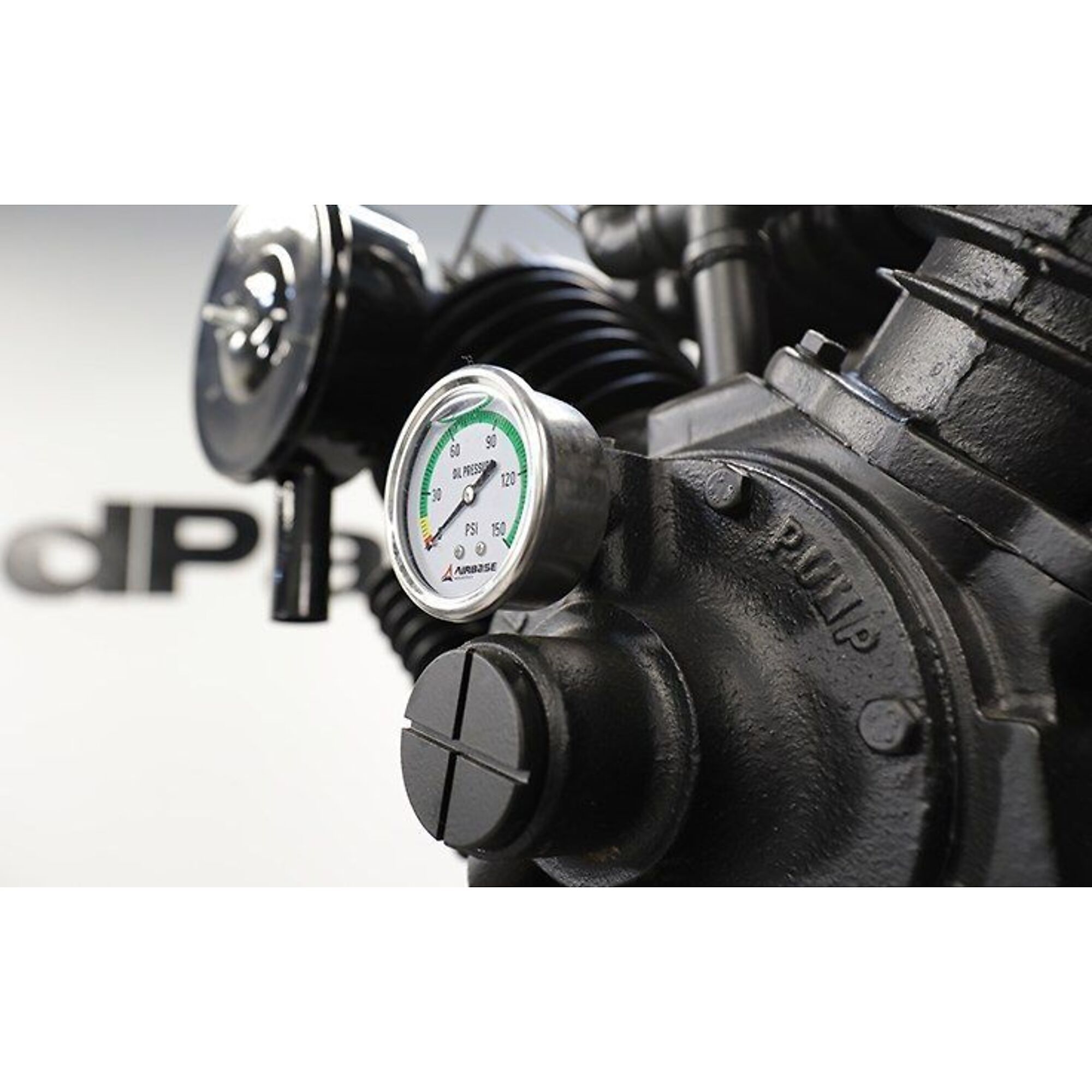

  • Pressure gauge with service valve
  • Extra-quiet, low-RPM pump

Key Specs

AttributeSpecification

item#

5888281

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

958.0 LB

Air Tank Size

80 Gal

Volts

208-230

CFM at 90 PSI

24.7

Motor Phase

3

Stage

2

Tank Orientation

Vertical

Horsepower

7.5 HP

Max. PSI

175

Amps

18
AttributeSpecification

Motor RPM

1,750

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

Noise Level

78 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Drain Type

Automatic

Product Weight

940.0000 lb

Dimensions L x W x H (in.)

34.0 x 24.0 x 72.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
