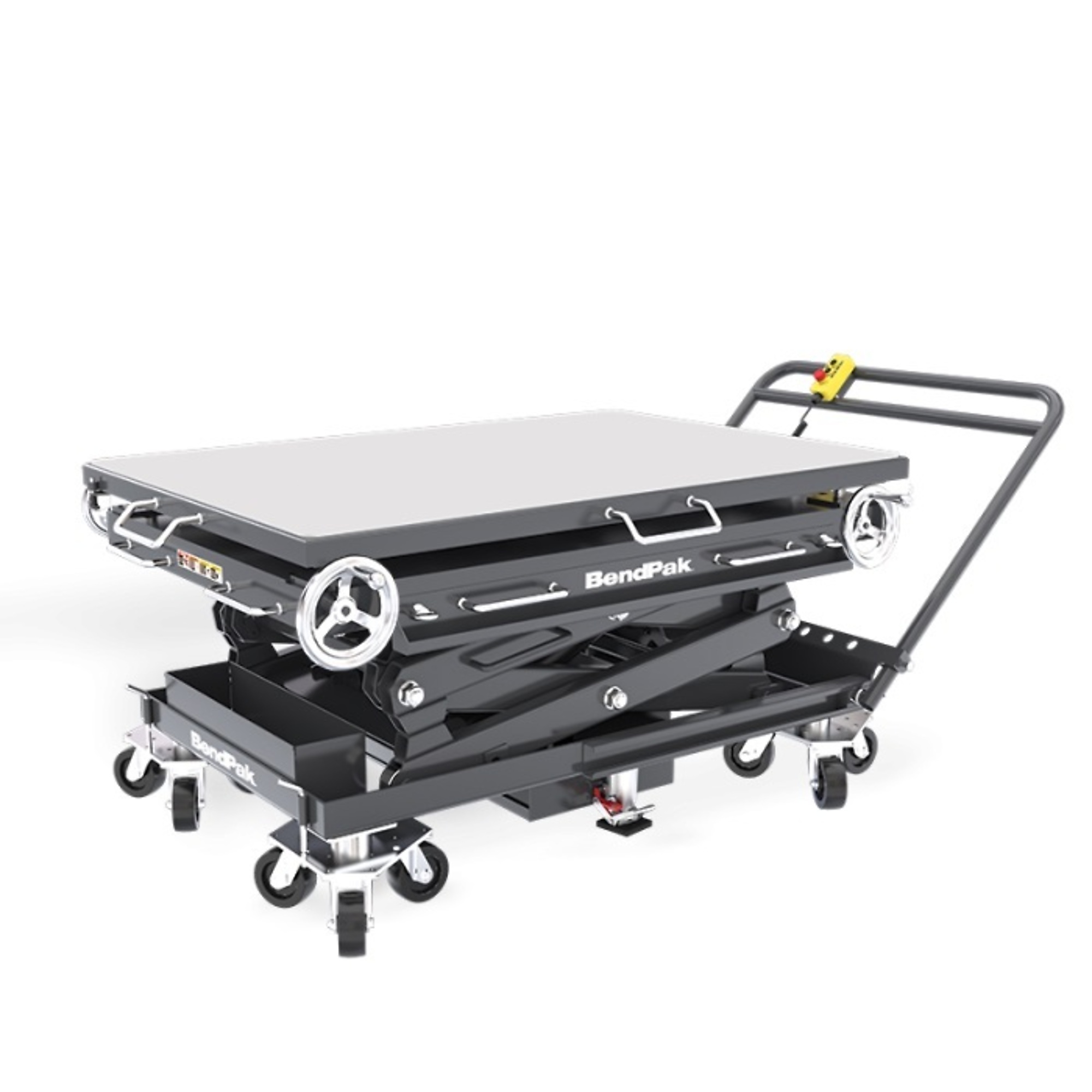

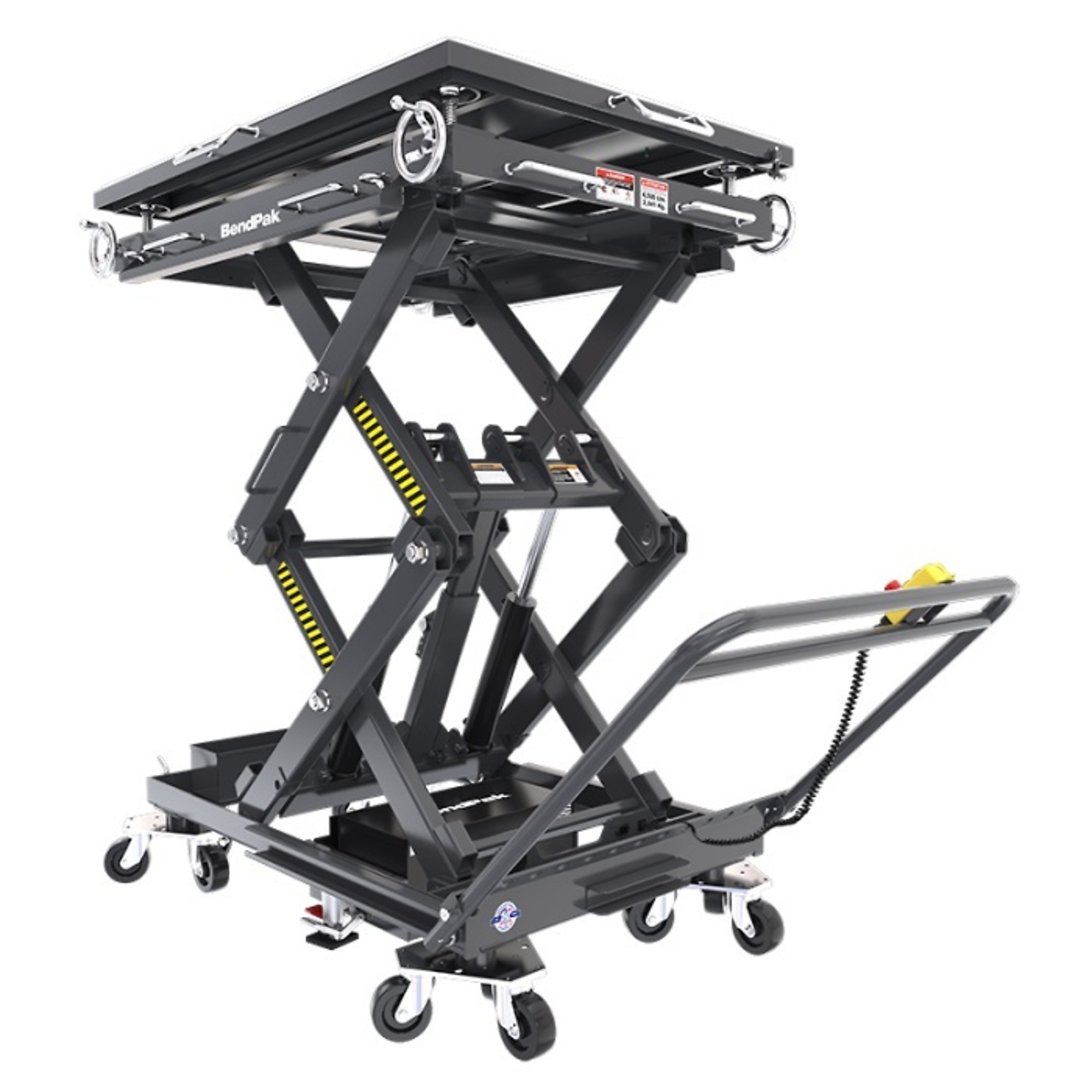

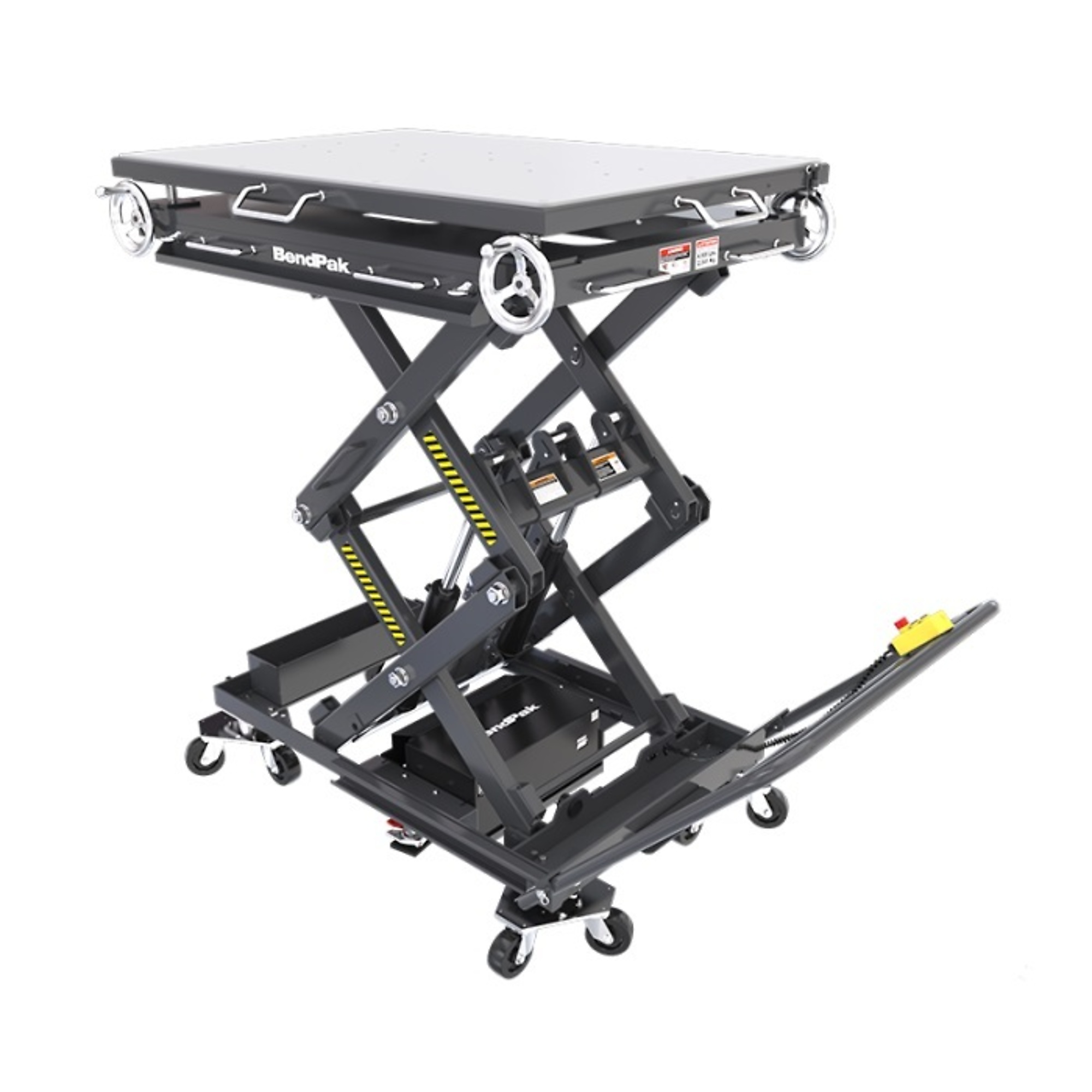

BendPak, 4.500Lb. Cap. EV Battery Lift Rechargeable 12V, Capacity 4500 lb, Max. Lift Height 72 in, Collapsed Height 34.25 in, Model# EVS4500

Item# 6488529
BendPak, 4.500Lb. Cap. EV Battery Lift Rechargeable 12V, Capacity 4500 lb, Max. Lift Height 72 in, Collapsed Height 34.25 in, Model# EVS4500

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak, 4.500Lb. Cap. EV Battery Lift Rechargeable 12V, Capacity 4500 lb, Max. Lift Height 72 in, Collapsed Height 34.25 in, Model# EVS4500

Click or Tap image to Zoom

$11,895.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Zero-throw casters for extreme maneuverability
  • Stowable Tow Bar
  • Forklift Required
  • Tri-caster locking pin
  • DC Electric power system with onboard charging

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

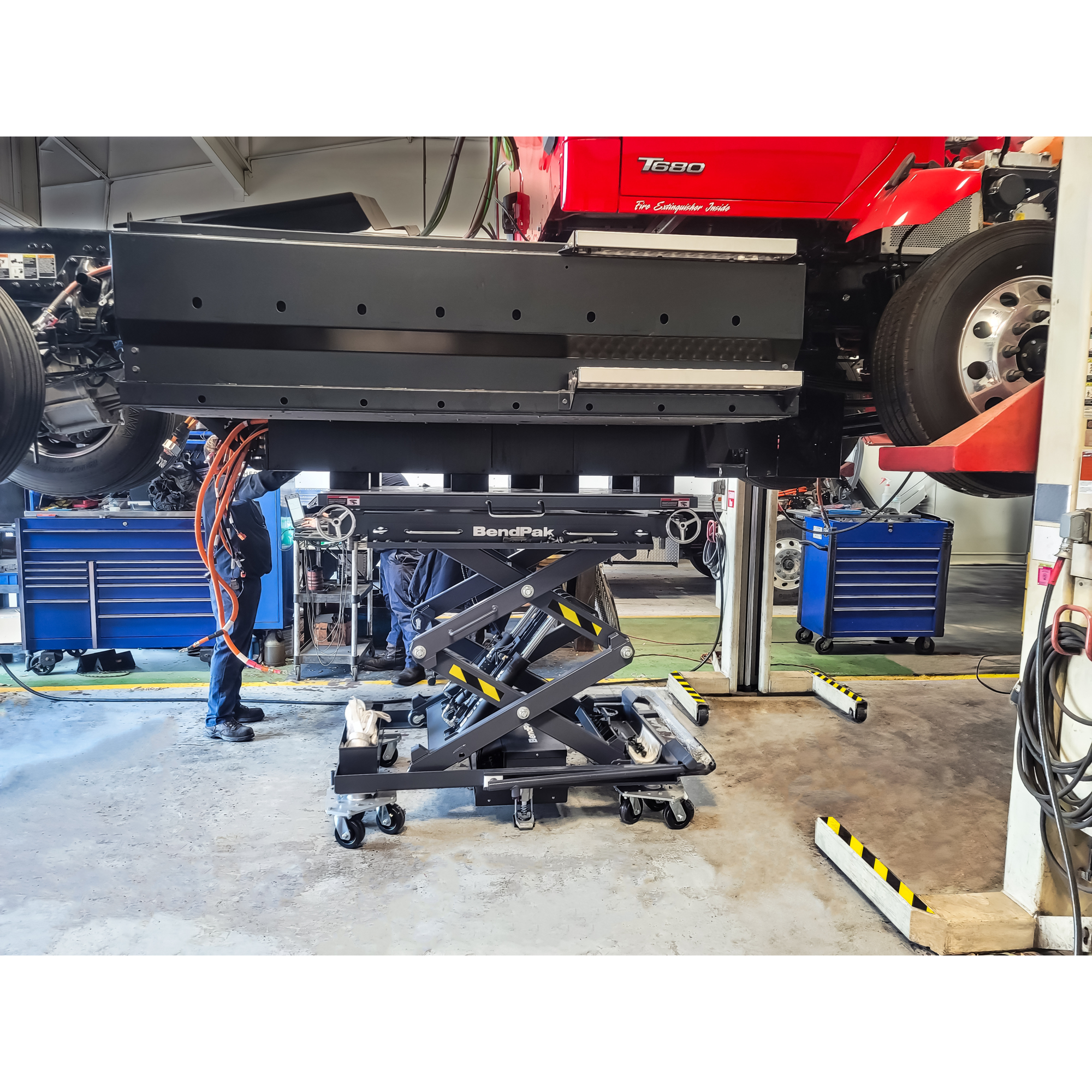

4,500 Lb. Cap. / EV Battery Pack and Powertrain Lift Table / Rechargeable 12V / Incl. Battery BendPak’s revolutionary Mobi-EVS™ line of full-rise battery powered mobile scissor lift tables are perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. The EVS4500 boasts a 4,500-lb. lift capacity and features a compact design which can be easily transported anywhere in the workplace, making them ideal for multi-bay facilities or workplaces with confined areas. With a press of the button on the pendant control, the lift platform elevates to more than 6ft. in less than 20 seconds. Mobi-EVS lift tables feature state-of-the-art engineering and technology within an elegant design that sets a new industry benchmark for performance and versatility. The 63” x 42.5” lift platform is the perfect size for safe handling of heavy battery packs and powertrain systems. The platform surface features multiple recessed anchoring locations for accommodating a variety of modular fixtures, adapters, and accessories that can be repositioned or removed as applications dictate. Twin hydraulic cylinders feature welded construction, chrome-plated rods, and high polished bores for extended seal life. Proprietary seal design reduces leakage and increased seal life for long-lasting, dependable operation. Mobi-EVS systems feature a heavy-duty 12V DC power unit with deep cycle battery, an onboard battery charger, and battery charge indicator gauge that accurately displays the charge condition of the lift battery at all times. Extremely durable and impact-resistant Ultra-High Molecular Weight (UHMW) Polyethylene protects the tabletop from wear and tear and provides a low-friction surface allowing technicians to shift heavy components back and forth on the tabletop with less effort. The UHMW also acts as an insulation barrier that prevents direct contact between electrical components and the conductive surface of the steel platform.

What's Included

    (1) 1 EV Table Lift

Downloads

Product Manual
Safety Data Sheet

Features + Benefits

  • Zero-throw casters for extreme maneuverability
  • Stowable Tow Bar
  • Forklift Required
  • Tri-caster locking pin
  • DC Electric power system with onboard charging
  • Multi-point safety locks
  • Remote control operation
  • Full-length utility trays
  • Manual floor locks
  • Dual scissor design
  • 12-Volt deep cycle battery
  • Twin hydraulic cylinders

Key Specs

AttributeSpecification

item#

6488529

Brand

BendPak

Manufacturer's Warranty

18 month limited warranty

Ship Weight

1918.0 LB

Capacity

4,500 lb

Max. Lift Height

72 in

Collapsed Height

34.25 in
AttributeSpecification

Lift Type

Hydraulic/ Electric

Motor Phase

Single-phase

Volts

12

Material

Steel

Product Weight

1878.0000 lb

Dimensions L x W x H (in.)

91.25 x 52.75 x 77.73 in
