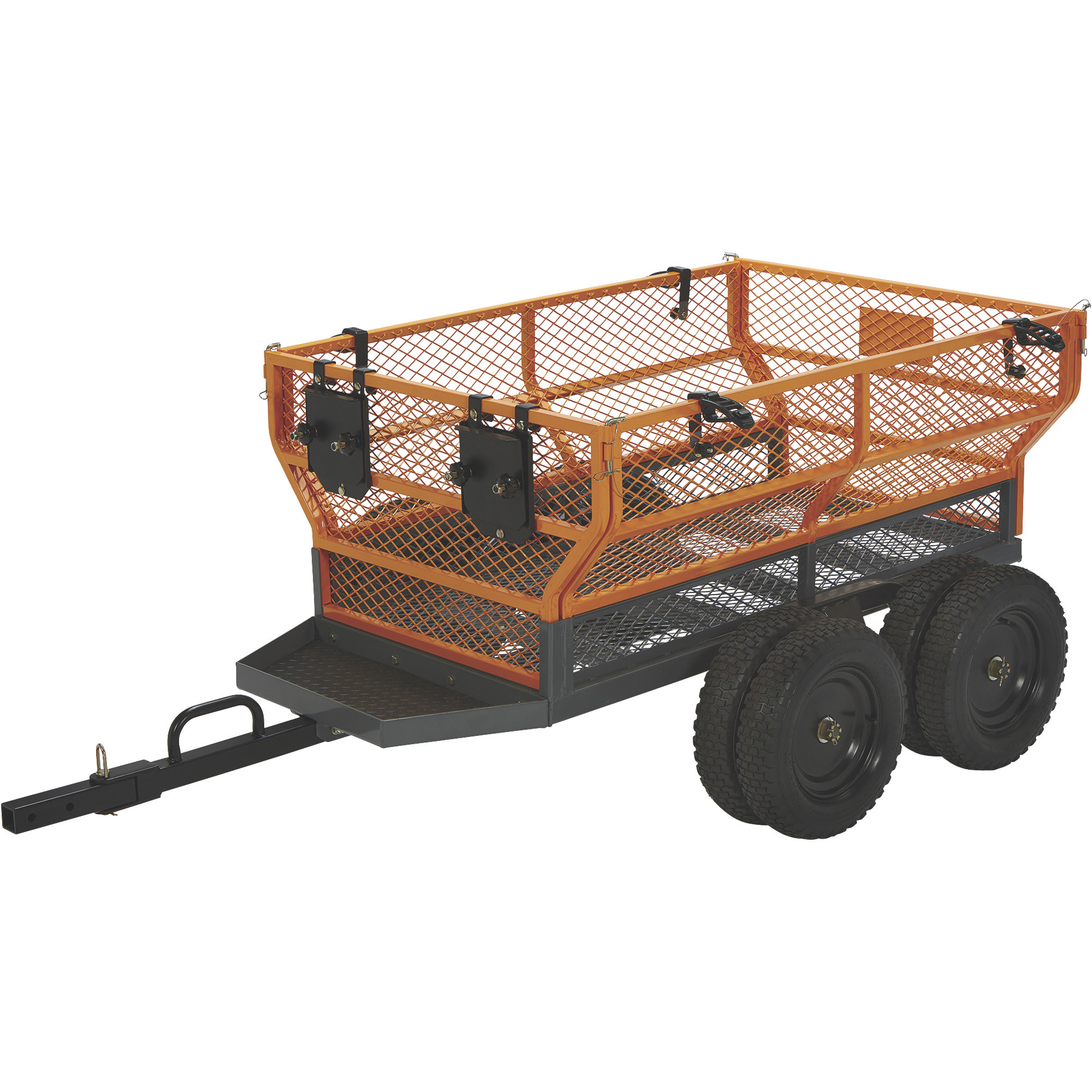

Bannon Utility Trailer with Fold-Down Tailgate and Removable Side Panels, 1600-Lb./24 Cu. Ft. Capacity

Item# 55289
"Bannon Utility Trailer with Fold-Down Tailgate and Removable Side Panels, 1,600-Lb./24 Cu. Ft. Capacity"
On Sale
Bannon Utility Trailer with Fold-Down Tailgate and Removable Side Panels, 1600-Lb./24 Cu. Ft. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bannon Utility Trailer with Fold-Down Tailgate and Removable Side Panels, 1600-Lb./24 Cu. Ft. Capacity

Click or Tap image to Zoom

  • Built Tough for Big Loads: 60in.L x 30in.W rugged steel bed and frame with 1,600-lb./24 cu. ft. capacity
  • Holds More Cargo: Flared side panels increase storage capacity
  • Convertible Design Adds Versatility: Side panels are removable for conversion to a flatbed-style trailer when hauling bulky loads

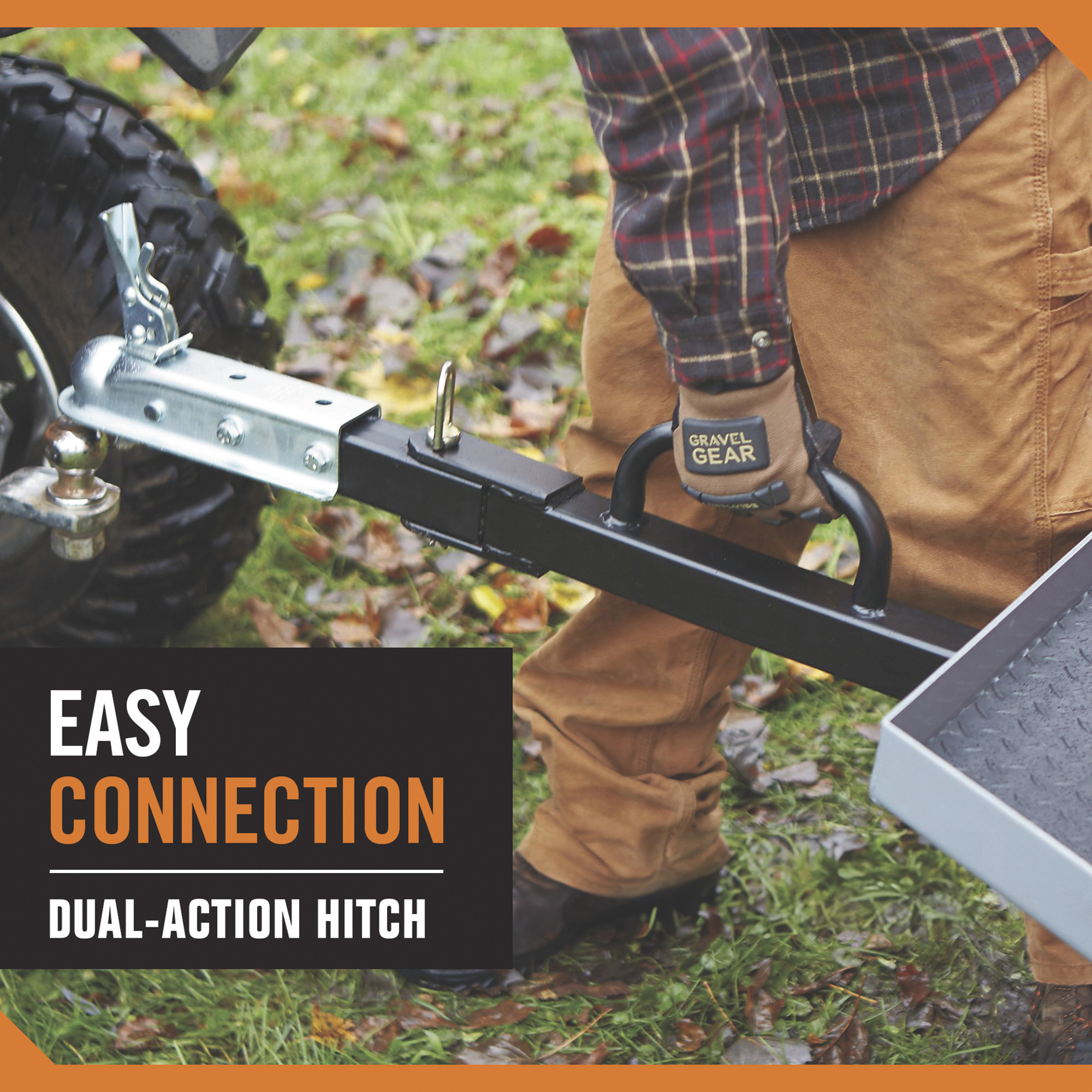

  • Quick + Easy Towing Hookups: Dual-action hitch with built-in lift/alignment handle offers simple connection to the tow vehicle
  • Easy Loading: Removable fold-down tailgate doubles as a loading ramp

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This rugged Bannon Utility Trailer features a large 60in.L x 30in.W steel bed to haul huge loads up to 1,600 lbs. or 24 cu. ft. Flared side panels effectively contain the load but are removable for increased capacity when hauling bulky loads. Some assembly required.

What's Included

    (1) Utility trailer (8) Pneumatic tires (1) Hardware kit (2) Chainsaw holders (4) Tool holders

Downloads

Product Manual
Play Item Video

Designed to Handle Your Job

Built Tough

  • A spacious 60in.L x 30in.W trailer bed puts all fears of limited cargo space to rest
  • 1600-lb./24 cu. ft. capacity is worth its weight in gold when it comes time to haul
  • Tough steel frame and deck construction is built to last
  • Built-in front storage tray with liner is perfect for transporting a battery, small cooler or other compact items

Simply Versatile

  • Side panels feature a flared design that helps to generously increase storage capacity
  • These same flared side panels are removable for easy conversion to a flatbed-style trailer that can haul bulky loads
  • Removable fold-down tailgate doubles as a loading ramp for easy bed access
  • Additional bolt-on accessories are also available to help carry the load — chainsaw holder (Item# 55816), or long handle tool holders (Item# 55817), all sold separately)

Tows the Load

  • Dual-action 3-point hitch with built-in lift/alignment handle makes connection to the tow vehicle quick and easy
  • Get a smooth rolling ride over almost any terrain thanks to the two sets of dual 18in. pneumatic tires
  • Stationary front axle and pivoting rear axle with crawling tires for exceptional mobility

Haul It with Confidence

The Bannon Advantage

  • This Bannon utility trailer features a rugged design and quality construction built for lasting performance
  • Professionals and do-it-yourselfers alike put their complete confidence in the quality and workmanship of Bannon products
  • FREE SHIPPING on this utility trailer makes a great value even better!

Superior Service and Support

  • Bannon's field-trained, dedicated team of experts is ready to help
  • Should you ever need service or support, help is a phone call or e-mail away

Guaranteed Satisfaction

  • Shop in complete confidence, knowing that Northern Tool + Equipment protects your investment and is ready to provide you with the assistance and helpful resources you need
  • Bannon stands behind this product with a 2-year limited warranty

Features + Benefits

  • Built Tough for Big Loads: 60in.L x 30in.W rugged steel bed and frame with 1,600-lb./24 cu. ft. capacity
  • Holds More Cargo: Flared side panels increase storage capacity
  • Convertible Design Adds Versatility: Side panels are removable for conversion to a flatbed-style trailer when hauling bulky loads
  • Quick + Easy Towing Hookups: Dual-action hitch with built-in lift/alignment handle offers simple connection to the tow vehicle
  • Easy Loading: Removable fold-down tailgate doubles as a loading ramp
  • Tames the Toughest Terrain: 2 sets of dual 18in. pneumatic tires easily traverse almost any surface type
  • Exceptional Mobility: Rolls easily over rough terrain with its stationary front axle and pivoting rear axle with crawling tires
  • Added Front Storage: Handy storage tray with liner is built in for easy transport of a battery or a small cooler or other compact item
  • Loaded with Extras: Comes complete with 2 bolt-on chainsaw holders (Item# 55816) plus (2) 2-packs (4 total) of long handle tool holders (Item# 55817)
  • Ready to Customize: Additional bolt-on accessories are also available (sold separately)

Key Specs

AttributeSpecification

item#

55289

Brand

Bannon

Manufacturer's Warranty

2 year limited warranty

Ship Weight

413.0 LB

Load Capacity

1,600 lb

Capacity

24 ft³

Deck Material

Steel
AttributeSpecification

Frame Material

Steel

Product Type

Dump Trailer

Side Rails Included

Yes

Wheel Type

Pneumatic

Wheel Size

18 in

Axle Diameter

1 in

Reviews

Questions & Answers

137 Reviews This action will navigate to reviews.

Questions

1–10 of 46 Questions
Sort by:

  1. What type of finish is on the trailer? Will it rust?

    1. It's painted. I've had mine for a few months, seems to be holding up for now.

      Helpful?

    2. Paint. Yes it will rust.

      Helpful?

    3. painted. so no, not unless paint gets scraped off

      Helpful?

    4. Painted finish, it will rust if you don't do proper touch up.

      Helpful?

    5. The trailer is made of steel with a powder coated finish. The unit has potential to rust if scratched.

      Helpful?

  2. Is this a dump trailer?

    1. It is not

      Helpful?

    2. No, not a dump trailer

      Helpful?

    3. This is not a dump trailer and has basically a heavy screen base. You can however take the sides off. I have carried loads of dirt, sticks, leaves by putting a tarp inside first, then taking off the back or side and rolling the tarp to empty.

      Helpful?

    4. This is not a dump trailer.

      Helpful?

  3. Is this trailer Road Safe, or is it only for garden use?

    1. Tires are low speed. 10mph max

      Helpful?

    2. It's sturdy, but off road only

      Helpful?

    3. For garden use only. The directions state you shouldn't drive over 10 mph.

      Helpful?

    4. This utility trailer is designed for use on own property. It is not approved for use on public roads.

      Helpful?

  4. Is there a liner or way to allow trailer use for dirt, sand, mulch and gravel?

    1. I purchased a livestock mat and cut it to protect the mesh on bottom and sides of trailer. I have used it for hauling gravel.

      For sand I’d buy as I expensive tarp to line the inside. Should work great.

      Helpful?

    2. No just cut pieces of plywood . Simple fix

      Helpful?

    3. There is not a liner available for the trailer.

      Helpful?

  5. what is reccomended tire pressure

    1. Says 30 PSI on them

      Helpful?

    2. Max 30psi

      Helpful?

    3. The recommended (and maximum) PSI for this trailer's tires is 30.

      Helpful?

  6. Does the tires have bearings or bushing on the axels?

    1. Bearings.

      Helpful?

    2. Bearings, one per wheel. They must be packed by hand, so buy a couple of cans.

      Helpful?

    3. The wheels have bearings.

      Helpful?

  7. Can the axles accept a single wide tire and wheel assembly?

    A wider tire is needed to allow the unit to flow over soft wet areas easier.

    1. I don't know whether the axles can accept a single tire, but I do know that I travelled through thick mud and ruts and the tires seemed to handle this ok. Yes, with all the mud it looked like I had only one wide tire on each side by the time I was done, but the mud eventually just fell off. Didn't seem to affect the ride at all..

      Helpful?

    2. This trailer is not designed to accept a single wide tire and wheel assembly.

      Helpful?

  8. Where is it made?

    1. This Bannon trailer is manufactured to our specifications in China.

      Helpful?

    2. China

      Helpful?

  9. Tire info

    When the time comes to replace the tires, what brand are they? What size are they? And where can they be purchased?

    1. This Bannon Utility Trailer is made by Tricam Industries Incorporated. The tire size is 18 x 4-10 with a 1" bore. The replacement wheel/tire, part number MSTW0358, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

    2. Replacement parts can be purchased by calling our parts department at 1-800-657-0516. The parts department is open Monday through Friday 7 am to 6 pm Central time and on Saturday 8 am to 3 pm. The part number is MSTW0358 which is made by Tricam Industries Incorporated. The tire size is 18 x 4-10 with a 1" bore.

      Helpful?

  10. What is the recommended torque to use when tightening axle nuts?

    1. Didnt tighten them too much, just enough to hold them in place without wobbling and able to turn freely and then put the cotter pin in

      Helpful?

    2. When installing the axle/castle nuts, they should not be torqued on. This could crush the roller bearings. The castle nuts should be initially hand tightened then slightly loosened to allow the locking pin to be inserted in the next/nearest open hole.

      Helpful?
