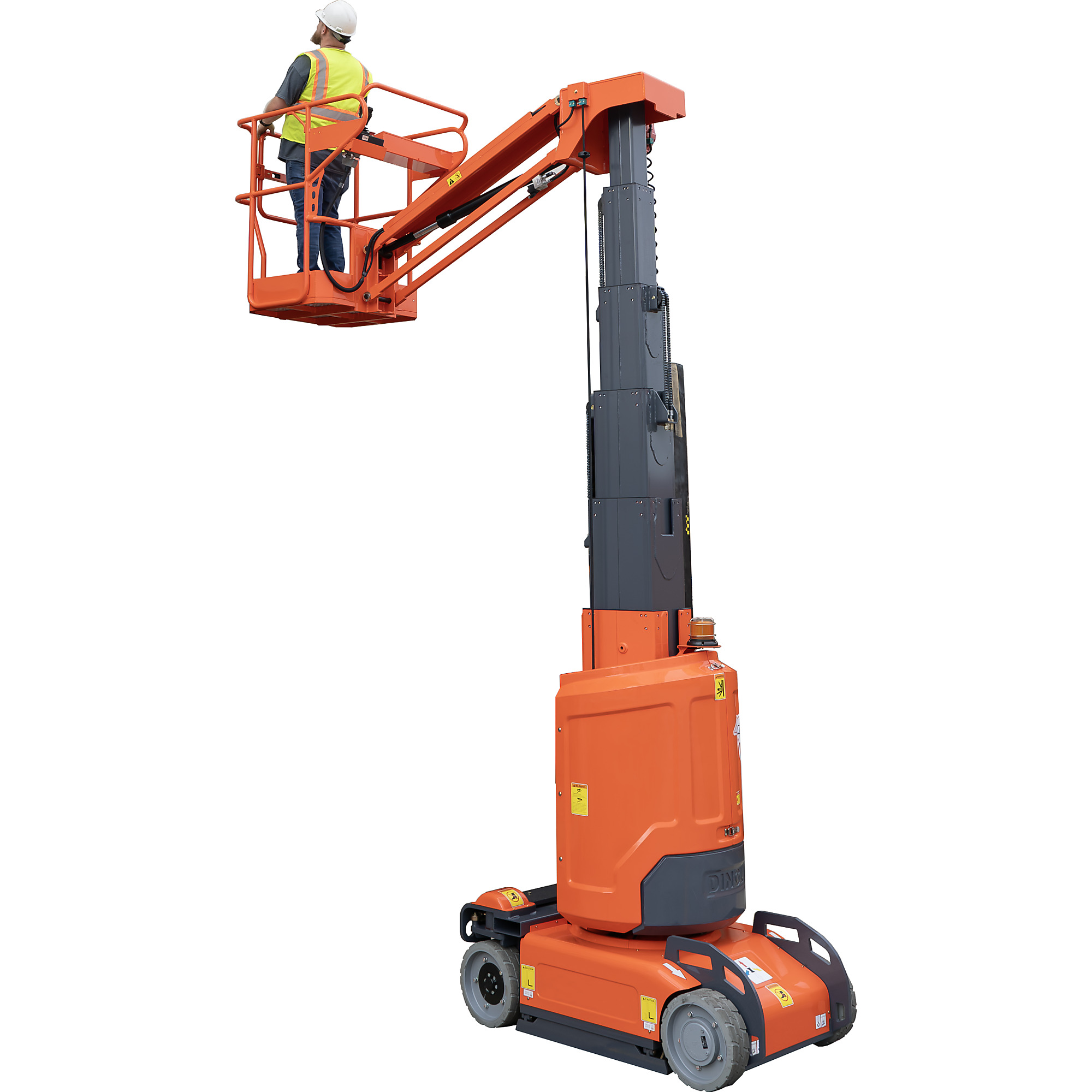

Ballymore Drivable Vertical Mast Lift — 30ft. Platform Height, 440-Lb. Capacity, 36ft. 9in. Working Height, Model# DVML-30RJ

Item# 7002826
Ballymore Drivable Vertical Mast Lift — 30ft. Platform Height, 440-Lb. Capacity, 36ft. 9in. Working Height, Model# DVML-30RJ

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ballymore Drivable Vertical Mast Lift — 30ft. Platform Height, 440-Lb. Capacity, 36ft. 9in. Working Height, Model# DVML-30RJ

Click or Tap image to Zoom

$61,029.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Proportional joystick controls
  • The turret has a rotation range of 345°
  • The 9FT jib articulates within a 130° range
  • Drivable at full height
  • Standard safety features including an automatic brake system, emergency descent system, tilt sensor with alarm, all motion alarm, automatic pothole protection, overload alarm system, emergency stop button, horn, and onboard diagnostics

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

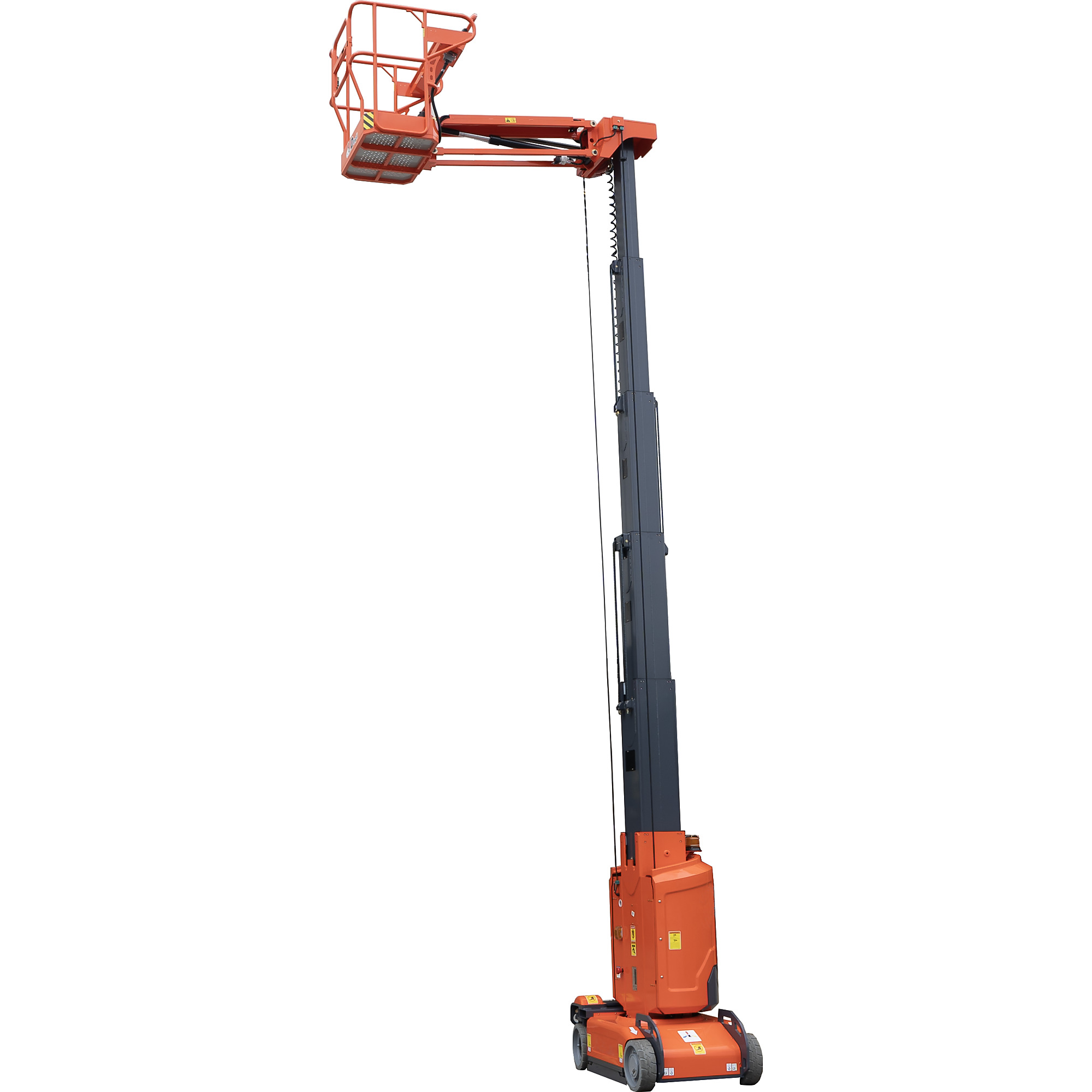

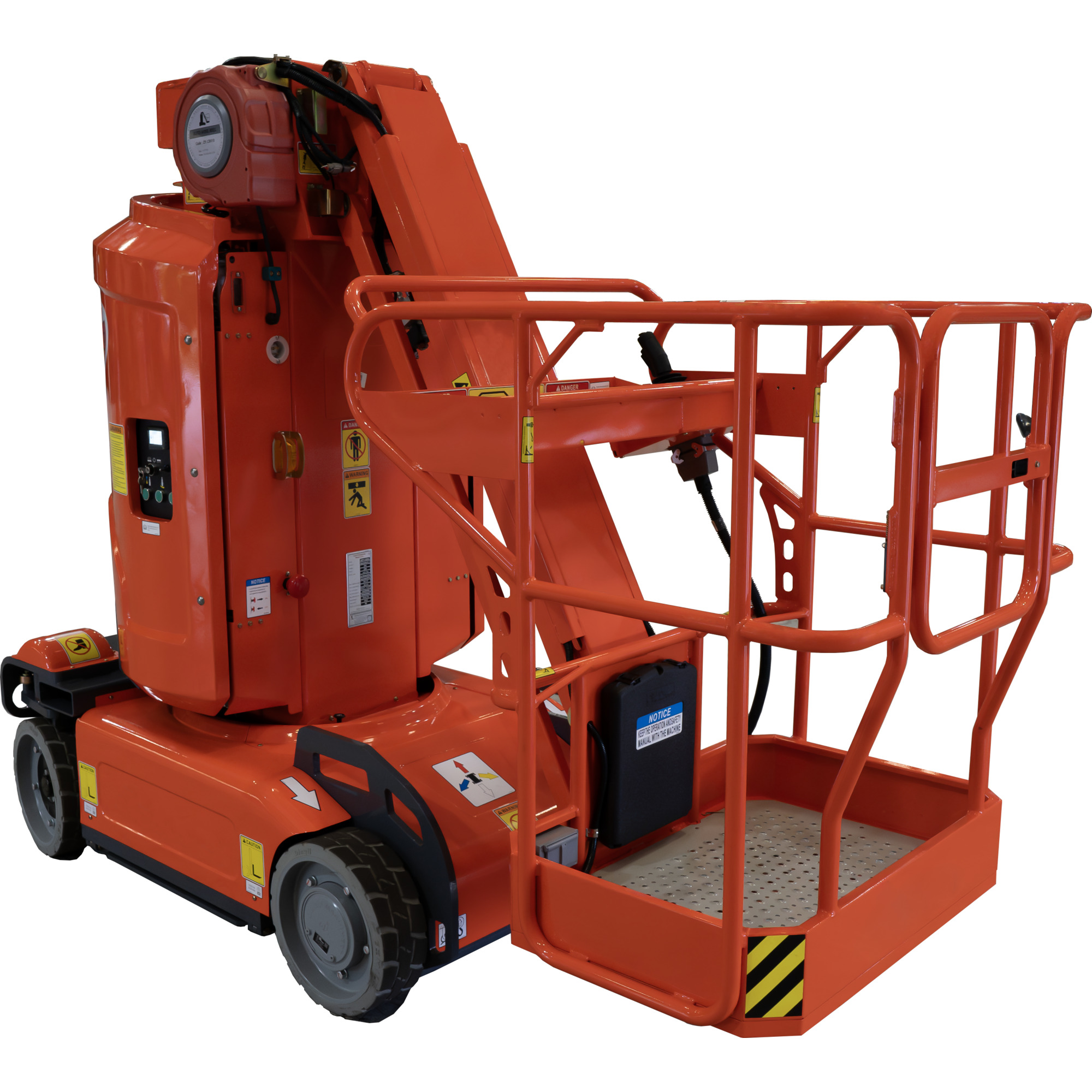

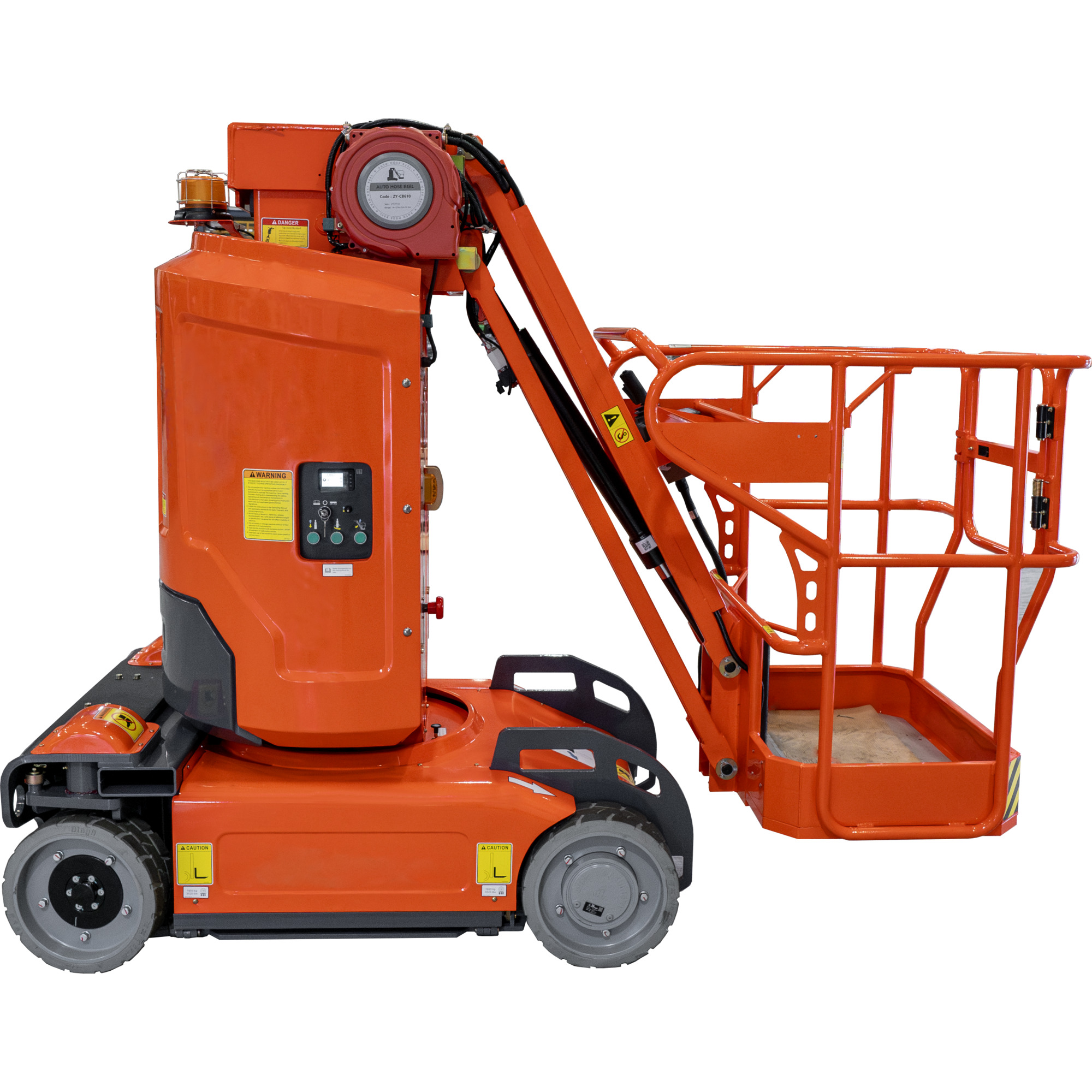

The Ballymore DVML-30RJ is a self-propelled vertical mast lift with jib and turret rotation designed for use in narrow spaces such as warehouses, supermarkets, hotels, and airports. It features a fully sealed AC system and maintenance-free batteries. The lift has a maximum working height of 36ft. 9in., and can be driven at full height. It offers a 9ft. 3in. horizontal extension, enhancing its reach and flexibility for getting up and over obstacles. With a turret rotation range of 345° and a platform width of 37in. it is possible to get full 360° coverage without having to reposition the lift. It's compact footprint makes for easy storage despite its high reach and capability.

What's Included

    (1) Lift

Downloads

Safety Data Sheet

Features + Benefits

  • Proportional joystick controls
  • The turret has a rotation range of 345°
  • The 9FT jib articulates within a 130° range
  • Drivable at full height
  • Standard safety features including an automatic brake system, emergency descent system, tilt sensor with alarm, all motion alarm, automatic pothole protection, overload alarm system, emergency stop button, horn, and onboard diagnostics

Key Specs

AttributeSpecification

item#

7002826

Brand

Ballymore

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6550.0 LB

Capacity

440 lb

Working Height

36 ft

Platform Height

30 in
AttributeSpecification

Charger Included

Yes

Gradeability %

10

Lift Type

Hydraulic

Turning Radius

71 in

Product Weight

6548.0000 lb

Dimensions L x W x H (in.)

103.0 x 39.4 x 78.3 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
