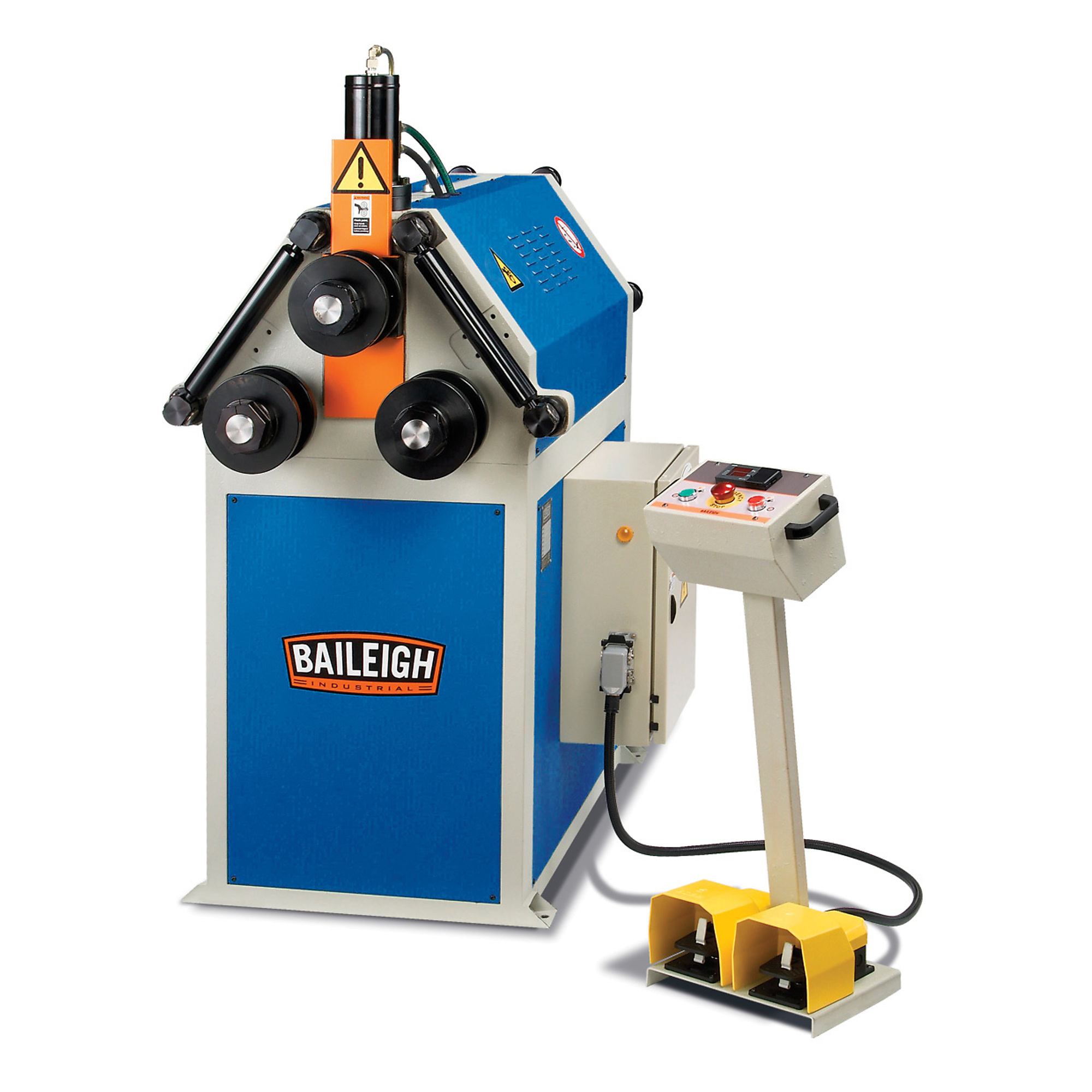

Baileigh, Roll Bender, Max. Material Gauge 20 Model# R-H55
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$20,849.99
- This angle ring roller runs on 220-volt 3-phase power.
- Bend up to 4” round tubing with a .083 wall.

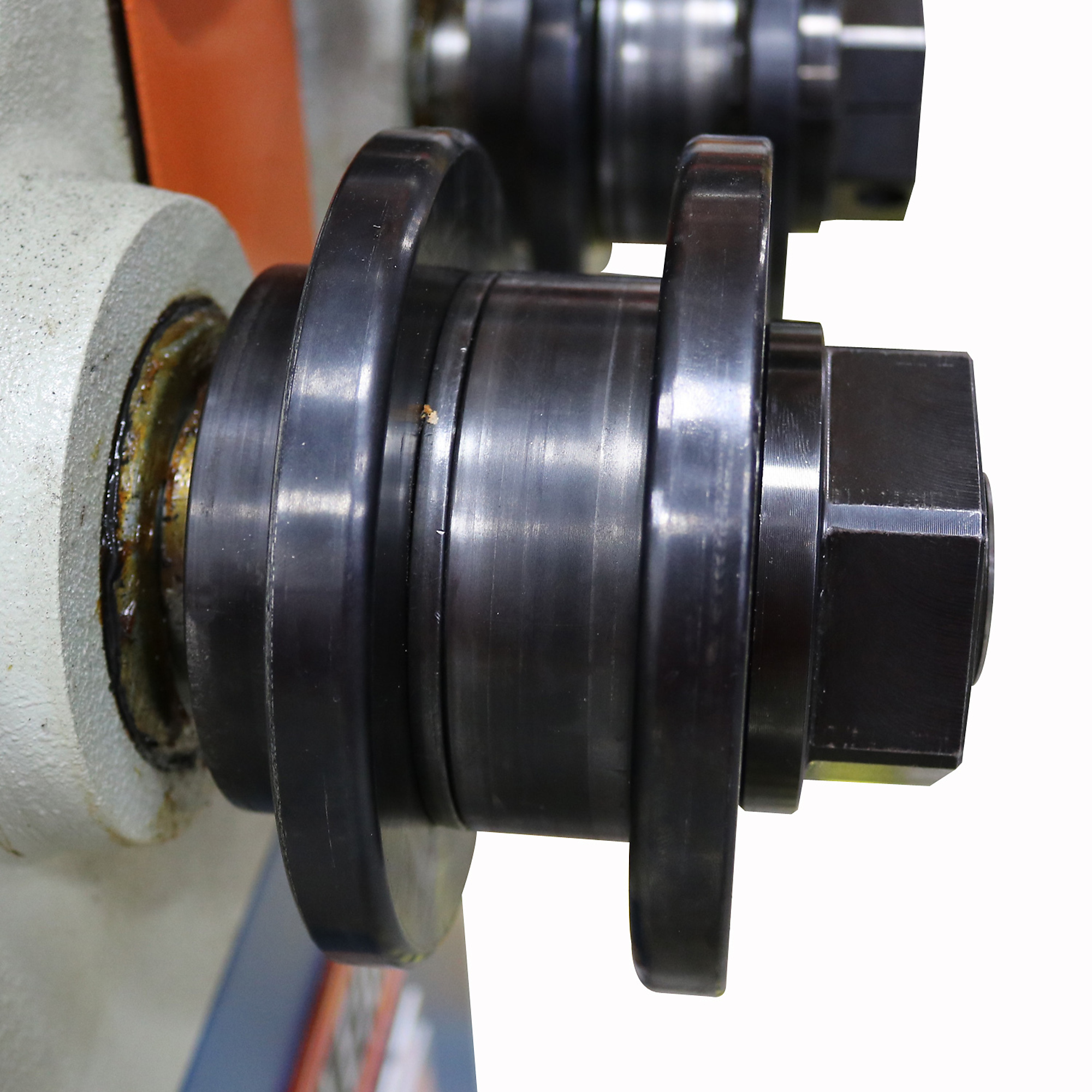

- 3 rolls driven by 5 HP motor with direct-drive transmission.

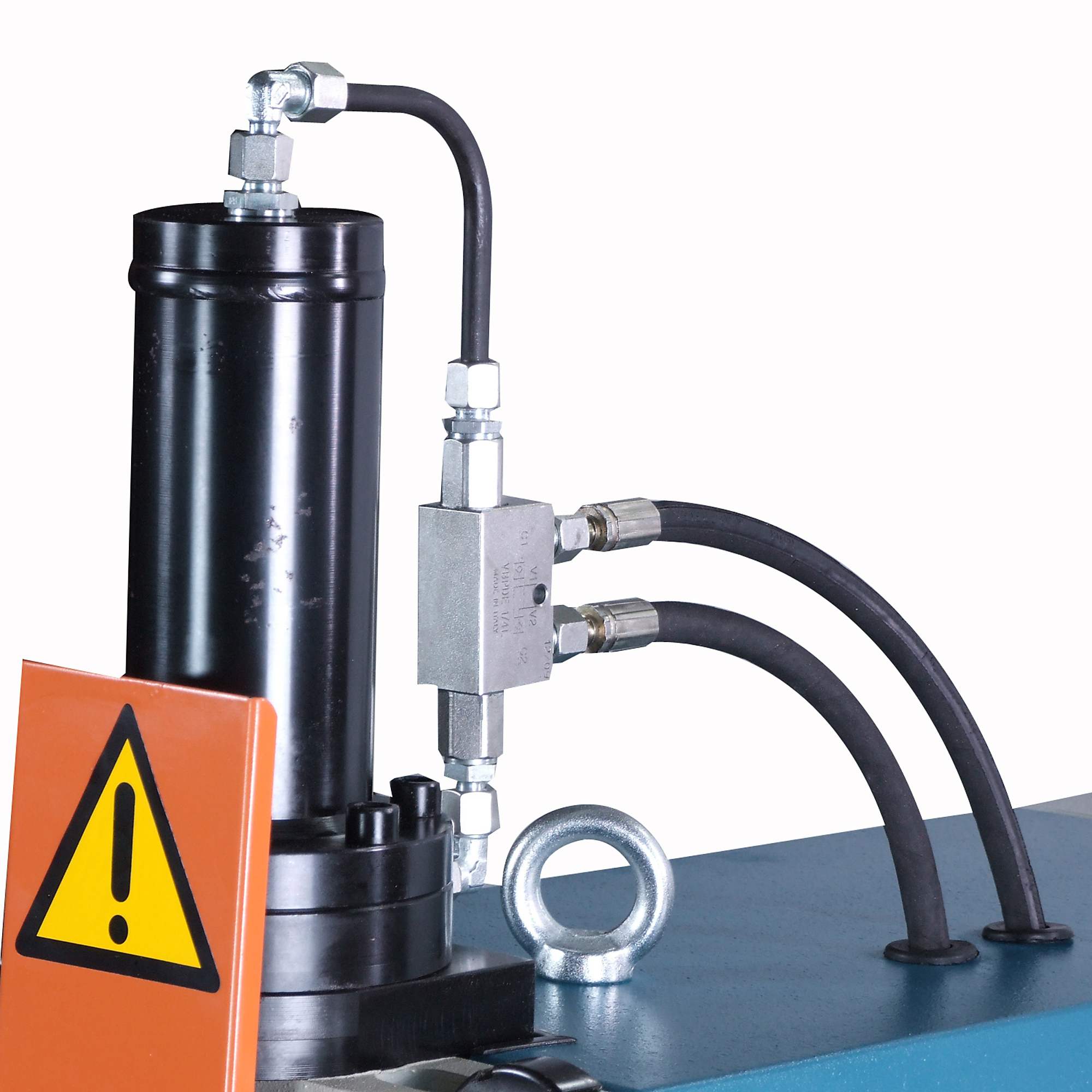

- Industrial-grade hydraulic cylinder system lets you adjust the positioning of top forming roll with the programmable control station.

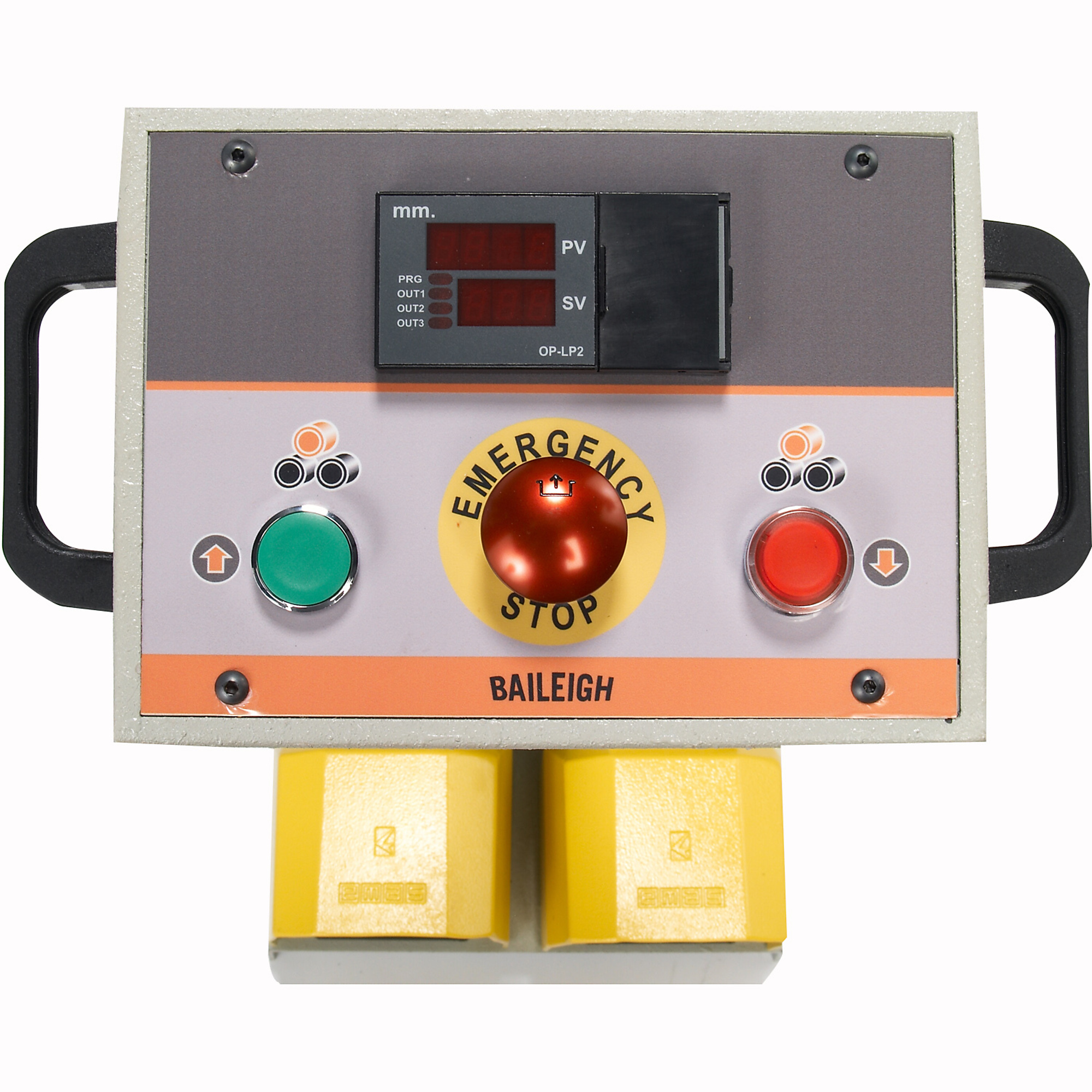

- Digital readout on top roll position makes each bend easily repeatable, key for those multiple-piece production runs.
Prop 65 Warning: See Details
See full description
See All Combination Benders
See All Baileigh Combination Benders
Currently Viewing This Product
Specifications
Specifications
Baileigh, Roll Bender, Max. Material Gauge 20 Model# R-H55
Baileigh, Lower Bead Roller, Max. Material Gauge 16 Model# BR-16E-36LT
Baileigh, Bead Roller, Max. Material Gauge 16 Model# BR-18E-24
Max. Bending Capacity - Flat
Same
5 in
-
-
Max. Bending Capacity - Round
Same
3 in
-
-
Max. Material Gauge
Same
20
16
16
Dies Included
Same
No
Yes
No
Max. Depth
Same
11.875 in
36 in
24 in
Max. Lift Height
Same
11.875 in
-
-
Slip Roll Length
Same
0 in
0 in
0 in
Product Weight
Same
19280.0000 lb
515.0000 lb
200.0000 lb
Dimensions L x W x H (in.)
Same
60.0 x 44.0 x 77.0 in
60.0 x 44.0 x 72.0 in
50.0 x 23.0 x 23.0 in
Max. Width
Same
-
36 in
24 in
