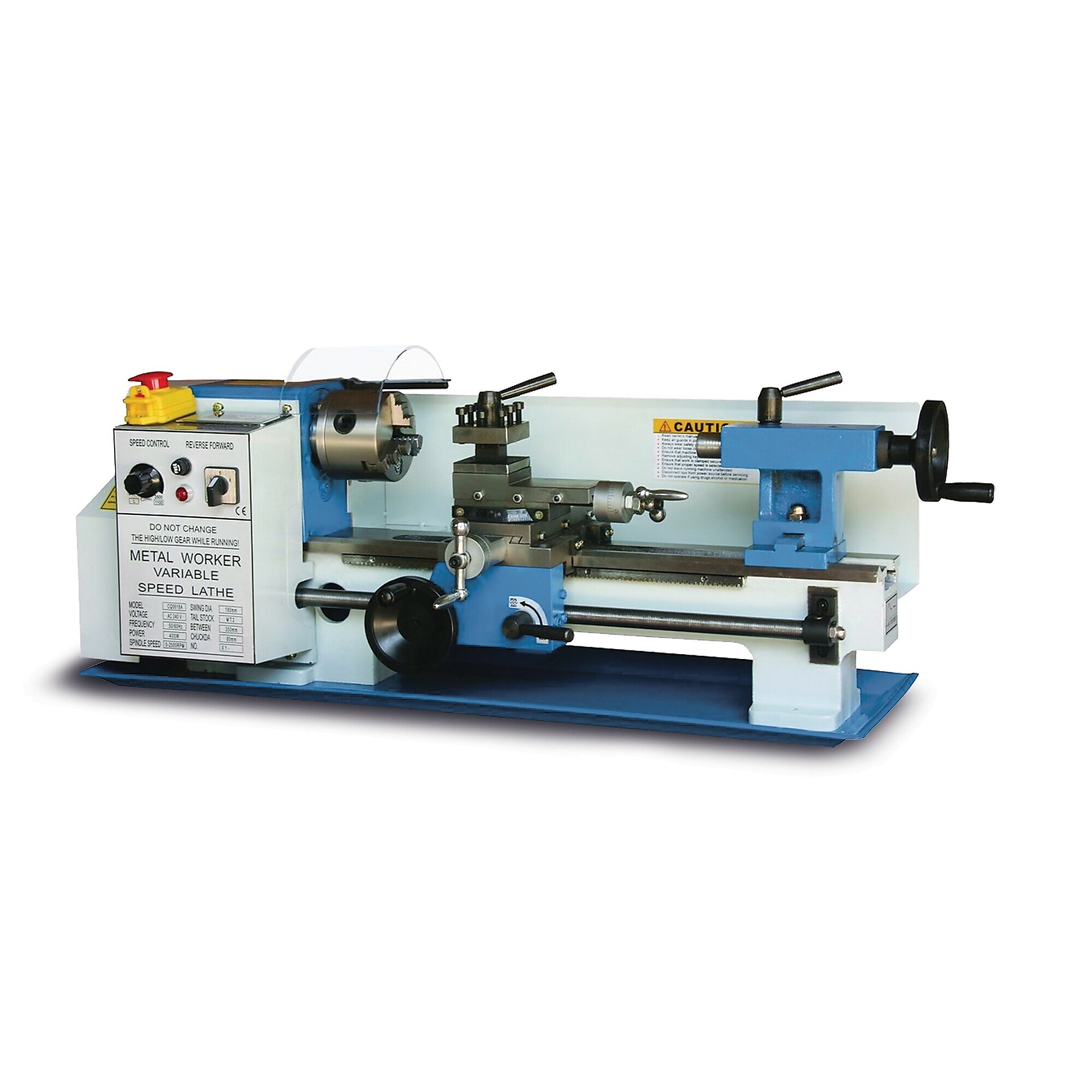

Baileigh, Metalworking Lathe, Model# PL-714VS-V2

Item# 5718142
Top Seller
Baileigh, Metalworking Lathe, Model# PL-714VS-V2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Metalworking Lathe, Model# PL-714VS-V2

Click or Tap image to Zoom

$1599.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Variable speed from 100 to 2,500 rpm.
  • Digital readout (DRO) shows spindle speed.
  • Runs on 110 volts, so it will work anywhere.
  • Capable of making metric or standard threads.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Metalworking Lathe is a precision-engineered benchtop lathe designed to deliver exceptional accuracy and performance in metalworking tasks. Featuring a 14-inch bed and variable-speed functionality, this lathe ensures precise operations with an impressive accuracy of .001 inches, a standard usually seen in larger, industrial models. Ideal for both professional and hobbyist machinists, this compact yet robust lathe offers the versatility and reliability needed for intricate and demanding projects. Its user-friendly design and high-quality construction make it an indispensable tool for achieving detailed and accurate results in various metalworking applications.

What's Included

    (1) Lathe

Features + Benefits

  • Variable speed from 100 to 2,500 rpm.
  • Digital readout (DRO) shows spindle speed.
  • Runs on 110 volts, so it will work anywhere.
  • Capable of making metric or standard threads.

Key Specs

AttributeSpecification

item#

5718142

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

150.0 LB

Horsepower

0.75 HP

Volts

110

Distance Between Centers

14 in

Swing Over Bed

7 in
AttributeSpecification

Product Type

Bench Lathe

Carriage Travel

0 in

Phase

Single-phase

Variable Speed

Yes

Max. Speed

3,500 rpm

Spindle Mount

Yes

Product Weight

150.0000 lb

Dimensions L x W x H (in.)

48.0 x 31.0 x 20.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What does swing over bed .mean .

    1 answer

    1. Swing over bed is the maximum diameter of a workpiece that can be placed on the lathe and rotated around its axis. It allows the workpiece to spin without hitting the bed. This lathe can handle a workpiece up to 7" in diameter.

      Helpful?

  2. 5hp?  That cannot possibly be correct at the wattage this lathe runs at.  Are you sure you didn’t drop a decimal somewhere?

    1 answer

    1. This lathe would be 3/4 (0.75") HP.

      Helpful?

  3. does this include a four jaw chuck/

    1 answer

    1. The metal lathe will include a three way and four way jaw chuck to hold round and square materials.

      Helpful?

  4. Do you have tooling kit available

    1 answer

    1. A tooling package is not available for this model.

      Helpful?

  5. I am also very interested in this lathe, I would like to know what the spindle bore size is. Are the jaws on the chucks reversible? Cross over travel distance?

    1 answer

    1. The spindle bore is 3/4". The cross slide travel is 2.559". The jaws are not meant to be reversed.

      Helpful?

  6. I am very interested in this lathe, but the description does not mention what is included with the package. Can you tell me please?

    1 answer

    1. This lathe has a digital readout to show spindle speed. It includes 3-jaw and 4-jaw chucks to hold rounded and square materials. It has a standard style tool post. It also includes a steady-rest and follow-rest to prevent wobbling and maintain accuracy. It is equipped with a splash guard and a catch pan as well.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
