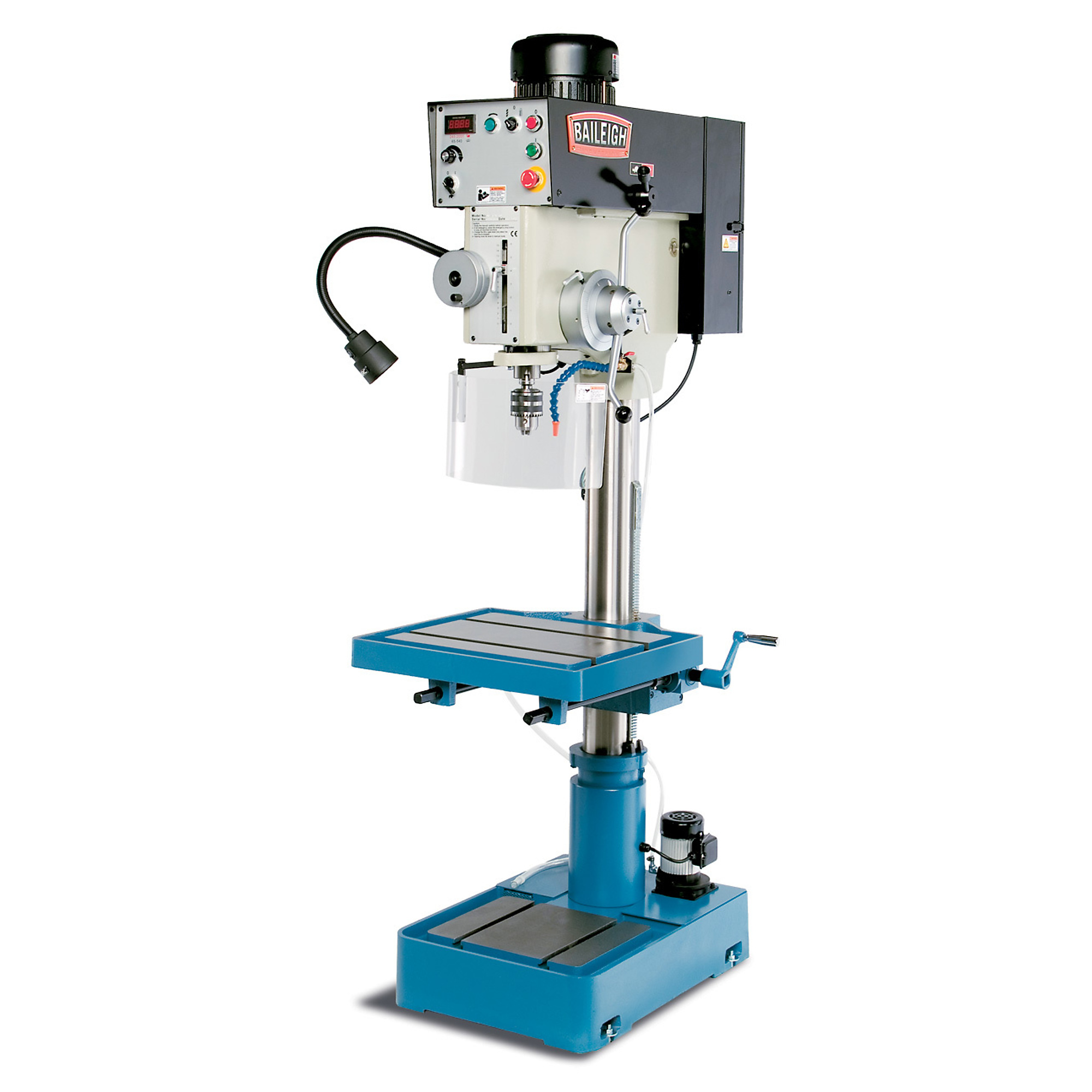

Baileigh, Metal Drill Press, Horsepower 2 HP, Volts 220 Model# DP-1500VS
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- *2 hp motor runs on 220-volt single-phase power and will work practically anywhere. *Handles a maximum drilling capacity of 1.5” steel and 1.75” cast iron. *Auto-reversing tapping feature has a capacity of .937”. *Speed range from 65 to 2000 rpm lets you pick the right setting for your project. *Potentiometer dial controls the drill speed. *Digital readout on the front displays the speed in rpm for easy checking. *Sophisticated Delta® inverter drives #4 Morse taper spindle. *Chuck with automatic tool ejector simplifies tooling changes. *Large, machined 22” x 18.5” drill table offers plenty of room for material. *Oversized .625” T-slots allow for secure clamping of a vise or fixture.
- *Sturdy 4.52” column eliminates flex and boosts drilling accuracy. *Cast base supports rigidity at maximum capacity. *Power-down feed helps to prolong the machine’s lifetime of use. *Safety guard around the spindle with a limit switch protects you and your shop. *Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer. *Includes a bright halogen light that bends to enable you to see the material better as you work. *Baileigh covers this drill with a 1-year parts warranty and lifetime technical support.
- Why choose the DP-1500VS over similar drill presses? *You can extend tooling usage by adjusting the inverter-driven head and quill speed to each different drill size. *Continuous speed range, instead of just a few pre-set speeds, allows you to fine-tune the setting as you work. *We use only the best-quality heavy metal castings for the base and table to add to the overall strength of the drill press. *The DP-1500VS comes standard with features that other brands consider upgrades, like coolant systems and worklights.
Prop 65 Warning: See Details
See full description
See All Milling Machines + Drill Presses
See All Baileigh Milling Machines + Drill Presses
Currently Viewing This Product
Specifications
2 HP
5 HP
1 HP
0.5 HP
220
230/460
110
115
2,000 rpm
3,800 rpm
700 rpm
2,900 rpm
No
No
No
No
Drill Press
Milling Machine
Drill Press
Drill Press
Yes
No
No
No
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
990.0000 lb
lb
38.0000 lb
290.0000 lb
60.0 x 44.0 x 88.0 in
92.12 x 79.875 x 104.25 in
24.0 x 8.0 x 19.0 in
69.0 x 44.0 x 23.0 in
-
5 in
-
-
-
23 in
-
-
-
Yes
-
-
