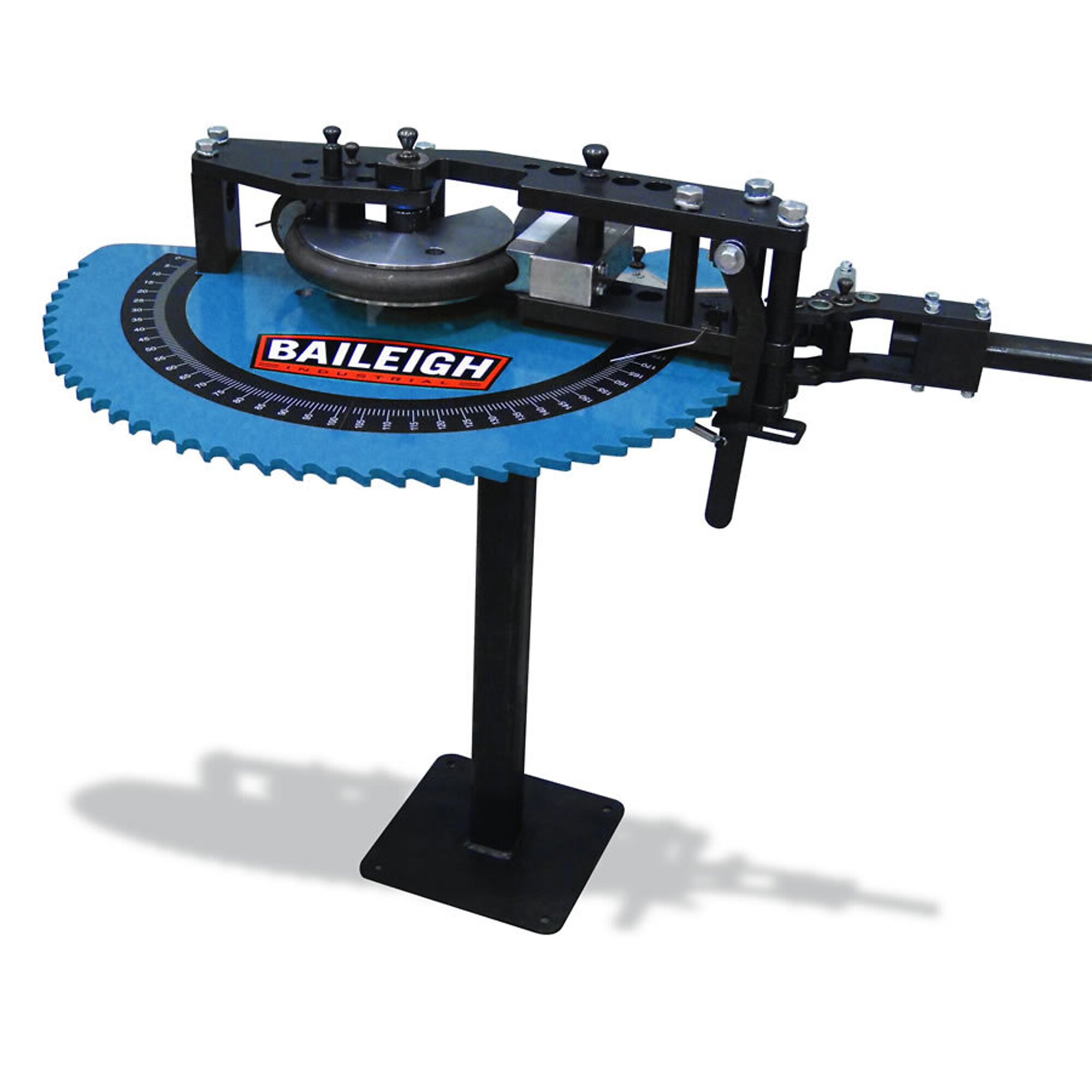

Baileigh, Manual Tube Pipe Bender, Max. Material Gauge 18 Model# RDB-050

Item# 4686417
Baileigh, Manual Tube Pipe Bender, Max. Material Gauge 18 Model# RDB-050

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Manual Tube Pipe Bender, Max. Material Gauge 18 Model# RDB-050

Click or Tap image to Zoom

$2099.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Tackles up to 2.5” OD mild steel with a wall thickness of .120" and 2” OD Chrome Moly with a wall thickness of .120”.
  • Choose from 3 bending speeds, depending on material type, OD, and wall thickness, to proper speed for each application.
  • Speed 1 produces 4° per pull. This speed has the most torque, suitable for bending 2” OD Chrome Moly or 2.5” OD mild steel.
  • Speed 2 produces 8° per pull for intermediate materials.
  • Speed 3 produces 12° per pull for lighter gauge materials.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Need an affordable but powerful bender with enough capacity for almost about any chassis fabrication shop? Baileigh’s patented RDB-050 Manual Tube Bender is revolutionaryin function, capacity, and efficiency.

What's Included

    (1) Tube and Pipe Bender

Features + Benefits

  • Tackles up to 2.5” OD mild steel with a wall thickness of .120" and 2” OD Chrome Moly with a wall thickness of .120”.
  • Choose from 3 bending speeds, depending on material type, OD, and wall thickness, to proper speed for each application.
  • Speed 1 produces 4° per pull. This speed has the most torque, suitable for bending 2” OD Chrome Moly or 2.5” OD mild steel.
  • Speed 2 produces 8° per pull for intermediate materials.
  • Speed 3 produces 12° per pull for lighter gauge materials.
  • Bends up to 200° in one shot without you needing to stop and reset the machine.
  • Anti-springback mechanism holds each bend in place as the operator ratchets forward.
  • No assembly or disassembly needed to produce a bend.

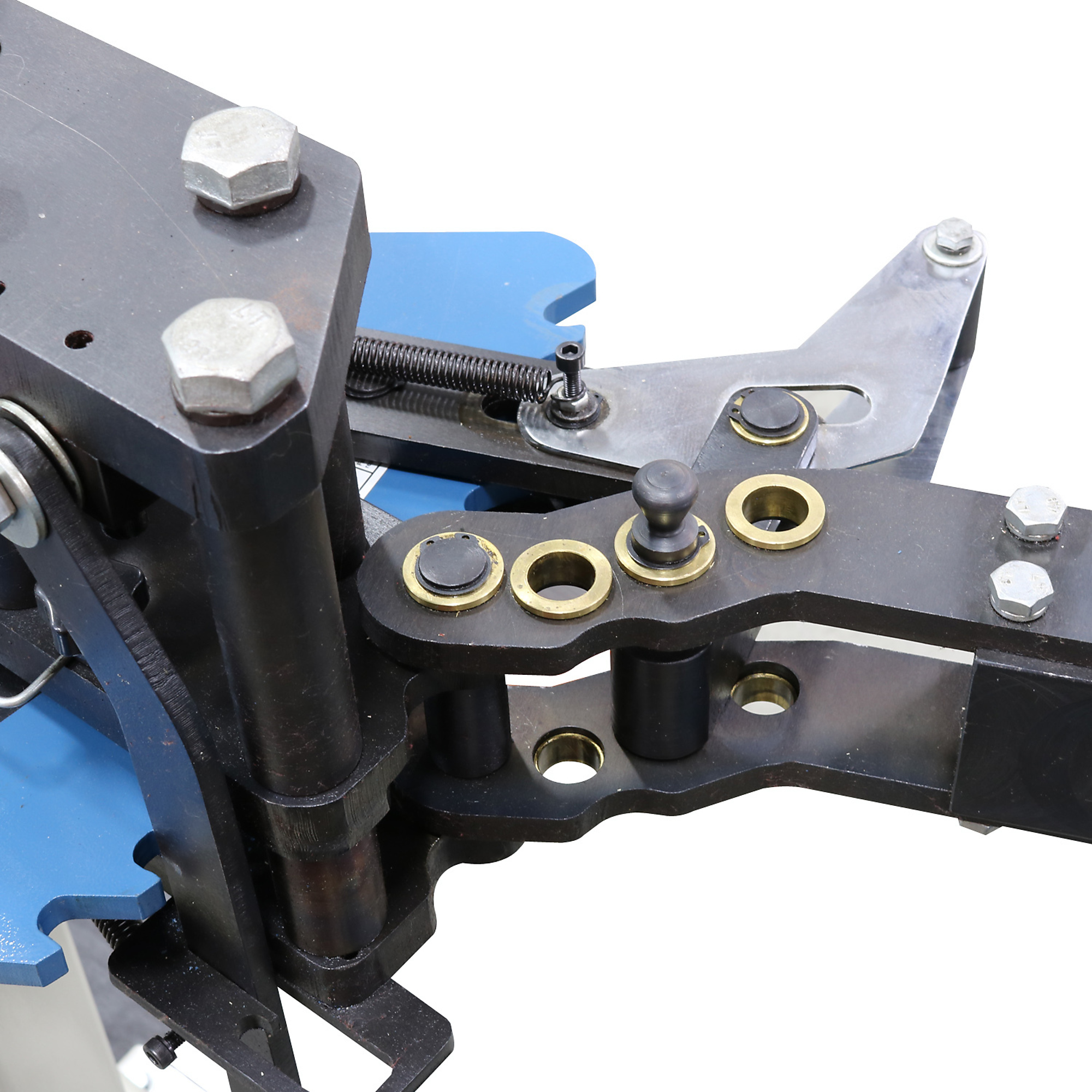

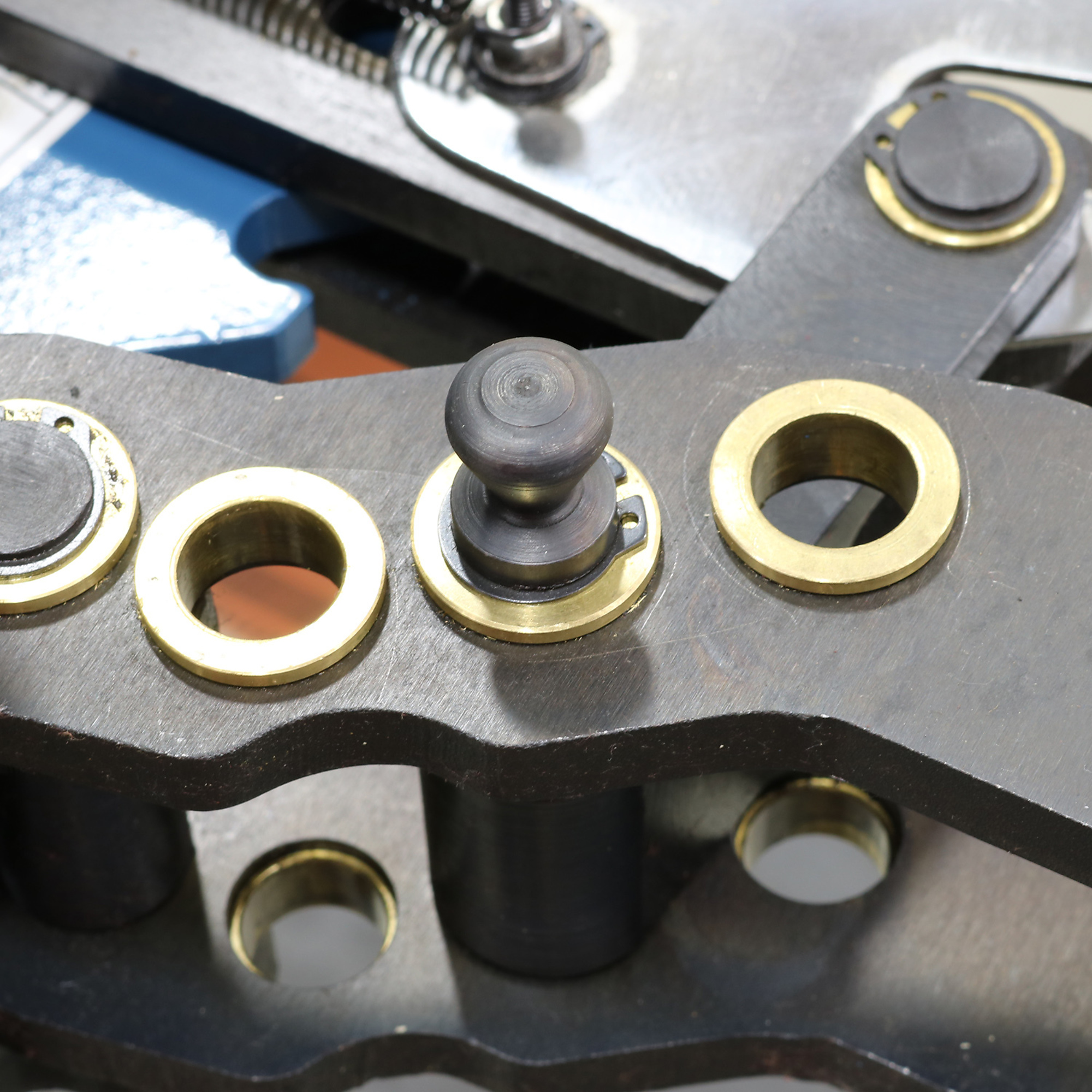

  • All pivot points use aluminum bronze bushings and thrust washers for long machine life.
  • Quick-release hook arm inserts assist when you’re changing over the machine to a different size of tubing. You can do a complete changeover in 1 minute or less.
  • Just walk up to the machine, put your tubing into the hook arm insert, and begin bending. When the bend is complete, return the machine to the home position, pull your bend out—and you’re all set.
  • Comes complete with the stand, bend handle, and degree dial. Just add tooling and you’re ready to bend tube.

Key Specs

AttributeSpecification

item#

4686417

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1334.0 LB

Max. Bending Capacity - Round

2.5 in
AttributeSpecification

Max. Material Gauge

18

Dies Included

No

Slip Roll Length

0 in

Product Weight

1334.0000 lb

Dimensions L x W x H (in.)

36.0 x 36.0 x 18.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Do a selection of different diameter dies come with the machine?

    1 answer

    1. Dies are not included and can be purchased direct with the manufacturer.

      Helpful?

  2. Can this bender be changed to hydrologic bender at a later date???

    1 answer

    1. This pipe bender cannot be modified.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
