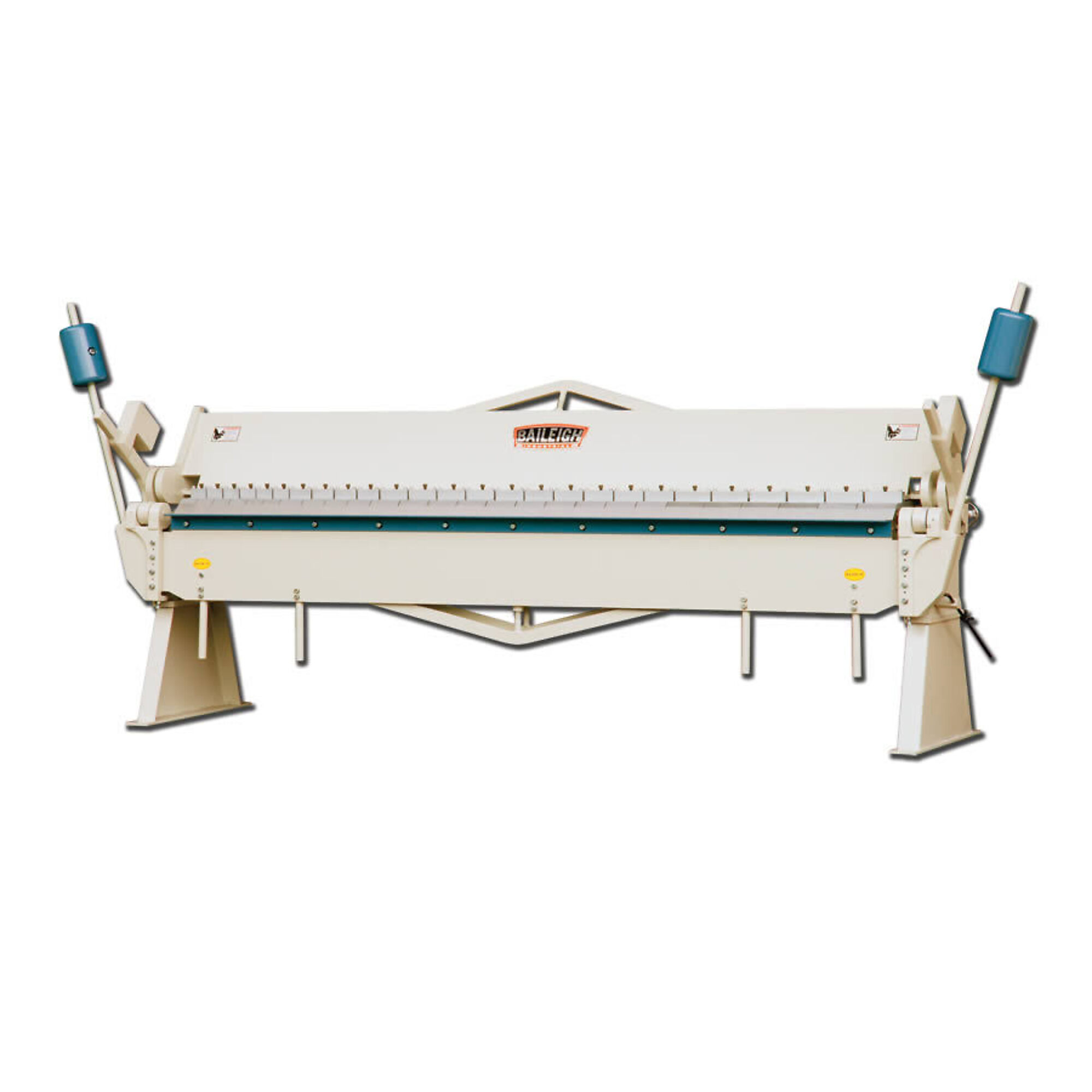

Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 16 Model# BB-12016

Item# 4685932
Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 16 Model# BB-12016

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 16 Model# BB-12016

Click or Tap image to Zoom

$14,046.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Bends 16 gauge mild steel across its entire 10-foot length.
  • Maximum bend angle of 135°.
  • 26 individual fingers of varying lengths (6 of 3", 4 of 4",10 of 5", 6 of 6") allow you to make boxes or pans of many sizes.
  • 6” maximum box depth.
  • Bending leaf shafts ride in precise oilable for better bend tolerances and less operator fatigue—unlike many other box and pan brakes on the market.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Baileigh Heavy Duty Manual Box and Pan Brake, is expertly engineered to handle the bending of full 4ft. x 8ft. sheets of light-gauge sheet metal with ease. Capable of bending 16 gauge and lighter sheet metal, this robust box brake is designed to produce precise, crisp bends consistently over many years of use. Ideal for professional workshops and demanding applications, this manual brake combines durability with high performance, ensuring reliable and accurate results in every project. Whether you're working on large-scale industrial tasks or intricate custom jobs, the BB-12016 offers the strength and precision needed to achieve perfect bends, making it a valuable addition to any metalworking setup.

What's Included

    (1) Box and Pan

Features + Benefits

  • Bends 16 gauge mild steel across its entire 10-foot length.
  • Maximum bend angle of 135°.
  • 26 individual fingers of varying lengths (6 of 3", 4 of 4",10 of 5", 6 of 6") allow you to make boxes or pans of many sizes.
  • 6” maximum box depth.
  • Bending leaf shafts ride in precise oilable for better bend tolerances and less operator fatigue—unlike many other box and pan brakes on the market.
  • 2 large counterweights make the bending process easier and reduce physical strain on the operator.
  • Electro-welded steel framework and support rods keep alignment in place, even at full capacity.
  • Includes a 1-year parts warranty.
  • We keep this sheet metal finger brake and most replaceable parts in stock for fast deliveries.
  • You can count on lifetime technical support by phone from our knowledgeable team. Call us up anytime for machine help or project advice.

Key Specs

AttributeSpecification

item#

4685932

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3500.0 LB

Max. Material Gauge

16

Dies Included

No
AttributeSpecification

Max. Depth

6 in

Max. Bending Radius

135 °

Max. Width

120 in

Slip Roll Length

0 in

Product Weight

3500.0000 lb

Dimensions L x W x H (in.)

144.0 x 54.0 x 59.0 in

Reviews

Questions & Answers

Questions

  1. Does it come with corner dies ?

    1 answer

    1. This does not include corner dies.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
