Baileigh, Air H-Frame Press, Press Type Pneumatic, Max. Pressure 75 Tons, Model# HSP-75A

Item# 4690281
Baileigh, Air H-Frame Press, Press Type Pneumatic, Max. Pressure 75 Tons, Model# HSP-75A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Air H-Frame Press, Press Type Pneumatic, Max. Pressure 75 Tons, Model# HSP-75A

Click or Tap image to Zoom

$6928.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 31.5” working width.
  • Large 9” diameter cylinder with a 9.8” stroke.
  • Requires a 90 to 115 psi compressor.
  • Industrial-grade hydraulics help the machine last and run smoothly for many years of productivity.
  • Integrated foot pedal makes this H-frame press easy to control.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Air H-Frame Press is a robust and reliable pneumatic press designed to deliver a maximum pressure of 75 tons. Constructed with a fully-welded steel main frame, this press ensures exceptional accuracy and durability, allowing you to utilize its full force without any risk of flexing or buckling. Ideal for demanding shop environments, the air-powered mechanism provides consistent and powerful performance, making it an essential tool for a variety of pressing applications. Whether you're working on heavy-duty projects or precision tasks, the Baileigh Air H-Frame Press offers the strength and stability needed to get the job done efficiently and effectively.

What's Included

    (1) 75T Air/Hand H-Frame Press

Features + Benefits

  • 31.5” working width.
  • Large 9” diameter cylinder with a 9.8” stroke.
  • Requires a 90 to 115 psi compressor.

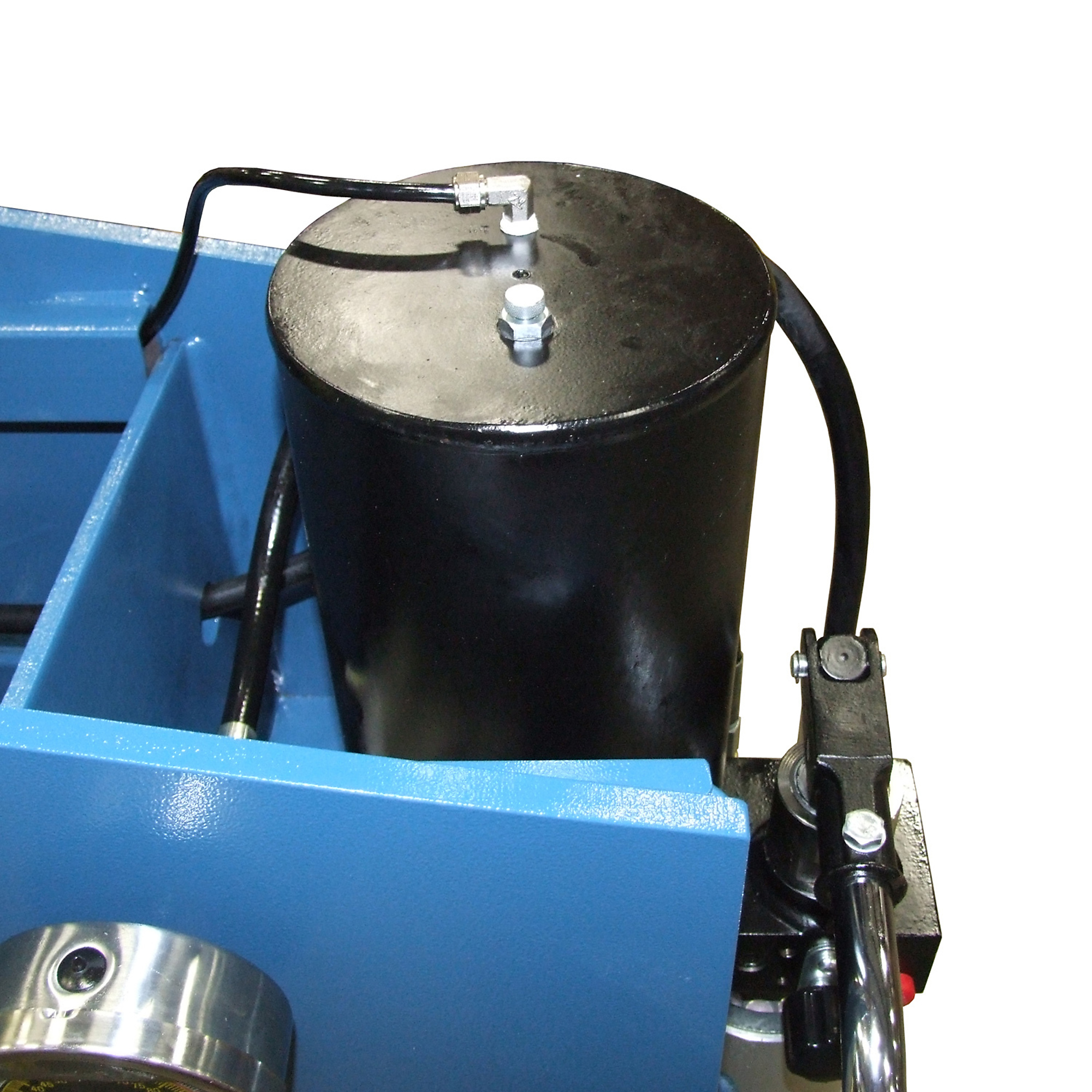

  • Industrial-grade hydraulics help the machine last and run smoothly for many years of productivity.
  • Integrated foot pedal makes this H-frame press easy to control.
  • If you’d like more delicate control, you can choose the manual hand pump located on the side of the HSP-75A.

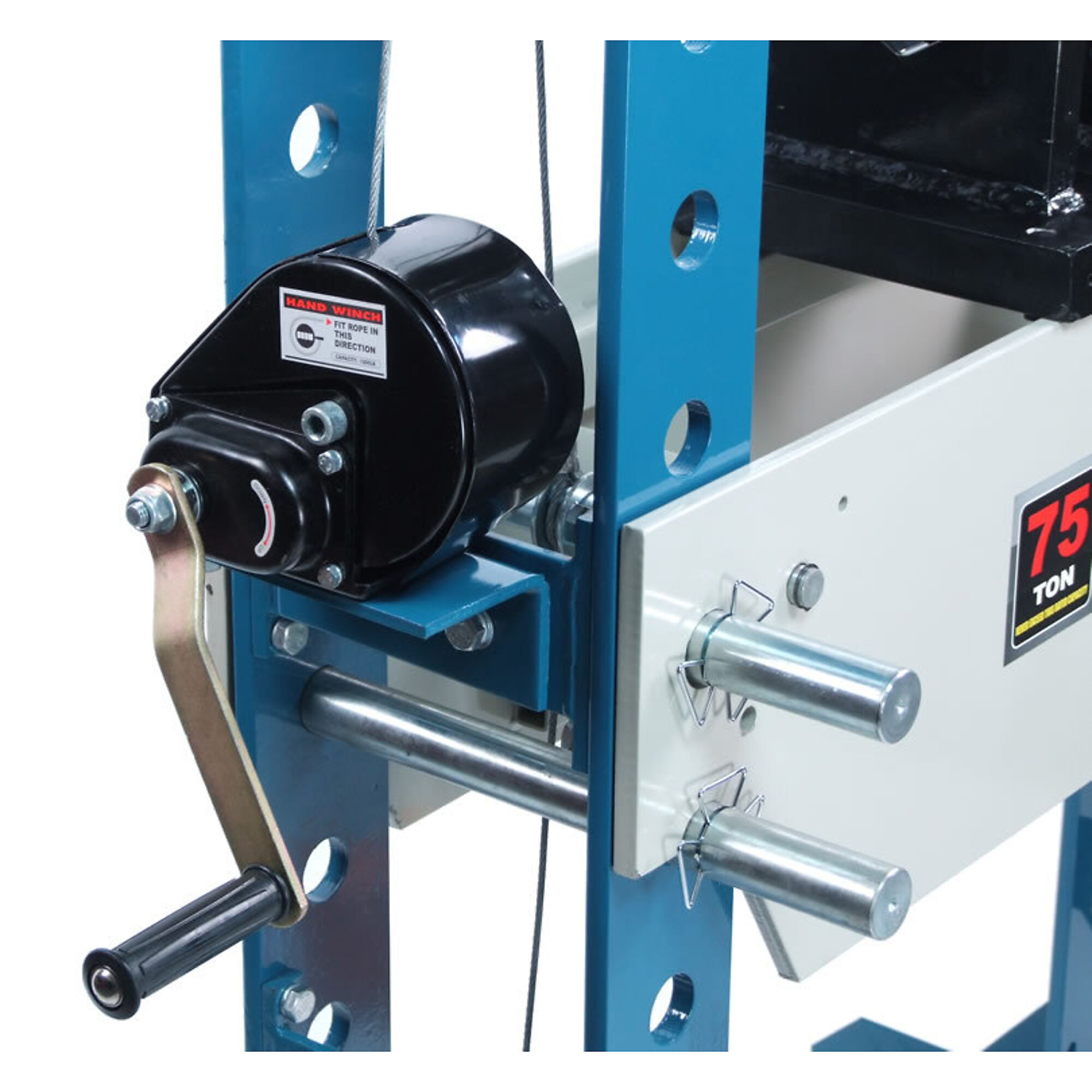

  • Winch and pulley system will save time when lifting and lowering the working table. (It also saves strain on your back muscles.)

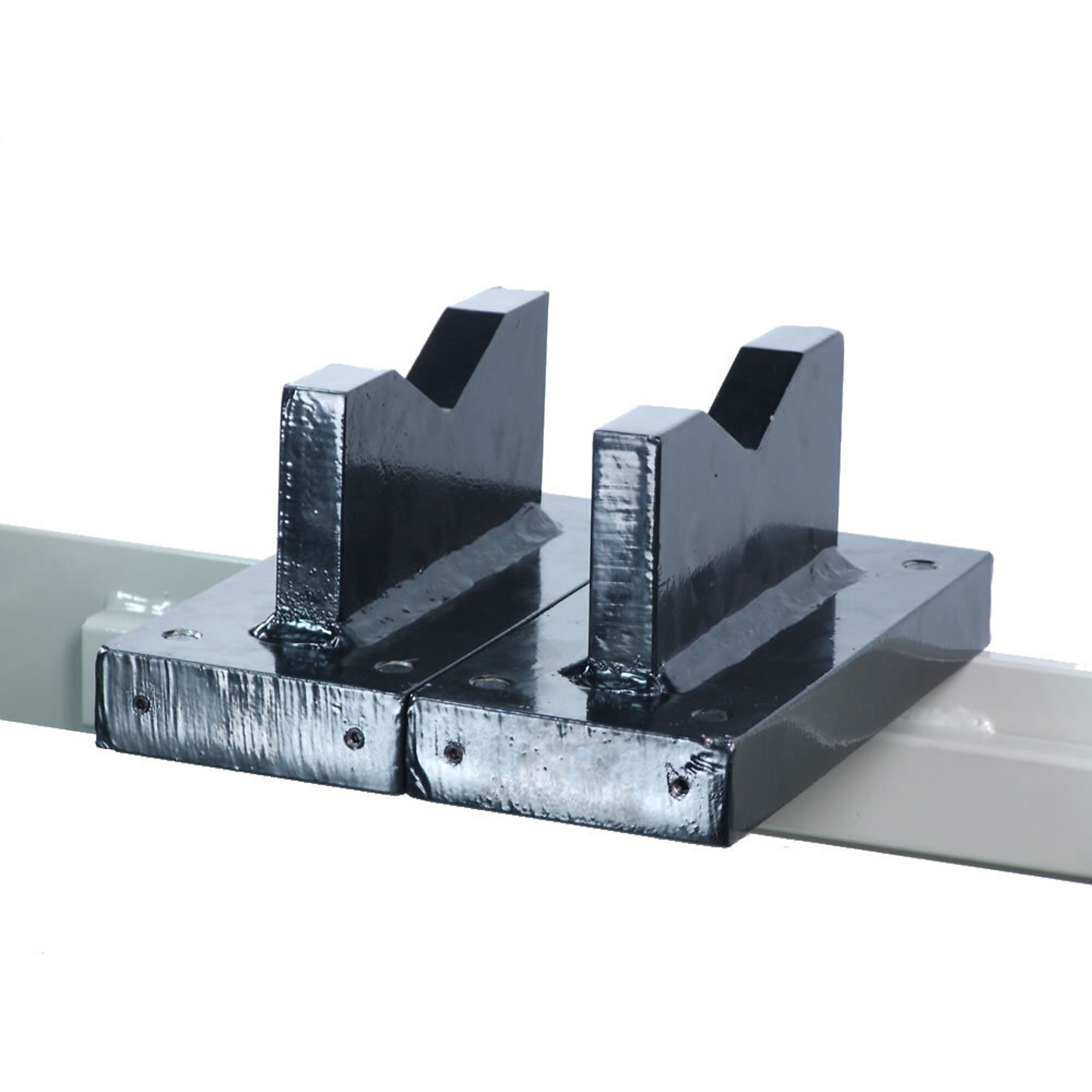

  • Comes standard with a V-block set.
  • You can count on Baileigh for a 1-year parts warranty as well as lifetime technical support by phone.

Key Specs

AttributeSpecification

item#

4690281

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1110.0 LB

Press Type

Pneumatic
AttributeSpecification

Max. Pressure

75 Tons

Stroke Length

9.8 in

Working Width

31.5 in

Product Weight

1110.0000 lb

Dimensions L x W x H (in.)

83.0 x 44.0 x 16.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
