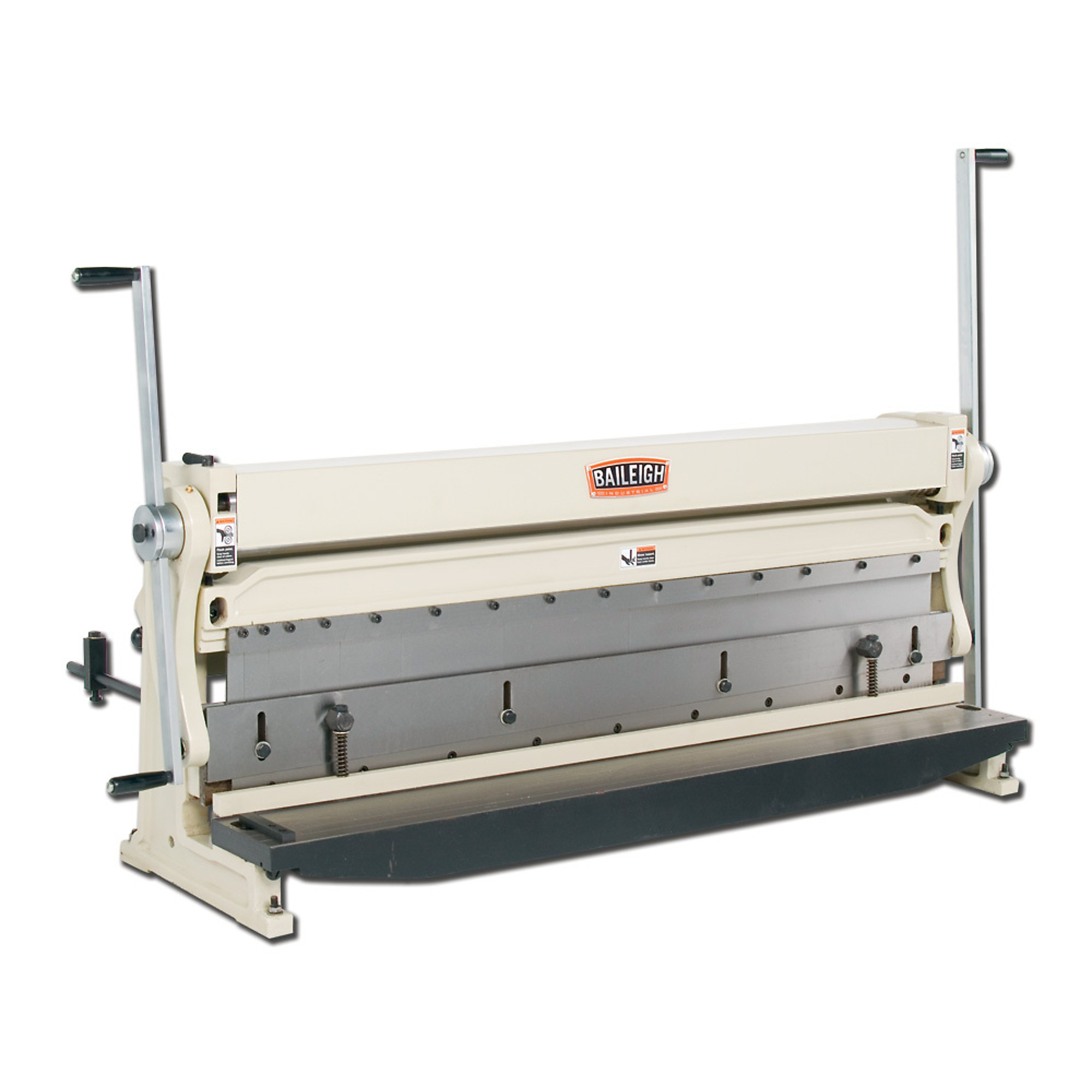

Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-5220

Item# 4685959
Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-5220

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-5220

Click or Tap image to Zoom

$3799.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 52” bed width lets you work with 4-foot metal sheets.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum across full working width for all functions.
  • Slip roll portion is on top, manual press brake in the middle, and shear on the bottom.

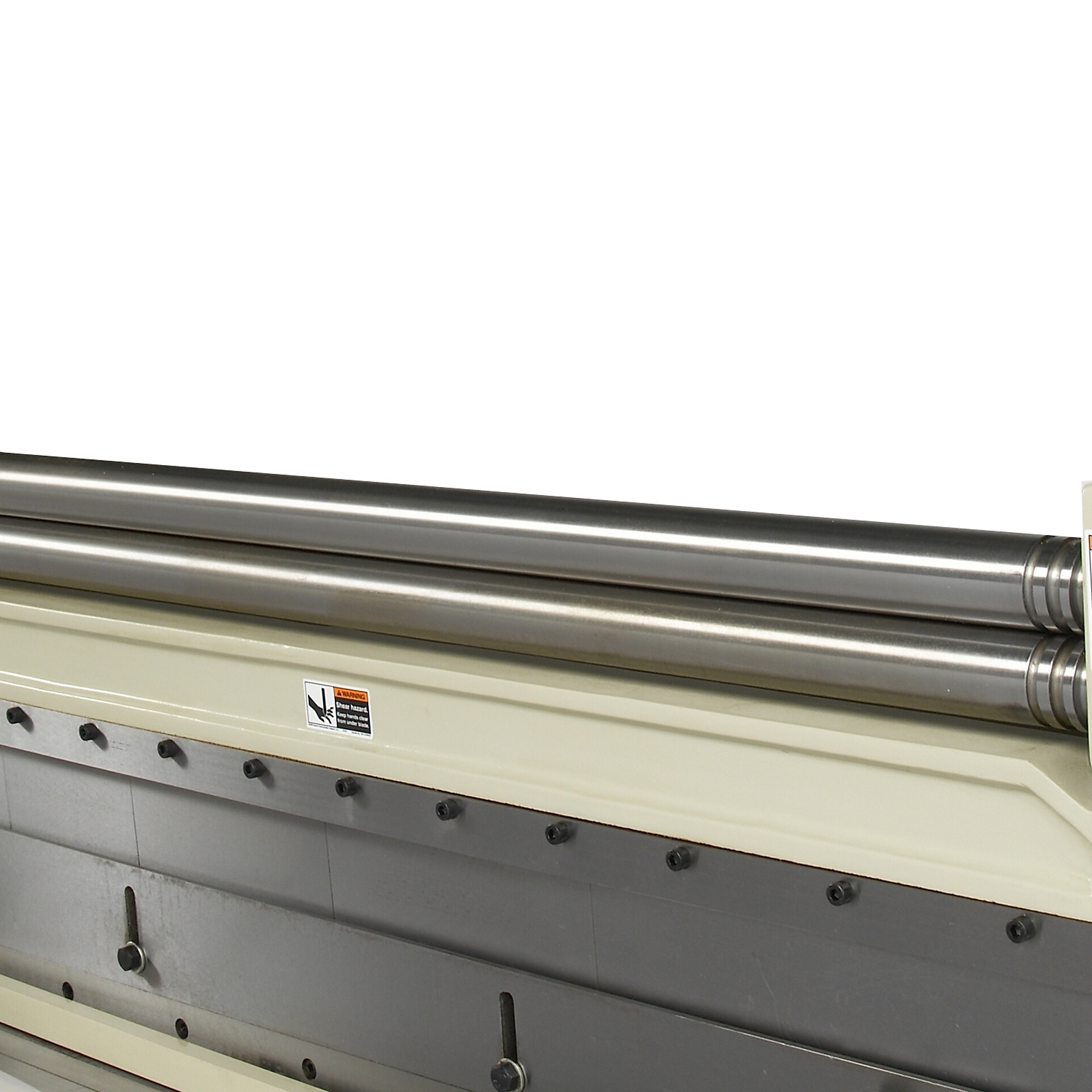

  • Manual slip roll has hardened bottom and top rolls.
  • 3 grooves can roll wire and round rod.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Shear, Break Roll, is a versatile 3-in-1 machine designed to roll, bend, and cut 4ft. x 8ft. sheets, making it an ideal space-saving solution for small shops. Engineered with a heavy steel frame, this machine ensures long-term accuracy and durability even at full capacity. Capable of handling a maximum material gauge of 20, the SBR-5220 combines robust construction with precise performance, offering a reliable tool for various metalworking tasks. Whether you're working on complex projects or routine operations, this shear, break roll machine provides the efficiency and dependability needed to achieve professional results in a compact footprint.

What's Included

    (1) Combination Shear Brake and Roll

Features + Benefits

  • 52” bed width lets you work with 4-foot metal sheets.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum across full working width for all functions.
  • Slip roll portion is on top, manual press brake in the middle, and shear on the bottom.
  • Manual slip roll has hardened bottom and top rolls.
  • 3 grooves can roll wire and round rod.
  • 2” minimum diameter for roll forming.

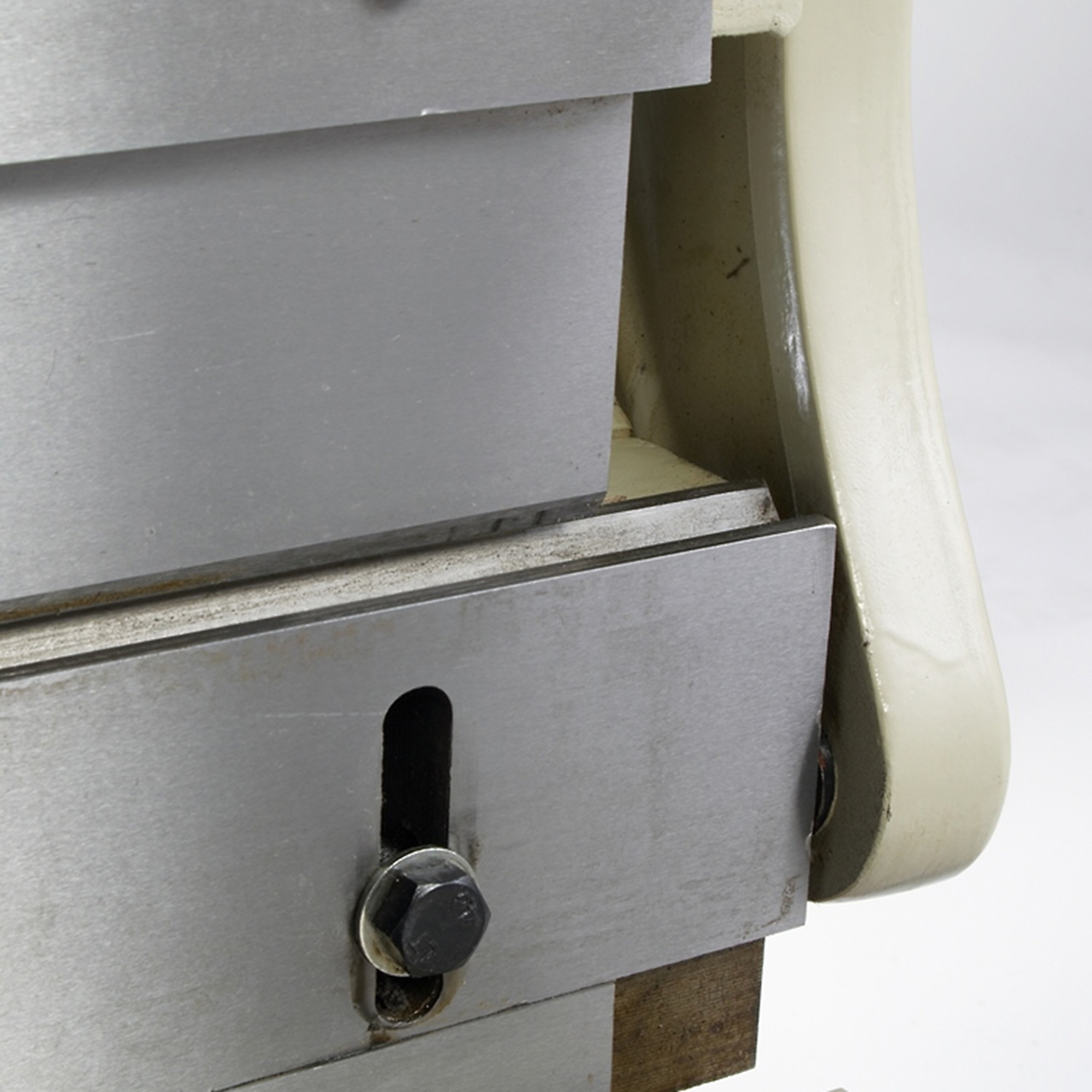

  • Manual press brake bends up to 90° and includes a hardened single-V bottom die.
  • You can rearrange the movable, hardened finger dies on the upper beam to make boxes and pans in varying sizes.
  • Crowning feature adjusts the camber of the tooling, so you can make a crisp bend in the middle of the machine, as well as the edges.

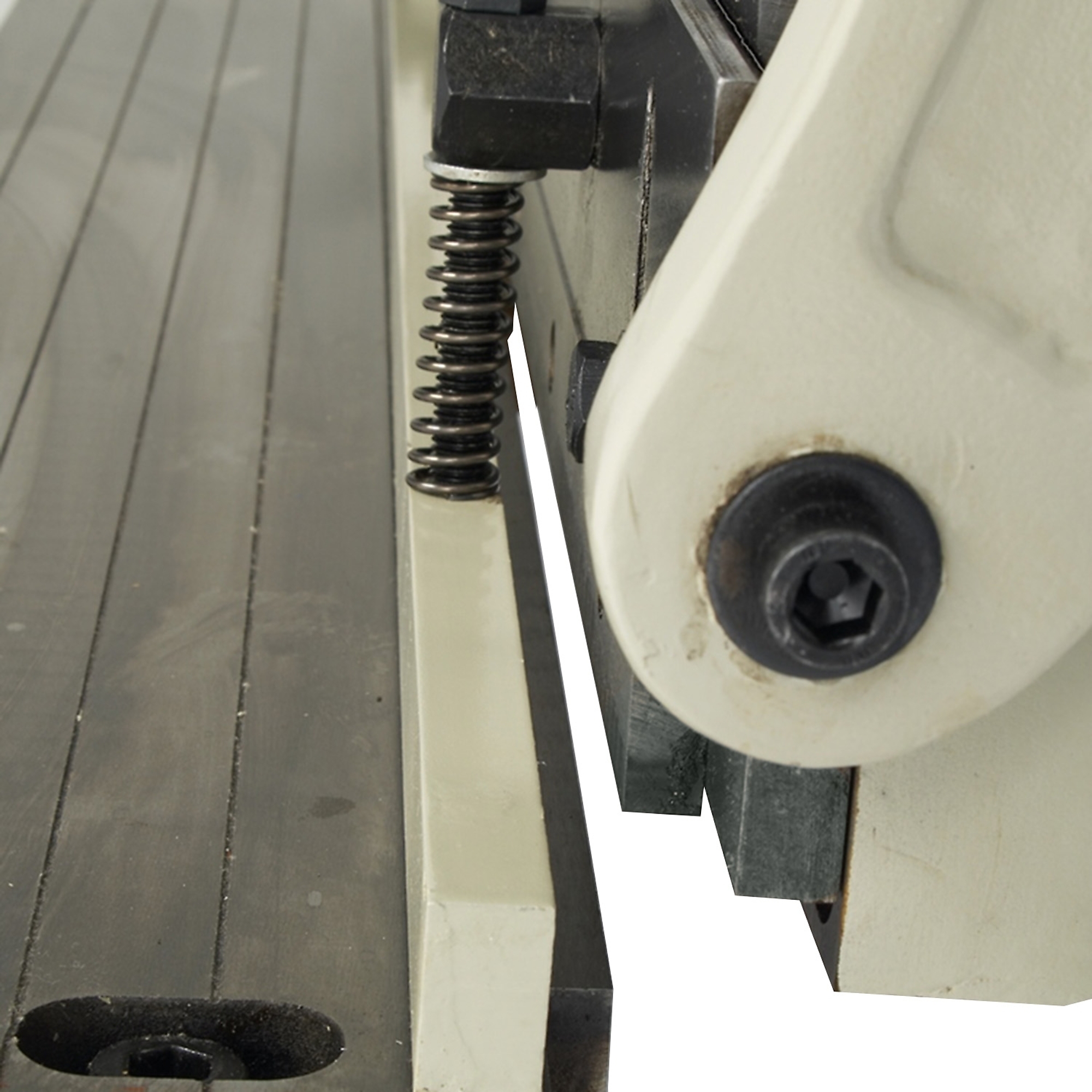

  • On the manual shear, spring-loaded hold-downs ensure a consistent cut across the entire width of the machine.
  • Hardened and reversible shear blades on bottom and top will remain sharp.
  • Back gauge helps you create repeatable parts.
  • Large handles turn 360° to put each machine through a full cycle.
  • Double-sided handles allow 2 people to apply force, reducing the strain of operation.
  • Weighs 830 lbs. with durable steel construction.
  • Covered by a 1-year parts warranty.
  • Our knowledgeable reps are here to provide lifetime technical support by phone.

Key Specs

AttributeSpecification

item#

4685959

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2467.0 LB

Max. Material Gauge

20

Dies Included

No
AttributeSpecification

Max. Bending Radius

90 °

Max. Width

52 in

Slip Roll Diameter

Multiple in

Slip Roll Length

52 in

Product Weight

2467.0000 lb

Dimensions L x W x H (in.)

66.0 x 22.0 x 30.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
