Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-3020

Item# 4686361
Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-3020

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-3020

Click or Tap image to Zoom

$1579.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 30” working width for manual shear, press brake, and roll.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.
  • Slip roll portion has 3 wire grooves.
  • Forms rolls down to 1.54” in diameter.
  • Vertical press brake portion bends up to 90°, so you can make perfect corners.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Slip roll on top. Press brake in the middle. Shear on the bottom. This 3in.-1 combo machine saves space. The Baileigh SBR-3020 brake shear roller combo is a great choice for small shops with low production runs and one-off projects.

What's Included

    (1) 3 in 1 Combination Shear Brake and Roller

Features + Benefits

  • 30” working width for manual shear, press brake, and roll.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.

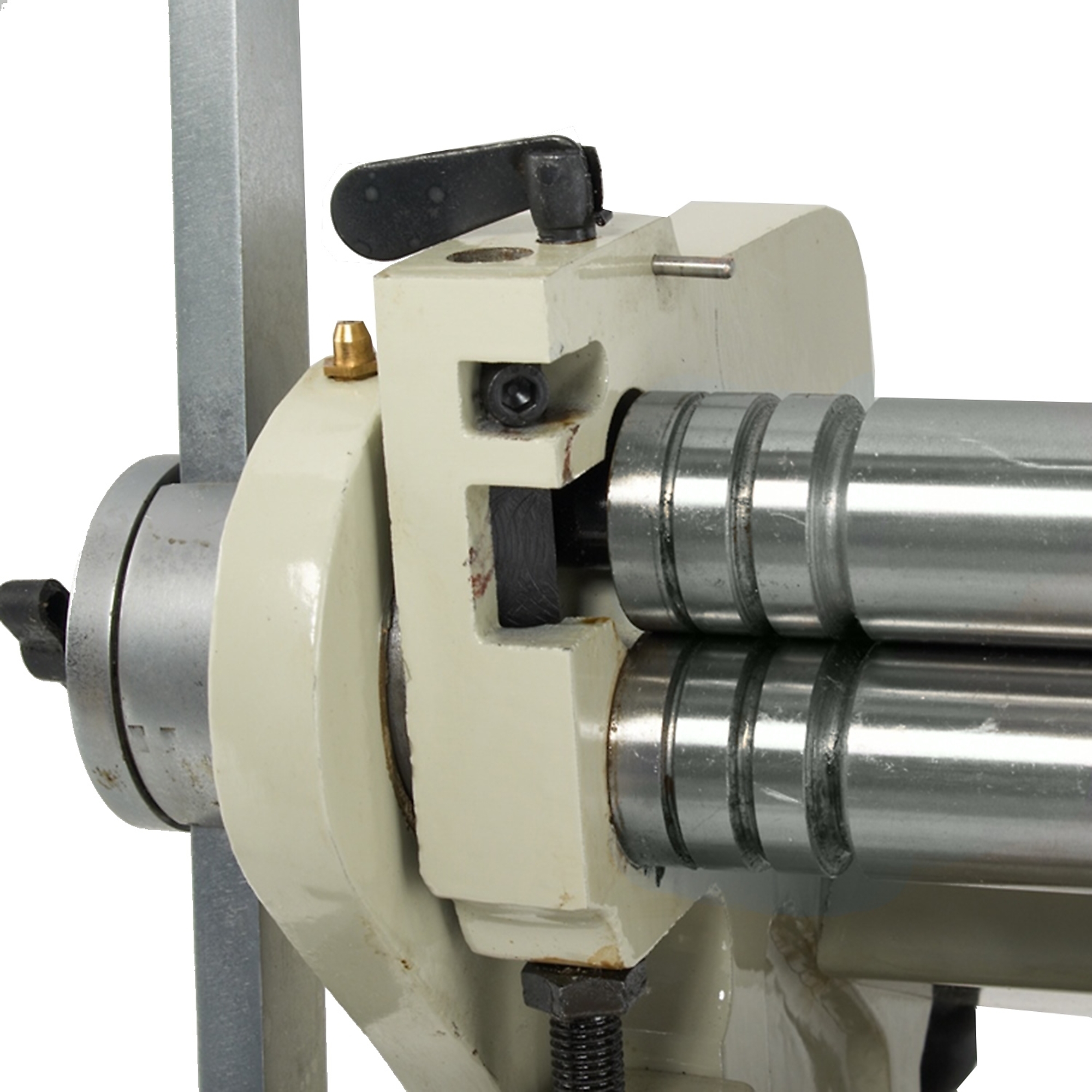

  • Slip roll portion has 3 wire grooves.
  • Forms rolls down to 1.54” in diameter.
  • Vertical press brake portion bends up to 90°, so you can make perfect corners.
  • Adjust the camber of the tooling to keep pressure in the middle for a consistent bend across the full width.
  • Press brake portion includes a V die set with corresponding punch die on top to make a 90° bend.
  • Movable fingers on the top beam, ranging from 1” to 10-?”, can make many box sizes.

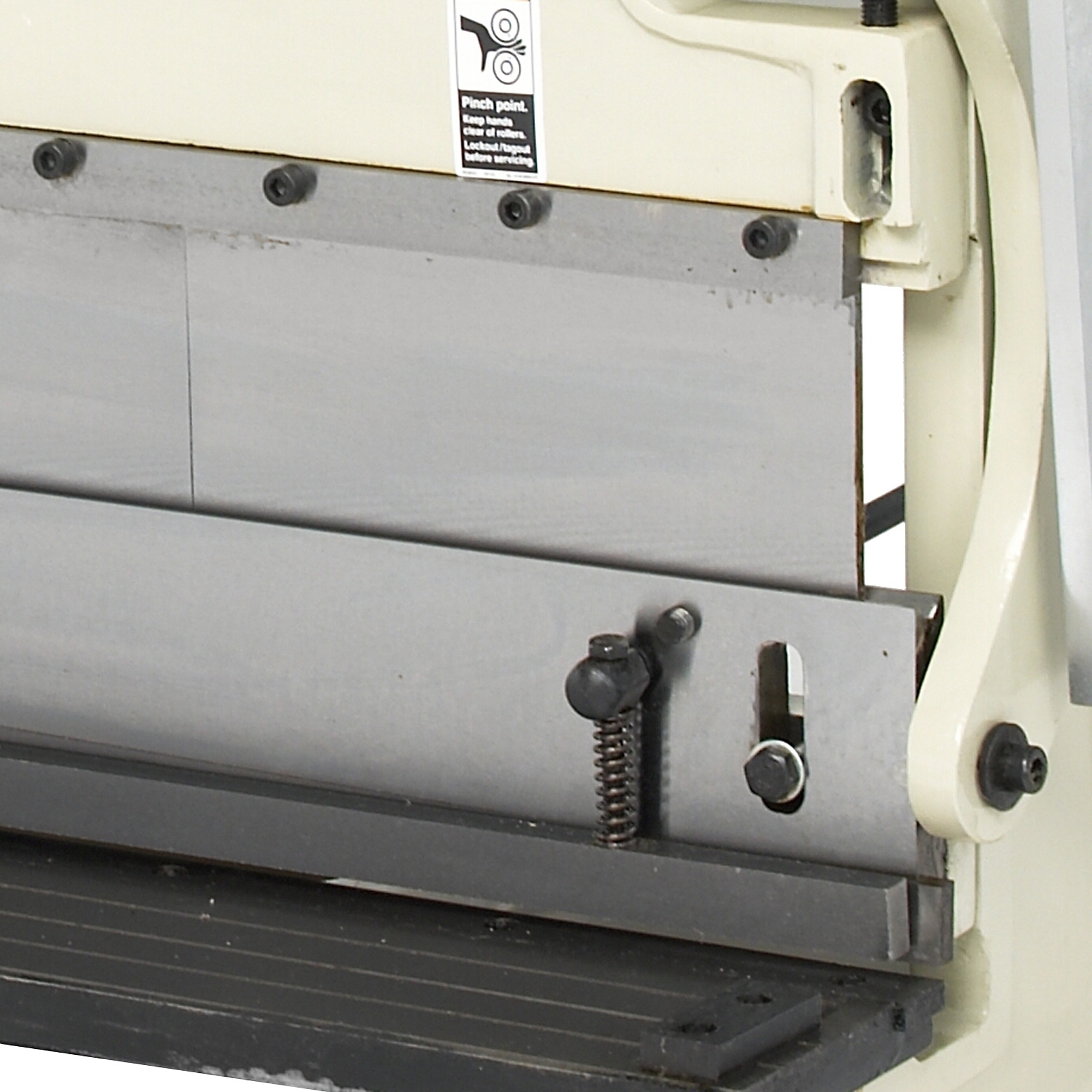

  • On the shear portion, a spring-loaded hold-down helps reduce burr on the cut and prevent waste.
  • Hardened and reversible blades stay sharp for longer.
  • Turn the handles 360° to get one full cycle from the slip roll, press brake, or shear.
  • Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
  • Manual back gauge lets you make repeatable parts without difficulty.
  • Thick steel construction, weighing 340 lbs., gives the machine structural strength and maintains accuracy.
  • Baileigh SBR-3020 brake shear roller combo comes with a 1-year parts warranty.
  • We offer lifetime technical support by phone. Call our team of experienced reps whenever you need help.

Key Specs

AttributeSpecification

item#

4686361

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

997.0 LB

Max. Material Gauge

20

Dies Included

No
AttributeSpecification

Max. Bending Radius

135 °

Max. Width

30 in

Slip Roll Diameter

Multiple in

Slip Roll Length

30 in

Product Weight

997.0000 lb

Dimensions L x W x H (in.)

40.0 x 18.0 x 28.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
