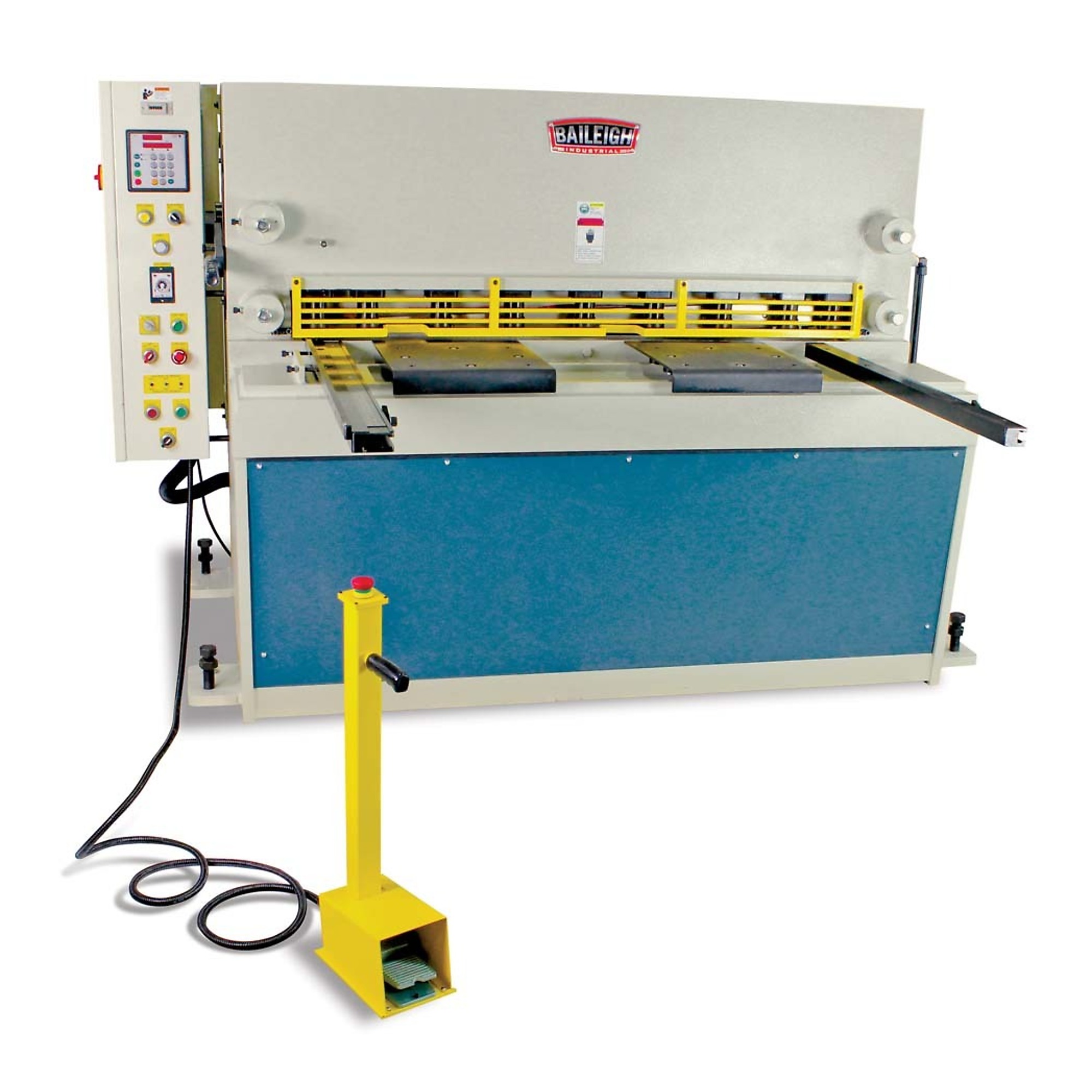

Baileigh, Hydraylic Shear, Max. Material Gauge 7 Model# SH-5203-HD-NC

Item# 4686193
Baileigh, Hydraylic Shear, Max. Material Gauge 7 Model# SH-5203-HD-NC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraylic Shear, Max. Material Gauge 7 Model# SH-5203-HD-NC

Click or Tap image to Zoom

$47,799.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • These hydraulic sheet metal shears cut up to 52”-wide sheet metal.
  • Maximum capacity of ¼” mild steel.
  • 15 hp motor runs on 220-volt 3-phase power.

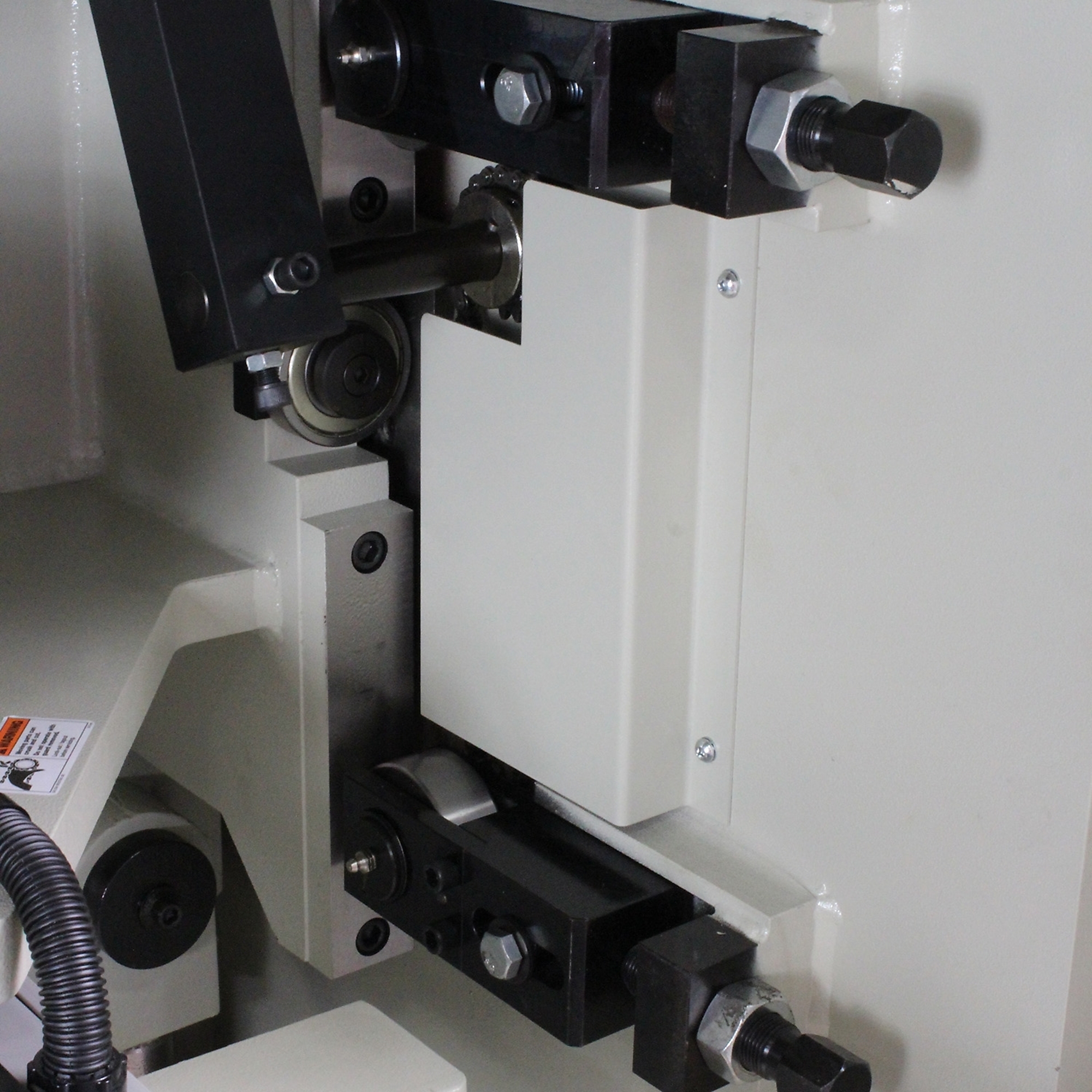

  • Upper blade carriage that rides in a 3-axis bearing housing.
  • Heavy-duty precision ground and hardened rail system gives you unbeatable accuracy and long blade life.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Built for years of heavy cutting, this numerically controlled shear makes industrial production runs more efficient. Blade gap and rake angle adjustment ensure high cut quality.

What's Included

    (1) Shear

Features + Benefits

  • These hydraulic sheet metal shears cut up to 52”-wide sheet metal.
  • Maximum capacity of ¼” mild steel.
  • 15 hp motor runs on 220-volt 3-phase power.
  • Upper blade carriage that rides in a 3-axis bearing housing.
  • Heavy-duty precision ground and hardened rail system gives you unbeatable accuracy and long blade life.
  • Front and rear supports and side guides help you keep material square to the blade.
  • Roller infeed table makes it easy to maneuver heavy plate steel for the next cut.

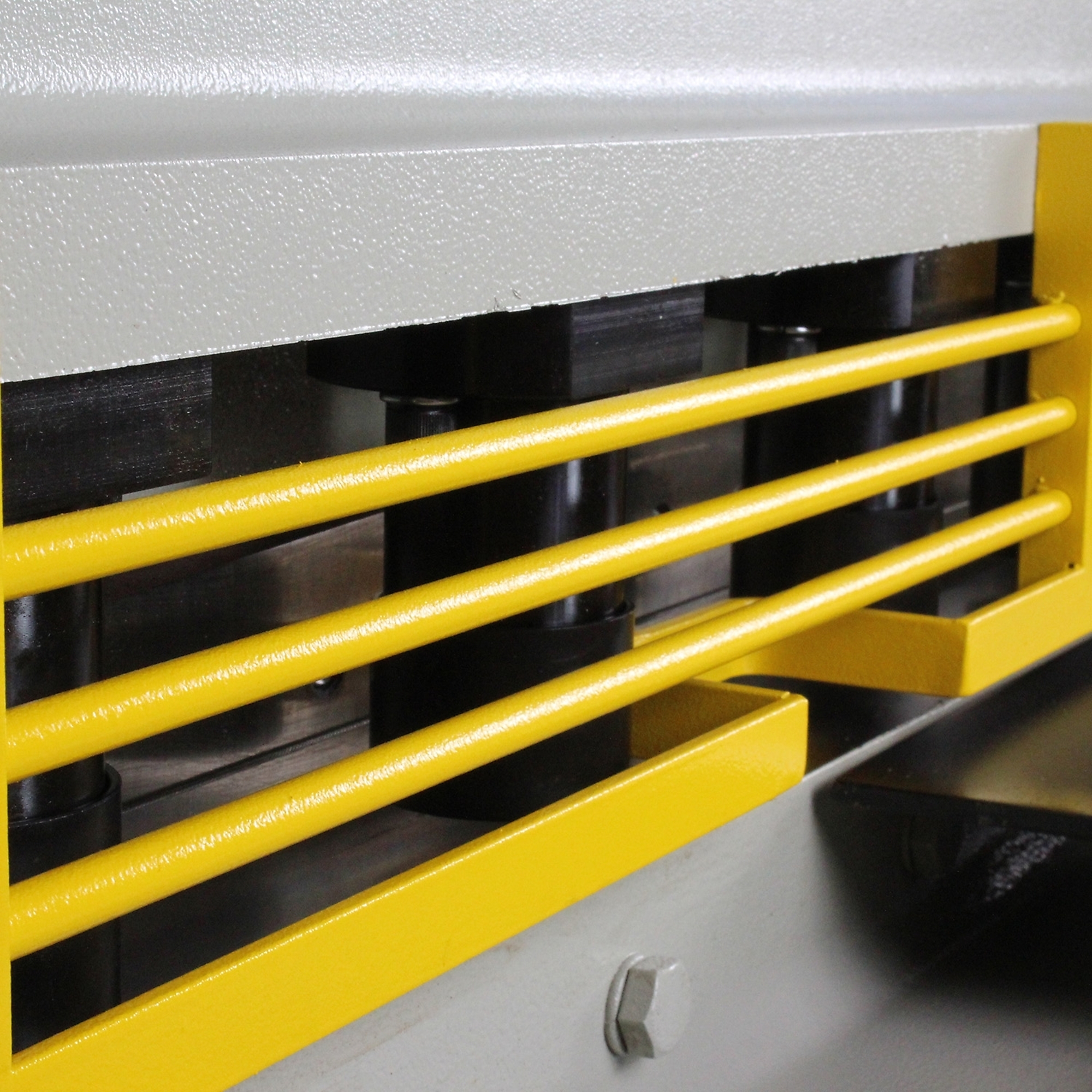

  • 8 hydraulic hold-downs provide 3.2 tons of pressure each, preventing sheet metal from lifting.

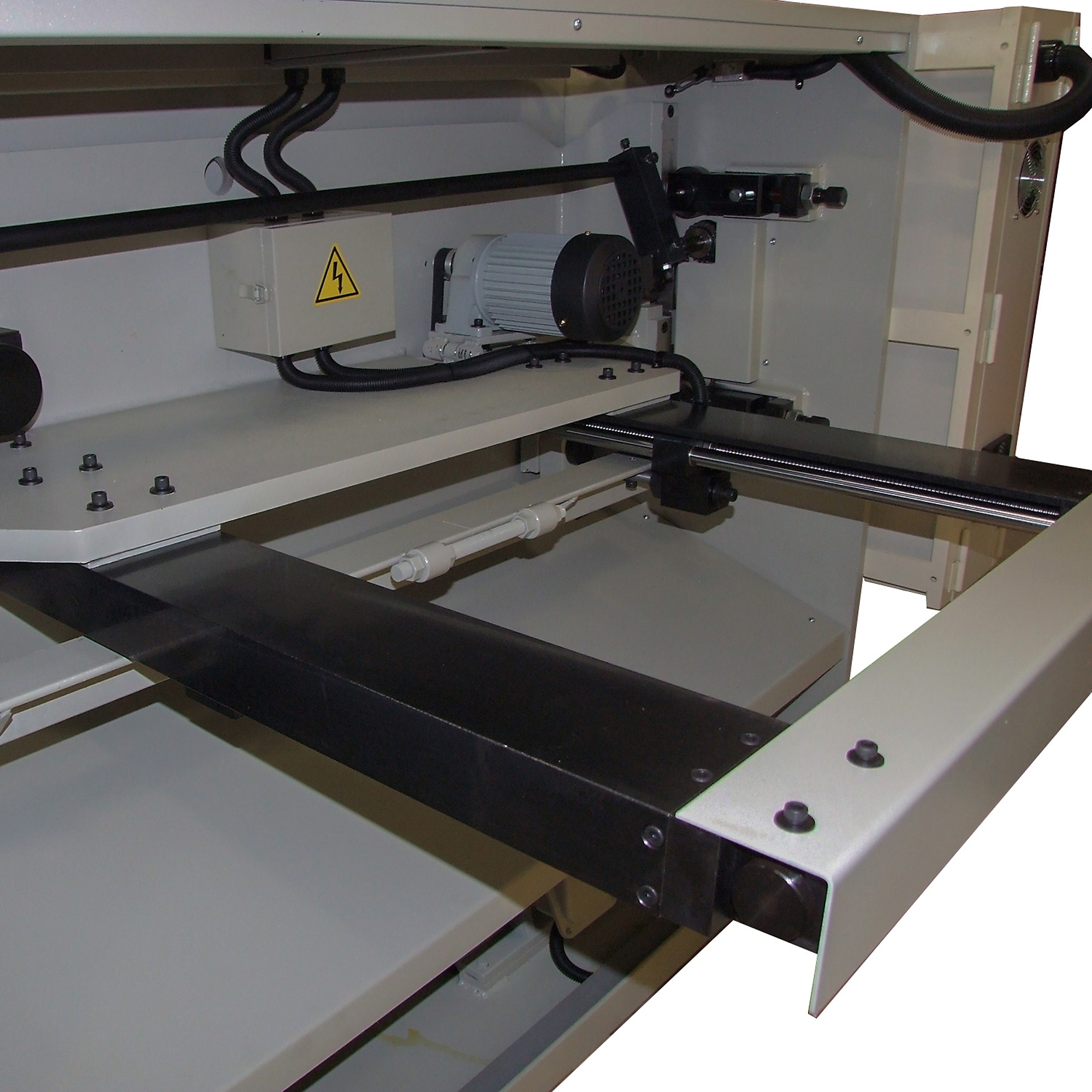

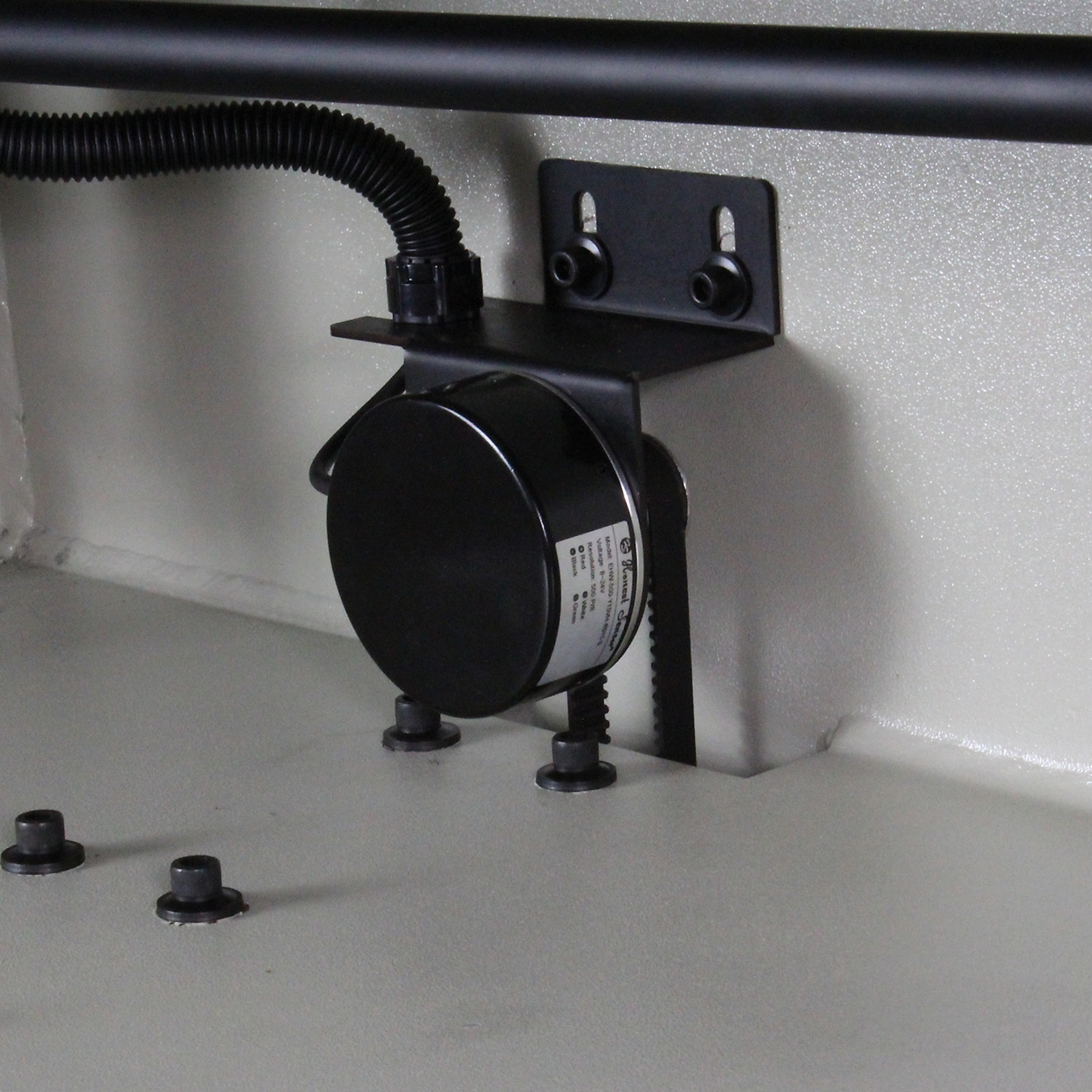

  • Programmable quick-change backgauge rides on a screwball rail system with a positioning encoder.
  • Switch between 3 modes as needed:
  • Jog mode: Inching the blade down to the material.
  • Single cycle mode: One cut for one pedal push.
  • Automatic cycling mode: Continuously cutting for production runs.
  • Piece counter makes it simpler to do production runs.
  • Remote operator control pendant houses an E-Stop button and foot pedal controls.
  • Simple handle lets you adjust the blade gap in seconds to avoid crimping or folding, particularly with thinner material.
  • Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics.
  • It’s simple to set the rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle.
  • High carbon chromium blades that have several edges (2 on top, 4 on bottom), so you can flip them several times before you need to resharpening.
  • Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements.

Key Specs

AttributeSpecification

item#

4686193

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

40189.0 LB

Max. Material Gauge

7
AttributeSpecification

Dies Included

No

Max. Width

52 in

Slip Roll Length

0 in

Product Weight

40189.0000 lb

Dimensions L x W x H (in.)

90.0 x 73.0 x 68.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
