Baileigh, Hydraylic Shear, Max. Material Thickness 13 ga, Model# SH-5210-HD

Item# 4686281
Baileigh, Hydraylic Shear, Max. Material Thickness 13 ga, Model# SH-5210-HD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraylic Shear, Max. Material Thickness 13 ga, Model# SH-5210-HD

Click or Tap image to Zoom

$31,292.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 52” length.
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • 7.5 hp motor runs on 220-volt 3-phase power.

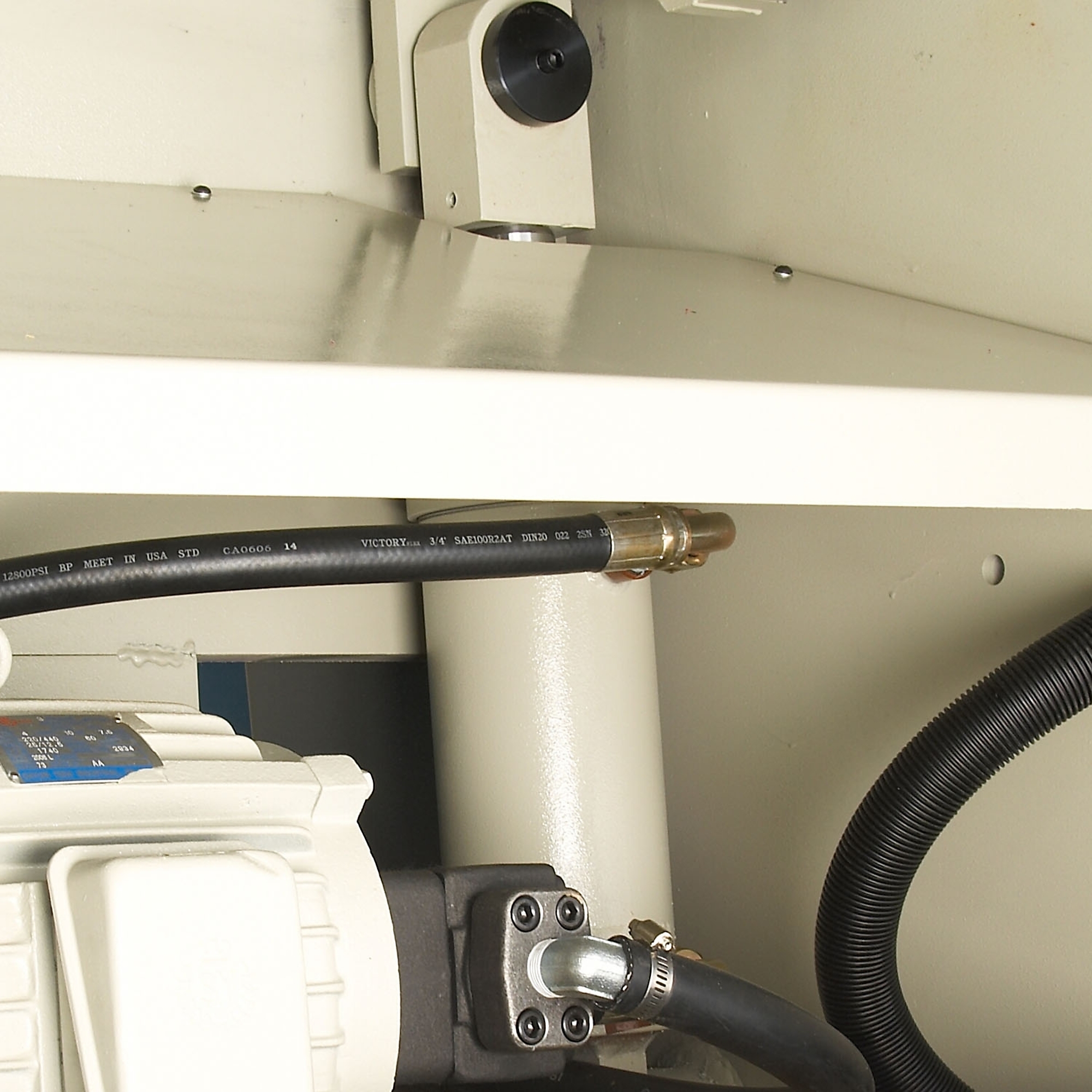

  • Industrial-grade hydraulic system is located in the front for easy fluid changes.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

With its welded steel frame, this hydraulic sheet metal shear offers a long lifespan of use cutting thick materials for high production. The adjustable blade gap and rake angle ensure quality cuts.

What's Included

    (1) 220 Volt Three Phase Heavy Duty Hydraulic Shear

Features + Benefits

  • 52” length.
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • 7.5 hp motor runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system is located in the front for easy fluid changes.
  • 35 to 47 strokes per minute for speedy production.

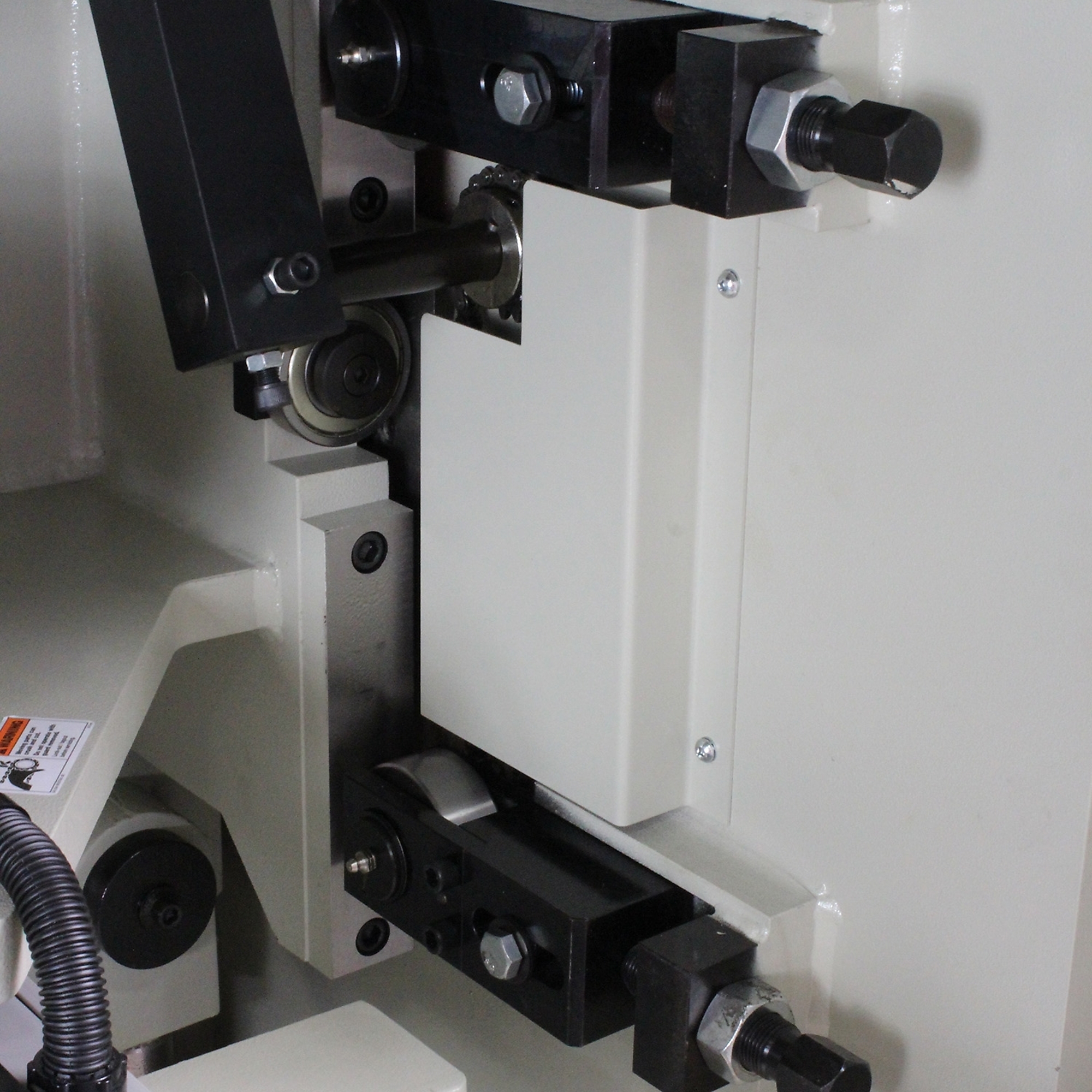

  • Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction.

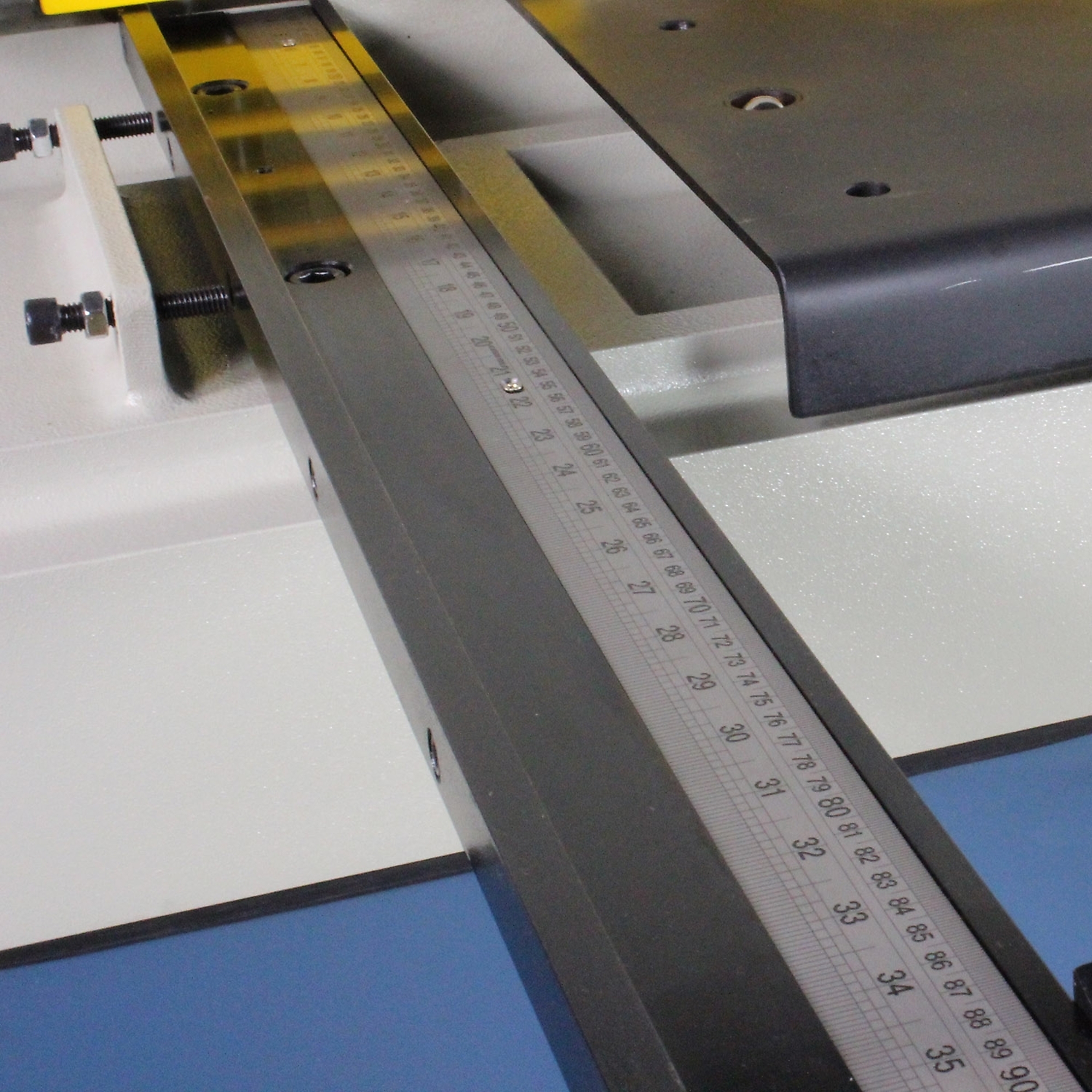

  • Manually adjustable 23.62” backgauge ensures precise repeatability.

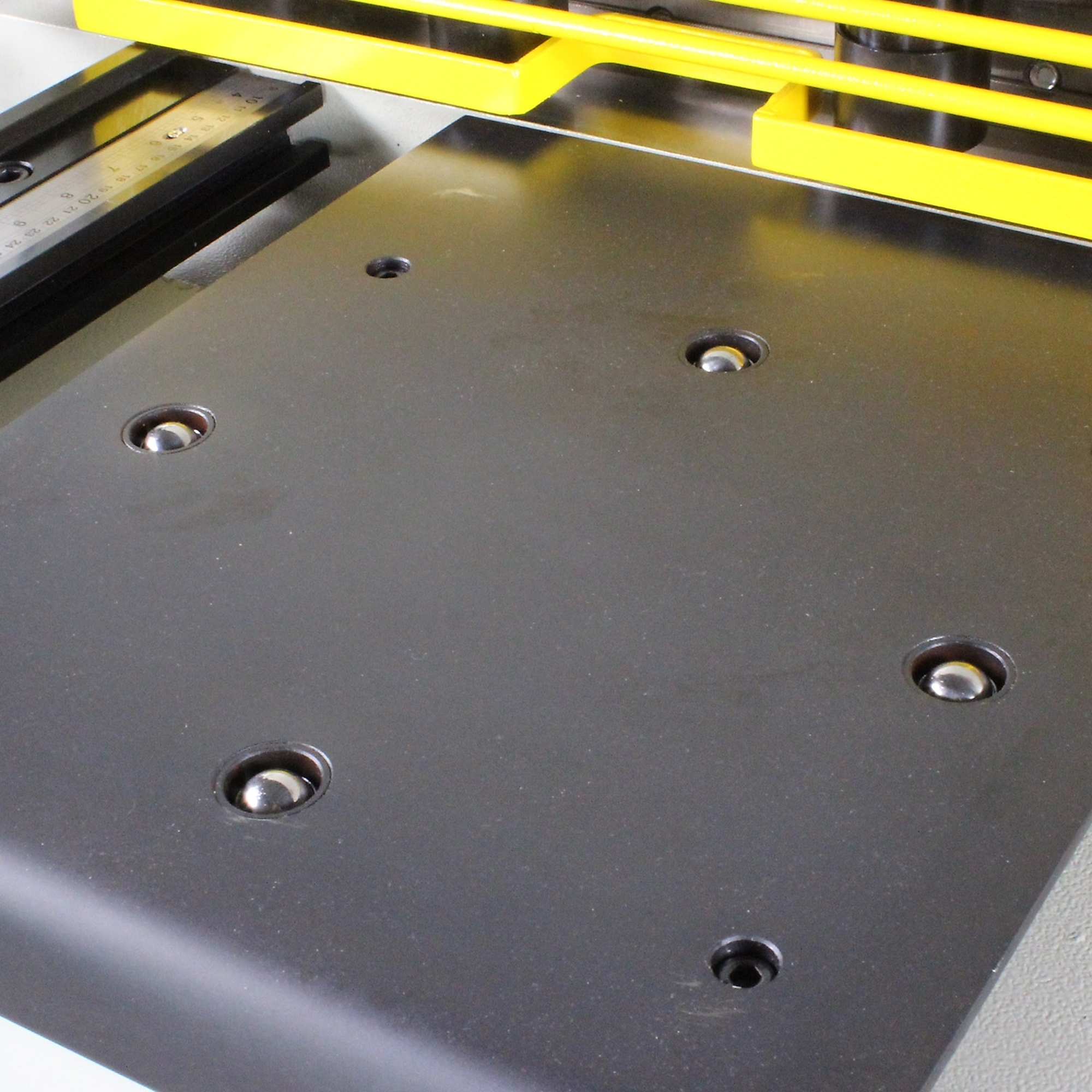

  • Heavy duty table with roller bars slides material into the machine more easily.
  • Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.
  • Switch between 3 modes as needed:
  • Jog mode: Inching the blade down to the material.
  • Single cycle mode: One cut for one pedal push.
  • Automatic cycling mode: Continuously cutting for production runs.
  • Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.
  • Convenient blade gap adjustment lets you eliminate folding and twisting.
  • Comes standard with high carbon chromium blades.
  • 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money.
  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
  • Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.

Key Specs

AttributeSpecification

item#

4686281

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23442.0 LB
AttributeSpecification

Max. Material Thickness

13 ga

Product Weight

23442.0000 lb

Dimensions L x W x H (in.)

88.0 x 45.0 x 66.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
