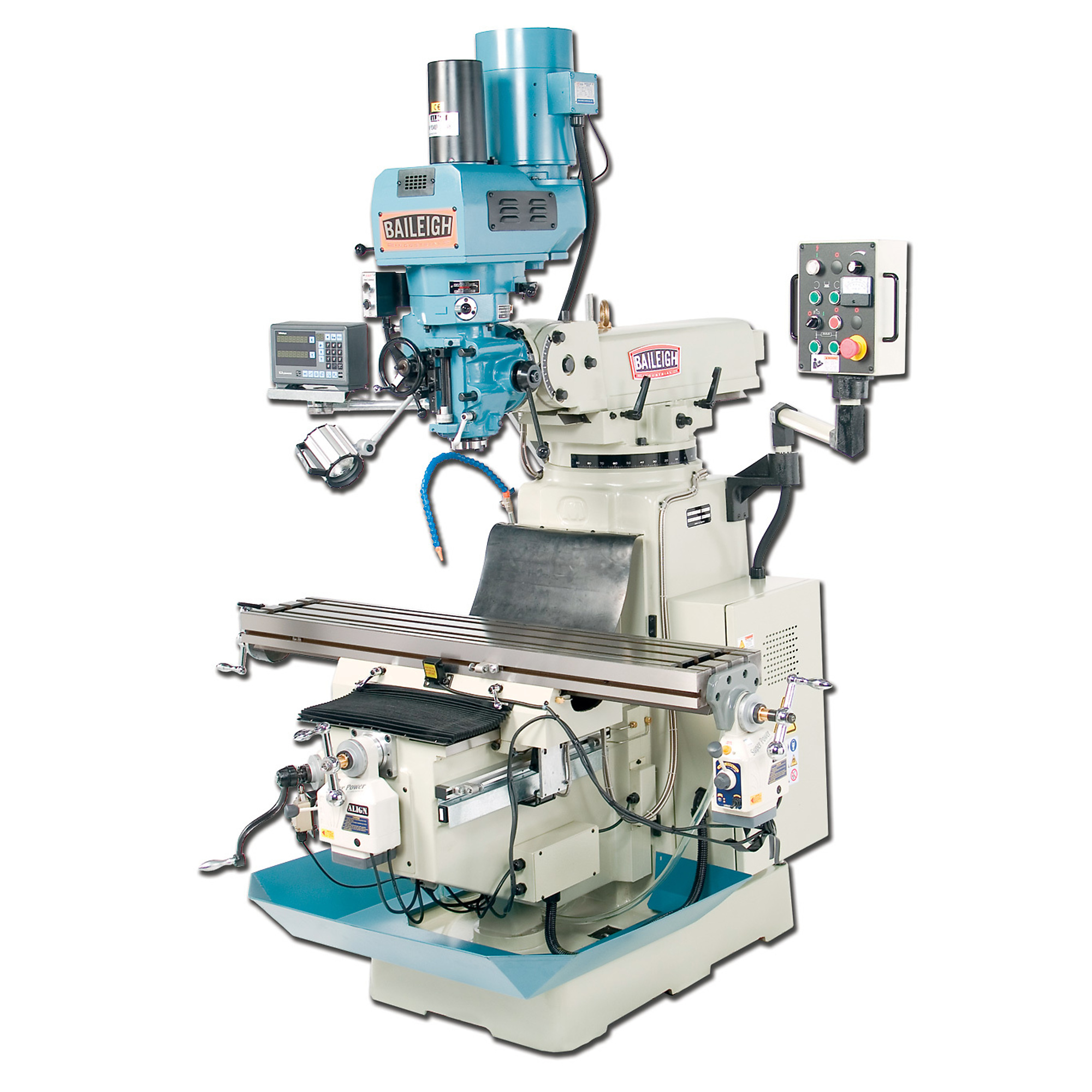

Baileigh, Milling Machine, Horsepower 3 HP, Volts 220 Model# VM-1054-3

Item# 5003690
Baileigh, Milling Machine, Horsepower 3 HP, Volts 220 Model# VM-1054-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Milling Machine, Horsepower 3 HP, Volts 220 Model# VM-1054-3

Click or Tap image to Zoom

$31,991.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • The VM-1054 is a variable speed milling machine that is powered by a Yaskawa® inverter.  This inverter is powered by 220 volts of three phase power.  Inverters are great for milling machines because of their ability to be adjusted to any speed desired between 80 and 3800 rpm.  By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money.  Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well.  A larger spindle is stronger and has tighter tolerances over a longer period of time.  Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame.  The stronger you make he platform the better the cutting is.
  • All three axis are powered on the VM-1054 making it easy on the operator.  Another nice feature of the VM-1054 milling machine is the two axis digital readout that comes standard.  This Mitutoyo® digital readout is accurate to 1/10 of 1 thousandth of an inch.  A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Table size is very important when deciding which milling machine to buy.  The VM-1054 from Baileigh Industrial has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite B to extend life and help eliminate corrosion.

What's Included

    (1) Machine

Features + Benefits

  • The VM-1054 is a variable speed milling machine that is powered by a Yaskawa® inverter.  This inverter is powered by 220 volts of three phase power.  Inverters are great for milling machines because of their ability to be adjusted to any speed desired between 80 and 3800 rpm.  By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money.  Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well.  A larger spindle is stronger and has tighter tolerances over a longer period of time.  Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame.  The stronger you make he platform the better the cutting is.
  • All three axis are powered on the VM-1054 making it easy on the operator.  Another nice feature of the VM-1054 milling machine is the two axis digital readout that comes standard.  This Mitutoyo® digital readout is accurate to 1/10 of 1 thousandth of an inch.  A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054.

Key Specs

AttributeSpecification

item#

5003690

Brand

Baileigh

Manufacturer's Warranty

2 year limited warranty

Ship Weight

3000.0 LB

Horsepower

3 HP

Volts

220

Max. Speed

3,800 rpm
AttributeSpecification

360 Degree Head Swivel

Yes

Product Type

Milling Machine

Light Included

Yes

Stand Included

Yes

Variable Speed

Yes

Product Weight

3000.0000 lb

Dimensions L x W x H (in.)

72.0 x 72.0 x 72.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
