Baileigh, Hydraylic Shear, Max. Material Thickness 13 ga, Model# SH-8010

Item# 4686450
Baileigh, Hydraylic Shear, Max. Material Thickness 13 ga, Model# SH-8010

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraylic Shear, Max. Material Thickness 13 ga, Model# SH-8010

Click or Tap image to Zoom

$23,694.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 80” length.
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • Powerful industrial-grade hydraulics produce smooth movements that prolong blade life.
  • 5 hp motor runs on 220-volt 3-phase power.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Looking to increase production? This hydraulic shear can produce 24 strokes per minute. Built with a fully welded steel frame, the SH-8010 will withstand years of full-capacity use.

What's Included

    (1) Shear

Features + Benefits

  • 80” length.
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • Powerful industrial-grade hydraulics produce smooth movements that prolong blade life.
  • 5 hp motor runs on 220-volt 3-phase power.

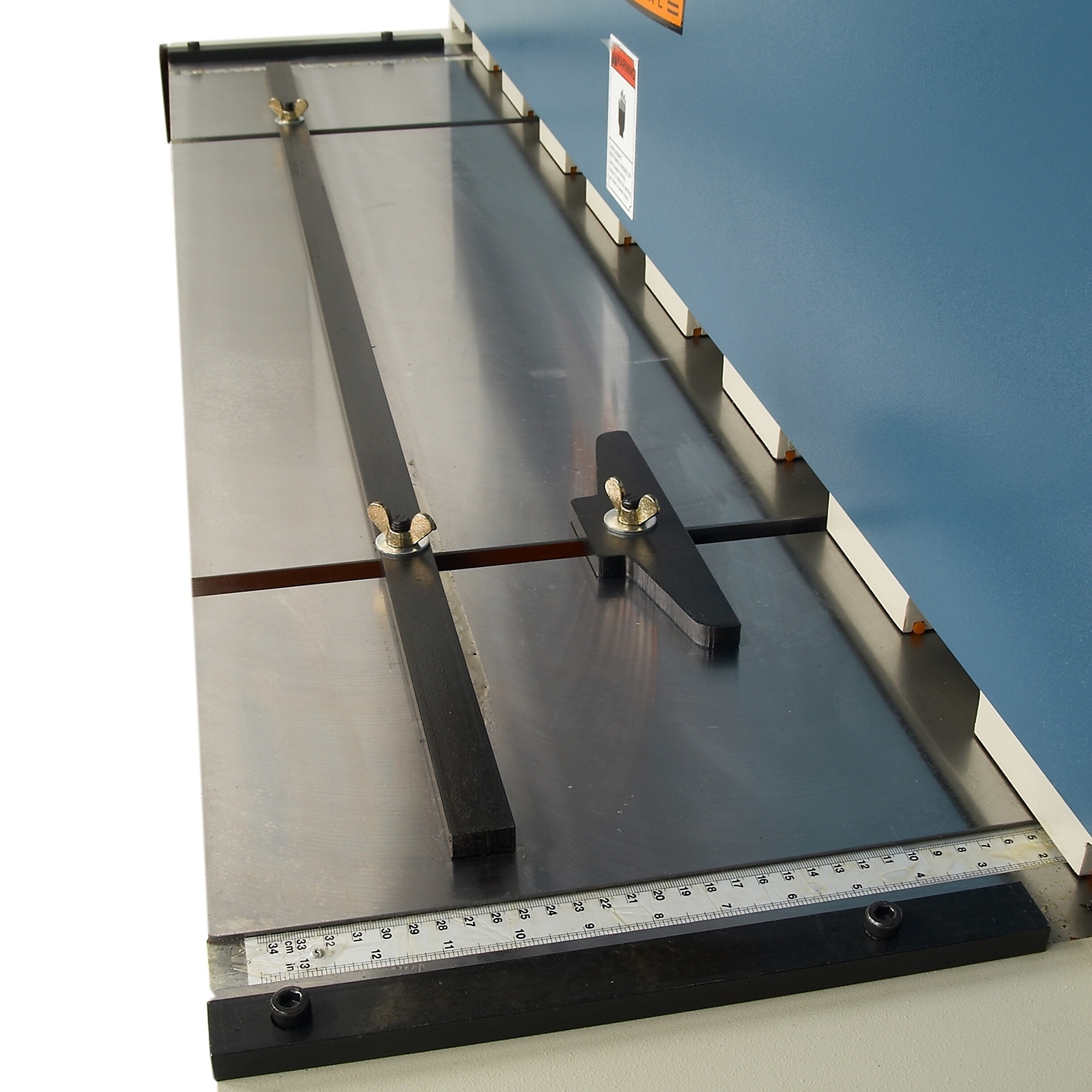

  • Adjustable 24” backgauge helps ensure repeatability.

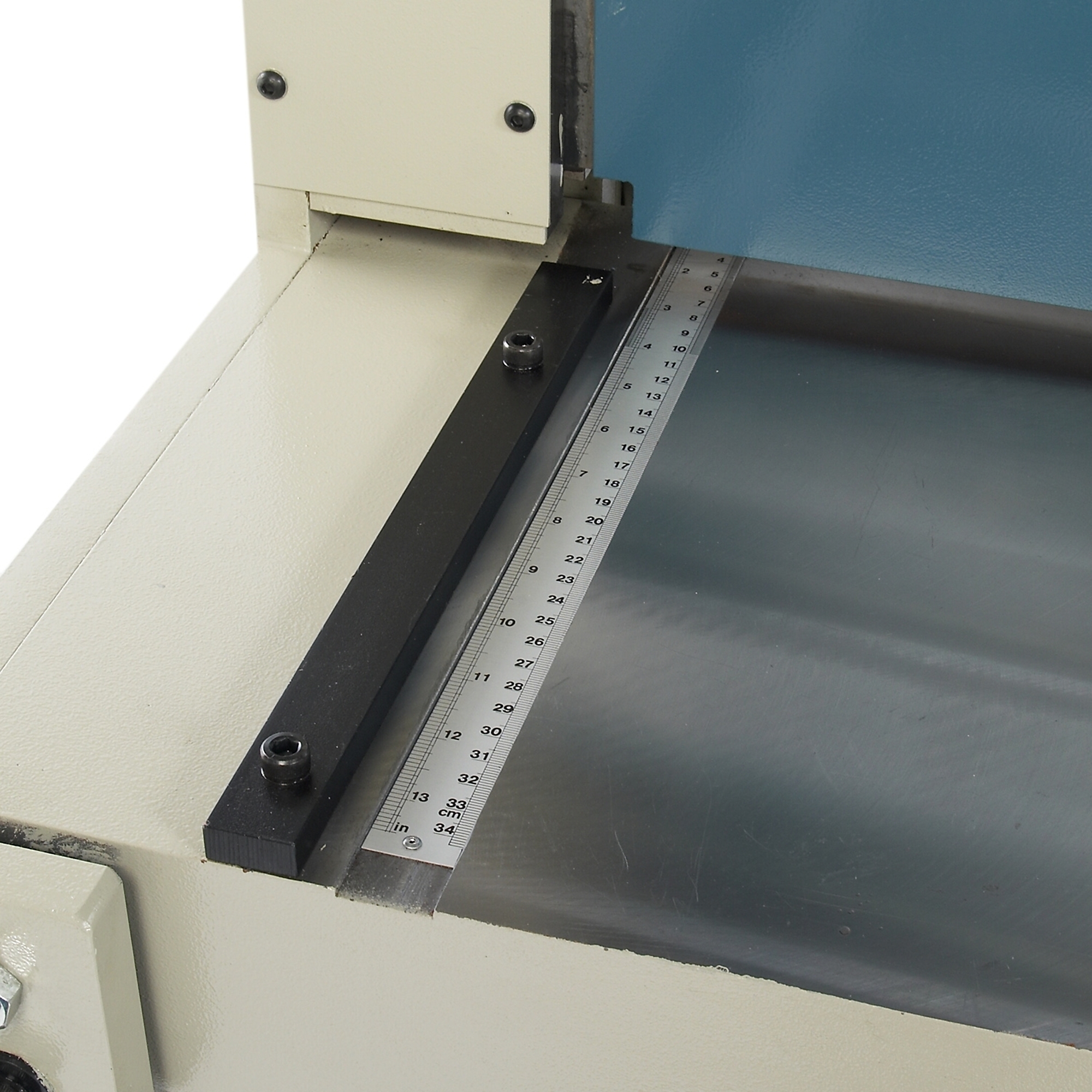

  • Front support arms and table guides keep the material square to the blade.

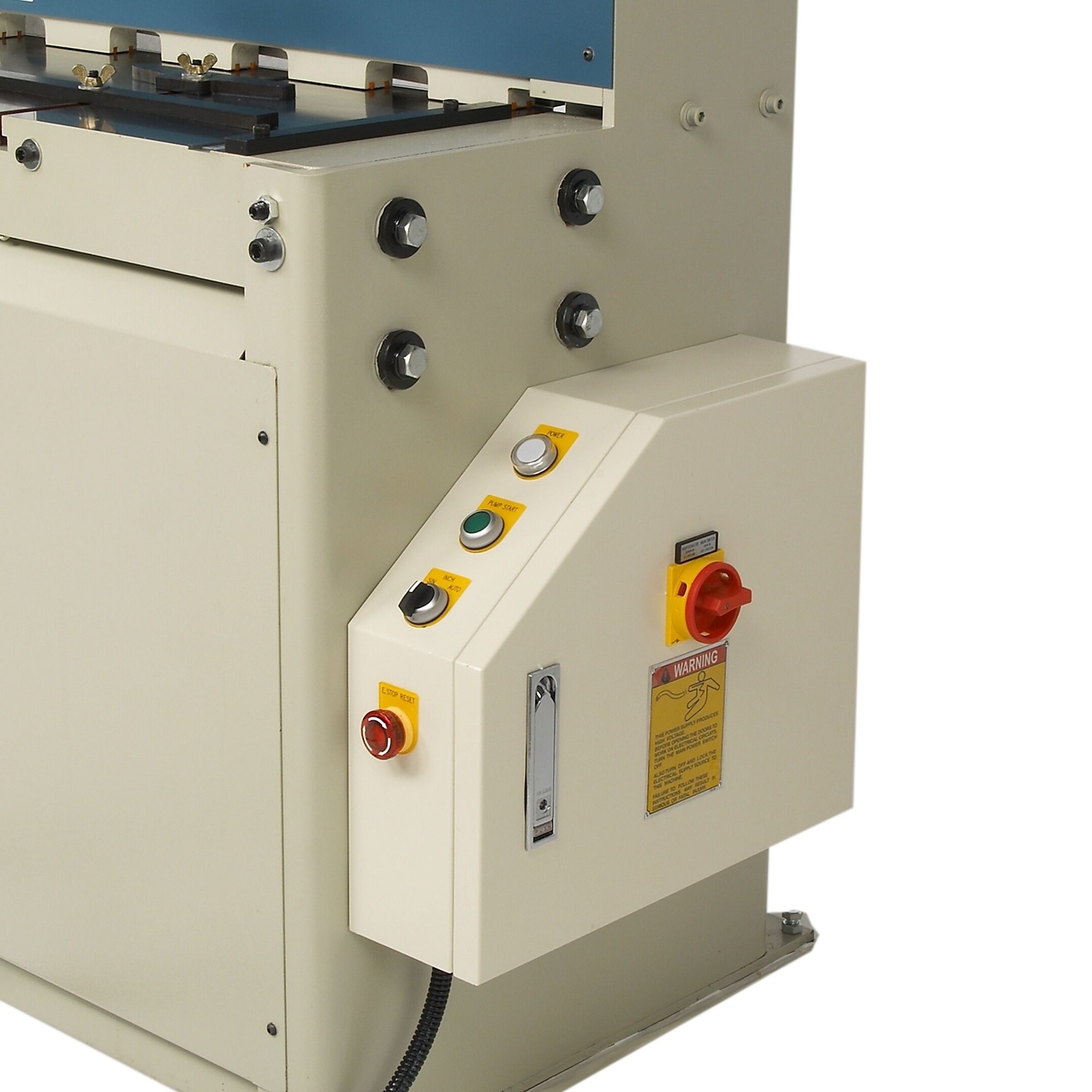

  • 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.
  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
  • Comes standard with high carbon chromium blades.
  • Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

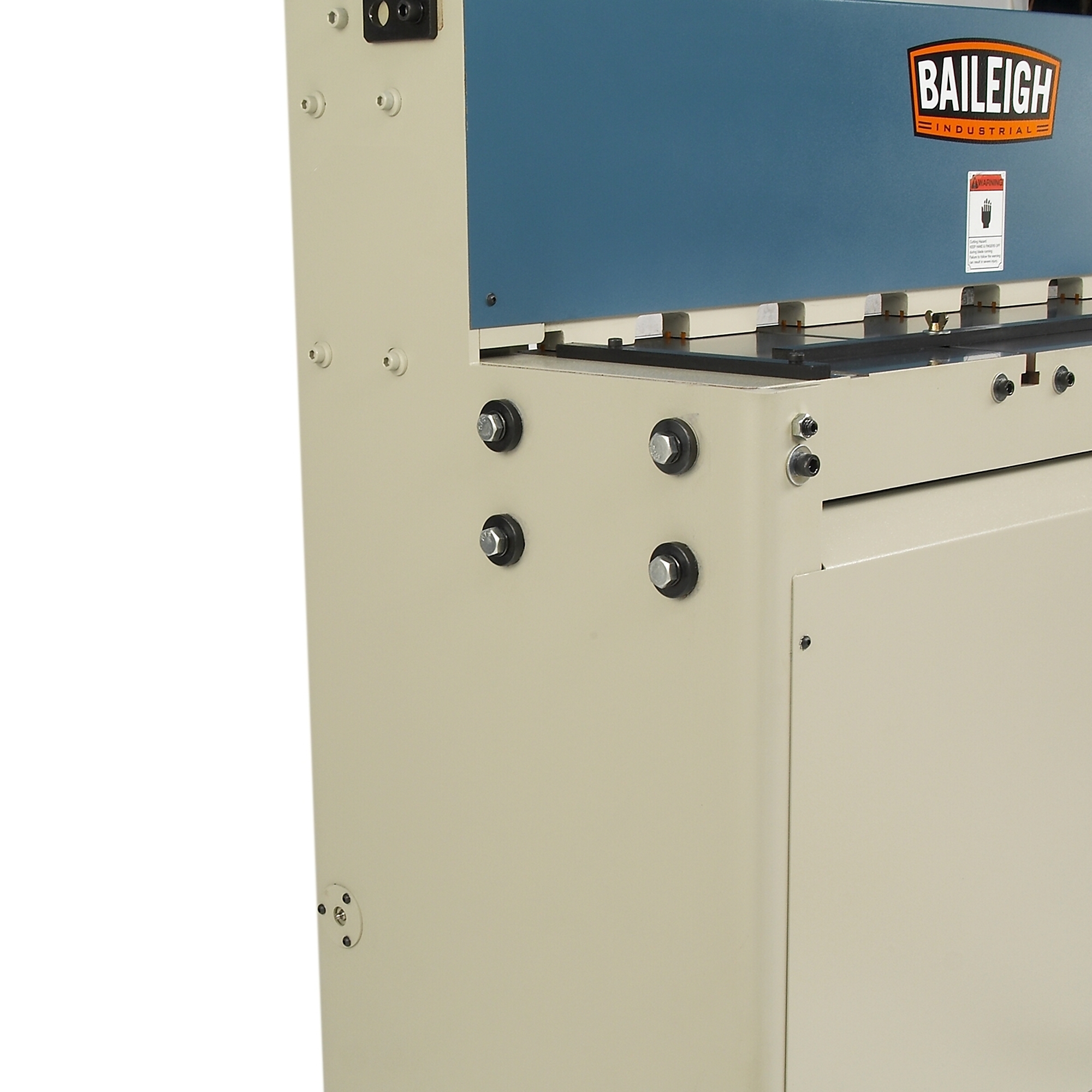

  • Rigid steel plate construction minimizes flex and maintains accuracy.
  • Covered by a 1-year parts warranty.
  • We stock replacement parts, including blades, in house for fast shipping.
  • Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Key Specs

AttributeSpecification

item#

4686450

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

18773.0 LB
AttributeSpecification

Max. Material Thickness

13 ga

Product Weight

18773.0000 lb

Dimensions L x W x H (in.)

106.0 x 37.0 x 59.0 in
