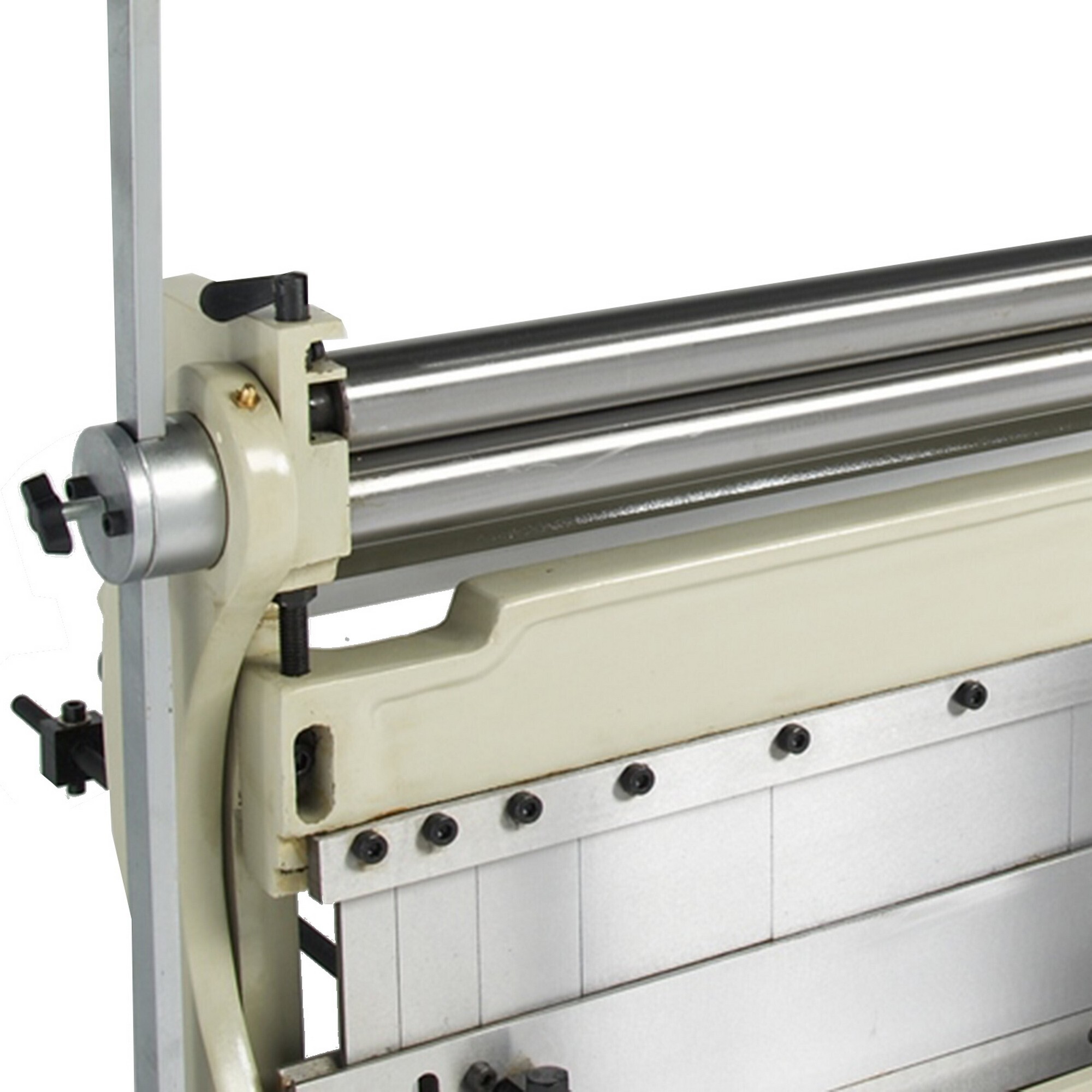

Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-4020

Item# 4686020
Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-4020

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-4020

Click or Tap image to Zoom

$2499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 40” working width for rolling, bending, and shearing.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.
  • Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70” minimum diameter.
  • Hardened rolls with 3 grooves can form wire or small round stock.
  • Manual press brake bends up to 90° and includes a V die set.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The SBR-4020 shear brake roll machine has a small floor plan for shops with limited space. You can mount this combination machine to a bench or stand. Get a durable 3in. 1 sheet metal machine for an affordable price!

What's Included

    (1) 3 in 1 Combination Shear Brake and Roll

Features + Benefits

  • 40” working width for rolling, bending, and shearing.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.
  • Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70” minimum diameter.

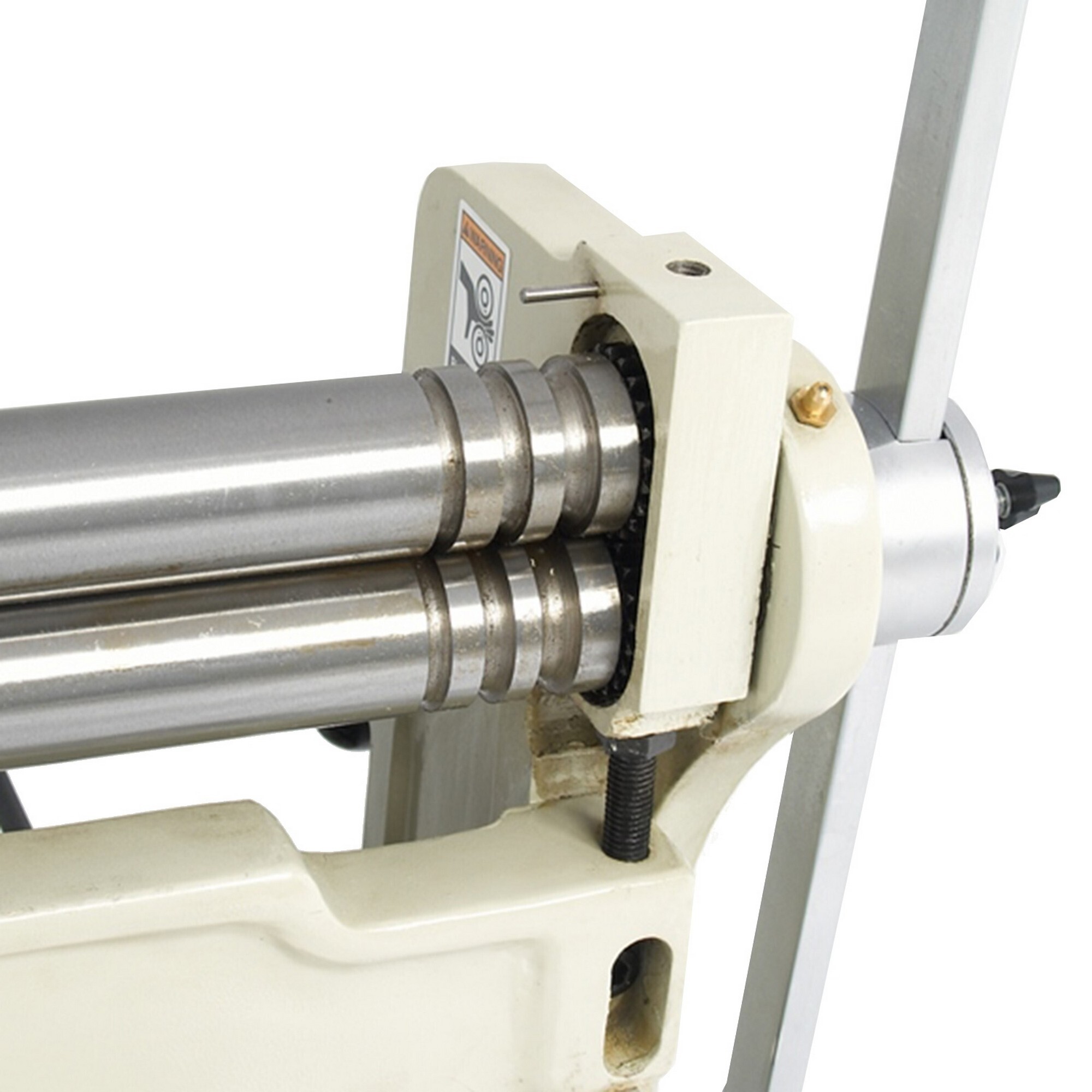

  • Hardened rolls with 3 grooves can form wire or small round stock.
  • Manual press brake bends up to 90° and includes a V die set.
  • Crowning feature lets you set the camber of the tooling so it bends consistently across the machine’s full width.
  • Hardened adjustable dies (from 1” to 10-?”) on the upper beam of the press brake can make boxes and pans.

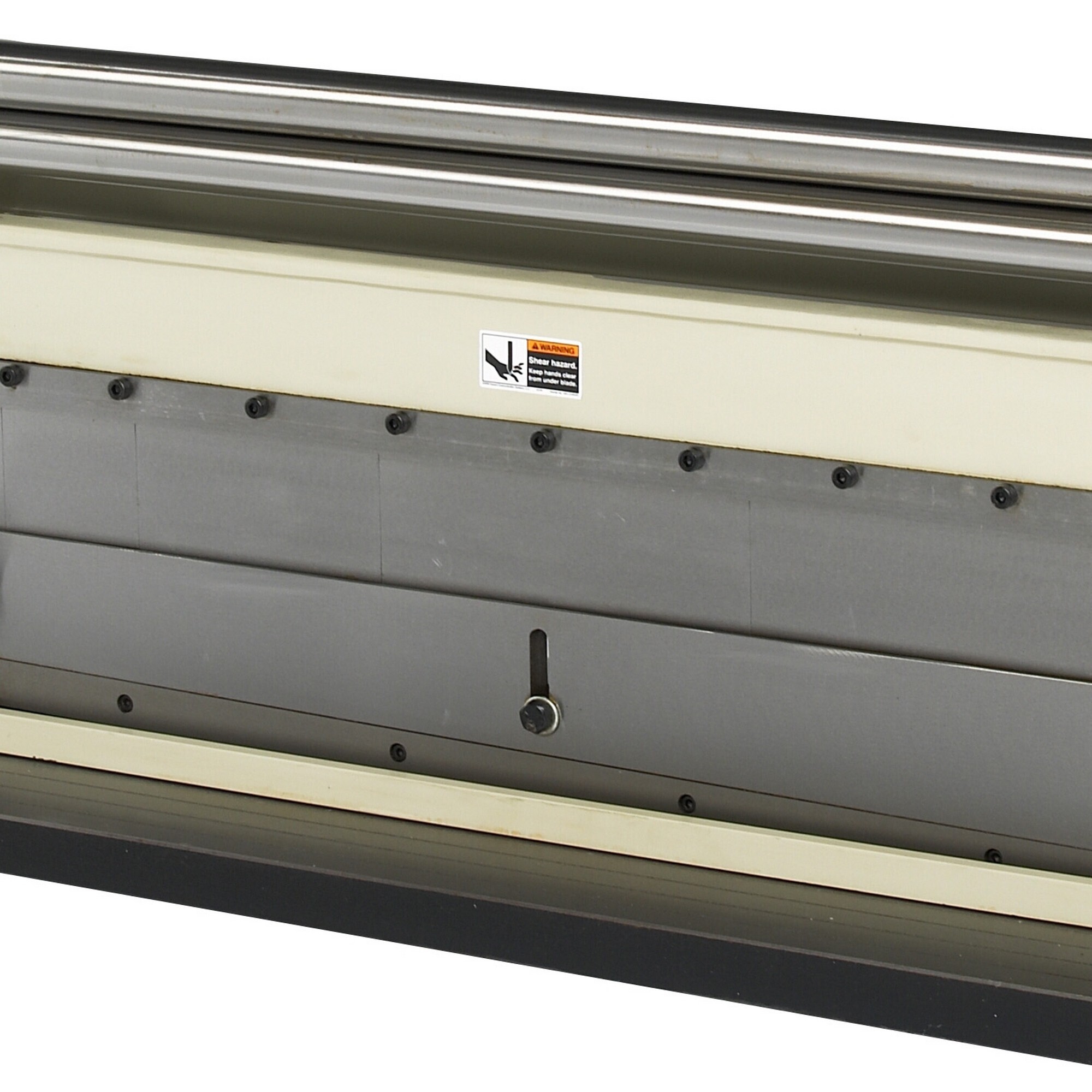

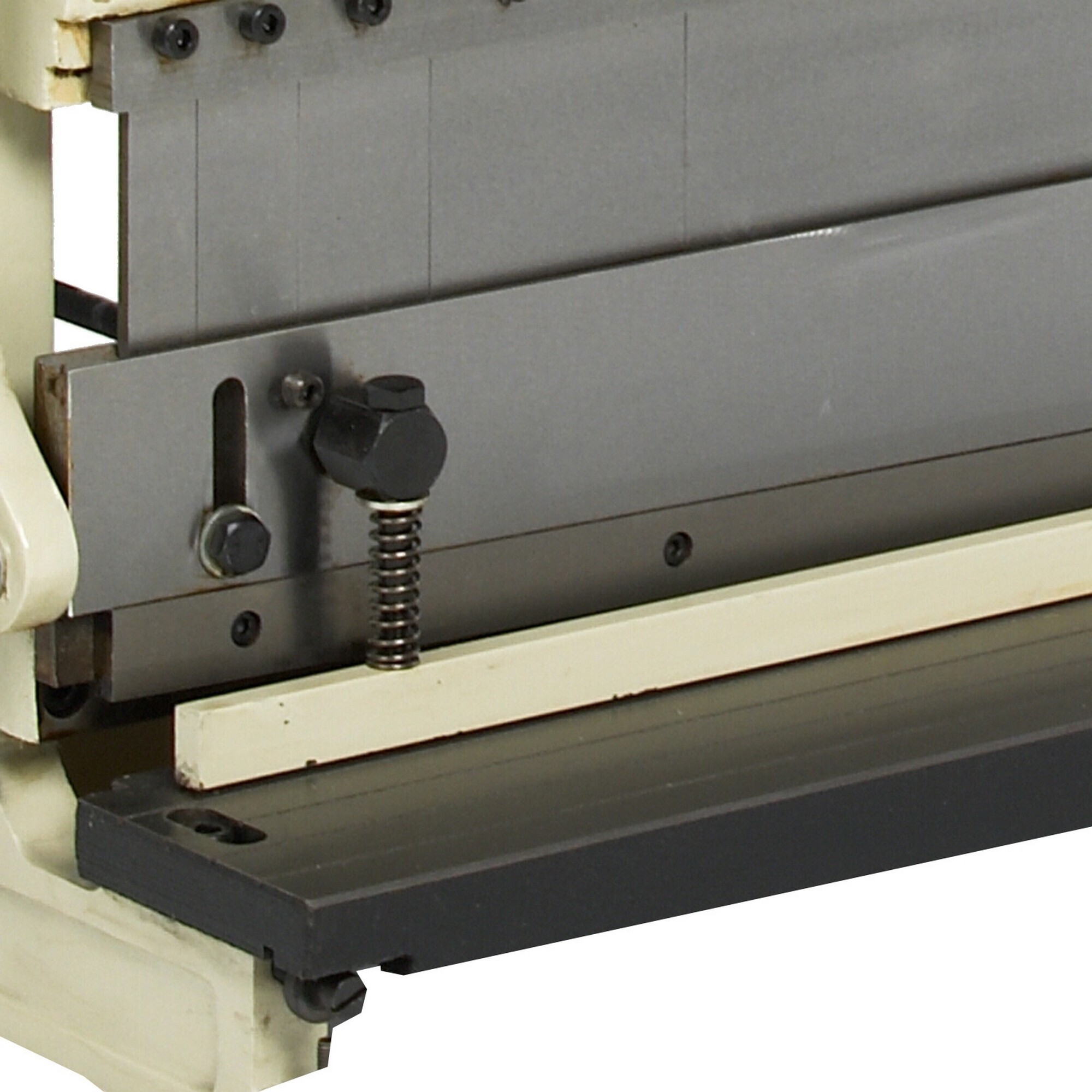

  • Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine.
  • Shear blades are hardened and reversible, so they stay sharp.

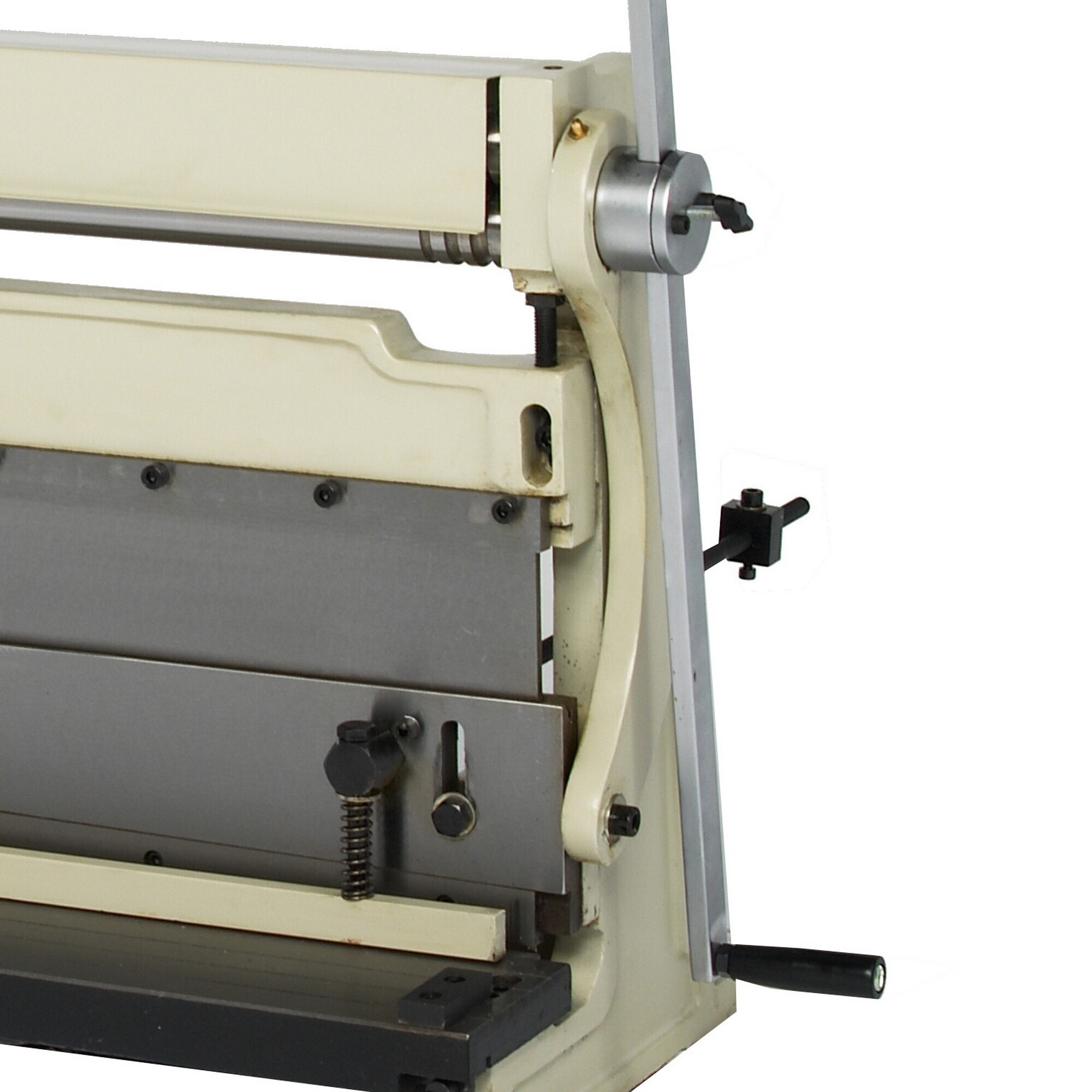

  • Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
  • Each 360° turn of the handles gives you a full cycle on each of the machines.
  • Back gauge helps ensure repeatability.
  • Heavy-duty steel frame adds strength to the 461-pound machine, so it delivers accurate results for many years.
  • 3 in 1 sheet metal machine covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone. Call up our team of knowledgeable reps whenever you have questions.

Key Specs

AttributeSpecification

item#

4686020

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1437.0 LB

Max. Material Gauge

20

Dies Included

No
AttributeSpecification

Max. Bending Radius

135 °

Max. Width

40 in

Slip Roll Diameter

Multiple in

Slip Roll Length

40 in

Product Weight

1437.0000 lb

Dimensions L x W x H (in.)

53.0 x 18.0 x 28.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
