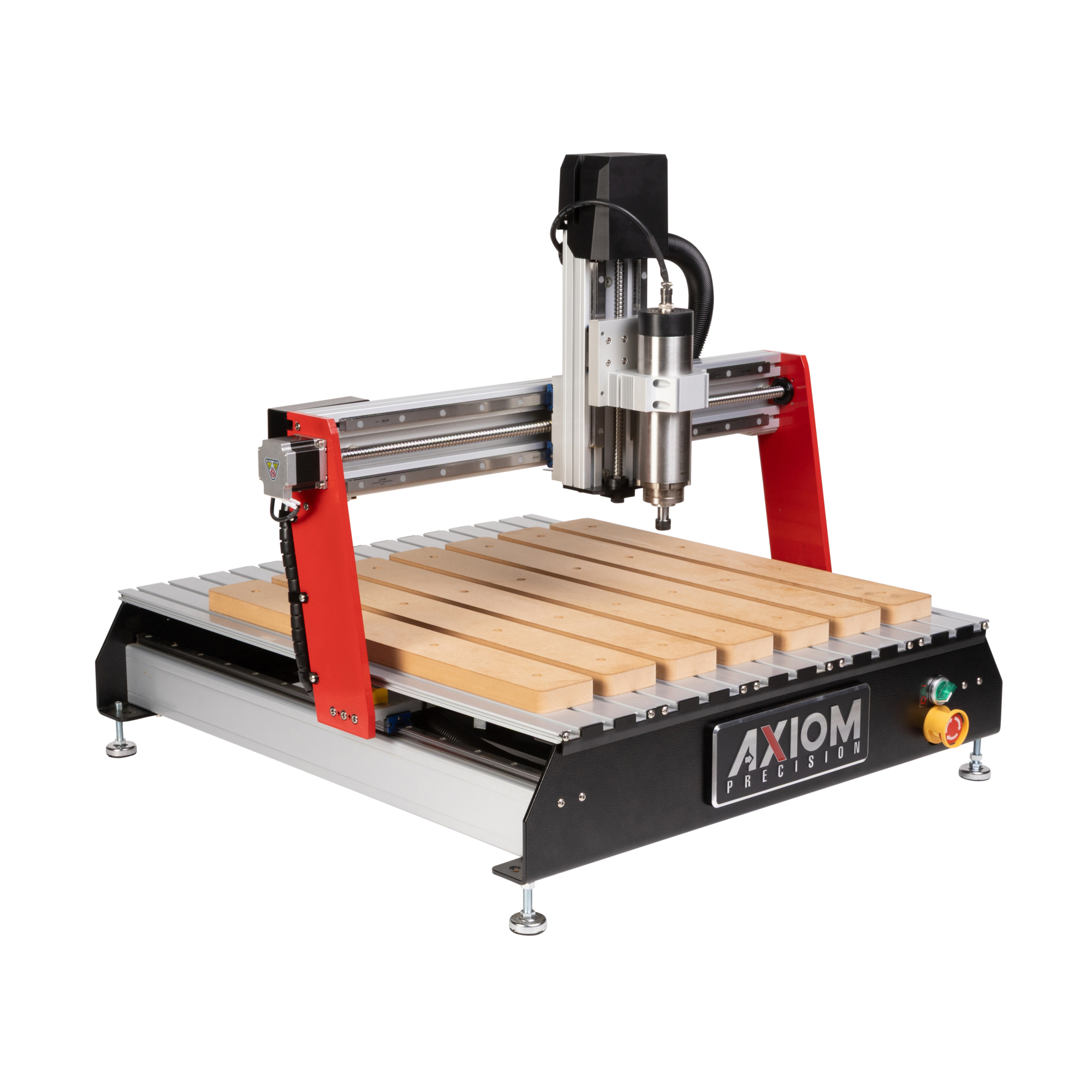

Axiom CNC Router — 2ft. x 2ft., Steel Frame, 1-HP Spindle, 24,000 RPM, Model# AX1-101

Item# 7117990
Axiom CNC Router — 2ft. x 2ft., Steel Frame, 1-HP Spindle, 24,000 RPM, Model# AX1-101

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Axiom CNC Router — 2ft. x 2ft., Steel Frame, 1-HP Spindle, 24,000 RPM, Model# AX1-101

Click or Tap image to Zoom

$4699.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

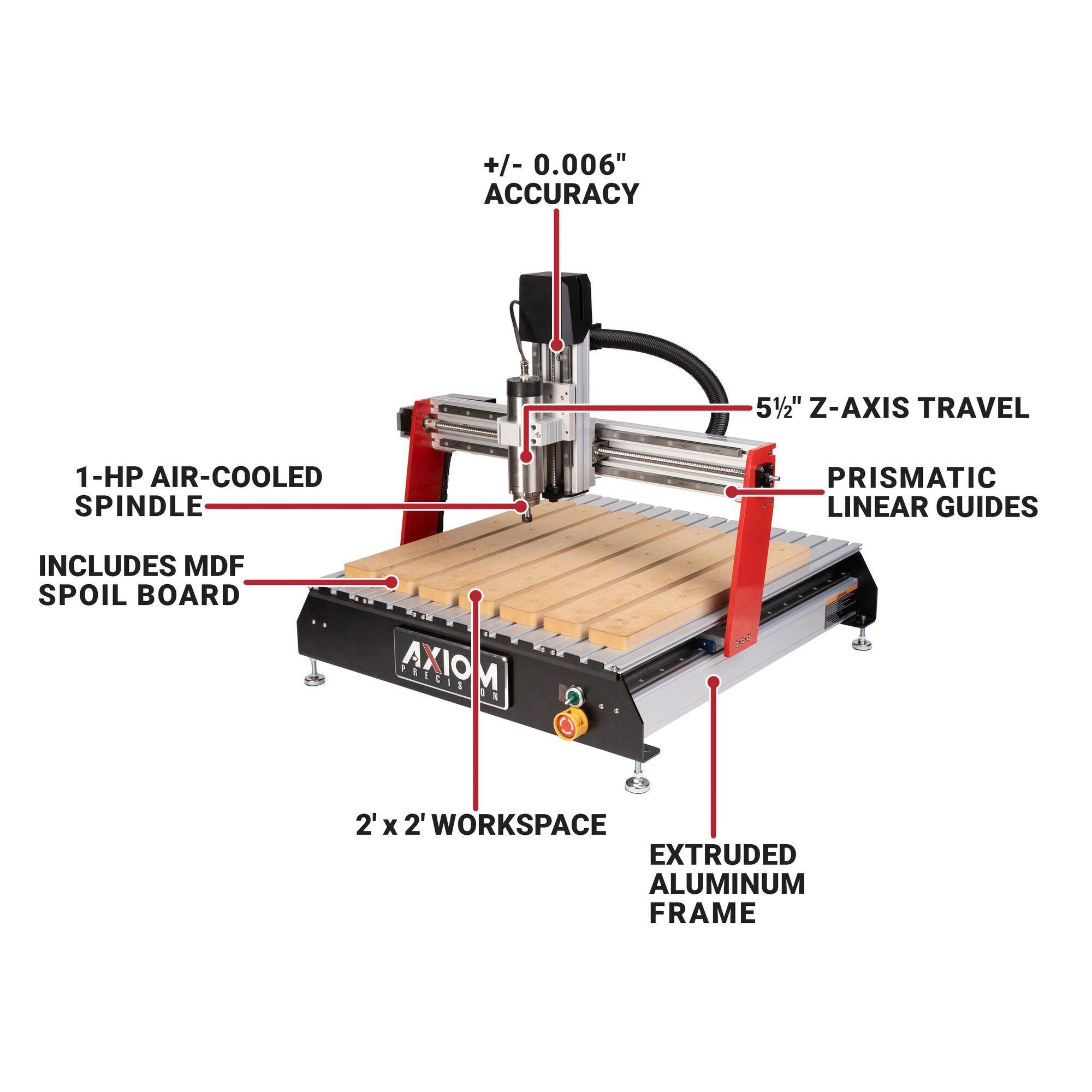

  • 24" x 24" cutting area with 5.5" Z-axis travel

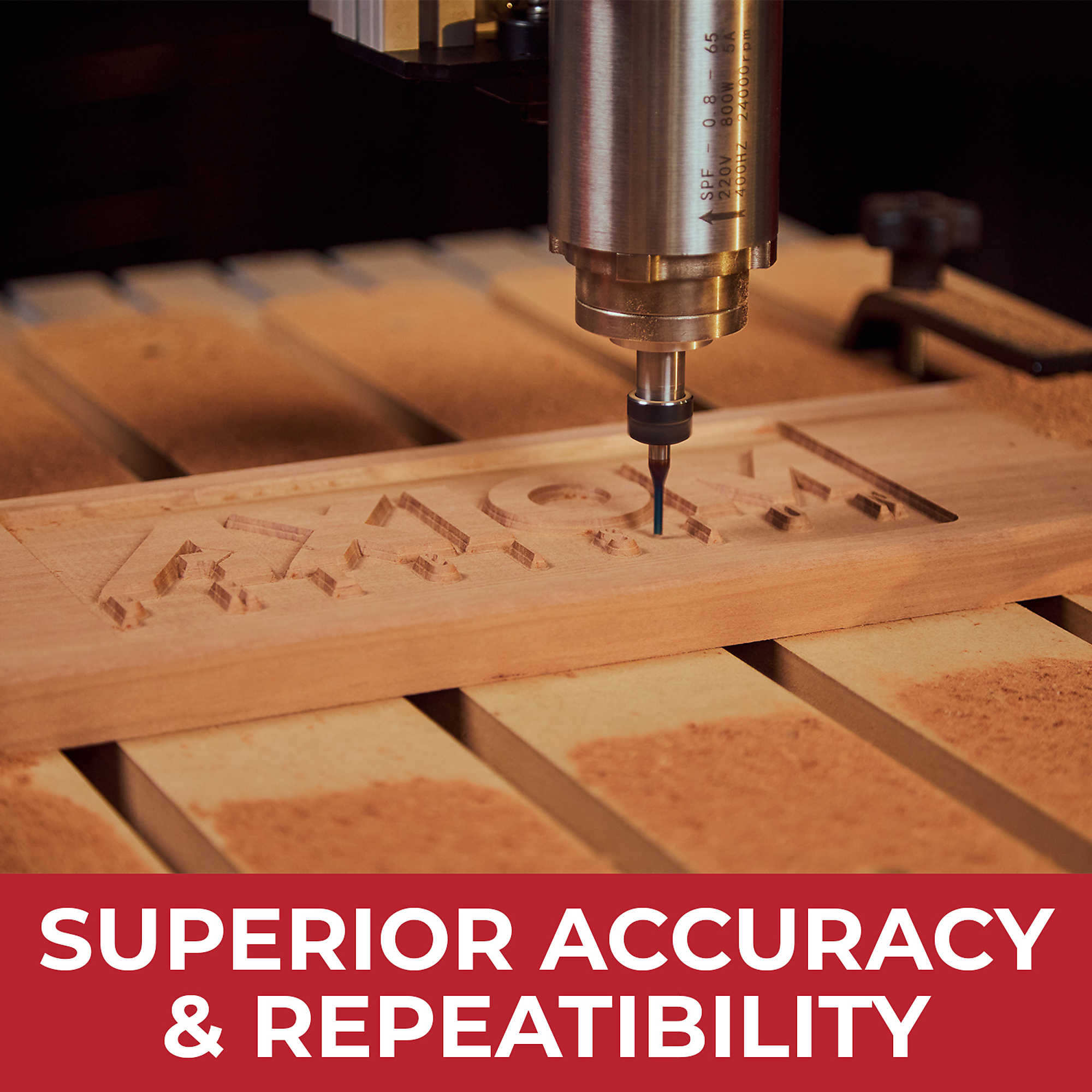

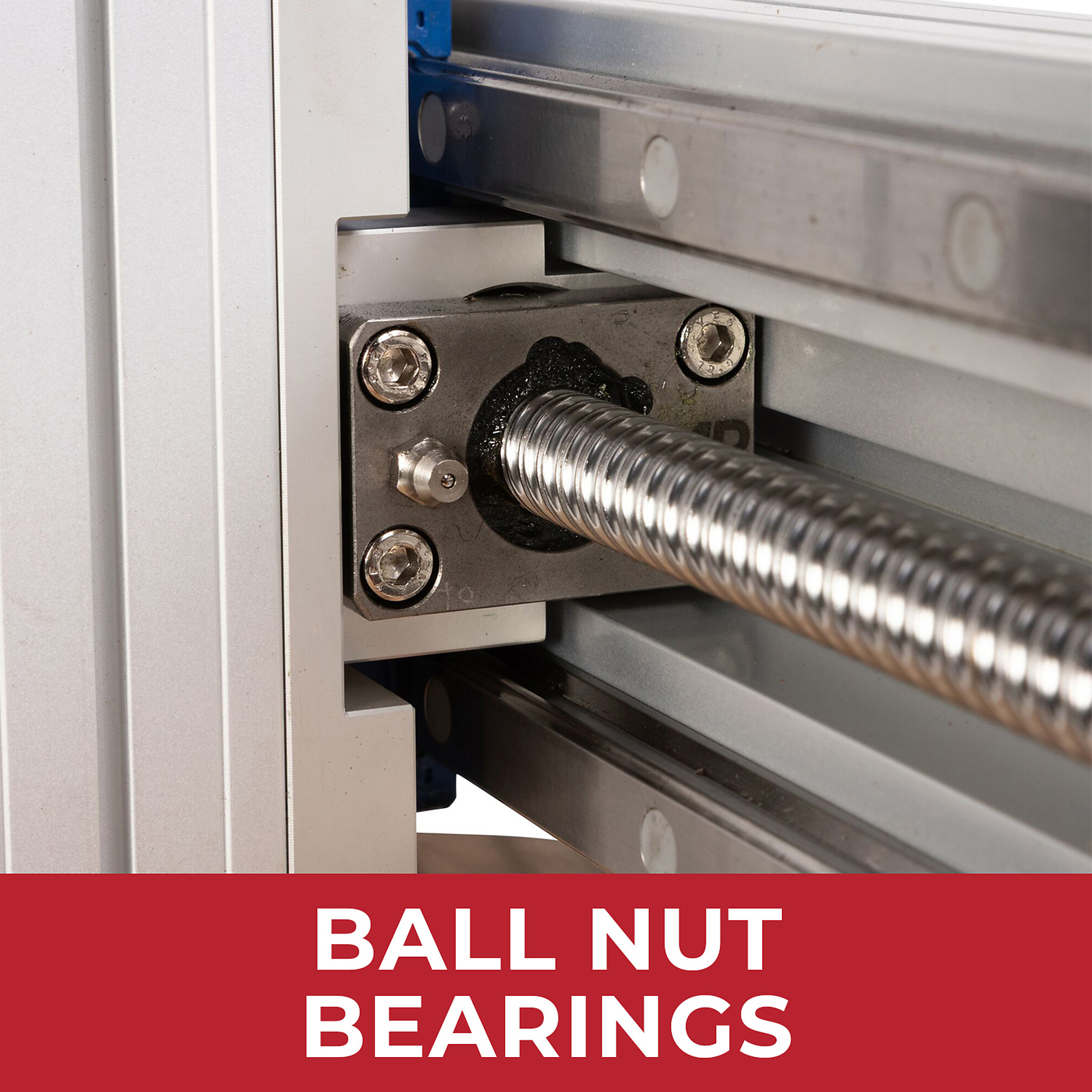

  • ±0.007" accuracy with precision ball screws on all axes
  • Rigid all-metal frame and extruded aluminum gantry
  • 1-HP air-cooled spindle with speeds up to 24,000 RPM
  • Prismatic linear guides for smooth, repeatable motion

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Superior Accuracy Repeatability, More Power Speed The Axiom 2x2 CNC Router delivers full-scale performance in a compact footprint—ideal for professionals, educators, and small shops looking to maximize precision in limited space. Built on an industrial-grade platform, this 2ft. x 2ft. CNC features a steel frame, extruded aluminum gantry, and precision ball screws with prismatic linear guides on all axes—engineered for ±0.007in. accuracy. Don’t let the size fool you—this is a true production-class machine. A powerful 1-HP air-cooled spindle delivers speeds up to 24,000 RPM, matched with a generous 24in. x 24in. cutting area and 5.5in. of Z travel for deep, clean cuts. With 200 IPM travel speeds, this machine keeps your workflow fast and efficient - whether you're working with wood, foam, or plastic. Included with your Axiom 2x2 are the UCCNC software and Vectric VCarve Desktop software (a $350 value) to turn designs into precise results—fast. And when you need a hand? Axiom’s U.S.-based support team is here to help—before, during, and long after your first cut. Whether it's technical troubleshooting, application advice, or training resources, you're backed by a team that knows CNC inside and out. Whether you’re scaling up, teaching tomorrow’s makers, or stepping into CNC for the first time, the Axiom 2x2 gives you professional-grade capability.

What's Included

    (1) Axiom 2' x 2' (24 in x 24 in.) CNC Router (AX1-101)

Features + Benefits

  • 24" x 24" cutting area with 5.5" Z-axis travel

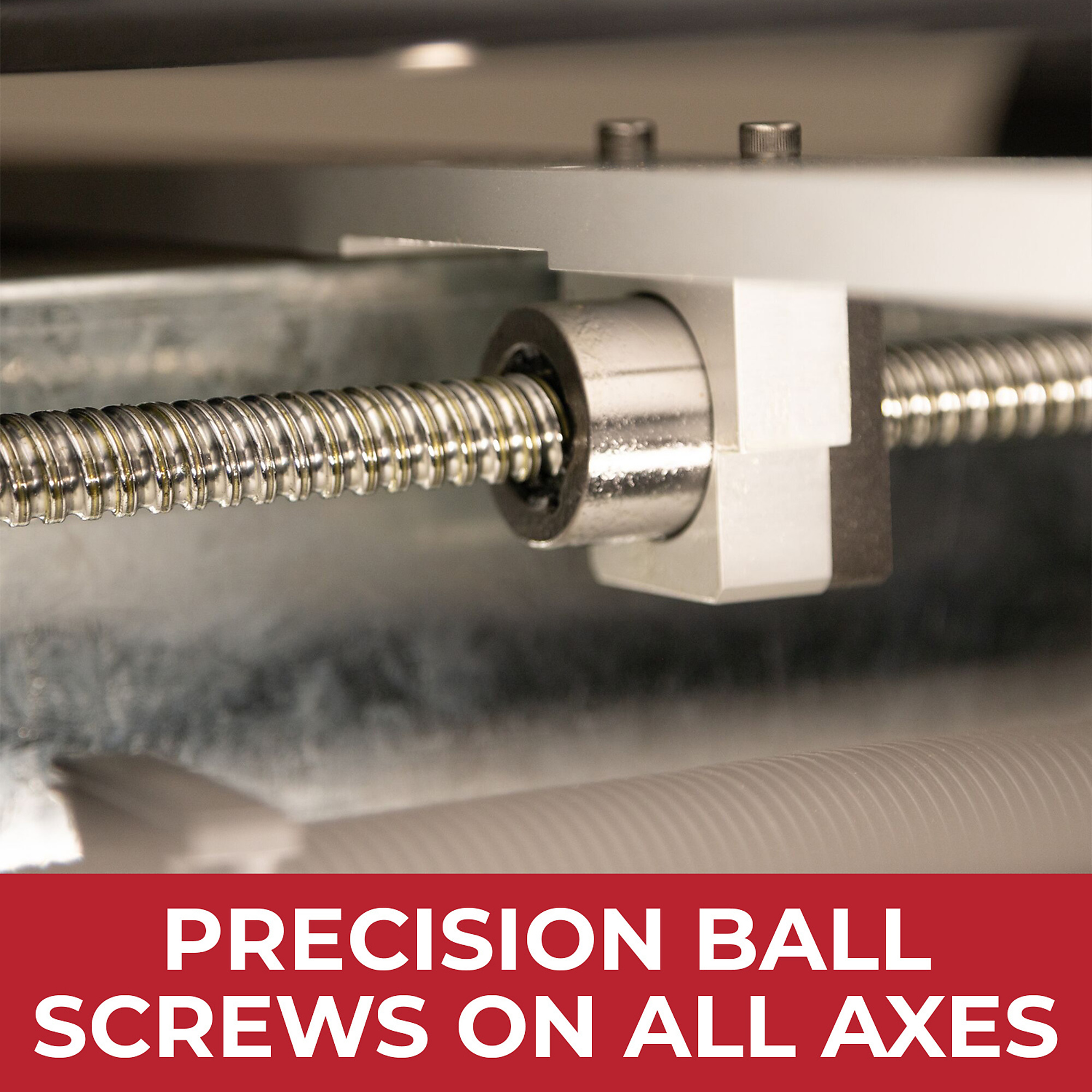

  • ±0.007" accuracy with precision ball screws on all axes
  • Rigid all-metal frame and extruded aluminum gantry
  • 1-HP air-cooled spindle with speeds up to 24,000 RPM
  • Prismatic linear guides for smooth, repeatable motion
  • Includes UCCNC software and Vectric VCarve Desktop software (Windows Compatible)
  • Backed by Axiom’s expert U.S.-based support and service team

Key Specs

AttributeSpecification

item#

7117990

Brand

Axiom

Manufacturer's Warranty

1 year limited warranty

Ship Weight

194.0 LB
AttributeSpecification

Product Type

Router

Product Weight

165.3000 lb

Dimensions L x W x H (in.)

37.0 x 40.0 x 21.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
