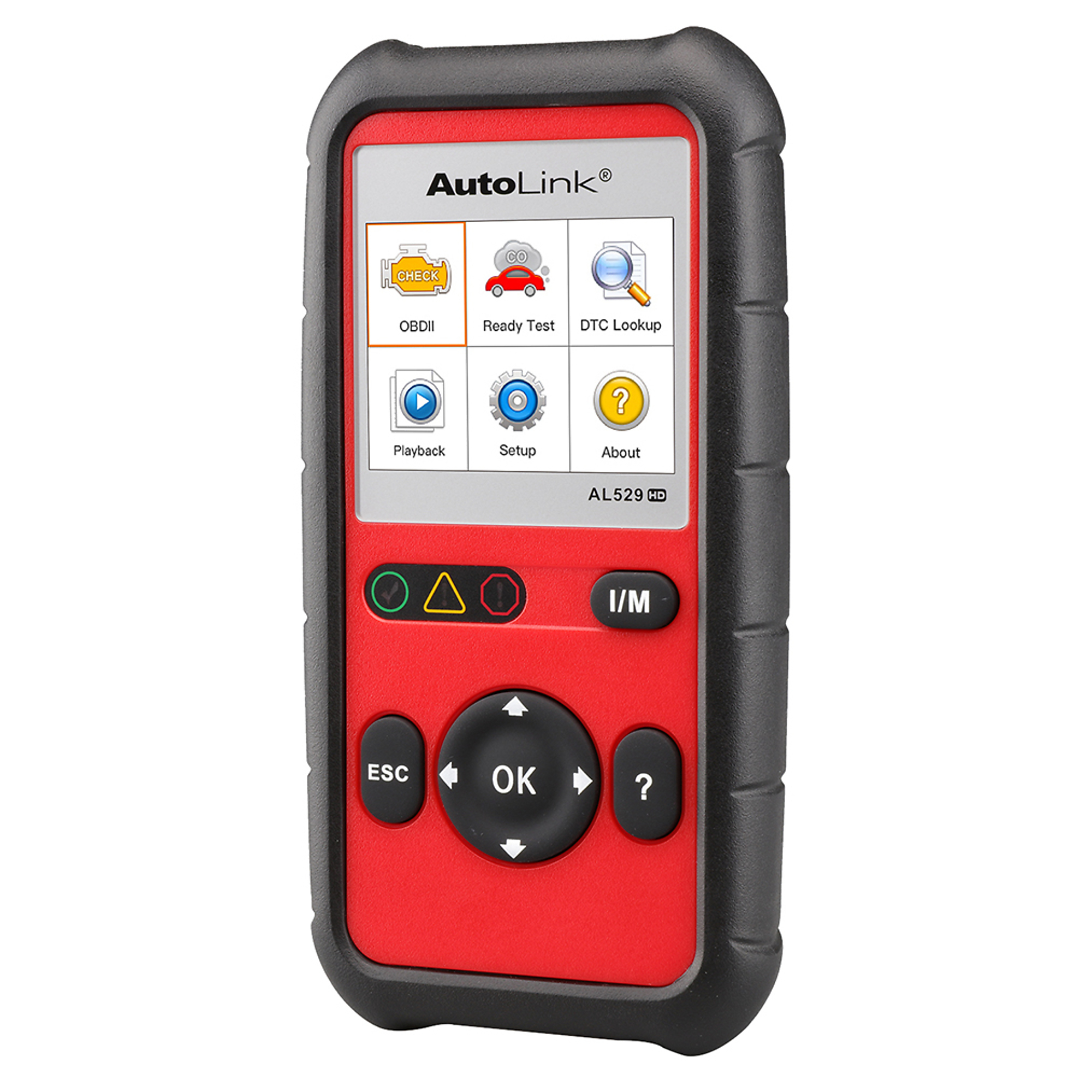

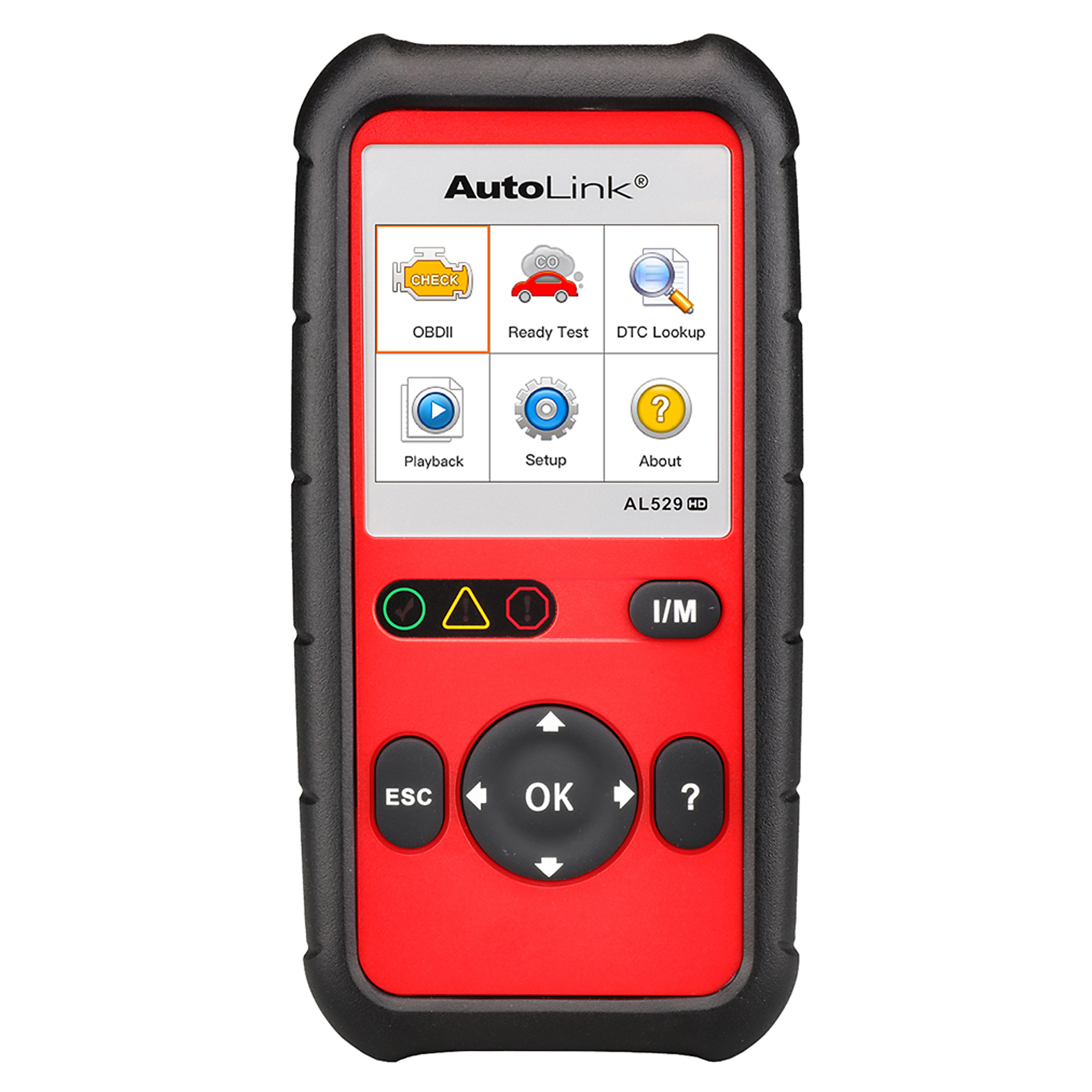

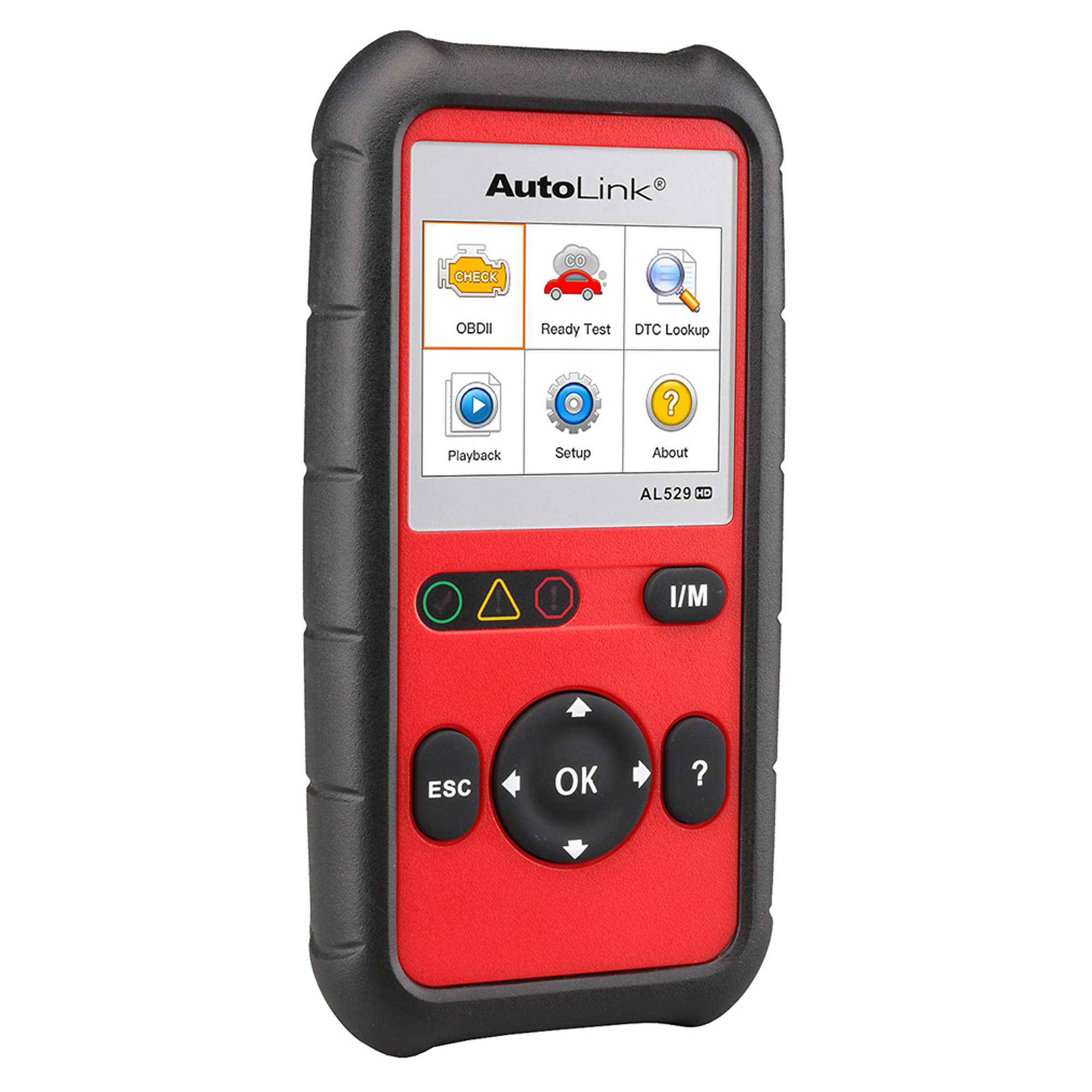

Autel Heavy Duty Vehicle Code Reader — Supports J1939 and J1708, 10 OBDII Test Modes, Color Screen, Model# AL529HD

Item# 5338941
"Autel, Heavy Duty Vehicle Code Reader, Model# AL529HD"
Autel Heavy Duty Vehicle Code Reader — Supports J1939 and J1708, 10 OBDII Test Modes, Color Screen, Model# AL529HD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Autel Heavy Duty Vehicle Code Reader — Supports J1939 and J1708, 10 OBDII Test Modes, Color Screen, Model# AL529HD

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Read/ Erase Heavy Duty Engine DTCs
  • Class 1-9 Commercial Vehicles
  • Includes Deutsch 9-Pin & 6-Pin Adapters
  • Supports J1939 & J1708 HD Protocols
  • One-Touch I/M Readiness/ LED Indicator

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The AutoLINK AL529HD is a heavy duty engine code reader for vehicles class 1 (0-6,000LBS) - class 9 (33,000LBS). It can read and erase heavy duty engine DTCS, supports J1,939 and J1,708 heavy duty protocols, can graph/record/playback live data, and display live and freeze frame data. The AL529HD supports all 10 OBDII test modes, has one-click I/M readiness/emissions testing and has enhanced Mode 6 diagnostics. It is updatable via PC, and includes a color screen, Deutsch 9-pin and Deutsch 6-pin connectors, and an OBDII cable. A 1-year tool warranty and free lifetime software updates are available with purchase.

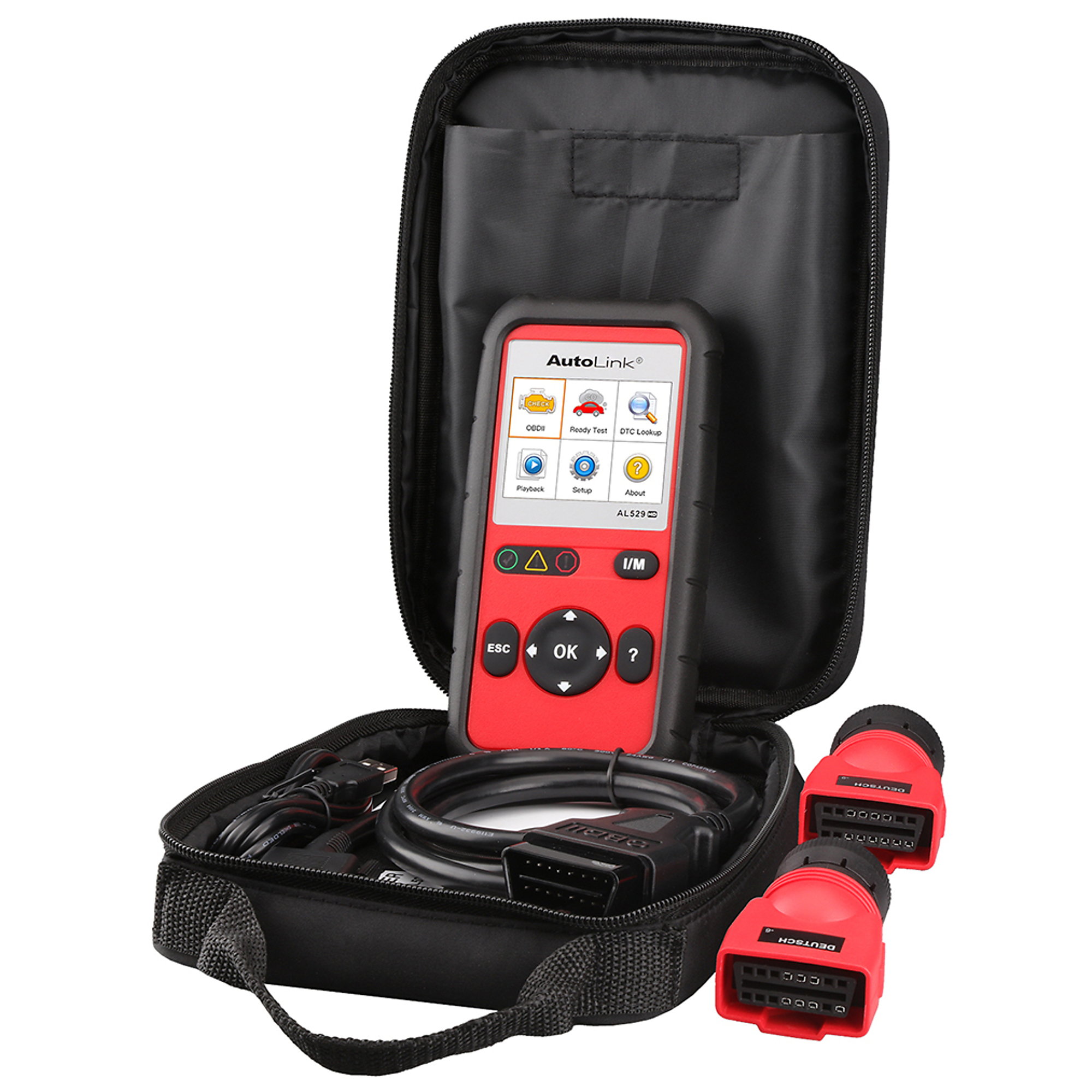

What's Included

    (1) Code Reader

Features + Benefits

  • Read/ Erase Heavy Duty Engine DTCs
  • Class 1-9 Commercial Vehicles
  • Includes Deutsch 9-Pin & 6-Pin Adapters
  • Supports J1939 & J1708 HD Protocols
  • One-Touch I/M Readiness/ LED Indicator
  • FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
  • Support All 10 OBDII Test Modes
  • Enhanced Mode 6 Diagnostics
  • Graph, Record & Playback Live Data
  • Display Live & Freeze Frame Data
  • Covers Domestic, Asian & European Vehicle Manufacturers (1996+)
  • Includes OBDII Cable
  • Easy-To-Use Navigation /Software Updates via PC
  • Full Color Display 320x240
  • Save Files with Micro SD Card (not included)

Key Specs

AttributeSpecification

item#

5338941

Brand

Autel

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

51.44 LB

Product Weight

2.5000 lb

Dimensions L x W x H (in.)

7.5 x 3.4 x 10.43 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. Does this tool right here read the pressure on your fuel rail on a diesel engine

    1 answer

    1. This heavy duty code reader will read the ECU of a diesel engine and other features and data it supports. If the truck has a fuel pressure rail sensor then it will be displayed under live data.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
