ATV Tire, Wheel, Hub and Axle Kit, 22 x 11 x 8in.

Item# 135012
"ATV Tire, Wheel, Hub and Axle Kit, 22 x 11 x 8in."
Top Seller
ATV Tire, Wheel, Hub and Axle Kit, 22 x 11 x 8in.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ATV Tire, Wheel, Hub and Axle Kit, 22 x 11 x 8in.

Click or Tap image to Zoom

$209.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • 4 x 4 bolt pattern
  • 21.7 outer diameter
  • Mounted on an 8in. x 7in. rim
  • Spindle measures 1 1/4in. dia. at large end, 1in. dia. at smaller end

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

You get an ATV tire, wheel, hub and stub axle. Low pressure, belted TIRE construction for greater puncture resistance. 22 x 11 x 8in. removeable tire has a knobby tread. WHEEL has a 4in. bolt circle, 4 bolt holes. HUB has pressed cup, dust cap, 4 lug bolts, grease seal and 2 tapered high speed bearings. 345-lb. capacity. Standard nut and cotter pin.

What's Included

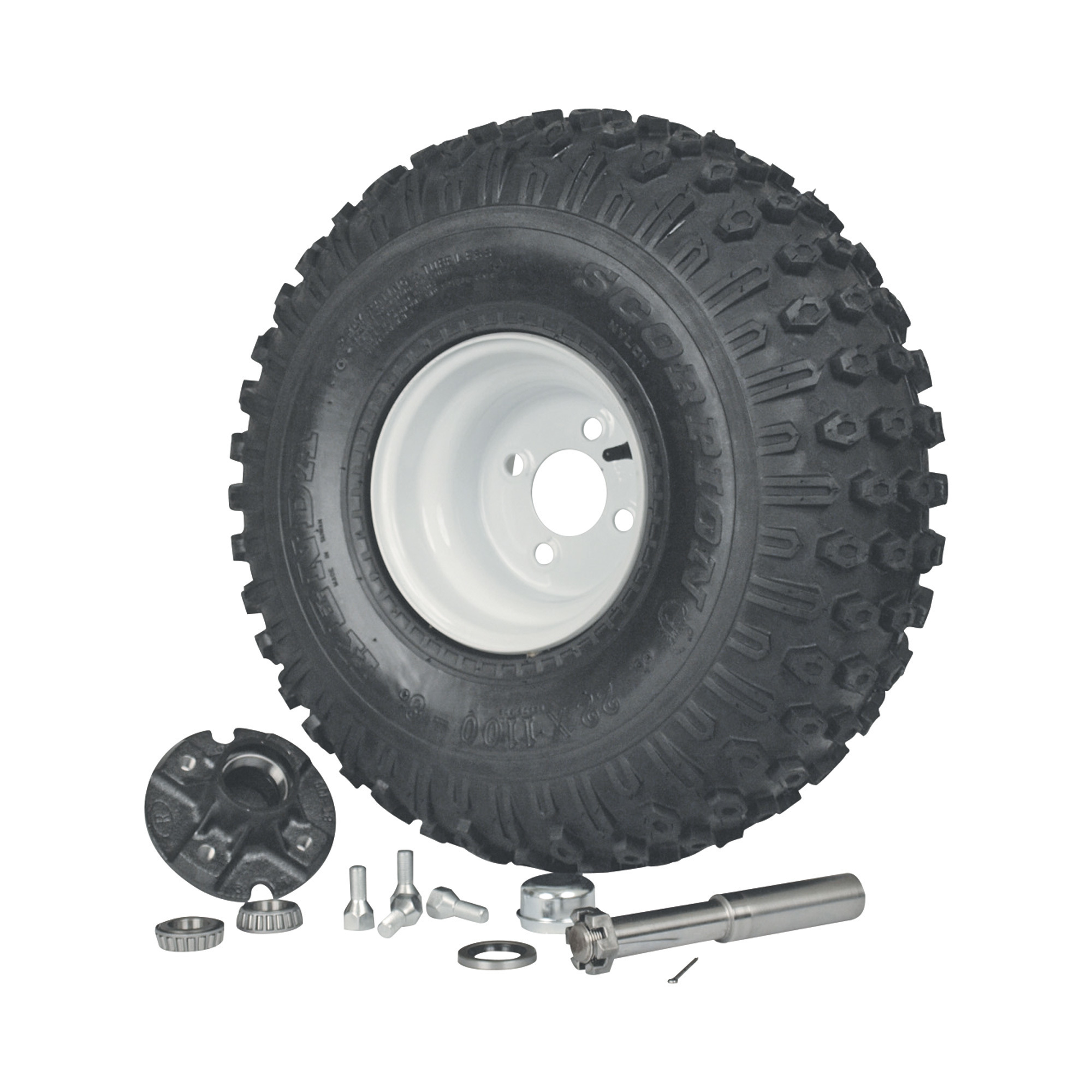

    (1) ATV tire and wheel assembly (1) High-speed hub with pressed cups (2) Tapered cone bearings (4) Hub bolts (1) Dust cap (1) Grease seal (1) Spindle (1) Slotted hex nut (1) Cotter pin

Features + Benefits

  • 4 x 4 bolt pattern
  • 21.7 outer diameter
  • Mounted on an 8in. x 7in. rim
  • Spindle measures 1 1/4in. dia. at large end, 1in. dia. at smaller end

Key Specs

AttributeSpecification

item#

135012

Brand

Martin Wheel

Ship Weight

34.2 LB

Tire Size

22 x 11 x 8

Style of Tire

Tire and Rim

Flat Free

No

Pneumatic

Yes
AttributeSpecification

Tread Type

K290 Scorpion

Load Capacity

345 lb

Tire Diameter

21.7 in

Rim Diameter

8 in

Tire Width

11 in

Tubeless

Yes

Ply Rating

2

Reviews

Questions & Answers

17 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. it said one inch dia.stub axle is that big end or the end tha bearings ride on?

    1. On the big end you weld to.

      Helpful?

    2. The once inch measurement is the size of the larger side of the spindle.

      Helpful?

  2. What is the maximun inflation pressure on this tire?

    1. 5 PSI for use and 15 PSI for setting the bead if replacing the tire on the wheel.

      Helpful?

    2. The maximum inflation pressure is 5 pounds per square inch.

      Helpful?

  3. What is the rim bolt pattern?  4x110mm?

    1 answer

    1. This rim has a 4" bolt circle.

      Helpful?

  4. What is the length of the spindle?

    1 answer

    1. This kit includes a stub axle with a spindle length of 4-1/8". The stub axle's overall length is 8-1/8".

      Helpful?

  5. Can you buy just the hub and axle kit?

    1 answer

    1. The kit is sold as a package, items are not for sale individually.

      Helpful?

  6. do you offer this kit with any other wheels??

    I am looking to replace the front wheels on my garden tractor with your Item #13545 wheel but need a hub/axle kit to go with this, as my tractor currently has a hub-less spindles.

    1 answer

    1. We do not carry the ATV Tire, Wheel and Hub Axel with any other wheels.

      Helpful?
