Atlas Automotive Equipment Universal Lugcentric Adapter, For WBT-210

Item# 7067734
Atlas Automotive Equipment Universal Lugcentric Adapter, For WBT-210

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment Universal Lugcentric Adapter, For WBT-210

Click or Tap image to Zoom

$849.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Universal Adapter for Lug centric Wheels
  • Fits the Atlas WBT-210 truck tire wheel balancer
  • Covers all trucks with the following configurations:
  • 10 x 225 - Hub Bore 176 mm 8 x 275 - Hub Bore 2211 mm 8 x 285 - Hub Bore 2201 mm 10 x 285 - Hub Bore 2201 mm (Hub Pilot) 10 x 285 - Hub bore 2211 mm (Stud Pilot) 10 x 335 - Hub Bore 281 mm
  • Also light trucks with hub bore sizes of 95-210 mm

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

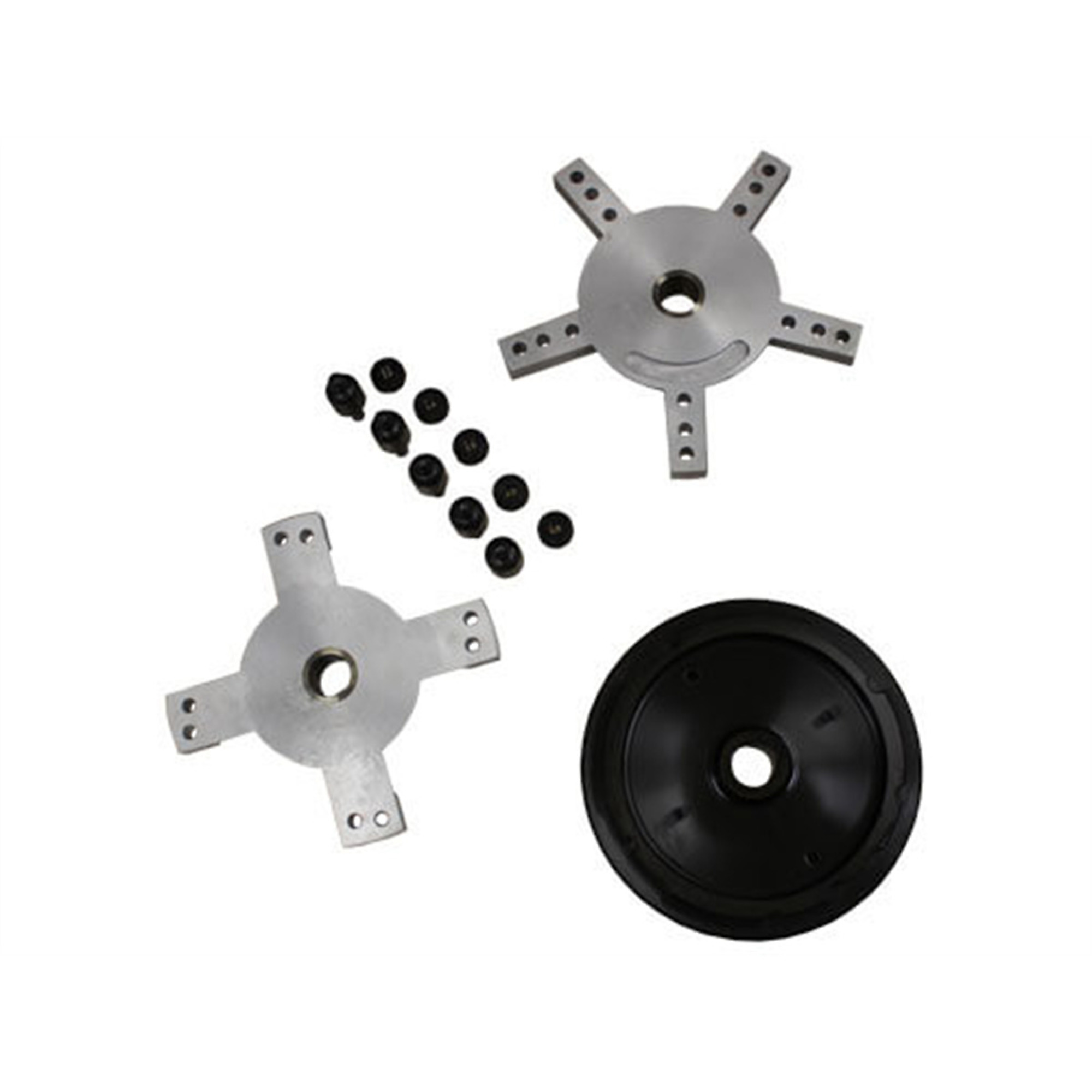

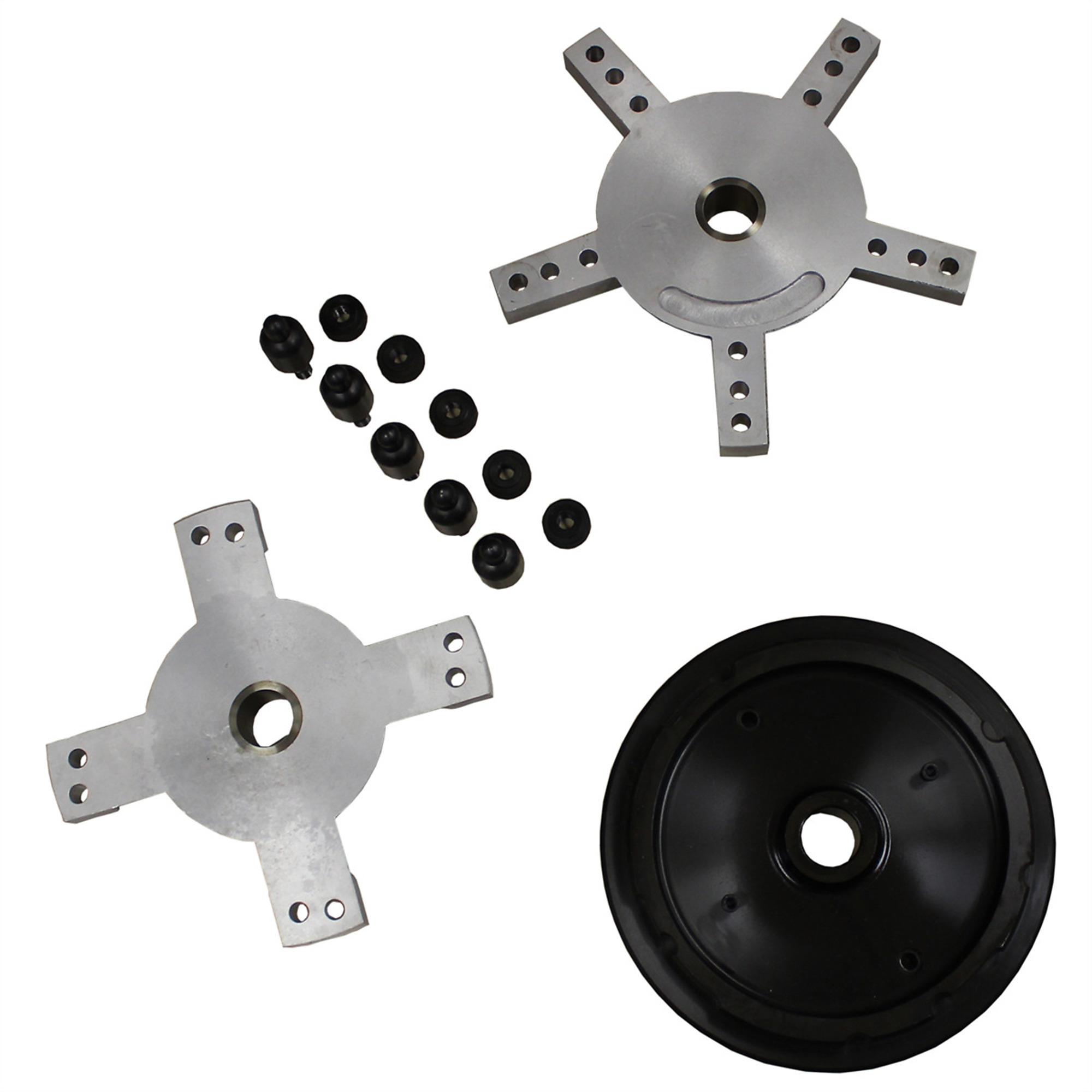

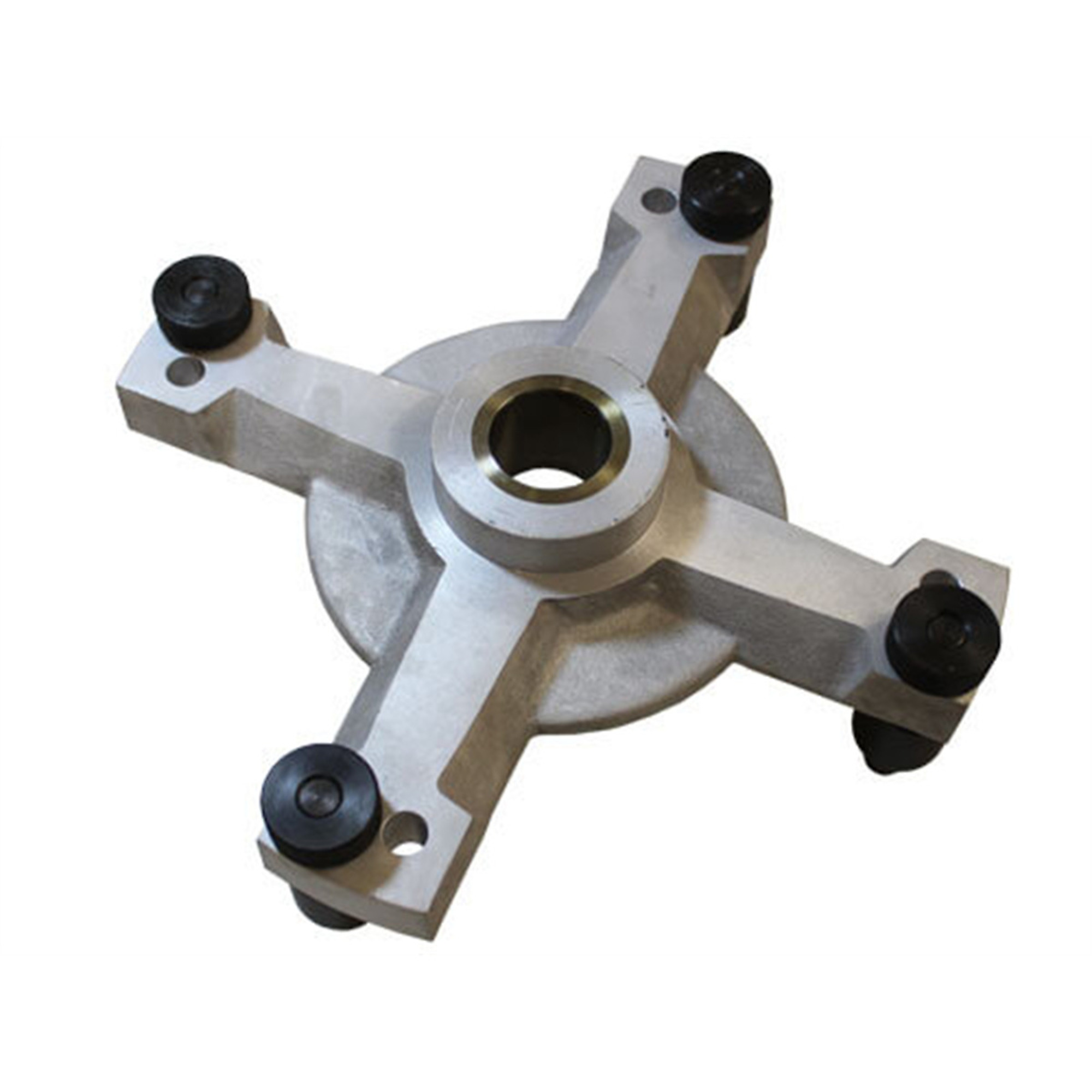

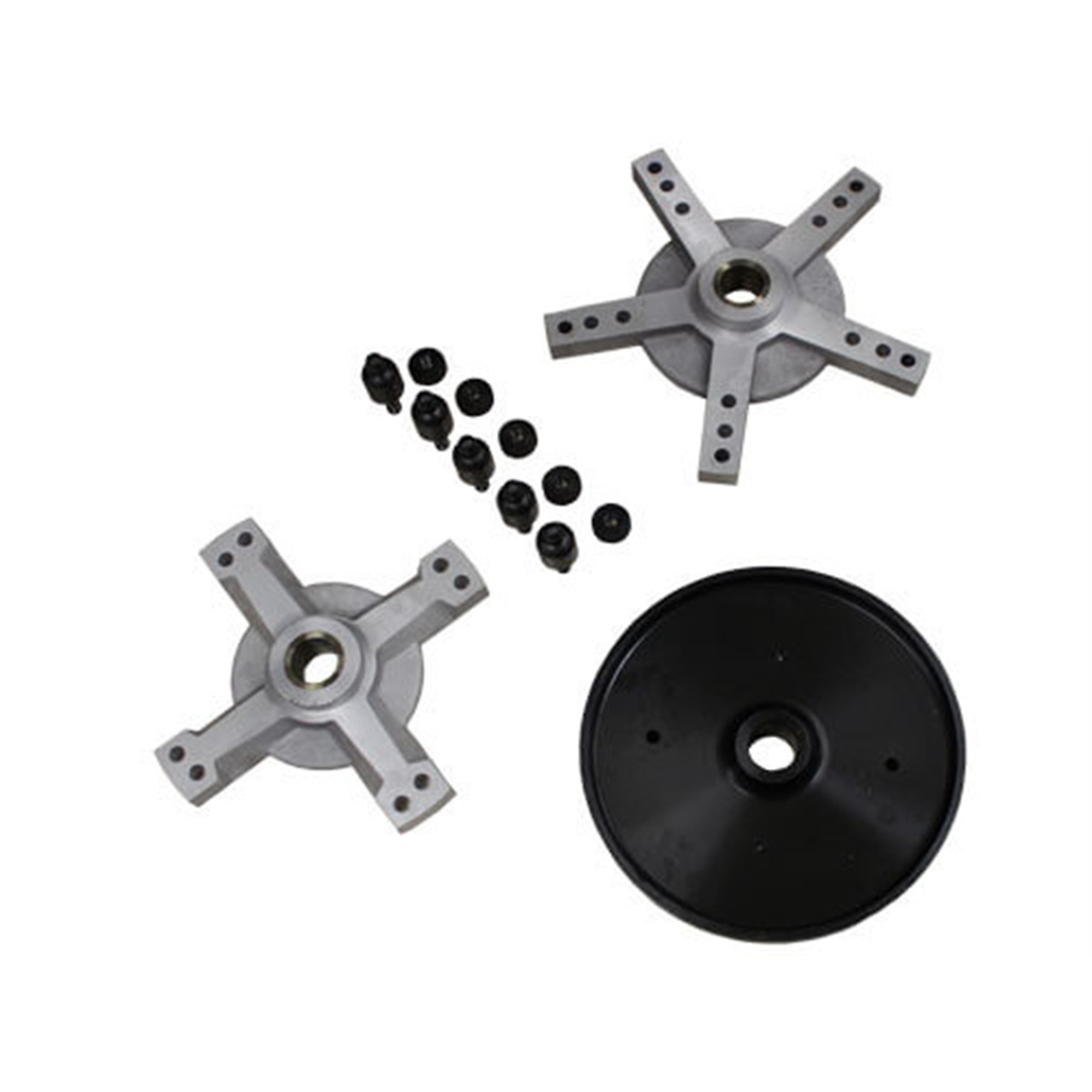

The Atlas Heavy Duty Adapter Kit supports the weight of the wheel with the backing plate rather than the unsupported end of the balancer's shaft. The excessive weight of Bus/RV/Semi Truck Wheels, combined with Lug Centric applications that are now more popular on heavy duty vehicles can cause the shaft to wobble. A balanced wheel, removed and reinstalled on the same balancer, can show an unbalance variation in excess of 10oz. This is because the balancer cannot duplicate the wobble of the shaft due to the center bore of a lug centric wheel being imperfect since the lug holes are used for wheel centering. This adapter kit allows these types of wheels to be mounted to the balancer in the same way they are mounted on the vehicle. This assures a minimum of variance and maximizes repeatability. This adapter kit will work with most 8 and 10 lug wheels. the studs used by the kit are not designed to work with many thick-walled alloy wheels, such as Alcoa. The kit does not work with Trilex or Dayton wheels. This Kit includes two star plates, 5 removable studs and a backing plate. The cones and wing nut needed are standard with the Atlas WBT-210 wheel balancer and are designed to be used in unison with this kit.

What's Included

    (1) Item

Features + Benefits

  • Universal Adapter for Lug centric Wheels
  • Fits the Atlas WBT-210 truck tire wheel balancer
  • Covers all trucks with the following configurations:
  • 10 x 225 - Hub Bore 176 mm 8 x 275 - Hub Bore 2211 mm 8 x 285 - Hub Bore 2201 mm 10 x 285 - Hub Bore 2201 mm (Hub Pilot) 10 x 285 - Hub bore 2211 mm (Stud Pilot) 10 x 335 - Hub Bore 281 mm
  • Also light trucks with hub bore sizes of 95-210 mm

Key Specs

AttributeSpecification

item#

7067734

Brand

Atlas

Manufacturer's Warranty

3 month limited warranty
AttributeSpecification

Ship Weight

50.0 LB

Product Weight

50.0000 lb

Dimensions L x W x H (in.)

15.0 x 15.0 x 12.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 month limited warranty
