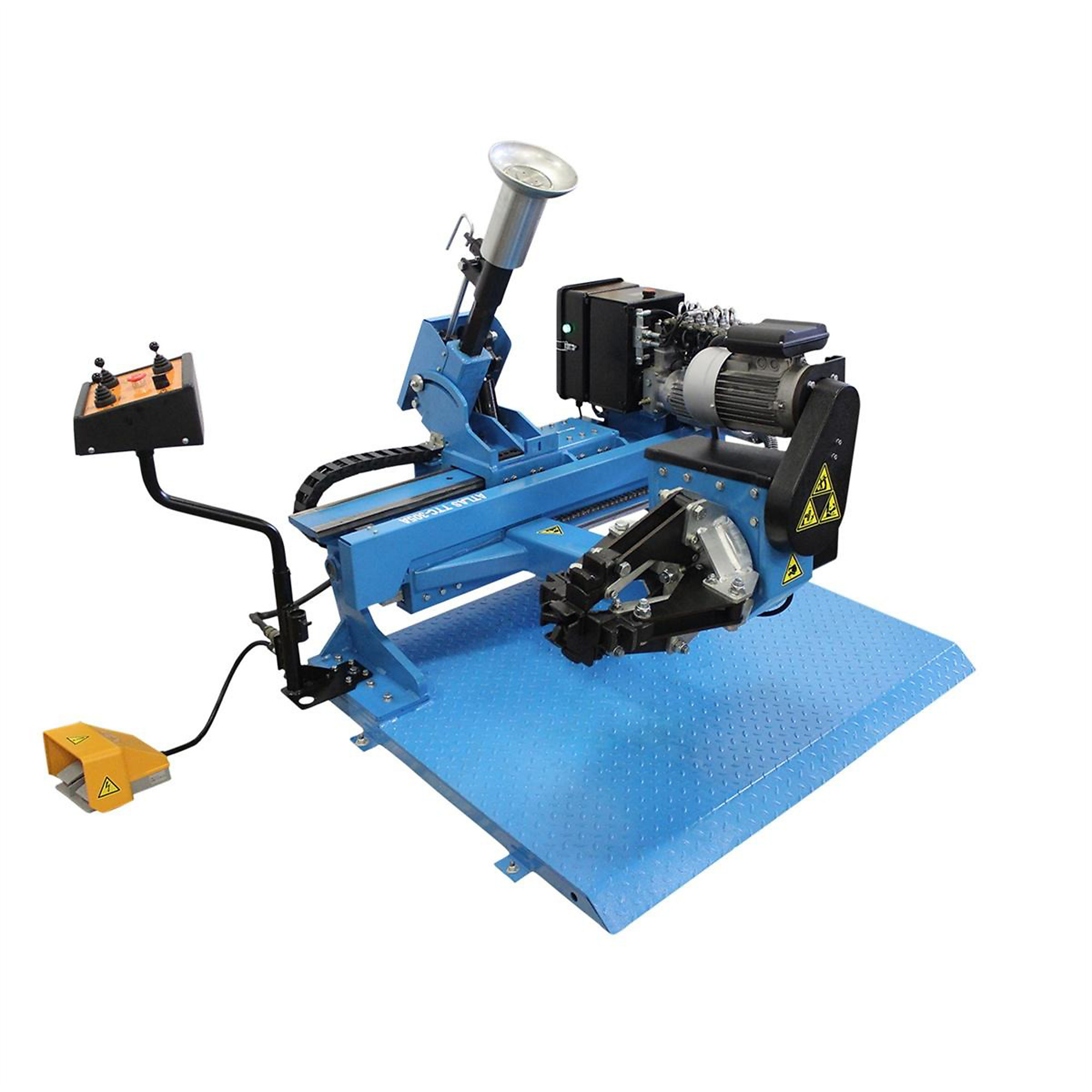

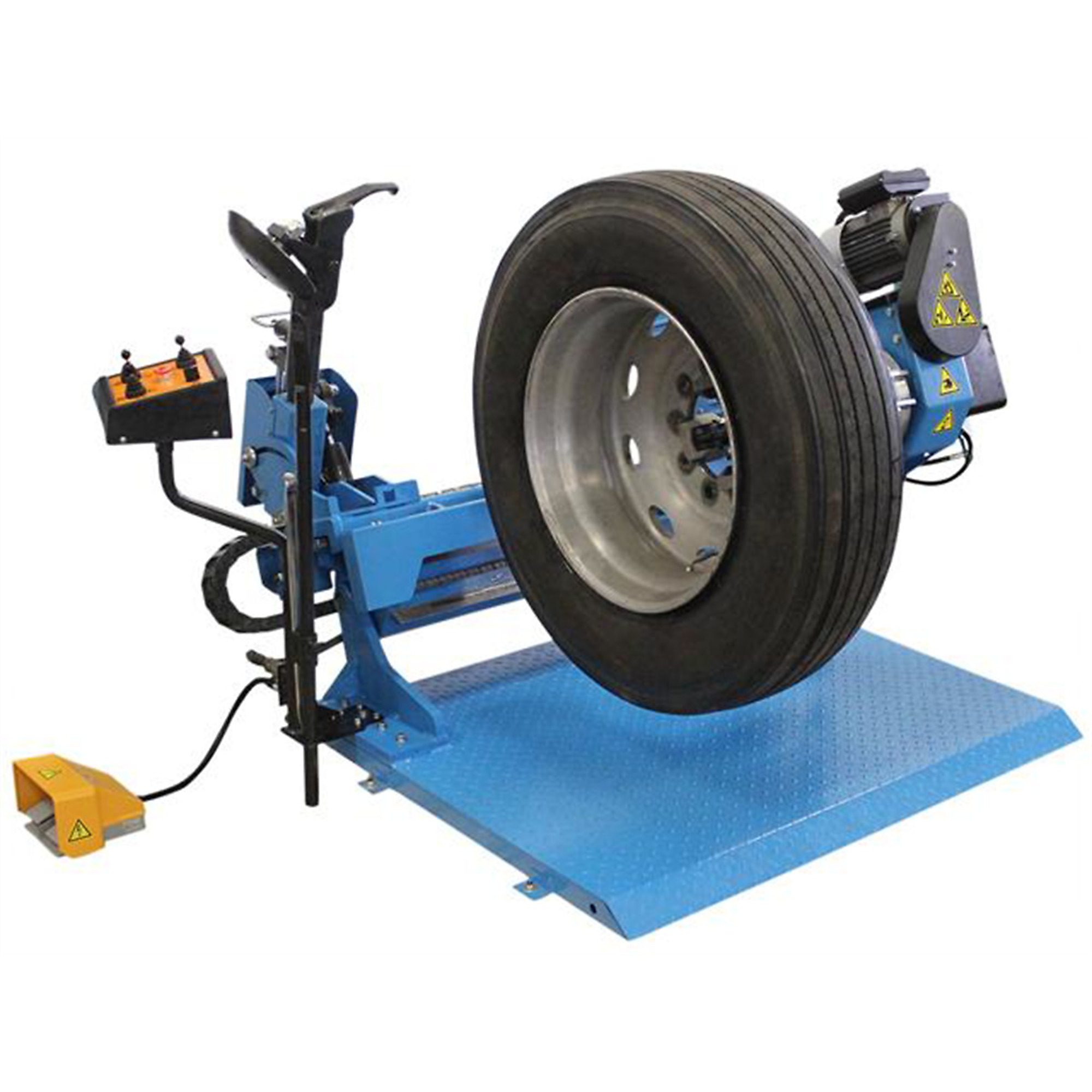

Atlas Automotive Equipment TC305A Tire Changer, Automatic, Rims Bore 8-26 Inches, Tire Diameters 55 Inches, Single-Speed Hydraulic Chuck, Interchangeable Heads, Emergency Safety Switch, Professional

Item# 7067996
Atlas Automotive Equipment TC305A Tire Changer, Automatic, Rims Bore 8-26 Inches, Tire Diameters 55 Inches, Single-Speed Hydraulic Chuck, Interchangeable Heads, Emergency Safety Switch, Professional

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment TC305A Tire Changer, Automatic, Rims Bore 8-26 Inches, Tire Diameters 55 Inches, Single-Speed Hydraulic Chuck, Interchangeable Heads, Emergency Safety Switch, Professional

Click or Tap image to Zoom

$11,099.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • VERSATILE CAPACITY: The Atlas TC305A is engineered to handle rim bore sizes from 8 to 26 inches and tire diameters exceeding 55 inches, accommodating tire widths up to 30.5 inches, making it perfect for semi, 19.5, and forklift tires
  • AUTOMATIC OPERATION: Features a single-speed hydraulic chuck with five rim locking positions and ergonomic toggle controls with foot pedals for smooth automatic operation, enabling precise control over tire changing processes
  • ROBUST AND EFFICIENT: The automatic movement of the bead tool, carriage, and chuck arm simplifies the tire changing process, reducing physical strain and enhancing efficiency in high production environments
  • INTERCHANGEABLE HEADS: Equipped with a standard mount/demount head and a super fast roller head, this machine offers flexibility and quick interchangeability, adapting to various tire service needs with ease
  • SAFETY AND SUPPORT: Includes an emergency safety switch on the control panel for immediate operation halt, ensuring user safety. Backed by a one-year parts-only warranty for reliable support and maintenance

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

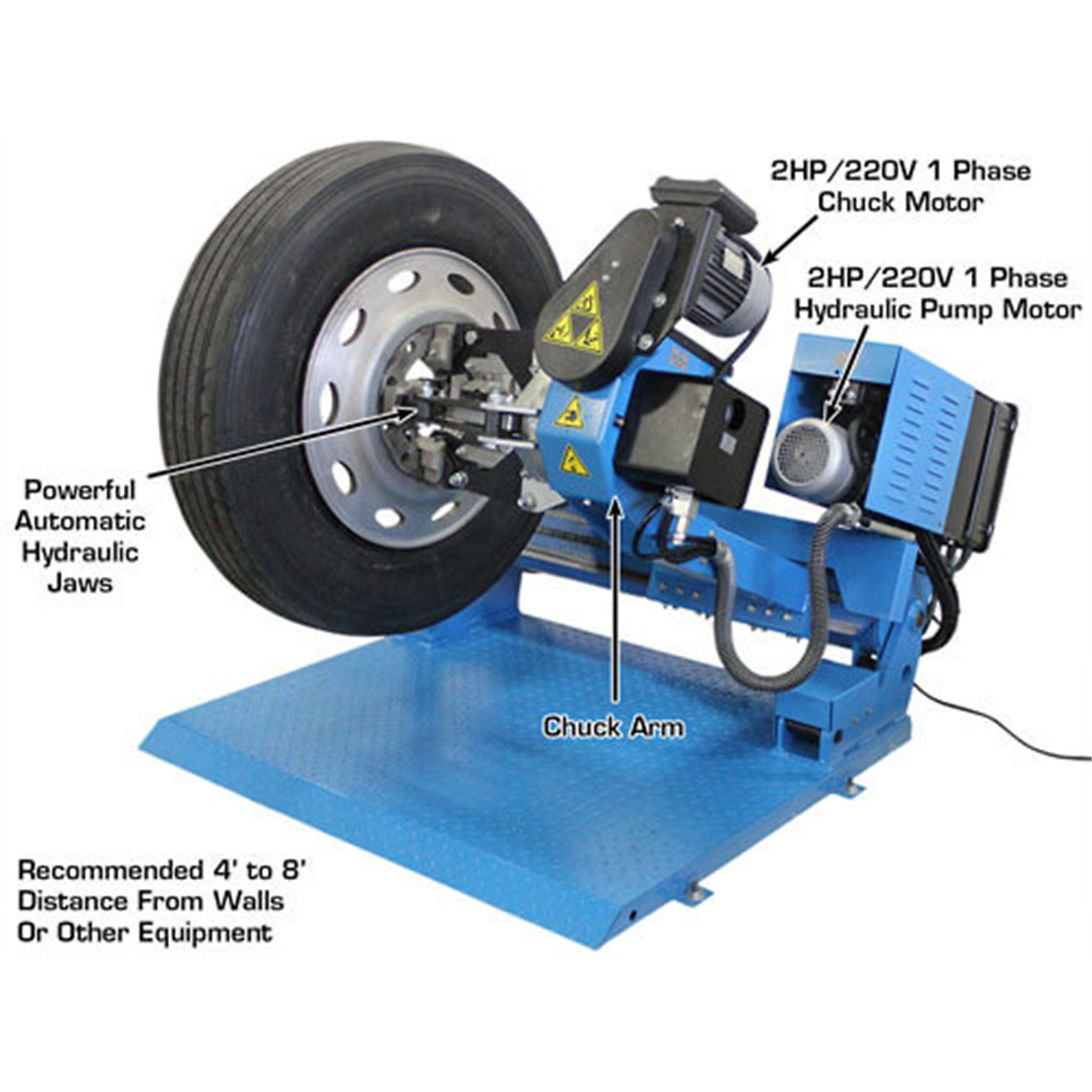

The Heavy Duty Atlas TTC305A automatic truck tire changer is designed and engineered to handle rim bore sizes from 8in. to 26in. and tire diameters in excess of 55in. The fully automatic Atlas TTC305A truck tire changer can easily accommodate tires with a maximum width of 30 1/2in. This automatic truck tire changer is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the most well respected wheel service equipment manufacturer in Asia. The Atlas TTC305A truck tire changer features a single speed hydraulic chuck with five (5) locking rim positions. The ergonomic toggle control panel and foot pedals control the automatic operation of the truck tire changer. The main panel allows the technician to control the automatic movement of the chuck arm, the automatic positioning of the bead tool (raise and lower) and the automatic movement of the carriage to align the bead tool with the tire. The foot pedals control the rotational direction of the chuck. The Atlas TTC305A comes with a standard mount/demount head and a super fast roller head that can be swapped out in very little time. There is an emergency safety switch on the control panel that can stop all functions immediately. This is the perfect automatic tire changer for high production shops that change semi-tires, 19.5 tires and forklift tires. Quit using tire irons and a strong back! Let the Atlas TTC305A take the hard work out of changing those tires that are too big for your passenger tire wheel clamp tire changer.

What's Included

    (1) Item

Features + Benefits

  • VERSATILE CAPACITY: The Atlas TC305A is engineered to handle rim bore sizes from 8 to 26 inches and tire diameters exceeding 55 inches, accommodating tire widths up to 30.5 inches, making it perfect for semi, 19.5, and forklift tires
  • AUTOMATIC OPERATION: Features a single-speed hydraulic chuck with five rim locking positions and ergonomic toggle controls with foot pedals for smooth automatic operation, enabling precise control over tire changing processes
  • ROBUST AND EFFICIENT: The automatic movement of the bead tool, carriage, and chuck arm simplifies the tire changing process, reducing physical strain and enhancing efficiency in high production environments
  • INTERCHANGEABLE HEADS: Equipped with a standard mount/demount head and a super fast roller head, this machine offers flexibility and quick interchangeability, adapting to various tire service needs with ease
  • SAFETY AND SUPPORT: Includes an emergency safety switch on the control panel for immediate operation halt, ensuring user safety. Backed by a one-year parts-only warranty for reliable support and maintenance

Key Specs

AttributeSpecification

item#

7067996

Brand

Atlas

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1500.0 LB

Power Type

Electric
AttributeSpecification

Volts

220

Product Type

Electric Tire Changer

Product Weight

1500.0000 lb

Dimensions L x W x H (in.)

63.0 x 61.0 x 41.0 in
