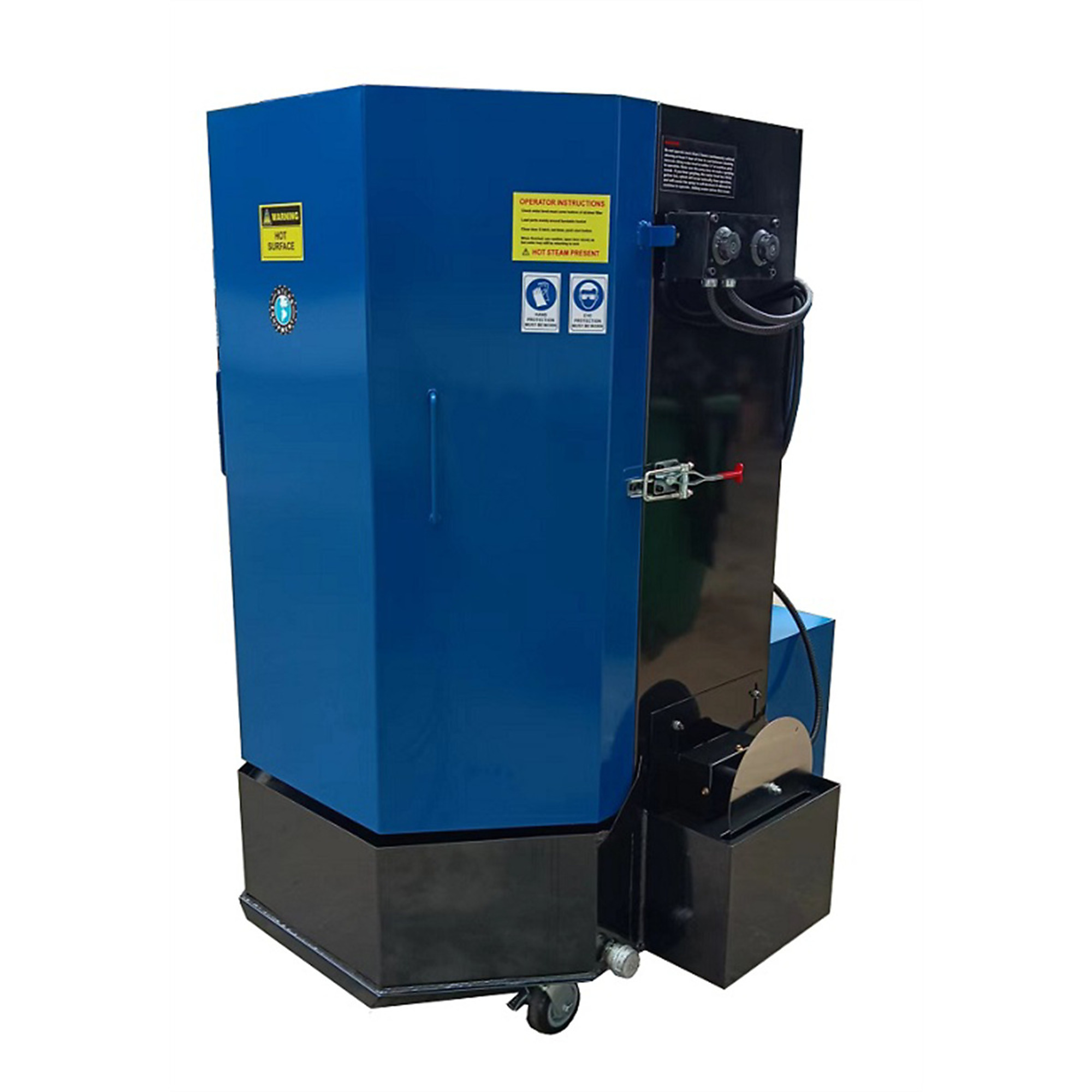

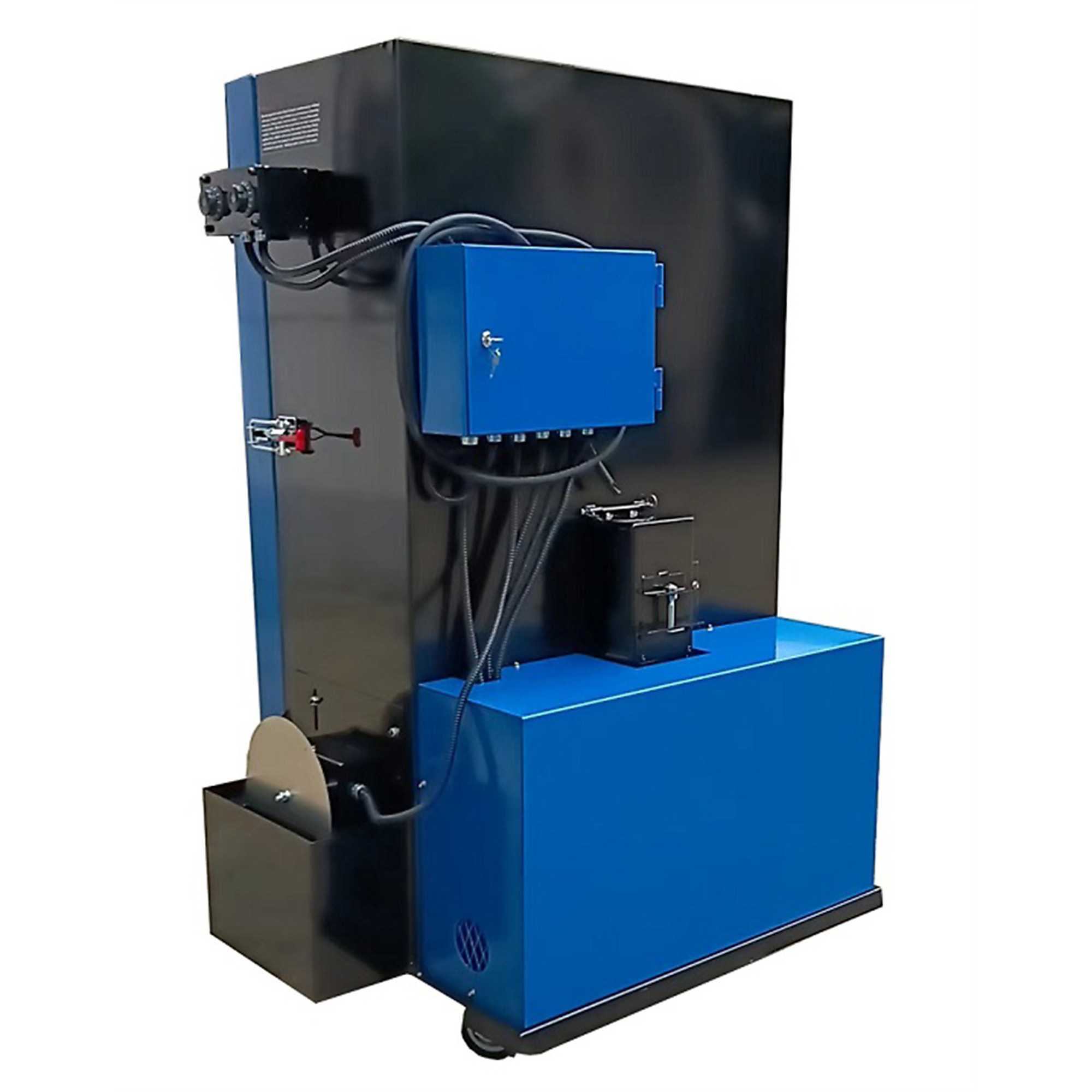

Atlas Automotive Equipment Commercial Spray Wash Cabinet

Item# 7067283
Atlas Automotive Equipment Commercial Spray Wash Cabinet

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment Commercial Spray Wash Cabinet

Click or Tap image to Zoom

$8599.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Tank Capacity: 50 Gallons
  • Inside Height: 42"
  • Inside Width: 32"
  • Turntable Diameter: 30"
  • Turntable Load Capacity: 1000 lb.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

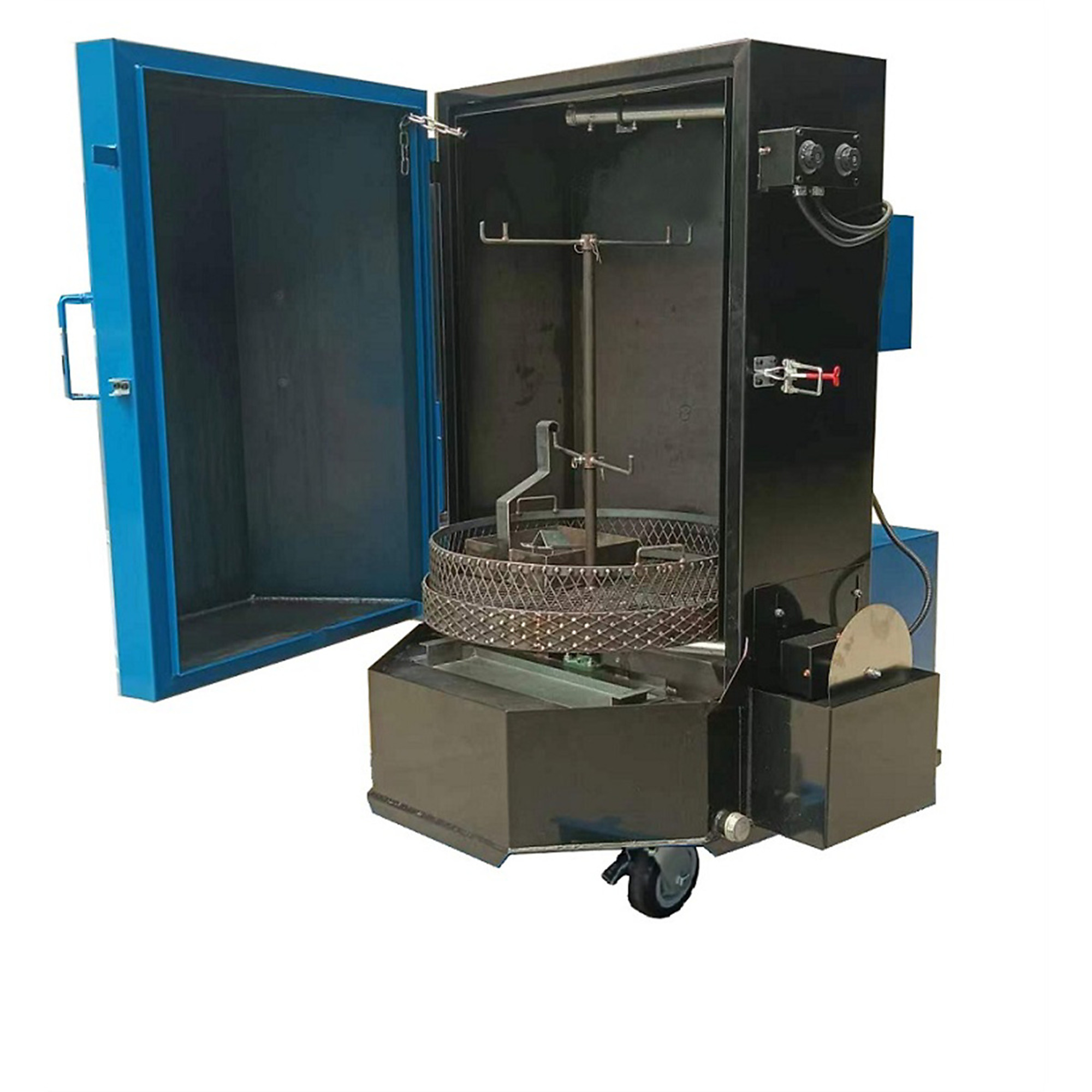

The Atlas 500 Spray Wash Cabinet is the ideal parts washer for any automotive repair shop. The 1,000 lb. capacity turntable is strong enough for any size auto or light truck engine. The cut-away sides under the door allow you to wheel your engine crane right over the table for easy loading and unloading. 19 high pressure spray jets quickly clean the greasiest engine components whether they are on the turntable, hanging from the parts tree or in the standard parts basket. The 60-minute timer means the washer can be left unsupervised so your mechanic can go on to the next job while the washer is running. When he gets back the parts are clean and dry within seconds of unloading. The parts washer requires no harmful solvents using only hot water and biodegradable detergents for an environmentally safe operation. The standard stainless steel skimming disc extends the life of your cleaning solution. The Atlas 500 Spray Wash Cabinet incorporates maximum performance, durability and ease of use meet today's demands for complex cleaning. By using an octagonal, full-opening door, more than 55% of the turntable is exposed, allowing operators enhanced loading capabilities. The heavy-duty, 12-gauge steel cabinet was strengthened for greater durability, then we coated it with an industrial two-step primer and polyurethane finish to provide years of protection. The Spray Wash Cabinet also features simple operating controls, stainless-steel nozzles, a large 43-gpm pump and a gasket-free door. Add up all of these features and you have a spray-wash system that can do more than clean parts, it can brighten your future.

What's Included

    (1) Item

Features + Benefits

  • Tank Capacity: 50 Gallons
  • Inside Height: 42"
  • Inside Width: 32"
  • Turntable Diameter: 30"
  • Turntable Load Capacity: 1000 lb.

Key Specs

AttributeSpecification

item#

7067283

Brand

Atlas

Manufacturer's Warranty

1 year limited warranty

Ship Weight

700.0 LB

Working Capacity

50 Gal
AttributeSpecification

Flow

43 GPH

Product Type

Water Based

Product Weight

700.0000 lb

Dimensions L x W x H (in.)

72.0 x 45.0 x 45.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
