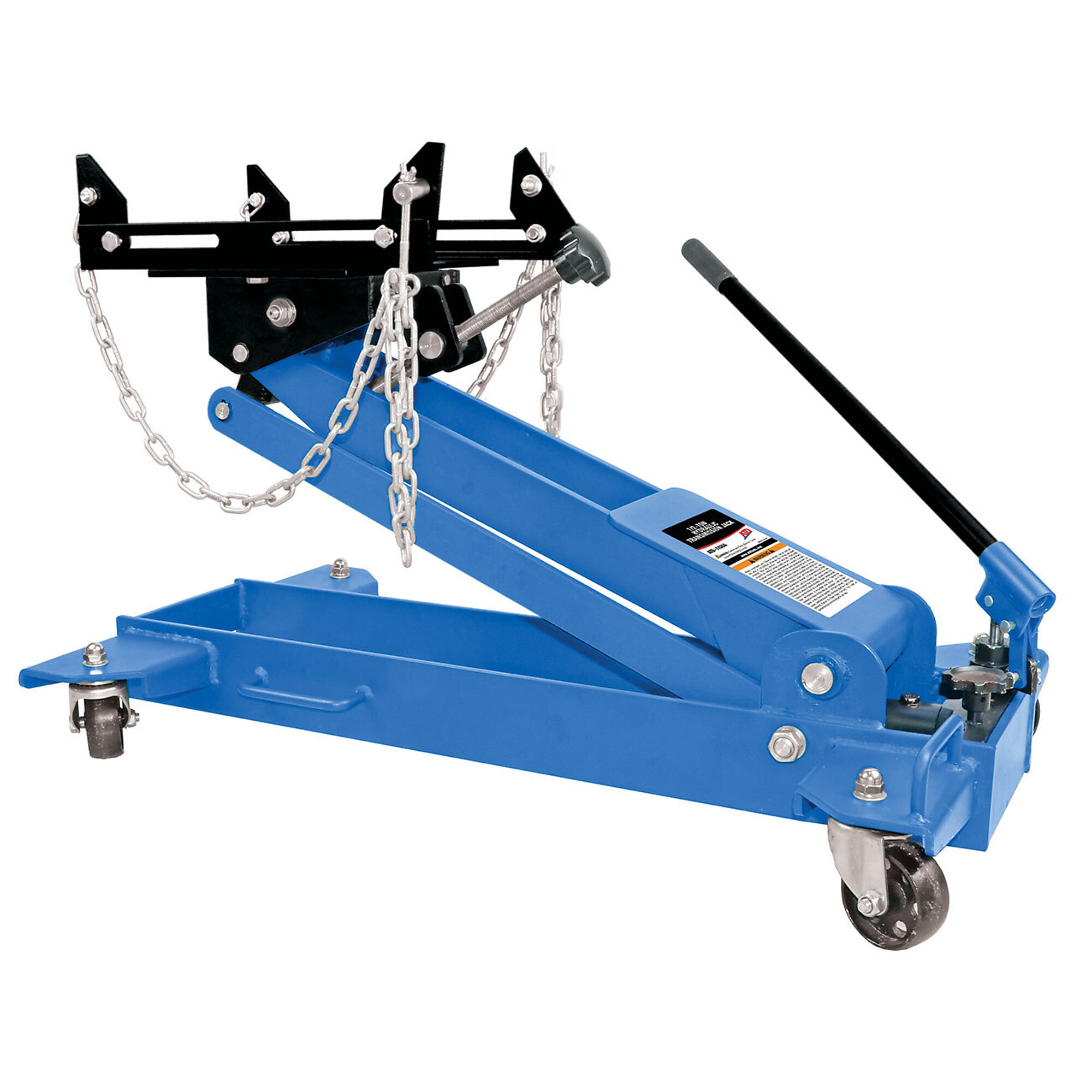

ATD Jack Trans Floor 1/2 Ton, Model# 10674

Item# 6973735
ATD Jack Trans Floor 1/2 Ton, Model# 10674

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ATD Jack Trans Floor 1/2 Ton, Model# 10674

Click or Tap image to Zoom

$538.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • The adjustable head can be tilted forward, backward and side-to-side for optimum alignment of transmission bolt patterns and pins
  • Internal bypass valve protects the hydraulic system from over pumping

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

  • The adjustable head can be tilted forward, backward and side-to-side for optimum alignment of transmission bolt patterns and pins
  • Internal bypass valve protects the hydraulic system from over pumping
  • Load-restraining chain is provided for raising and lowering safety
  • (4) swivel casters allow easy movement and positioning of transmission jack
  • User-friendly 360? rotating pumping socket for maximum multi-directional operation
  • Meets or exceeds the current ASME PASE 2024 standards
  • Capacity: 1,100 lbs.
  • Minimum Height: 6-15/16in.
  • Maximum Height: 28-5/16in.
  • Handle Length: 18in.
  • Size: 33-5/8in. x 19-3/4in. x 7-1/2in.
  • Saddle Base: 13-3/8in. x 7-7/8in.
  • Weight: 140.8 lbs.

    • What's Included

      (1) 1/2 Ton Trans Floor Jack

    Downloads

    Safety Data Sheet

    Features + Benefits

    • The adjustable head can be tilted forward, backward and side-to-side for optimum alignment of transmission bolt patterns and pins
    • Internal bypass valve protects the hydraulic system from over pumping
    • Load-restraining chain is provided for raising and lowering safety
    • (4) swivel casters allow easy movement and positioning of transmission jack
    • User-friendly 360? rotating pumping socket for maximum multi-directional operation

    Key Specs

    AttributeSpecification

    item#

    		6973735

    Brand

    		ATD Tools

    Manufacturer's Warranty

    		No limited warranty

    Ship Weight

    		141.0 LB

    Lift Capacity

    		0.5 Tons

    Max. Lift Height

    		28.313 in

    Power Source

    		Air/Hydraulic

    Low Profile

    		No
    AttributeSpecification

    Material

    		Steel

    Product Type

    		Jack

    Min. Lift Height

    		6.938 in

    Handle Included

    		Yes

    Safety Valve

    		Yes

    Product Weight

    		141.0000 lb

    Dimensions L x W x H (in.)

    		36.0 x 22.0 x 9.0 in

    Reviews

    Questions & Answers

    Questions

    Warranty

    Manufacturer's Warranty

    No limited warranty
