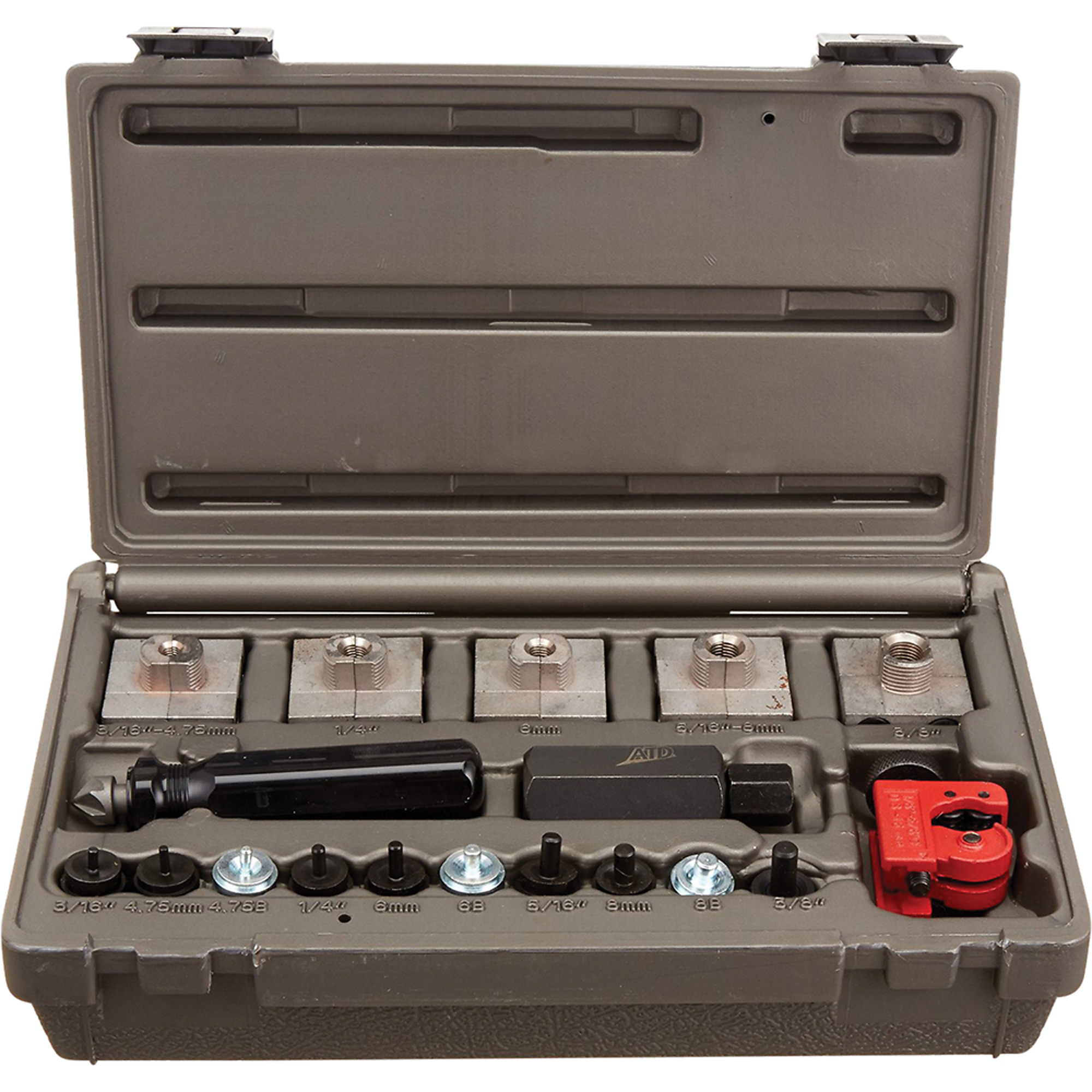

ATD FLARING MASTER INLINE TOOL KIT, Model# 10461

Item# 7042131
18 Pieces
ATD FLARING MASTER INLINE TOOL KIT, Model# 10461

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ATD FLARING MASTER INLINE TOOL KIT, Model# 10461

Click or Tap image to Zoom

$114.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Unique design locks the adapters, cone and tube in a perfect line with less risk of breaking adapters.
  • The clamp and set screws put pressure directly over the tube reducing the chance of the tube slipping from the clamp. This increases the overall life of the clamp by not wearing down the teeth inside from repeated slipping.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

  • Unique design locks the adapters, cone and tube in a perfect line with less risk of breaking adapters.
  • The clamp and set screws put pressure directly over the tube reducing the chance of the tube slipping from the clamp. This increases the overall life of the clamp by not wearing down the teeth inside from repeated slipping.
  • The slender, low-profile design of this tool allows the user to make flares on the vehicle and in tight spaces. Flares can be achieved along frame rails or areas in the engine compartment, saving the user time from having to remove components or complete lines to make repairs.
  • Set includes everything needed to do the following: 3/16in., 1/4in., 5/16 and 3/8in. double and single flares; 4.75mm 6mm and 8mm double, bubble and single flares. Kit produces 45 degree angle flares

    • What's Included

      (1) Master In-Line Flari

    Features + Benefits

    • Unique design locks the adapters, cone and tube in a perfect line with less risk of breaking adapters.
    • The clamp and set screws put pressure directly over the tube reducing the chance of the tube slipping from the clamp. This increases the overall life of the clamp by not wearing down the teeth inside from repeated slipping.
    • The slender, low-profile design of this tool allows the user to make flares on the vehicle and in tight spaces. Flares can be achieved along frame rails or areas in the engine compartment, saving the user time from having to remove components or complete lines to make repairs.
    • Set includes everything needed to do the following: 3/16", 1/4", 5/16 and 3/8" double and single flares; 4.75mm 6mm and 8mm double, bubble and single flares. Kit produces 45 degree angle flares

    Key Specs

    AttributeSpecification

    item#

    		7042131

    Brand

    		ATD Tools

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		3.0 LB
    AttributeSpecification

    Pieces (qty.)

    		18

    Product Type

    		Other

    Product Weight

    		3.0000 lb

    Dimensions L x W x H (in.)

    		10.13 x 6.5 x 2.75 in

    Reviews

    Questions & Answers

    Questions

    1. will this double fare steel brake lines

      1 answer

      1. This kit is not recommended for double flaring steel break lines. A double flaring kit like item 6551461 would be a better option.
