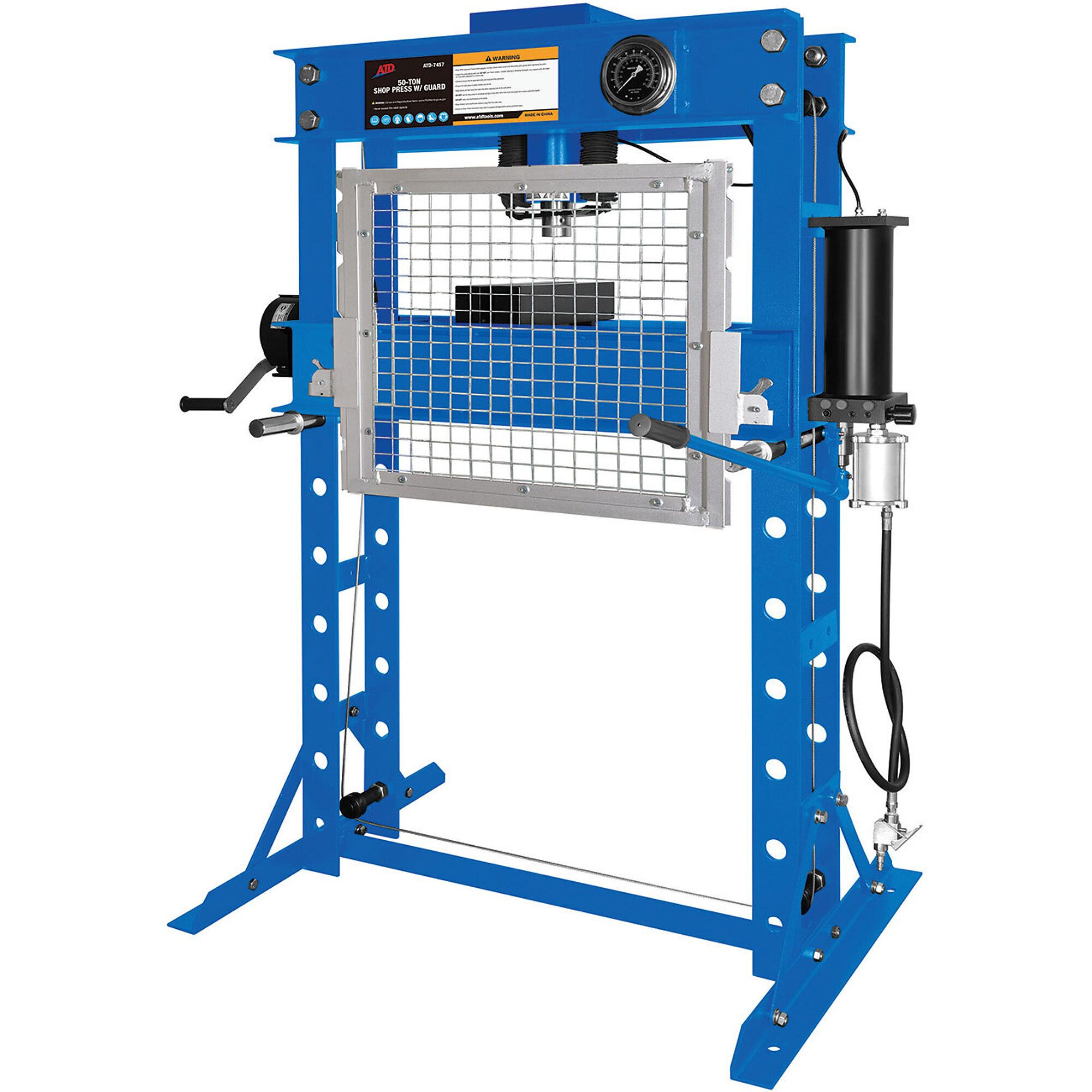

ATD 50 Ton Shop Press W/ Guard, Model# 10686

Item# 6973997
2 of 8 reviewers received a sample product or took part in a promotion
ATD 50 Ton Shop Press W/ Guard, Model# 10686

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ATD 50 Ton Shop Press W/ Guard, Model# 10686

Click or Tap image to Zoom

$2373.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Fully welded double speed pump
  • Self-locking hand winch allows easy positioning of bed

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

  • Fully welded double speed pump
  • Self-locking hand winch allows easy positioning of bed
  • Multi-position bed allows work height adjustment - (6) adjustments of 5.5in. each
  • Includes protective work guard for added safety
  • Press cylinder with dual return springs
  • Large oil-filled gauge with stainless steel frame - scale for US and metric tons
  • Includes (2) anti-slip V blocks
  • Meets or exceeds the current ASME PASE 2024 standards
  • Capacity: 50 Tons
  • Hydraulic Stroke: 7.5in.
  • Minimum Working Height: 16.9in.
  • Maximum Working Height: 44.5in.
  • Working Area Width: 8.3in.
  • Column (Bed) Width: 32.5in.
  • Column (Bed) Gap: 8.62in.
  • Bed Positions: 6 (5.5in. hole spacing)
  • Press Size: 43.5in. W (56.7in. w/ pump winch) x 31.5in. D x 67.2in. H
  • Net Weight of Press: 662.2 lbs.
  • Net Weight of Guard: 8.8 lbs.
  • Gross Weight with Guard: 756.8 lbs.

    • What's Included

      (1) 50-Ton Shop Press w/ Guard

    Downloads

    Safety Data Sheet

    Features + Benefits

    • Fully welded double speed pump
    • Self-locking hand winch allows easy positioning of bed
    • Multi-position bed allows work height adjustment - (6) adjustments of 5.5" each
    • Includes protective work guard for added safety
    • Press cylinder with dual return springs

    Key Specs

    AttributeSpecification

    item#

    		6973997

    Brand

    		ATD Tools

    Manufacturer's Warranty

    		No limited warranty

    Ship Weight

    		756.8 LB
    AttributeSpecification

    Press Type

    		Hydraulic

    Max. Pressure

    		50 Tons

    Product Weight

    		756.8000 lb

    Dimensions L x W x H (in.)

    		75.0 x 41.0 x 15.5 in

    Reviews

    Questions & Answers

    8 Reviews This action will navigate to reviews.

    Questions

    Warranty

    Manufacturer's Warranty

    No limited warranty
