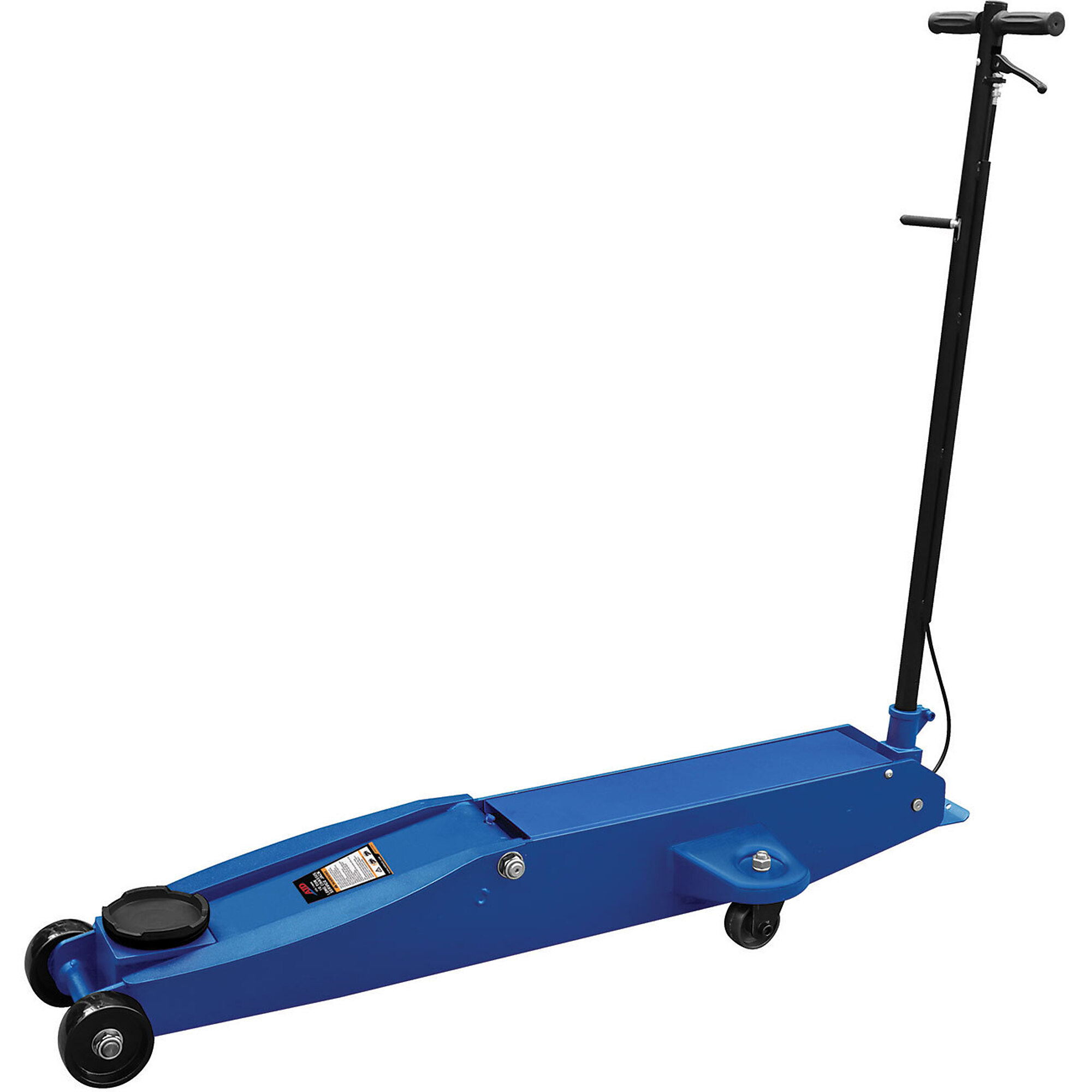

ATD 5 Ton Long Chassis Service Jack, Model# 10665

Item# 6974033
ATD 5 Ton Long Chassis Service Jack, Model# 10665

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ATD 5 Ton Long Chassis Service Jack, Model# 10665

Click or Tap image to Zoom

$897.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy-duty hydraulic performance for garages, equipment dealers, commercial service and more
  • Welded hydraulic pump and cylinder construction provides increased strength and leak prevention

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

  • Heavy-duty hydraulic performance for garages, equipment dealers, commercial service and more
  • Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
  • Chrome plated ram for additional rust resistance
  • Wiper seals protect hydraulic system from contaminates
  • Controlled descend with speed limit to ensure safe operation
  • Exclusive Swift Lift™ Technology allows the jack to reach maximum height in 3 pumps under no load
  • Heavy-duty front wheels and swivel rear casters provide smooth maneuvering and positioning
  • Overload and bypass safety valves prevent use beyond the rated capacity and over extension of the ram
  • Handle can be locked into one of three positions from horizontal to vertical and has independent release knob
  • Meets or exceeds the current ASME PASE 2024 standards
  • Capacity Ton: 5
  • Minimum Height: 5.875in.
  • Maximum Height: 25.5in.
  • Handle Length: 42.625in.
  • Jack Size - 58.25in. L x 20.875in. W x 12.625in. H
  • Saddle Size - 5.125in.
  • Shipping Weight: 226 lbs.

    • What's Included

      (1) 5 Ton Long Chassis Serv Jack

    Downloads

    Safety Data Sheet

    Features + Benefits

    • Heavy-duty hydraulic performance for garages, equipment dealers, commercial service and more
    • Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
    • Chrome plated ram for additional rust resistance
    • Wiper seals protect hydraulic system from contaminates
    • Controlled descend with speed limit to ensure safe operation

    Key Specs

    AttributeSpecification

    item#

    		6974033

    Brand

    		ATD Tools

    Manufacturer's Warranty

    		No limited warranty

    Ship Weight

    		225.8 LB

    Lift Capacity

    		5 Tons

    Max. Lift Height

    		25.5 in

    Power Source

    		Hydraulic
    AttributeSpecification

    Low Profile

    		No

    Material

    		Steel

    Product Type

    		Service Jack

    Min. Lift Height

    		5.875 in

    Handle Included

    		Yes

    Product Weight

    		225.8000 lb

    Dimensions L x W x H (in.)

    		58.5 x 12.75 x 21.0 in

    Reviews

    Questions & Answers

    Questions

    Warranty

    Manufacturer's Warranty

    No limited warranty
