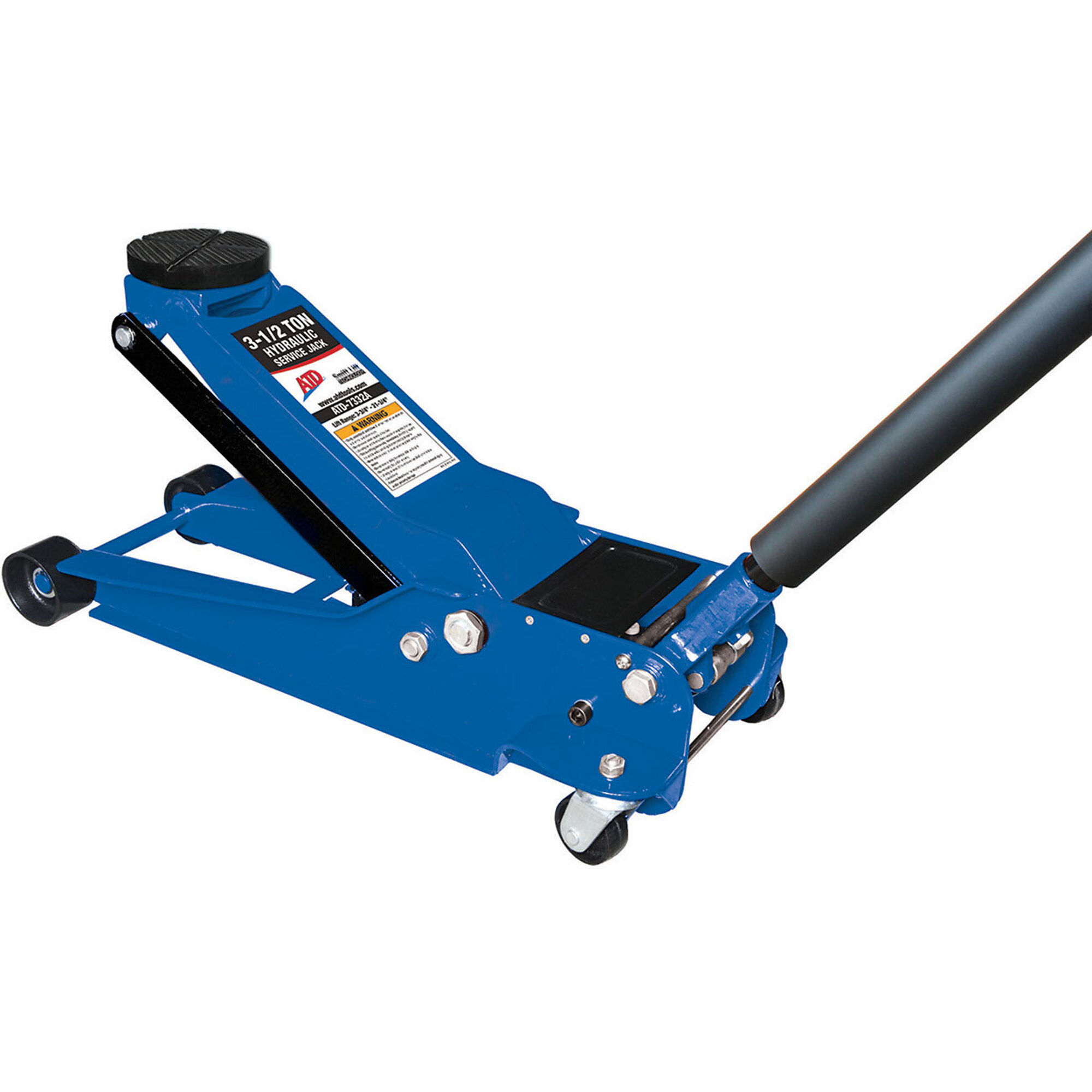

ATD 3-1/2 Ton Service Jack Swift Lift Hydraulic, Model# 10649

Item# 6974105
"ATD 3-1/2 Ton Service Jack Swift Lift Hydraulic, Model# 10649"
ATD 3-1/2 Ton Service Jack Swift Lift Hydraulic, Model# 10649

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ATD 3-1/2 Ton Service Jack Swift Lift Hydraulic, Model# 10649

Click or Tap image to Zoom

$289.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Exclusive Swift Lift™ Technology offers a quicker lift for professional performance
  • High maximum lift is ideal for SUVs, trucks, trailers and other high clearance vehicles

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

  • Exclusive Swift Lift™ Technology offers a quicker lift for professional performance
  • High maximum lift is ideal for SUVs, trucks, trailers and other high clearance vehicles
  • Dual pump pistons are shielded to prevent contaminants from damaging the hydraulic system
  • Internal by-pass valve protects the hydraulic system from over pumping
  • U-Joint release mechanism provides precise control of load descent in any handle position
  • Heavy gauge construction features rolled edges for added strength
  • Protective foam cover on handle prevents vehicle damage
  • Industrial grade casters with double layer bearings offer greater stability, allow greater maneuverability and easy positioning of the jack
  • Full cover rubber saddle pad protects the vehicle from damage during lifting
  • Meets or exceeds the current ASME PASE 2024 standards
  • Capacity: 3.5 Tons
  • Lifting Range: 3-3/4in. - 21-3/4in.
  • Jack Size: 31-1/8in. L X 14in. W X 7in. H
  • Handle Length: 49-1/4in. (2 pieces) with foam 17.72in. long
  • Saddle Diameter: 4-3/4in. with saddle pad (cover entire saddle)
  • Weight: NW: 99 Lbs (45 Kgs), GW: 105.8 Lbs (48.1 Kgs)

    • What's Included

      (1) 3-1/2 Ton Swift Lift Srv Jack

    Downloads

    Safety Data Sheet

    Features + Benefits

    • Exclusive Swift Lift™ Technology offers a quicker lift for professional performance
    • High maximum lift is ideal for SUVs, trucks, trailers and other high clearance vehicles
    • Dual pump pistons are shielded to prevent contaminants from damaging the hydraulic system
    • Internal by-pass valve protects the hydraulic system from over pumping
    • U-Joint release mechanism provides precise control of load descent in any handle position

    Key Specs

    AttributeSpecification

    item#

    		6974105

    Brand

    		ATD Tools

    Manufacturer's Warranty

    		No limited warranty

    Ship Weight

    		105.2 LB

    Lift Capacity

    		3.5 Tons

    Max. Lift Height

    		21.75 in

    Power Source

    		Hydraulic
    AttributeSpecification

    Low Profile

    		No

    Material

    		Steel

    Product Type

    		Service Jack

    Min. Lift Height

    		3.75 in

    Handle Included

    		Yes

    Product Weight

    		105.2000 lb

    Dimensions L x W x H (in.)

    		33.0 x 8.5 x 15.0 in

    Reviews

    Questions & Answers

    66 Reviews This action will navigate to reviews.

    Questions

    Warranty

    Manufacturer's Warranty

    No limited warranty
