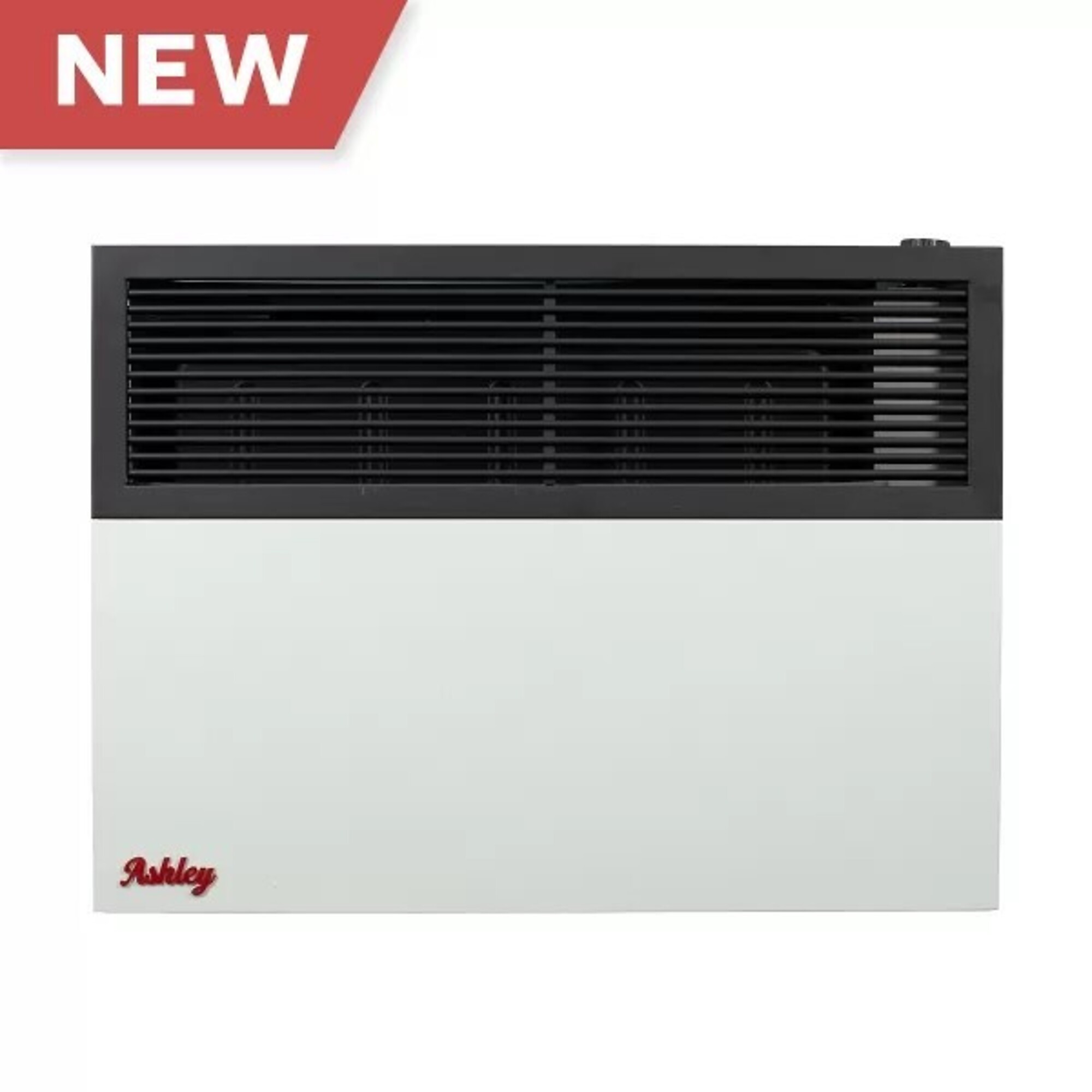

Ashley Hearth, Ashley Wall Heater, Dual Fuel, 17k Direct Vent, Heat Output 17000 Btu/hour, Heating Capability 570 ft², Color Family White, Model# DVAG17-DF

Item# 5944861
Ashley Hearth, Ashley Wall Heater, Dual Fuel, 17k Direct Vent, Heat Output 17000 Btu/hour, Heating Capability 570 ft², Color Family White, Model# DVAG17-DF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ashley Hearth, Ashley Wall Heater, Dual Fuel, 17k Direct Vent, Heat Output 17000 Btu/hour, Heating Capability 570 ft², Color Family White, Model# DVAG17-DF

Click or Tap image to Zoom

$549.99

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Safety pilot with built-in pressure regulator completely stops the flow of gas in the event the pilot is extinguished
  • 430 stainless steel ported burner provides silent on and off operation making this a quiet heating workhorse for your house
  • Heats up to 570 Sq Ft
  • Designed for use with natural gas or propane
  • Up to 17,000 BTU heat input

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DVAG17-DF Direct Vent Wall Heater from Ashley Hearth Products makes the perfect solution for zoned heating. The space-saving direct vent furnace design mounts to an exterior wall, and the adjustable vent assembly fits walls from 4-1/2in. to 10in. thick. For clean, comfortable heat when and where you want it, the gas flame is completely sealed inside, away from all contact with room air. Air necessary for combustion is drawn into the chamber from outside through the vent, and combustion products are vented directly to the outside. Only clean, gentle heat in continuous circulation is delivered into the room. Windows and doors stay closed because no room air is used for combustion. The DVAG17-DF direct vent dual fuel wall furnace is designed to heat up to 570 Sq. Ft., with a 17,000 BTU input.

What's Included

    (1) DVAG17-DF (1) Venting Kit

Features + Benefits

  • Safety pilot with built-in pressure regulator completely stops the flow of gas in the event the pilot is extinguished
  • 430 stainless steel ported burner provides silent on and off operation making this a quiet heating workhorse for your house
  • Heats up to 570 Sq Ft
  • Designed for use with natural gas or propane
  • Up to 17,000 BTU heat input
  • Sealed burn system is perfect for bedrooms and living spaces
  • Matchless Piezo lighting for quick starts
  • No complicated venting to purchase or install, complete kit is included (includes heat shield, vent pipe, air intake pipe, flashing, cap, and connecting rod)
  • Approved for use in mobile or modular homes

Key Specs

AttributeSpecification

item#

5944861

Brand

Ashley Hearth

Manufacturer's Warranty

1 year limited warranty

Ship Weight

60.0 LB

Heat Output

17,000 Btu/hour

Heating Capability

570 ft²

Color Family

White

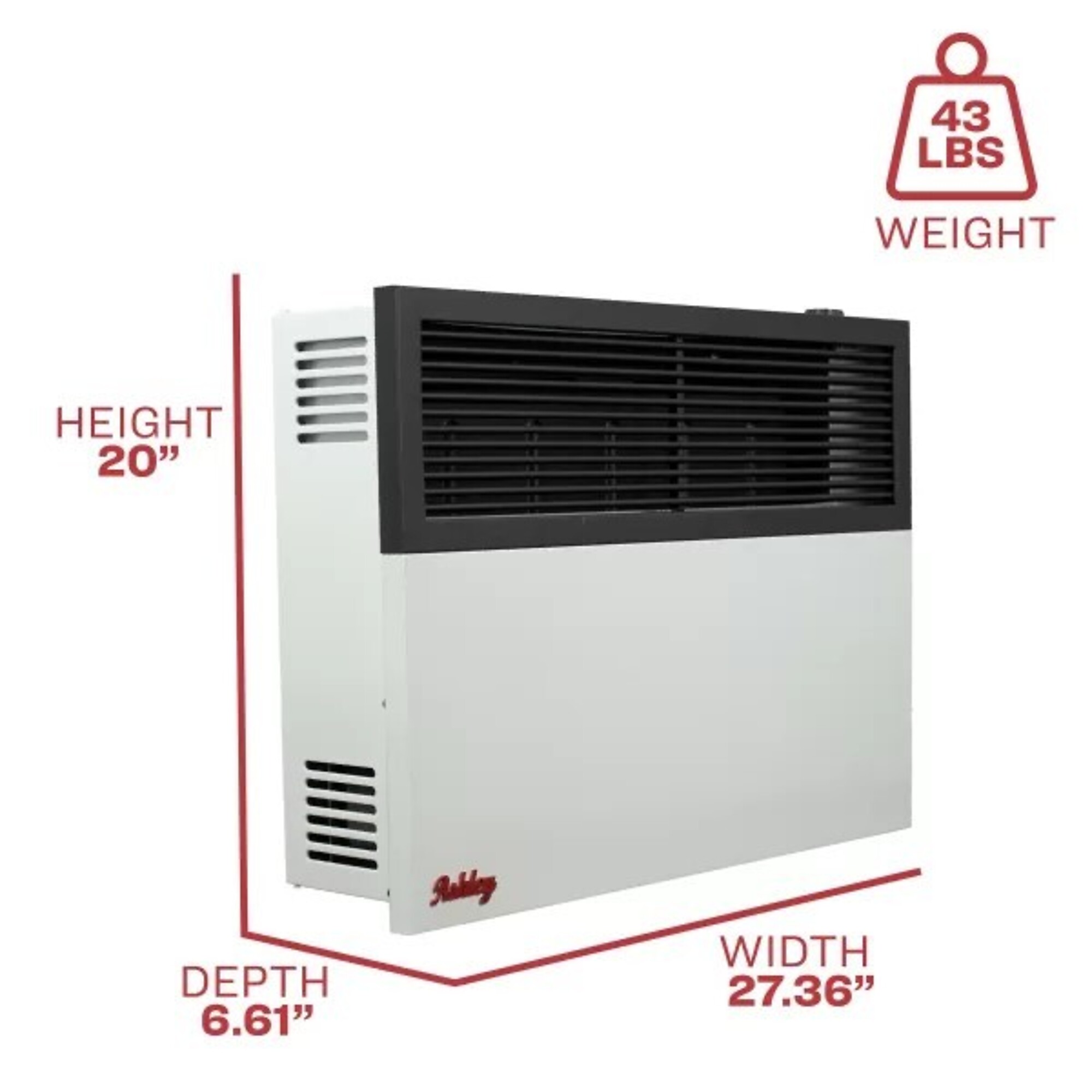

Assembled Height

20 in

Assembled Width

27.36 in
AttributeSpecification

Assembled Depth

6.61 in

Blower Included

No

Material

Steel

Remote Included

No

Vent-Free

No

EPA Certified

Yes

Oxygen Depletion Sensor

No

Product Weight

58.0000 lb

Dimensions L x W x H (in.)

6.61 x 27.36 x 20.0 in

Reviews

Questions & Answers

Questions

1–10 of 16 Questions
Sort by:

  1. Can this run off a common 20lb propane tank? If so, approximately how many hours will it run on a full tank? Since this is highly variable, guesses are welcome. I intend to mainly run the unit over night in a small cabin, and not 24/7.

    1. Yes, it can run on a standard 20 lb propane tank, but we don’t recommend it. Smaller tanks are more prone to freezing, especially when paired with higher-BTU heaters. As a general estimate, a 20 lb tank provides roughly 24 hours of continuous burn time, though actual runtime will vary based on heat settings and conditions.

      Helpful?

    2. While this heater can run off a 20lb tank, this heater is designed for permanent wall mounting. It would run approximately 10-12 hours continuously. It is highly recommended to have a licensed technician install it to meet local, state, and national fuel gas codes.

      Helpful?

  2. What's the efficiency of the unit, I see where it says 17,000 input but no output?

    1. The unit operates at approximately 70% efficiency.

      Helpful?

    2. The wall heater would have an efficiency rating of 70 percent.

      Helpful?

  3. Can a blower fan be put on this heater

    1. A blower can be added to this heater. The model number is DVB17. We do not carry the blower.

      Helpful?

    2. Yes, you can add a blower to this. Part number is DVB17

      Helpful?

  4. How far does it have to be off the ground or away from the ceiling? Is the fan 120v?

    1. This is a propane only heater, no electricity is used. Clearances should be 6" to the floor and 46" from the top of the heater to the ceiling.

      Helpful?

    2. The AGDV17-DF is a non-electric propane heater. The clearances to the floor are 6" and from the top of the heater to the ceiling is 46".

      Helpful?

  5. Is this unit LP

    1. This wall heater is designed for use with natural gas (NG) or liquid propane (LP). There is a dial on the back of the unit that should be set to the appropriate gas type when the heater is installed.

      Helpful?

    2. The DVAG17-DF can either be set to burn natural gas or propane. There is a dial on the back of the unit to select the correct gas at the time of installation.

      Helpful?

  6. Can you get a high altitude kit for this furnace? I live at 8600 feet.

    1. This heater includes an extra orifice that can be drilled to the necessary size for the altitude. Please consult a local gas technician to get the correct size.

      Helpful?

    2. The model DVAG17-DF comes with a spare blank orifice so that it can be drilled out to the size needed. You will need a gas technician to calculate the correct orifice size for your altitude.

      Helpful?

  7. can you get longer vent pipe i have 15 inchs of wall

    1. This model is only approved for installation on exterior walls with a thickness between 4.5" and 10". You cannot extend the vent kit.

      Helpful?

    2. No, you cannot extend the vent kit. This model is only approved for installation on an exterior wall with a thickness between 4.5"-10".

      Helpful?

  8. How accurate is the built in thermostat? Using this in a tiny home in MN.

    1 answer

    1. This unit comes with a thermobulb that will slow the gas flow and even shut the burner off at certain temperatures. This is not a thermostat in which you set. This is the only temperature control that is offered on this heater.

      Helpful?

  9. Can I hook a wall thermostat to this heater?

    1 answer

    1. The heater has a built-in thermostat and cannot be connected to a wall thermostat.

      Helpful?

  10. how far away from furni6ture does the heater need to be?

    1 answer

    1. The minimum clearances from combustibles for this heater are 6" from the sides, 36" from the top, 6" from the floor and 0.25" from the back of the heater.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
