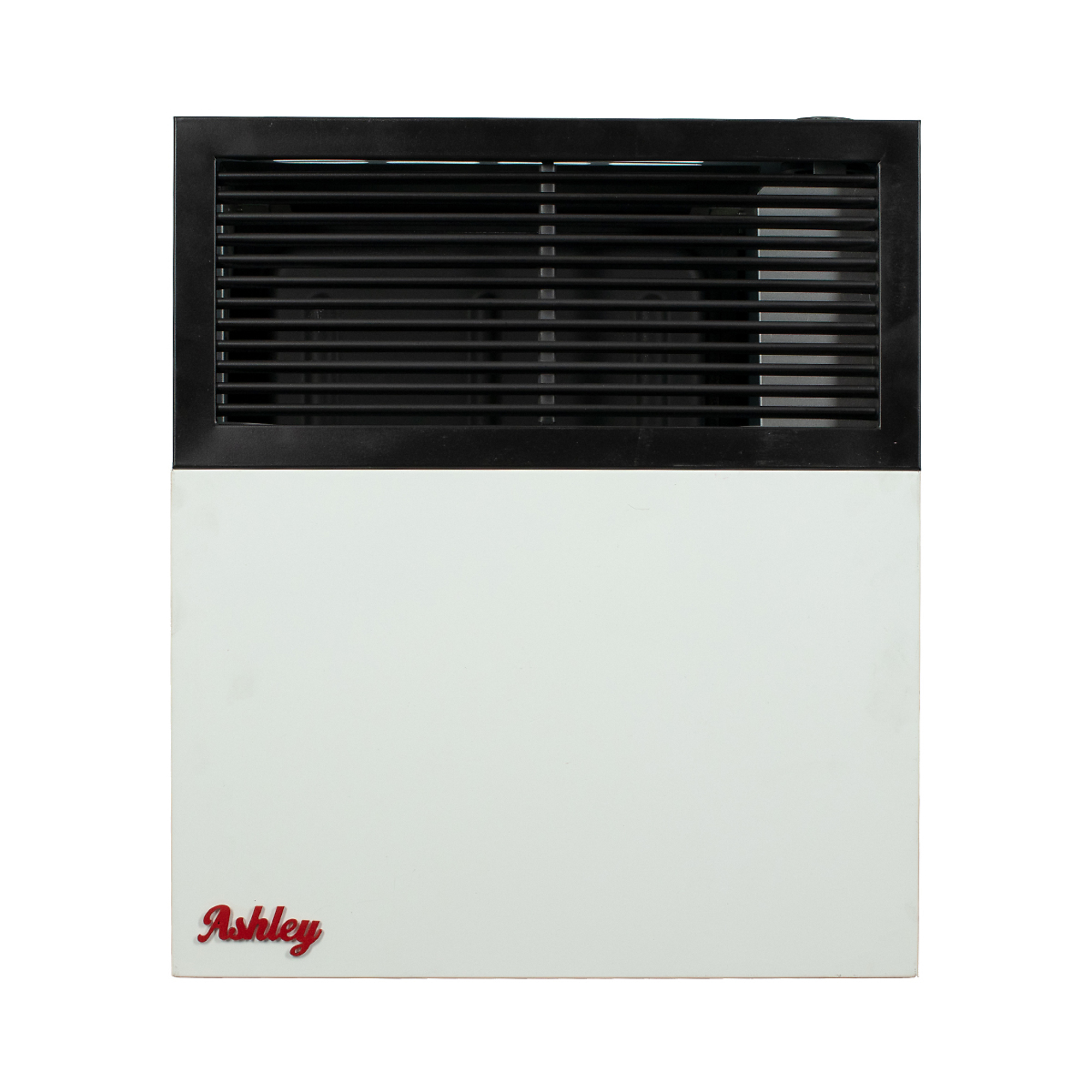

Ashley Hearth, Ashley Wall Heater, Dual Fuel, 11k Direct Vent, Heat Output 11000 Btu/hour, Heating Capability 375 ft², Color Family White, Model# DVAG11-DF

Item# 6213550
Ashley Hearth, Ashley Wall Heater, Dual Fuel, 11k Direct Vent, Heat Output 11000 Btu/hour, Heating Capability 375 ft², Color Family White, Model# DVAG11-DF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ashley Hearth, Ashley Wall Heater, Dual Fuel, 11k Direct Vent, Heat Output 11000 Btu/hour, Heating Capability 375 ft², Color Family White, Model# DVAG11-DF

Click or Tap image to Zoom

$499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Direct-vent wall heater operates on liquid propane or natural gas and produces up to 11,000 BTUs to efficiently heat spaces up to 375 sq ft
  • Operates without electricity making it ideal for use during power outages or off-grid applications
  • Sealed burn system with direct-vent design pulls in outside air and vents exhaust outdoors for cleaner and safer indoor air quality
  • Battery Powered manual ignition uses a standard AA battery (included) for easy and reliable startup without electricity
  • Convenient top control knob offers adjustable heat levels; after pilot is manually lit, the internal thermostat controls the heater

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

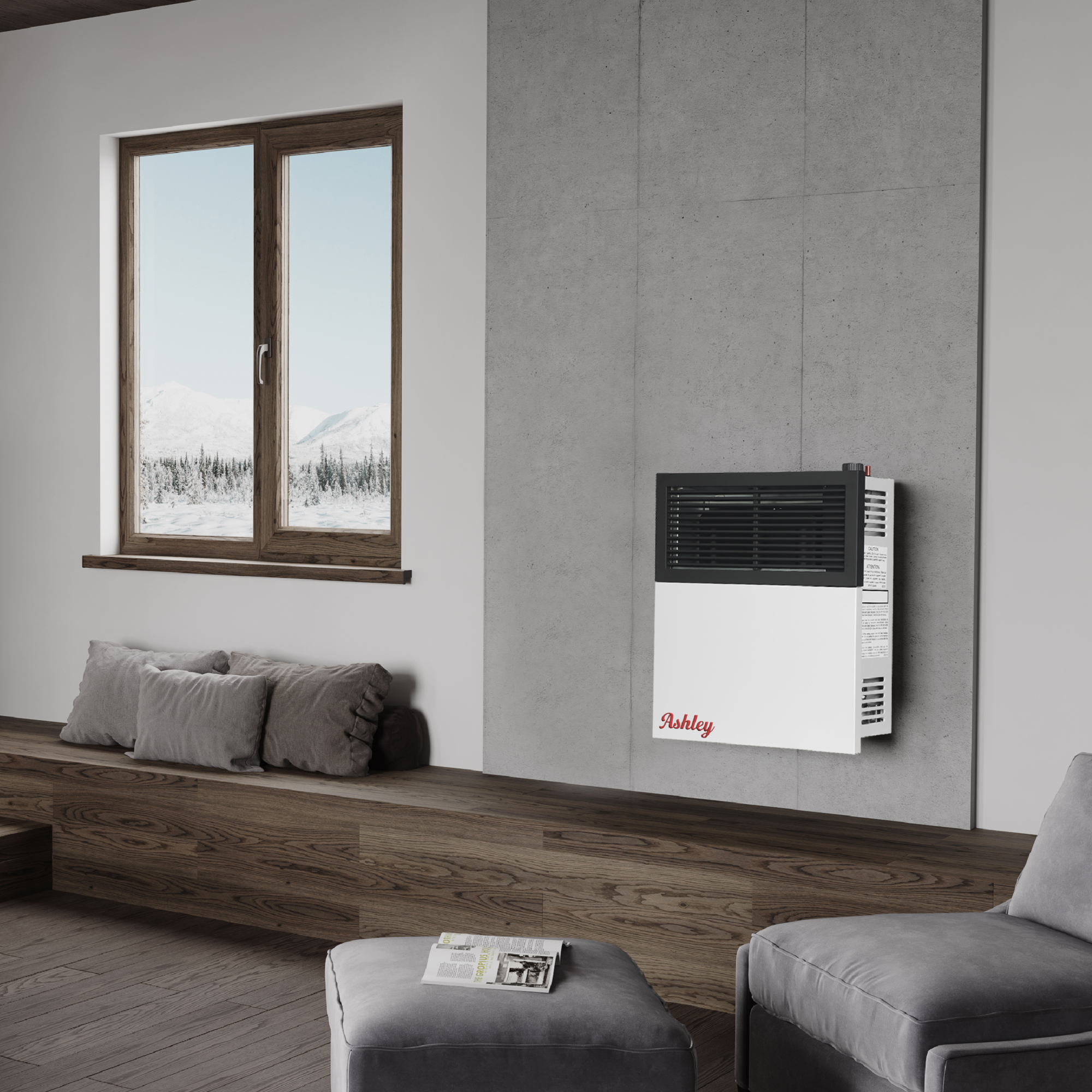

Ashley Hearth DVAG11-DF direct-vent wall heater operates on natural gas or liquid propane to deliver efficient and reliable heat with up to 11,000 BTUs, warming spaces up to 375 sq ft. The non-electric direct-vent system pulls in outside air for combustion and exhausts waste gases directly back outdoors through a coaxial venting system to pleasantly heat spaces without affecting indoor quality. Designed for homes, mobile homes, cabins, and supplemental heating, it offers a space-saving wall mounted solution with dependable performance.

What's Included

    (1) DVAG11-DF

Downloads

Product Manual Product Manual2
Additional Product Info
Play Item Video

Features + Benefits

  • Direct-vent wall heater operates on liquid propane or natural gas and produces up to 11,000 BTUs to efficiently heat spaces up to 375 sq ft
  • Operates without electricity making it ideal for use during power outages or off-grid applications
  • Sealed burn system with direct-vent design pulls in outside air and vents exhaust outdoors for cleaner and safer indoor air quality
  • Battery Powered manual ignition uses a standard AA battery (included) for easy and reliable startup without electricity
  • Convenient top control knob offers adjustable heat levels; after pilot is manually lit, the internal thermostat controls the heater
  • Includes mounting bracket and vent kit with heat shield, vent pipe, air intake pipe, flashing, cap, and connecting rod, for added value and easier installation right out of the box
  • If using with propane, recommended for use with minimum 100 lb. propane tank (sold separately) for extended heating sessions
  • Optional blower accessory available for enhanced circulation model# DVB11 (sold separately - blower requires electricity to run)
  • Approved for use in mobile homes (USA only) as well as houses, cabins, garages and small to medium living spaces
  • Durable steel construction built for long-lasting performance and energy efficient heating

Key Specs

AttributeSpecification

item#

6213550

Brand

Ashley Hearth

Manufacturer's Warranty

1 year limited warranty

Ship Weight

42.0 LB

Heat Output

11,000 Btu/hour

Heating Capability

375 ft²

Heat Type

Convection

Hardwired

No

Vent-Free

No

Assembled Width

17.36 in
AttributeSpecification

Assembled Height

20 in

Assembled Depth

6.61 in

Remote Included

No

Gas Inlet

3/8 in

Blower Included

No

Thermostat Included

No

Needs Direct Venting

Yes

Heat Settings

5

Product Weight

40.0000 lb

Dimensions L x W x H (in.)

6.61 x 17.36 x 20.0 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. What is the output efficiency percentage please?

    1 answer

    1. There is no efficiency rating given for this wall heater.

      Helpful?

  2. Is this unit also controls by a thermostat bulb? I understand I cant choose an exact temp, but by setting the dial it will maintain a temp close to that level im the room correct? Shutting itself off and turning itself back on, without losing the pilot?

    1 answer

    1. The DVAG11‑DF uses a dial and internal sensor to cycle the main burner to keep the room near the chosen setting, while a safety pilot and regulator keep the pilot lit and shut off gas if the pilot goes out.

      Helpful?

  3. is electricity required for operation

    1 answer

    1. There is no electricity needed for this unit, unless you add the optional blower.

      Helpful?

  4. will this unit work at high altitudes 6000-7000' ? are high altitude modifications necessary? If they are , are the parts included?

    1 answer

    1. The DVAG11-DF comes with an extra blank orifice that can be drilled out to the size needed for your altitude. A certified gas technician would be needed to determine the exact size and to drill and install it.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
