Arrow Steel Carport, Eggshell, 15ft.L x 10ft.W x 7ft.H, Model# CPH101507

Name: Arrow Steel Carport
Brand: Arrow Storage Products
SKU: 600162

Item# 83539

1 of 18 reviewers received a sample product or took part in a promotion

Top SellerOn Sale

Arrow Steel Carport, Eggshell, 15ft.L x 10ft.W x 7ft.H, Model# CPH101507

Click or Tap image to Zoom

$979.99

Choose Options for complete product description, reviews and purchasing.

Size

Color

Quantity

Save to List

Shipping:
Factory shipped
Heavy/large item. Lift gate service available.
Store Pickup:
Not available - online only

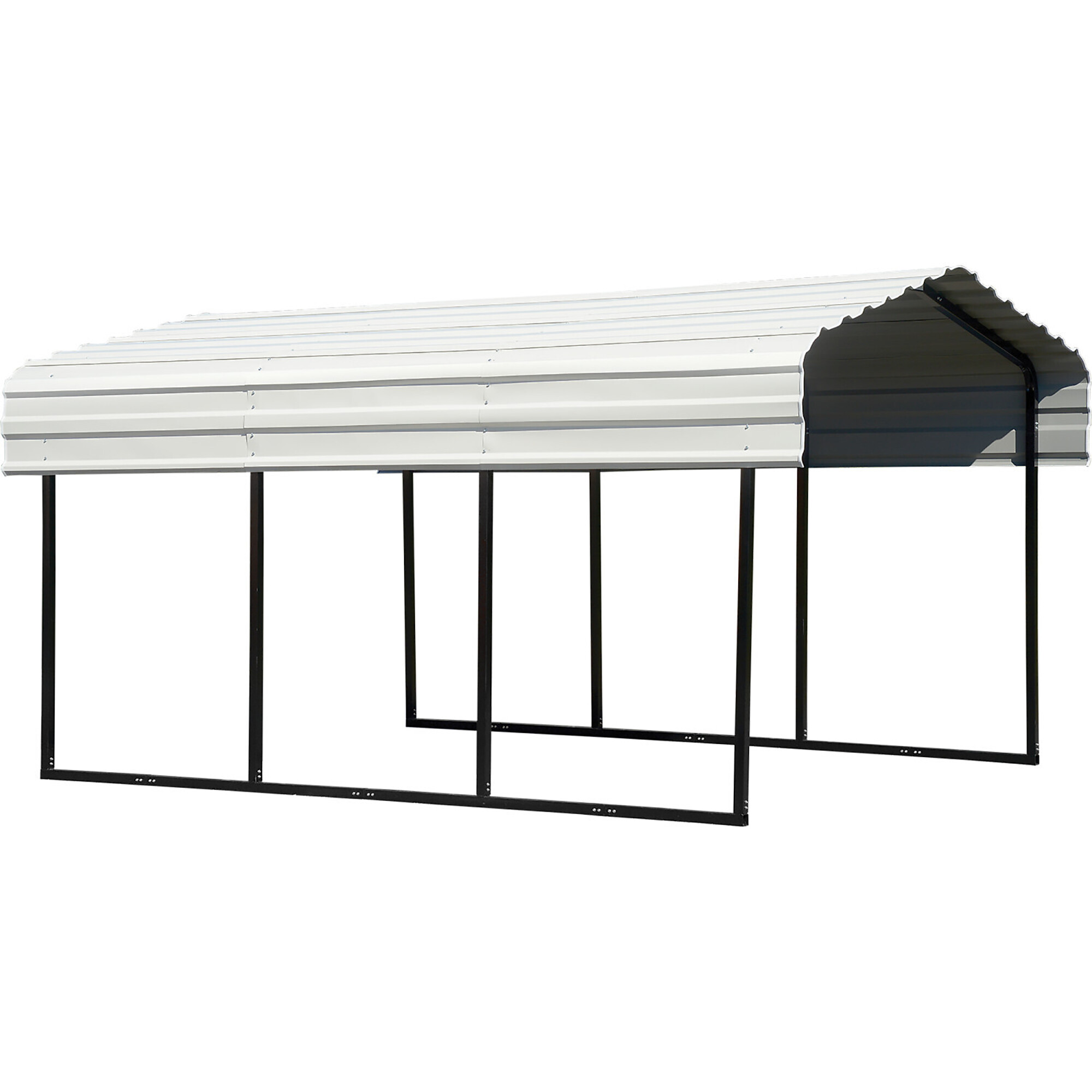

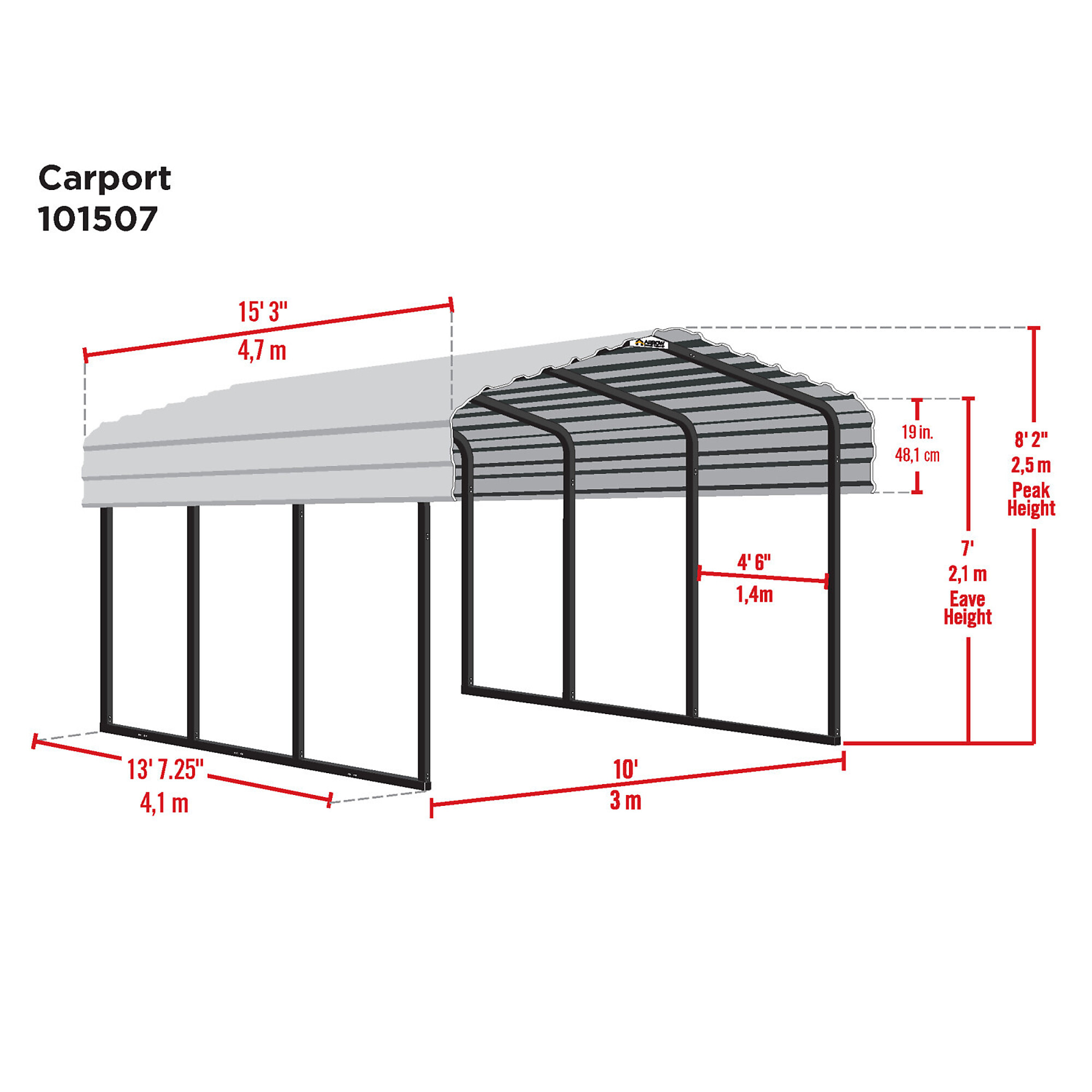

All-steel carport is 15ft.L x 10ft.W x 7ft.H at eaves (8.5ft.H at peak)
Eggshell powder-coat finish on 29-gauge galvanized steel roof panels
15-gauge 2in. square tube slip-fit frame with Black powder-coat finish
Rated for 100 MPH wind load and 35 PSF snow/ground load
Provides up to 148 sq. ft. / 1110 cu. ft. of storage and shelter area

See full description

Product Summary

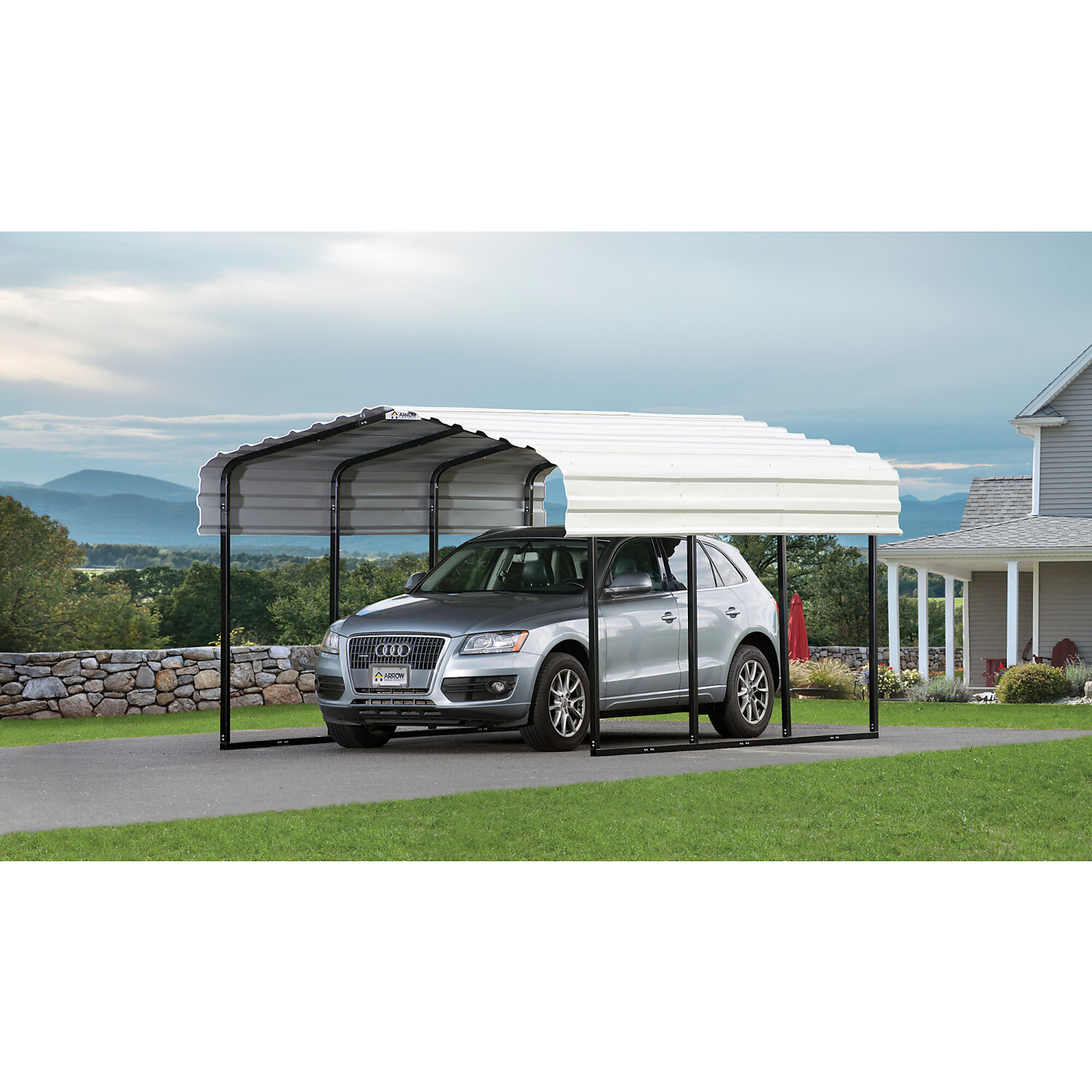

The Arrow all-steel carport provides all-weather protection for your vehicle or outdoor space. Strong wind- and snow-rated shelter is built with a 15-gauge 2in. square tube slip-fit frame and 29-gauge galvanized steel roof panels. Rated for 100 MPH wind load and 35 PSF snow/ground load. This carport is the perfect, affordable 4-season solution to shade and shelter a vehicle, boat, equipment or a couple of picnic tables for friends. Carport is 8.5ft.H at peak/7ft.H at eaves. Black powder-coat finish on frame and galvanized roof panels to resist rust and corrosion. Carport is ready to be built out of the box, and includes easy hook anchors to properly secure shelter into position. 10-year limited warranty.

What's Included

(1) Frame kit (1) Roof panel kit (1) Installation hardware kit

Downloads

Product Manual

Key Specs

Attribute	Specification
item#	83539
Brand	Arrow Storage Products
Manufacturer's Warranty	10 year limited warranty
Ship Weight	779.89 LB
Width	120 in
Height	98.4 in
Cover Material	Steel
UV Inhibitors	Yes

Attribute	Specification
Frame Material	Galvanized Steel
Frame Thickness	1.97 in
Anchors Included	Yes
Rip-Stop	No
Color	White
Product Weight	425.0000 lb
Dimensions L x W x H (in.)	183.25 x 120.0 x 98.4 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions

4 years ago

Can I cut the legs to shorten the height, I need to center no higher than 6ft.?

1 answer
1. ProductExpert6

  4 years ago

  You would not be able to cut the legs on this carport to make it shorter. To do so would compromise the integrity of the carport and would void any warranty.

  Helpful?
5 years ago

What is the actual inside measurements for the carport? Is it 10 feet from out side to outside the frame or inside to inside or middle to middel?>

1 answer
1. ProductExpert31

  5 years ago

  The assembled interior dimensions are 116" wide, 183.25" long, and 96.4" high at the center, and 84" high at the walls.

  Helpful?
6 years ago

Where is this manufactured?

1 answer
1. ProductExpert18

  6 years ago

  This Arrow carport is manufactured in China.

  Helpful?
7 years ago

Can you order steel sides and ends for Arrow Steel Carport, model #CPH101507

1 answer
1. ProductExpert30

  7 years ago

  The manufacturer offers an enclosure kit for this carport as model # 10182. This would be made out of a durable fabric material that is water resistant to cover the front, back, and sides. They do not offer a steel enclosure at this time. This enclosure kit is available to order from the manufacturer directly.

  Helpful?
