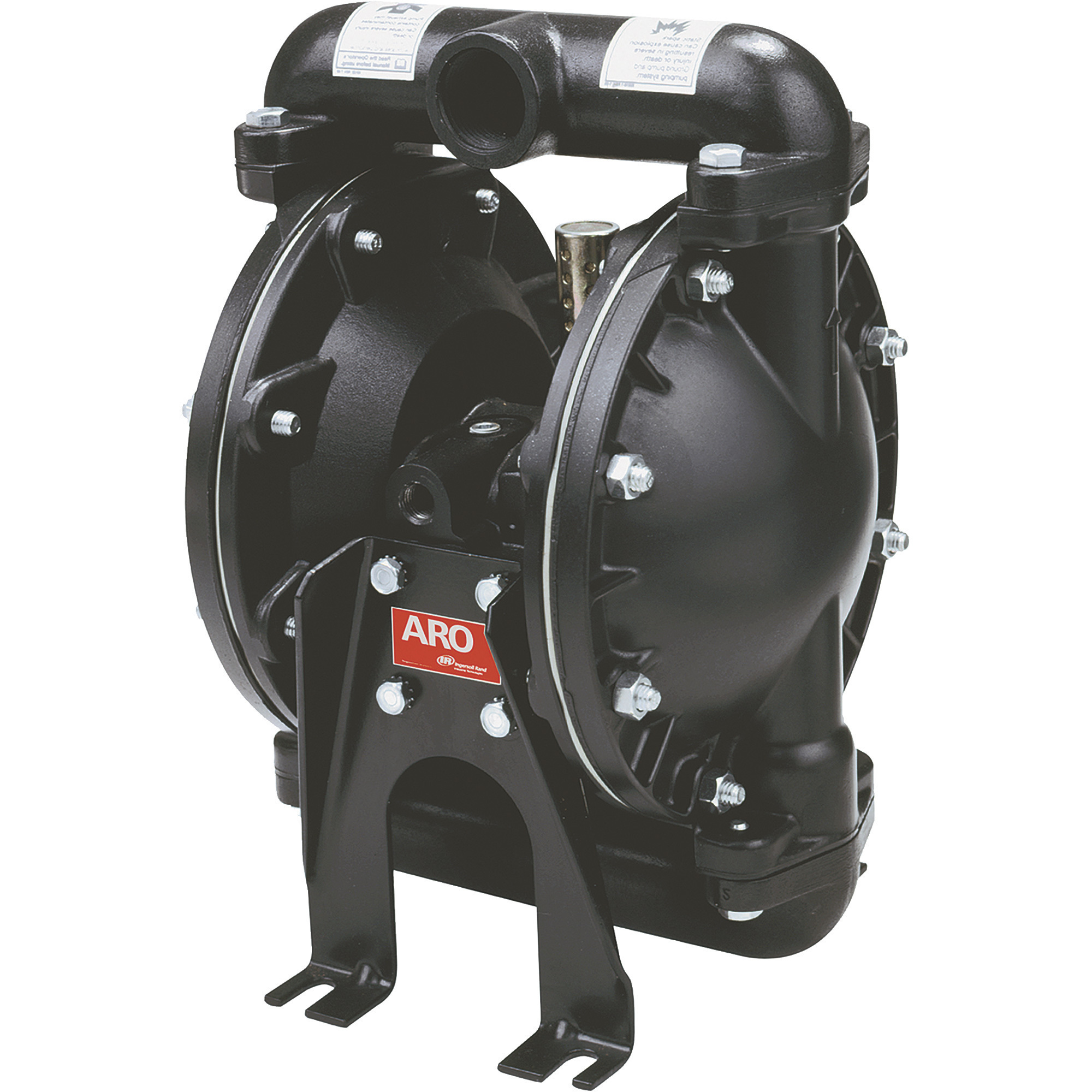

ARO Air-Operated Double Diaphragm Pump, 1in. Ports, 35 GPM, Aluminum/Nitrile, Model# 666100-322-C

Item# 59748
On Sale
ARO Air-Operated Double Diaphragm Pump, 1in. Ports, 35 GPM, Aluminum/Nitrile, Model# 666100-322-C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ARO Air-Operated Double Diaphragm Pump, 1in. Ports, 35 GPM, Aluminum/Nitrile, Model# 666100-322-C

Click or Tap image to Zoom

$1236.99
Reg $1454.79Save $217.80

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Air-operated double diaphragm pump is made of aluminum
  • Environmentally sound with bolted construction to provide maximum chemical and leak resistance
  • 1in. NPT ports groundable with Nitrile ball checks and diaphragms
  • Rated for typical fluids: waste oil, ATF, light viscosity petroleum and synthetic oil
  • 35 GPM

See full description

Complete Your Solution

  • ARO Air-Operated Double Diaphragm Pump, 1in. Ports, 35 GPM, Aluminum/Nitrile, Model# 666100-322-C
  • Fast Orange Pumice Hand Cleaner, Gallon
Price for all two:

$1253.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The ARO Air-Operated Double Diaphragm Pump features a compact, rugged design for easy mobility. "Unbalanced" valve design eliminates valve centering and pump stall-out. Independent pilot rod ensures positive pilot signal, avoiding stall-out.

What's Included

    (1) 1:1 diaphragm pump (1) Operation/maintenance manuals

Downloads

Product Manual

Features + Benefits

  • Air-operated double diaphragm pump is made of aluminum
  • Environmentally sound with bolted construction to provide maximum chemical and leak resistance
  • 1in. NPT ports groundable with Nitrile ball checks and diaphragms
  • Rated for typical fluids: waste oil, ATF, light viscosity petroleum and synthetic oil
  • 35 GPM

Key Specs

AttributeSpecification

item#

59748

Brand

Ingersoll Rand

Manufacturer's Warranty

5 year limited warranty

Ship Weight

22.0 LB

Flow

35 GPM

Inlet Port

1 in

Outlet Port

1 in

Diaphragm Material

Nitrile

Average Air Consumption

28 cfm
AttributeSpecification

Operating PSI

120 PSI

Max. PSI

120

Air Inlet Size NPT

0.25 in

Gear Ratio

1:1

Max. Fluid Temp

175 °F

Pump Housing Material

Aluminum

Max. Suspended Solids

0.125 in

Product Weight

22.0000 lb

Dimensions L x W x H (in.)

9.0 x 8.0 x 12.5 in
