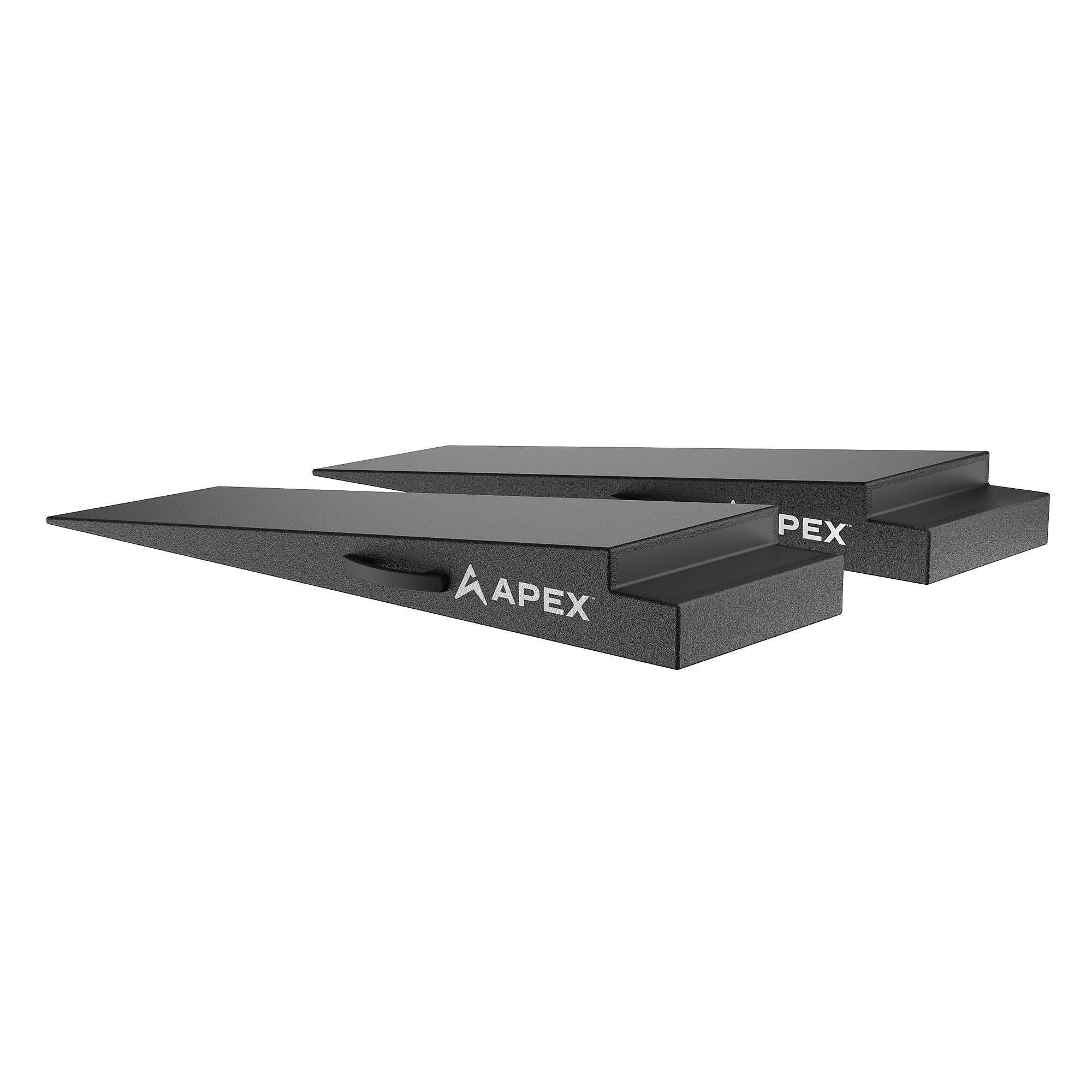

AR-450-58-TR 48" Lightweight Foam Trailer Ramp Kit 5” Height 5.9° Approach Angle Set of 2

Item# 7075970
Top Seller2 Included
AR-450-58-TR 48" Lightweight Foam Trailer Ramp Kit 5” Height 5.9° Approach Angle Set of 2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

AR-450-58-TR 48" Lightweight Foam Trailer Ramp Kit 5” Height 5.9° Approach Angle Set of 2

Click or Tap image to Zoom

$459.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 48 inch length and 5 inch height create a 5.9 degree approach angle that works with modern sports cars and mildly lowered vehicles.
  • Solid, closed cell EPS core supports thousands of pounds without sagging, denting, or absorbing moisture.
  • Chemically bonded skin resists abrasion and chemicals while providing a micro textured surface that grips tires and trailer decks.
  • Embedded UHMW reinforcement at the trailer interface prevents compression and degradation at the contact point, maintaining ramp geometry over time.
  • Rated at 1,750-lb per ramp, compared to 1,500-lb per ramp for many foam trailer ramps in this category.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Trailer Ramp For Low Cars That Actually Works If you're tired of stacking lumber under the trailer door, guessing at angles, and listening for that awful scrape when a low car climbs aboard, the 48in. Lightweight Foam Trailer Ramp Kit from APEX is how you fix it properly. Each trailer ramp extends your trailer door and brings the approach angle down to 5.9 degrees so modern sports cars, track builds, and lowered muscle cars can load without drama. Instead of inching forward and watching the front bumper like a hawk, you get a smooth, controlled transition onto the deck. APEX Trailer Ramps are also engineered for long service life at the exact point most ramps fail. Each 48in. ramp uses a reinforced UHMW insert embedded into the shelf area, so the contact zone where the ramp rests on the trailer door can handle repeated load cycles without crushing or rolling over. You place the ramps, line up the car, and drive on knowing the geometry will stay consistent instead of slowly changing as the shelf deforms. Tuned Geometry For Real Trailers And Real Cars The 5in. rise and 48in. length are not random numbers. APEX tuned this kit around real enclosed and open car trailers and the real cars that go on them. That 5.9 degree approach angle softens the breakover where the tire first hits the ramp and where it transitions onto the trailer door, protecting low front ends that normally collide with that change in angle. Compared to typical foam ramps in this size range, which often sit steeper for a similar 48in. profile, that small numeric difference makes a very noticeable change when you are creeping a low splitter toward the trailer door and hoping you judged it right. High-Density EPS Core That's Solid Under Load At the core of every APEX trailer ramp is a high density expanded polystyrene (EPS) structure engineered to support thousands of pounds while staying easy to handle. The foam is produced through a controlled multi stage expansion and molding process that creates a tightly compacted, solid core rather than a hollow shell.

What's Included

    (2) 2 Ramps

Features + Benefits

  • 48 inch length and 5 inch height create a 5.9 degree approach angle that works with modern sports cars and mildly lowered vehicles.
  • Solid, closed cell EPS core supports thousands of pounds without sagging, denting, or absorbing moisture.
  • Chemically bonded skin resists abrasion and chemicals while providing a micro textured surface that grips tires and trailer decks.
  • Embedded UHMW reinforcement at the trailer interface prevents compression and degradation at the contact point, maintaining ramp geometry over time.
  • Rated at 1,750-lb per ramp, compared to 1,500-lb per ramp for many foam trailer ramps in this category.

Key Specs

AttributeSpecification

item#

7075970

Brand

Apex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

16.0 LB

Material

Polystyrene

Capacity

1,750 lb

Included (qty.)

2

Folding

No
AttributeSpecification

Load Capacity per Ramp

1,750 lb

Surface Width

13 in

Max. Ramp Length

48 in

Adjustable Length

No

Fastening Hardware Included

No

Product Weight

15.0000 lb

Dimensions L x W x H (in.)

48.0 x 14.25 x 5.0 in
