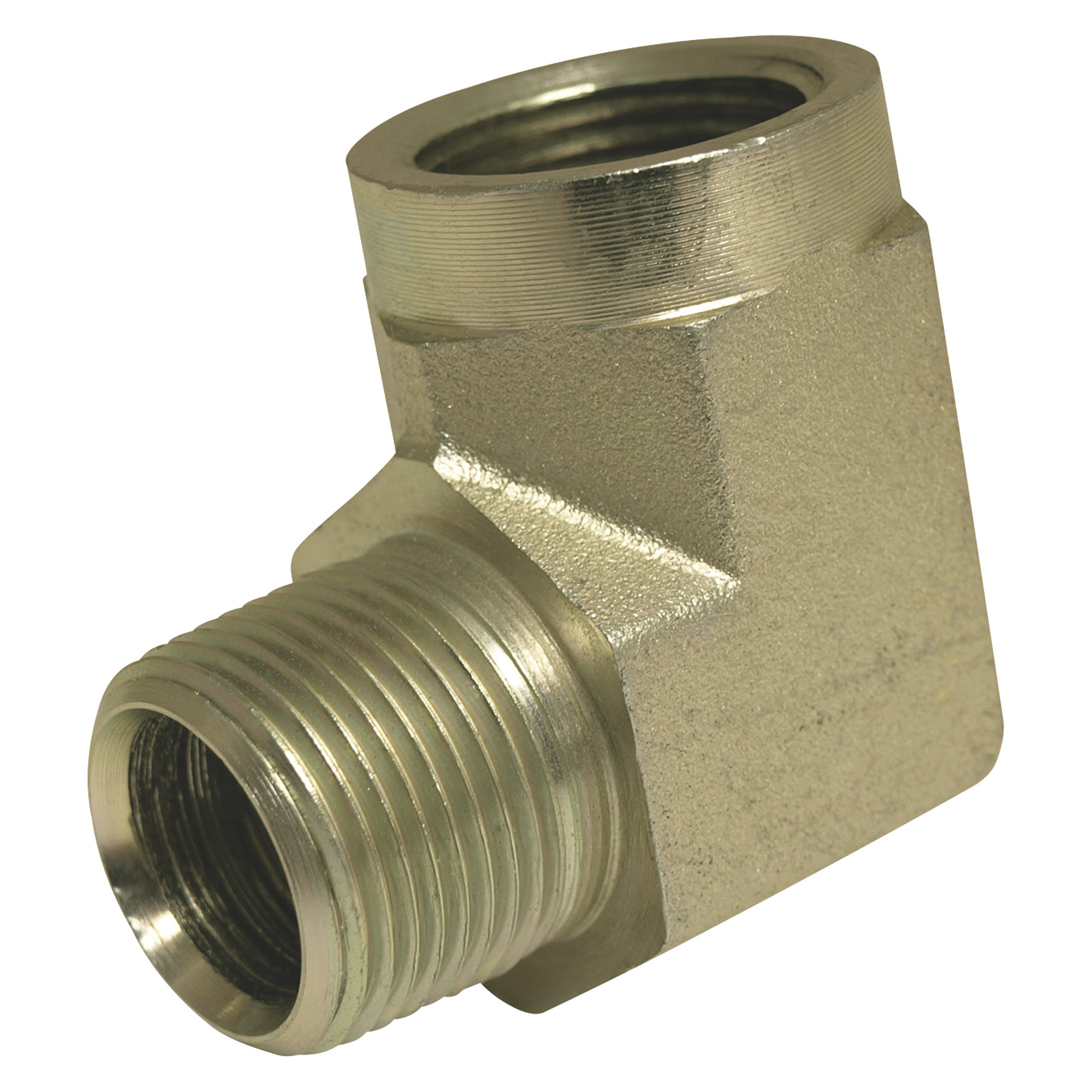

Apache 90-Degree Fitting — 3/4in. MNPT x 3/4in. FNPT, 2500 PSI, 90 Degree Street Elbow, Model# 39007434

Item# 359343
Top Seller
Apache 90-Degree Fitting — 3/4in. MNPT x 3/4in. FNPT, 2500 PSI, 90 Degree Street Elbow, Model# 39007434

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Apache 90-Degree Fitting — 3/4in. MNPT x 3/4in. FNPT, 2500 PSI, 90 Degree Street Elbow, Model# 39007434

Click or Tap image to Zoom

$15.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • Allows users to take a preassembled hose and connect it to your connection-specific machinery
  • Adapters also help to correctly route hoses and make replacement easier

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

The Apache 90-Degree Fitting is a robust and reliable solution designed for high-pressure fuel applications. Featuring a 3/4in. Male National Pipe Tapered Thread (MNPT) on one end and a 3/4in. Female National Pipe Tapered Thread (FNPT) on the other, this fitting ensures secure and leak-free connections in demanding environments. Rated to handle pressures up to 2,500 PSI, it is engineered to withstand the rigors of heavy-duty use, providing durable performance and peace of mind. Ideal for a variety of industrial and commercial applications, the Apache 90-Degree Fitting offers a precise and dependable connection for your fuel system needs.

What's Included

    (1) Adapter

Features + Benefits

  • Allows users to take a preassembled hose and connect it to your connection-specific machinery
  • Adapters also help to correctly route hoses and make replacement easier

Key Specs

AttributeSpecification

item#

359343

Brand

Apache

Ship Weight

0.6 LB

Fitting Size

3/4 x 3/4 in
AttributeSpecification

Max. PSI

2,500

Degree of Angle

90

Swivels

No

Plug Included

No

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Whats item dimensions? Mainly need length from male thread end to outside end? Thnx

    Originally posted on Apache 90 Degree Adapter 1/2in. Male NPT x 1/2in. Female NPT

    1. The overall dimensions of the fitting is 2" W x 2" H x 1" D. The package dimensions are 2.75" W x 4.5" H x 1.75" D. The length between the threads is 3 1/4".

      Helpful?

    2. This fitting is 2"W x 2"H x 1"D.

      Helpful?

  2. What are the outer dimensions of the fitting casing?

    I'm not looking for the diameters of the hose connections. I need to know if the entire fitting will physically fit within the space constraints of my apparatus.

    1 answer

    1. The overall outer dimensions of this Apache 90 Degree Street Elbow are 2 1/4" long from the male end to the 90 degree bend, 2 1/8" from the 90 degree bend to the end of the female end and then 1 3/8" across on the female end. It is approximately 1 1/4" thick.

      Helpful?
