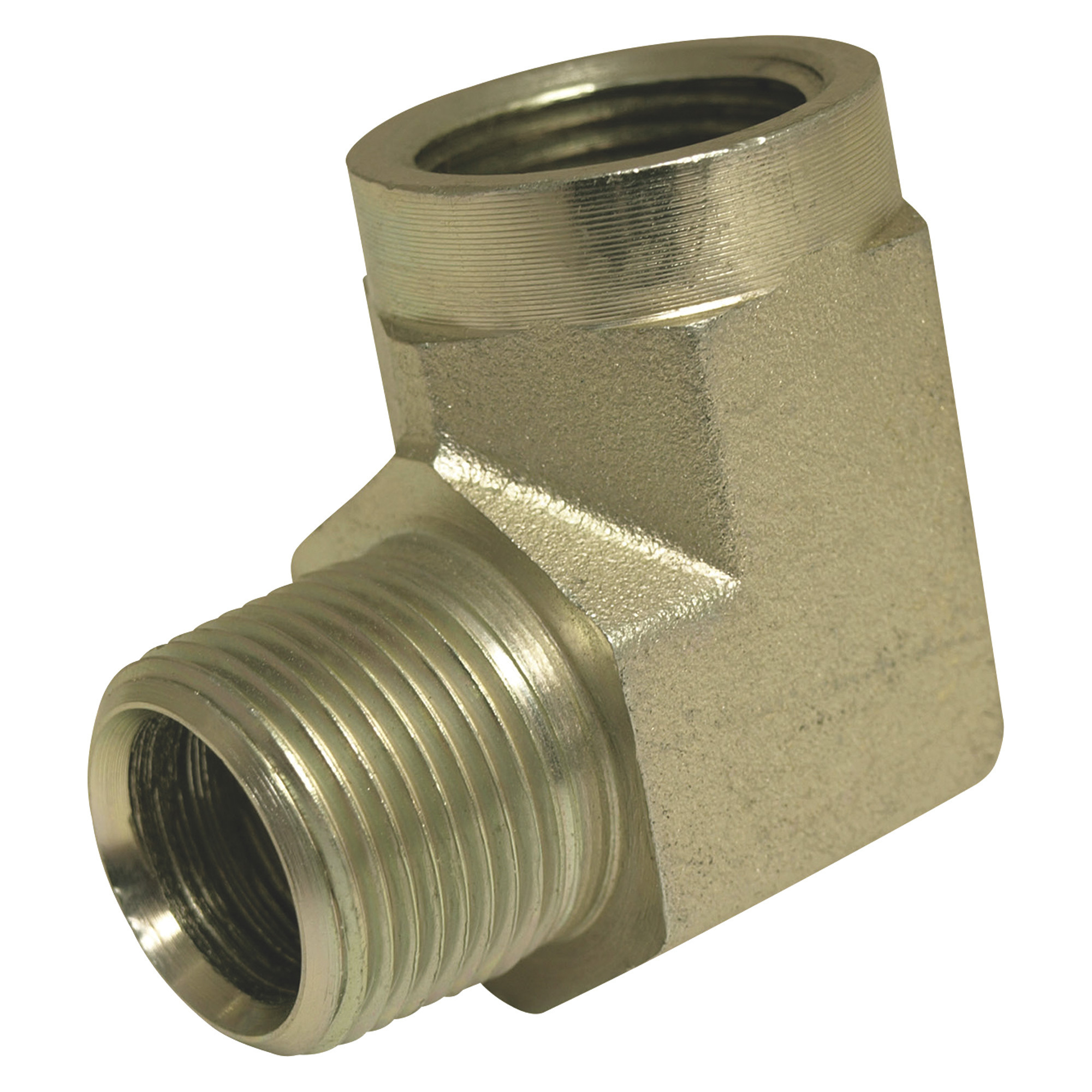

Apache 90° Fitting — 1/4in. MNPT x 1/4in. FNPT, 10,000 PSI, Model# 39007424

Item# 359340
Apache 90° Fitting — 1/4in. MNPT x 1/4in. FNPT, 10,000 PSI, Model# 39007424

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Apache 90° Fitting — 1/4in. MNPT x 1/4in. FNPT, 10,000 PSI, Model# 39007424

Click or Tap image to Zoom

$10.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • Allows users to take a preassembled hose and connect it to your connection-specific machinery
  • Adapters also help to correctly route hoses and make replacement easier

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

The Apache 90° Fitting is a high-performance connector designed for use with fuels, featuring a 1/4in. Male National Pipe Tapered Thread (MNPT) on one end and a 1/4in. Female National Pipe Tapered Thread (FNPT) on the other. Engineered to withstand extreme pressures, this fitting is rated up to 10,000 PSI, making it ideal for demanding industrial applications where durability and reliability are paramount. Its 90-degree design allows for efficient and space-saving connections in tight or confined spaces, ensuring optimal flow and performance. Crafted with precision and built to meet rigorous standards, the Apache 90° Fitting provides a secure and leak-proof solution for fuel systems, enhancing safety and efficiency in various operational environments. Whether used in automotive, manufacturing, or other heavy-duty settings, this fitting delivers exceptional performance and long-lasting value.

What's Included

    (1) Adapter

Features + Benefits

  • Allows users to take a preassembled hose and connect it to your connection-specific machinery
  • Adapters also help to correctly route hoses and make replacement easier

Key Specs

AttributeSpecification

item#

359340

Brand

Apache

Ship Weight

0.18 LB

Fitting Size

1/4 x 1/4 in
AttributeSpecification

Max. PSI

10,000

Degree of Angle

90

Swivels

Yes

Plug Included

No

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Whats item dimensions? Mainly need length from male thread end to outside end? Thnx

    Originally posted on Apache 90 Degree Adapter 1/2in. Male NPT x 1/2in. Female NPT

    1. The overall dimensions of the fitting is 2" W x 2" H x 1" D. The package dimensions are 2.75" W x 4.5" H x 1.75" D. The length between the threads is 3 1/4".

      Helpful?

    2. This fitting is 2"W x 2"H x 1"D.

      Helpful?

  2. What are the outer dimensions of the fitting casing?

    I'm not looking for the diameters of the hose connections. I need to know if the entire fitting will physically fit within the space constraints of my apparatus.

    1 answer
    Originally posted on "Apache 90 Degree Street Elbow, 3/4in. M NPTF x 3/4in. F NPTF"

    1. The overall outer dimensions of this Apache 90 Degree Street Elbow are 2 1/4" long from the male end to the 90 degree bend, 2 1/8" from the 90 degree bend to the end of the female end and then 1 3/8" across on the female end. It is approximately 1 1/4" thick.

      Helpful?
