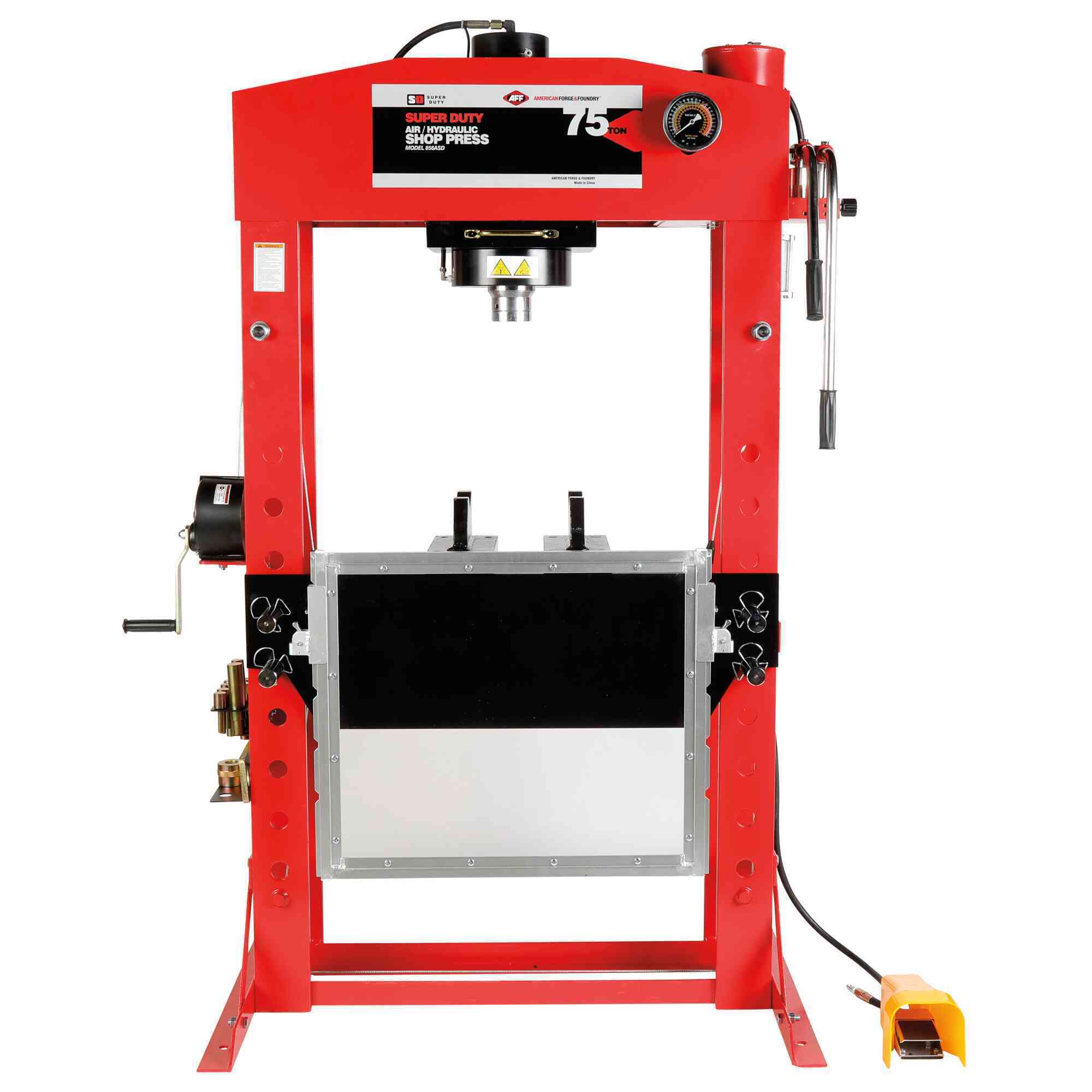

American Forge & Foundry - Shop Press - 75 Ton Capacity - Foot Operated Air Motor/Manual Pump W/ Hydraulic Ram - Built In Polycarbonate Press Guard - 10 pc Pin & Bearing Press Adapter Set Included - SUPER DUTY - Model

Item# 7088068
American Forge & Foundry - Shop Press - 75 Ton Capacity - Foot Operated Air Motor/Manual Pump W/ Hydraulic Ram - Built In Polycarbonate Press Guard - 10 pc Pin & Bearing Press Adapter Set Included - SUPER DUTY - Model

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

American Forge & Foundry - Shop Press - 75 Ton Capacity - Foot Operated Air Motor/Manual Pump W/ Hydraulic Ram - Built In Polycarbonate Press Guard - 10 pc Pin & Bearing Press Adapter Set Included - SUPER DUTY - Model

Click or Tap image to Zoom

$5999.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

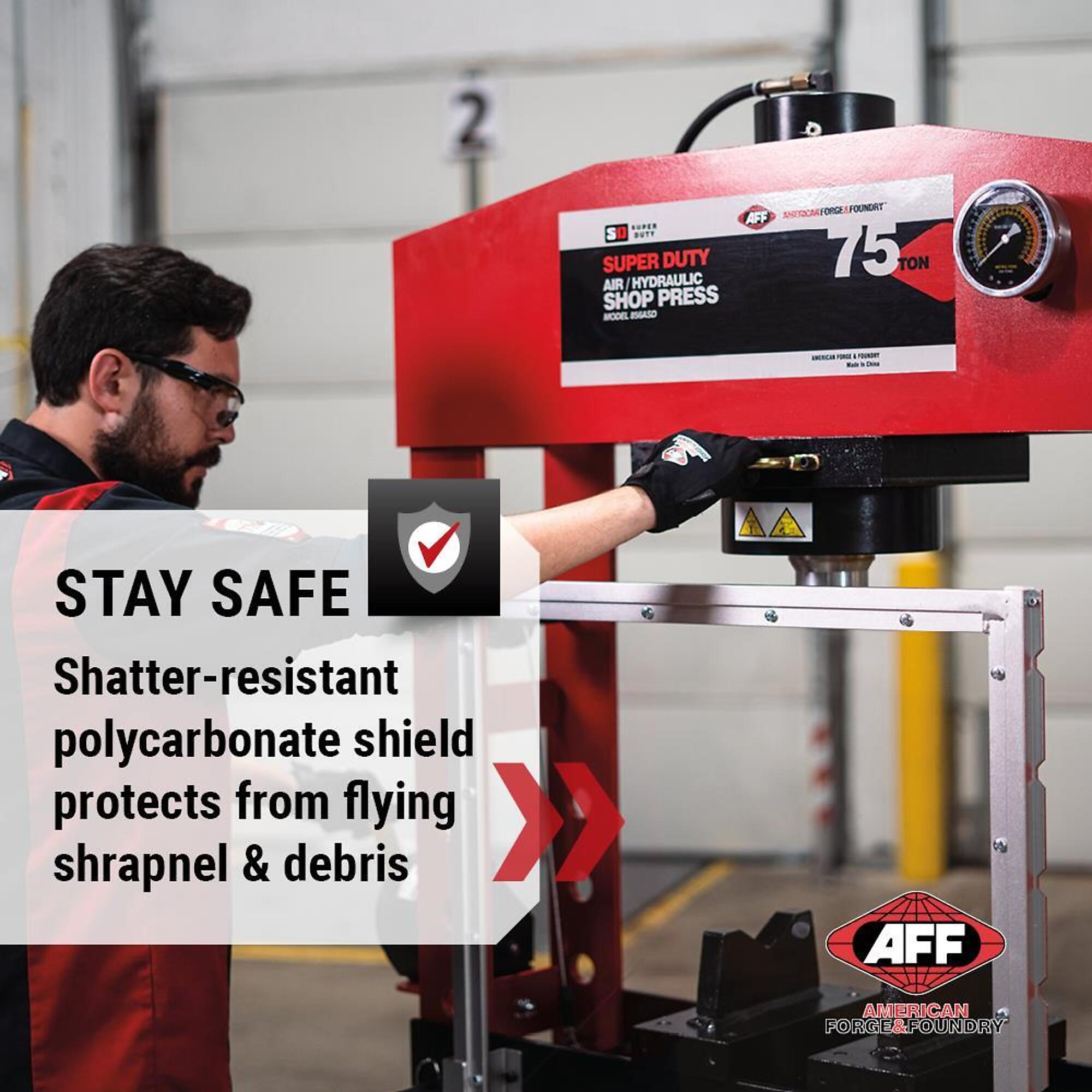

  • Shatter resistant polycarbonate protector shield provides maximum protection against shrapnel and other debris.

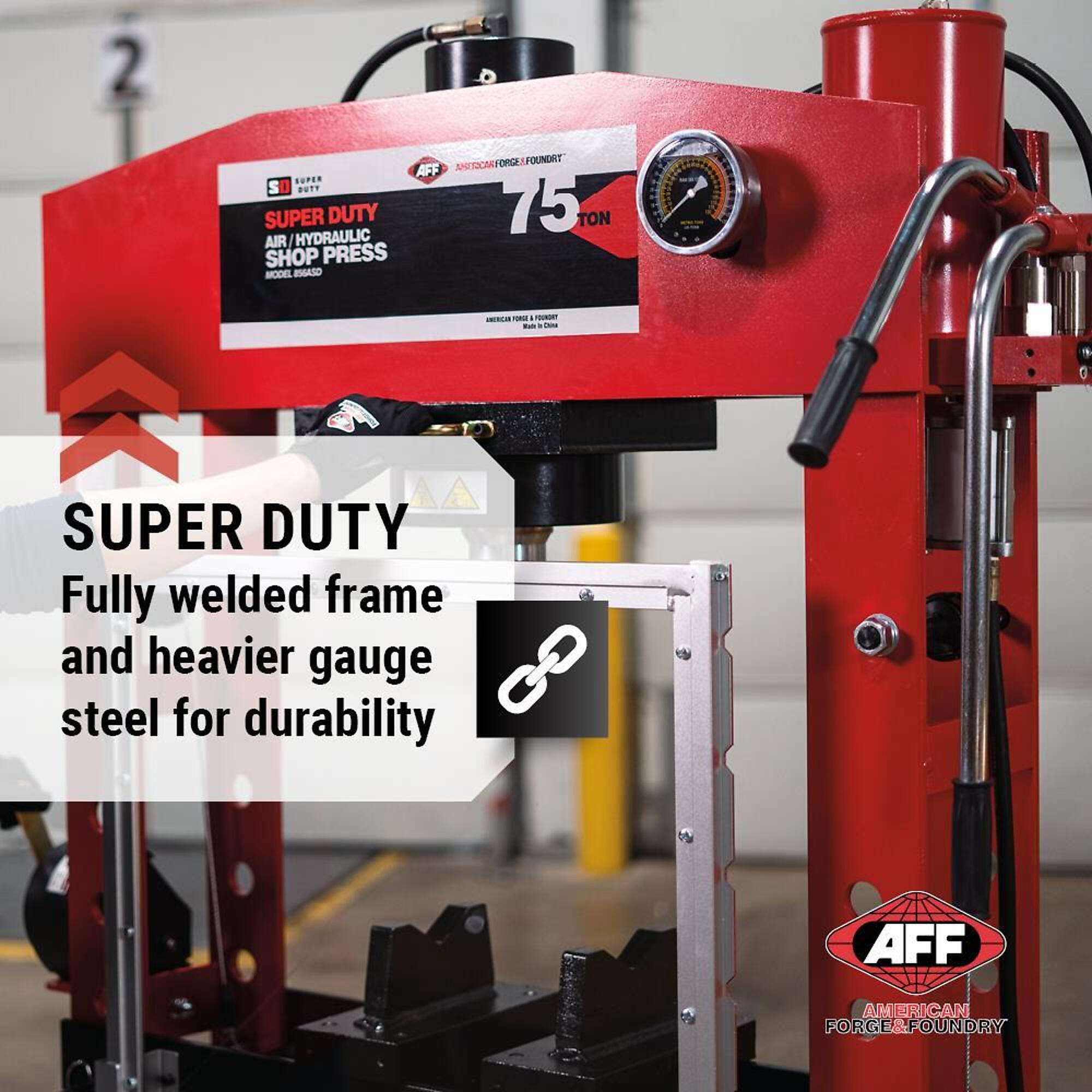

  • Welded construction for exceptional strength and durability.
  • Includes 2 pc press plate set and 10 pc pin and bearing press adapter set.

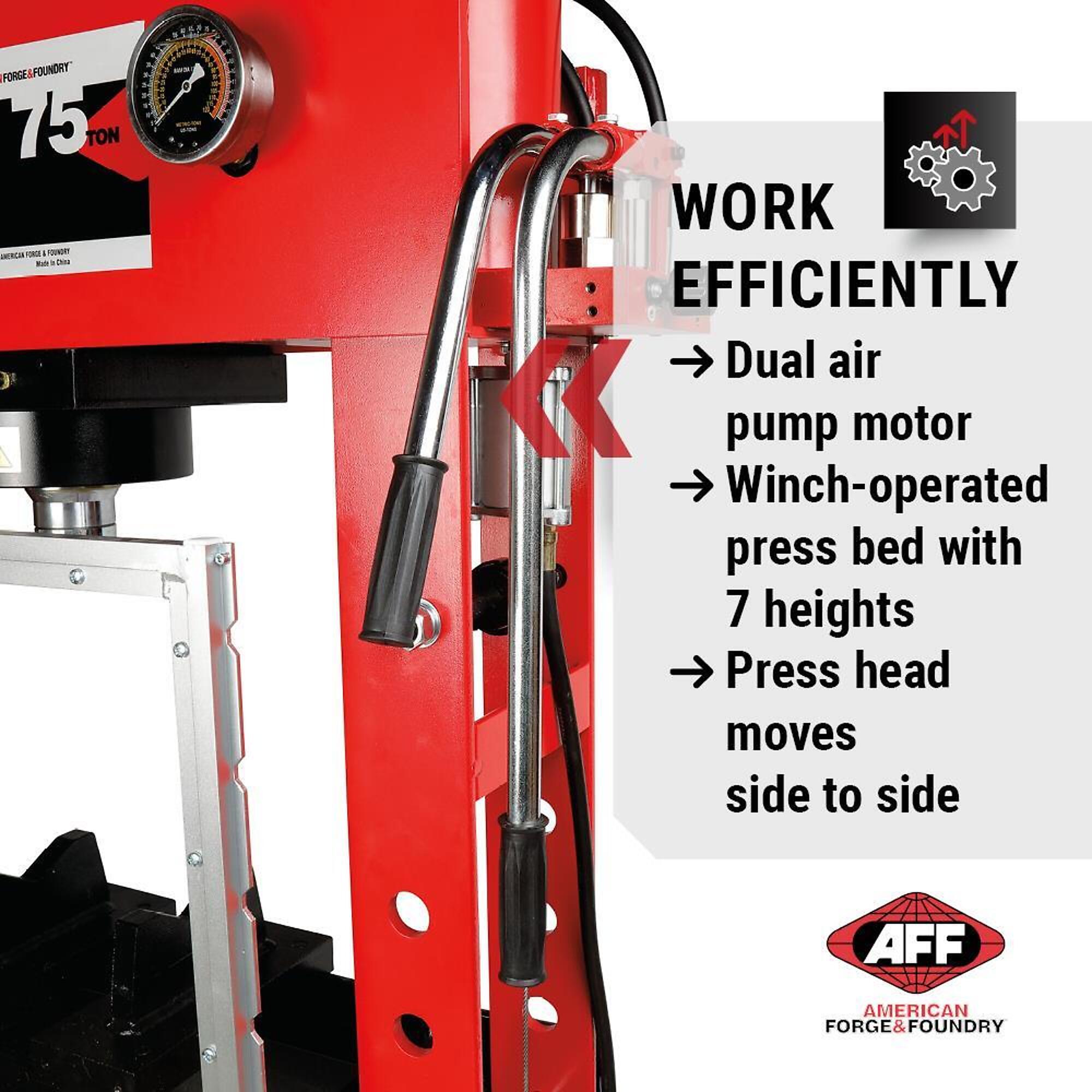

  • Dual air motor operation for faster pressing process.
  • Glycerin filled gauge accurately shows pressing force. 7 position bed height configurations for ultimate operator flexibility. Lateral head adjuster provides smooth side to side movement of the press head. Overload protection adds operator safety and prevents damage from over pressurizing. Heavy duty cable winch for effortless bed adjustment.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Offering both standard and super duty shop presses, AFF has your pressing needs covered. Our Super Duty Shop Presses are constructed with a fully welded frame and heavier gauge steel for exceptional strength and durability. A lateral head adjuster provides smooth side to side movement of the press head which adds versatility that you won’t find with other standard duty shop presses. Capacity: 75 Ton Product Type: Shop Press Power Type: Hydraulic Power Unit Type: Pump Ram Operation Type: Manual/ Air/Foot Pedal Frame Size: 77in. H x 57in. W Bed Width (in.): 31.50in. Bed Rail Opening (in.): 10.87in. Bed Position Adjustments: 7 Throat Width (in.): 19.75in. Throat Depth (in.): 8in. Ram Stoke: 9.75in. Working Air Pressure (PSI): 90-150 PSI Duty Level: Super Duty Weight: 1,030 lbs. Includes: 13 Piece Pin Bearing Press Adapters|2 Arbor Plate Sets | Pressure Guage | Shatter Resistant Press Guard Special Features: Double Pump Air Motor | Rolling Head Assembly | Heavy Duty Bed Winch | Heavy Duty Return Springs Warranty: 1 Year

What's Included

    (1) Shop Press

Features + Benefits

  • Shatter resistant polycarbonate protector shield provides maximum protection against shrapnel and other debris.
  • Welded construction for exceptional strength and durability.
  • Includes 2 pc press plate set and 10 pc pin and bearing press adapter set.
  • Dual air motor operation for faster pressing process.
  • Glycerin filled gauge accurately shows pressing force. 7 position bed height configurations for ultimate operator flexibility. Lateral head adjuster provides smooth side to side movement of the press head. Overload protection adds operator safety and prevents damage from over pressurizing. Heavy duty cable winch for effortless bed adjustment.

Key Specs

AttributeSpecification

item#

7088068

Brand

American Forge & Foundry

Manufacturer's Warranty

1 year limited warranty

Ship Weight

935.0 LB

Press Type

Hydraulic
AttributeSpecification

Max. Pressure

75 Tons

Stroke Length

9.75 in

Working Width

31.5 in

Product Weight

935.0000 lb

Dimensions L x W x H (in.)

42.0 x 13.0 x 83.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
