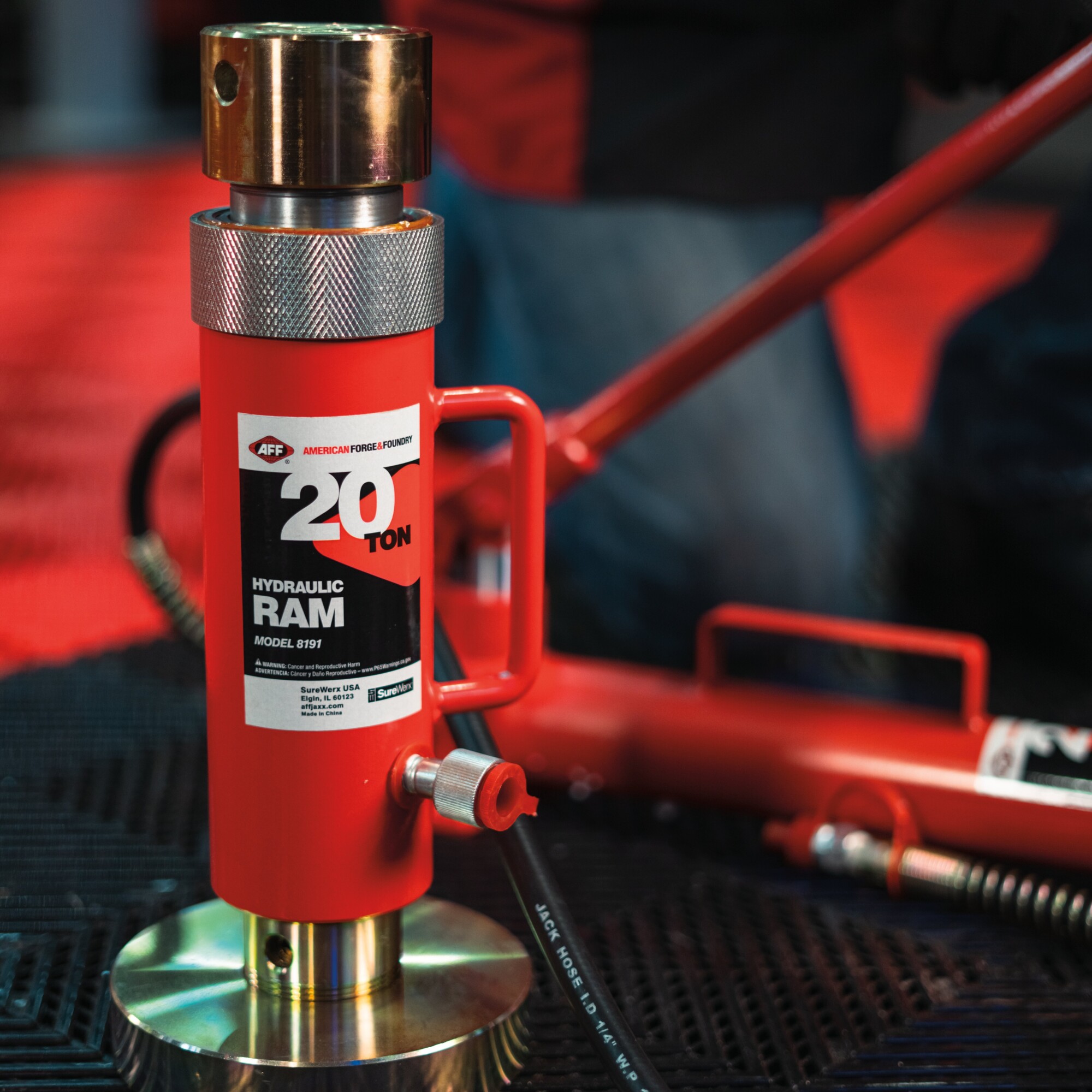

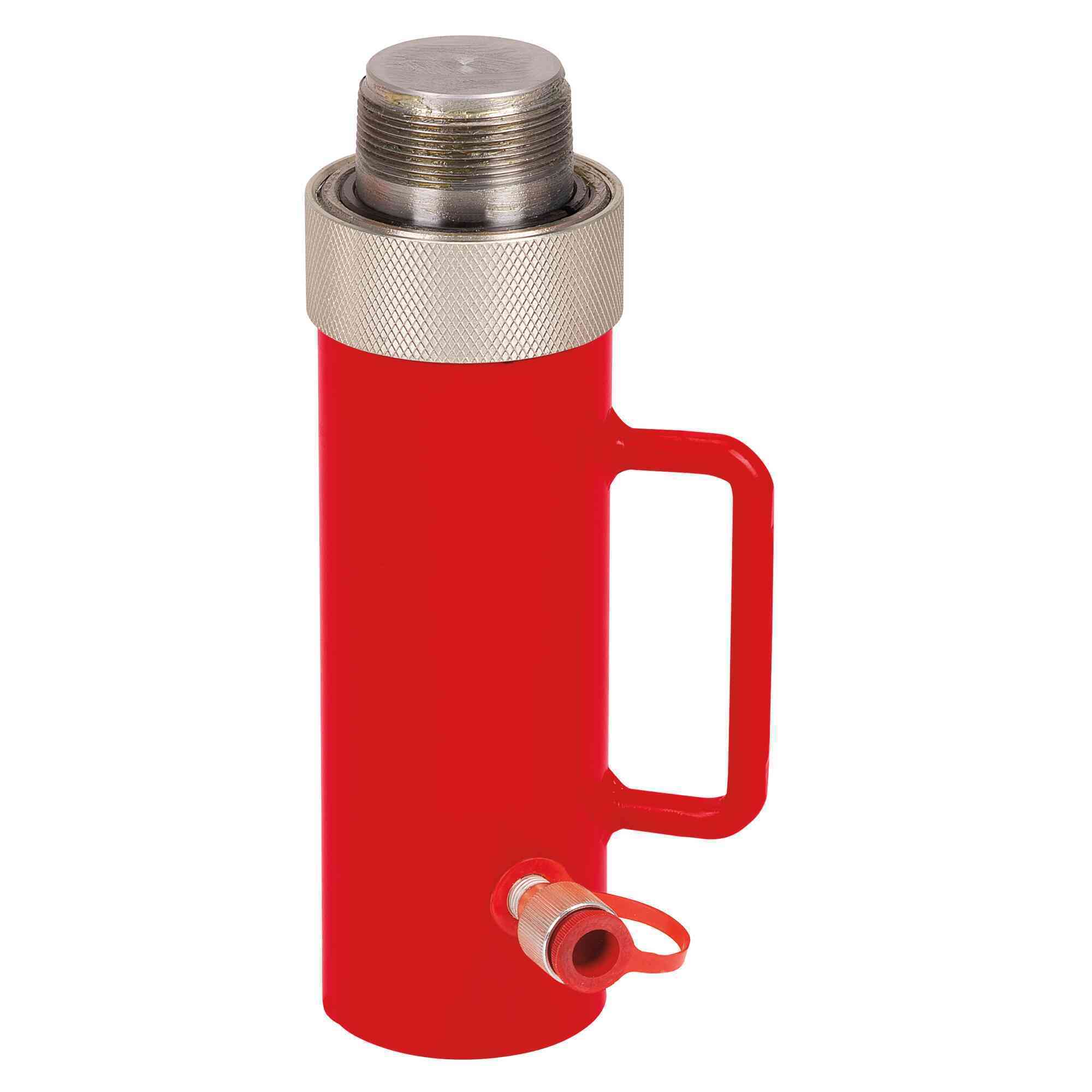

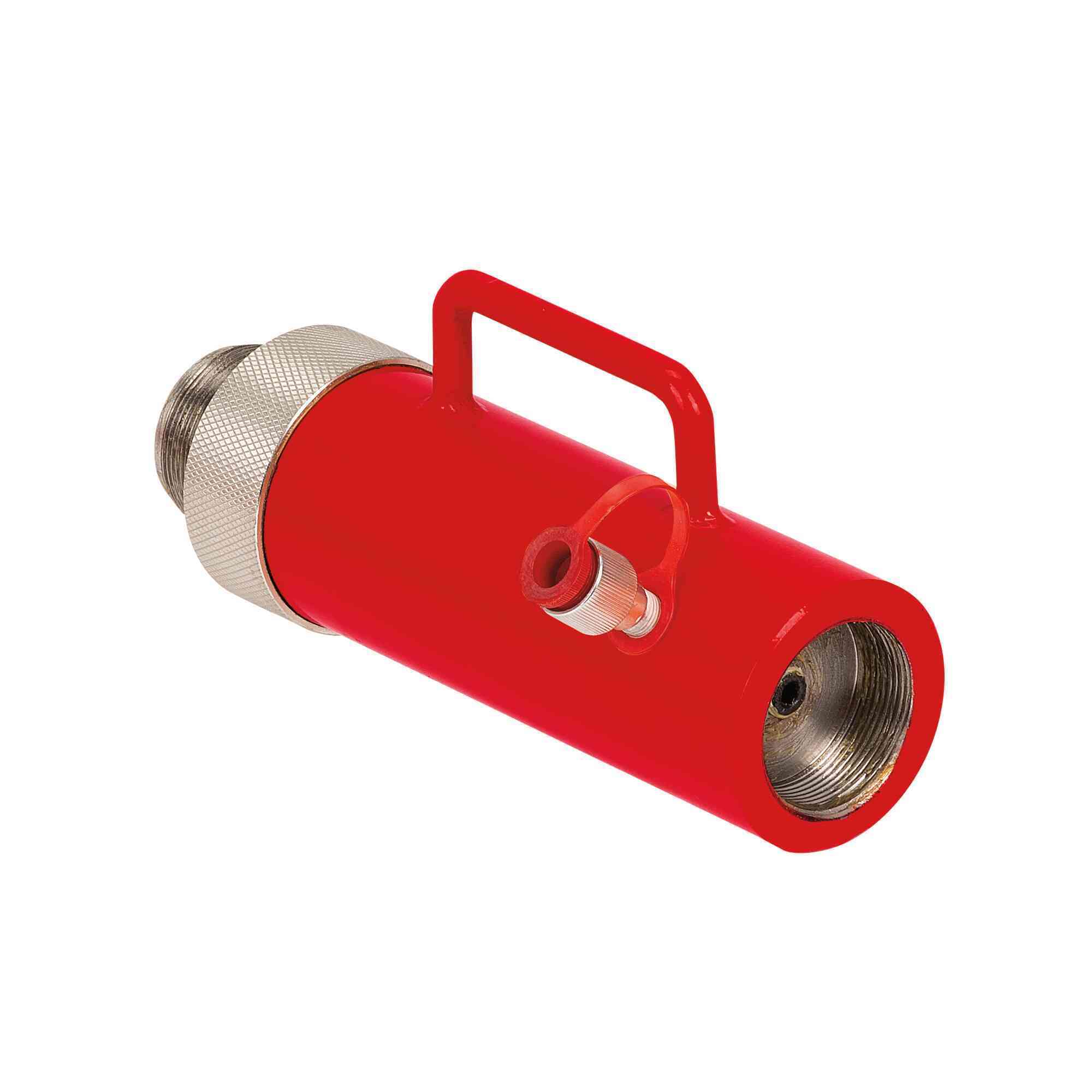

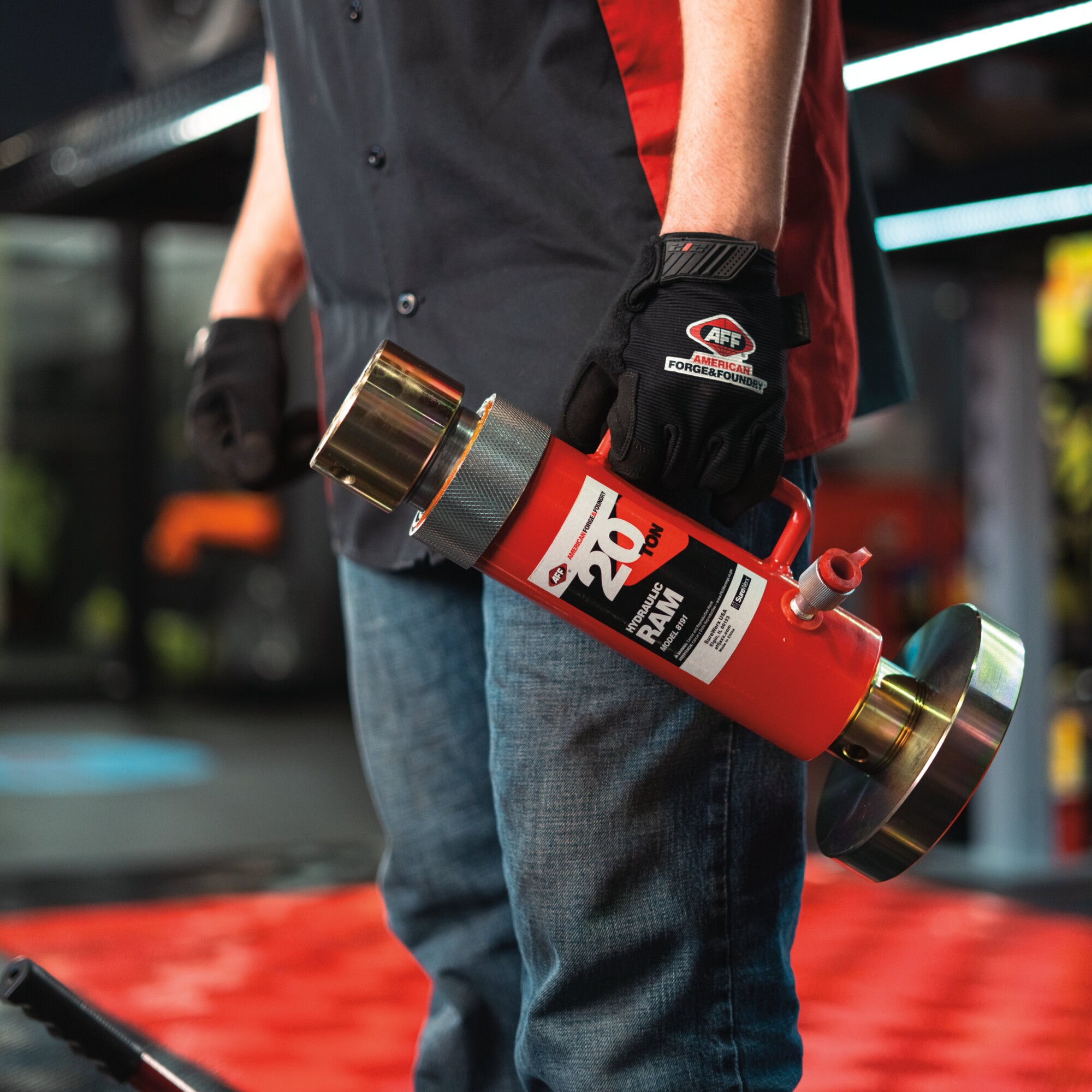

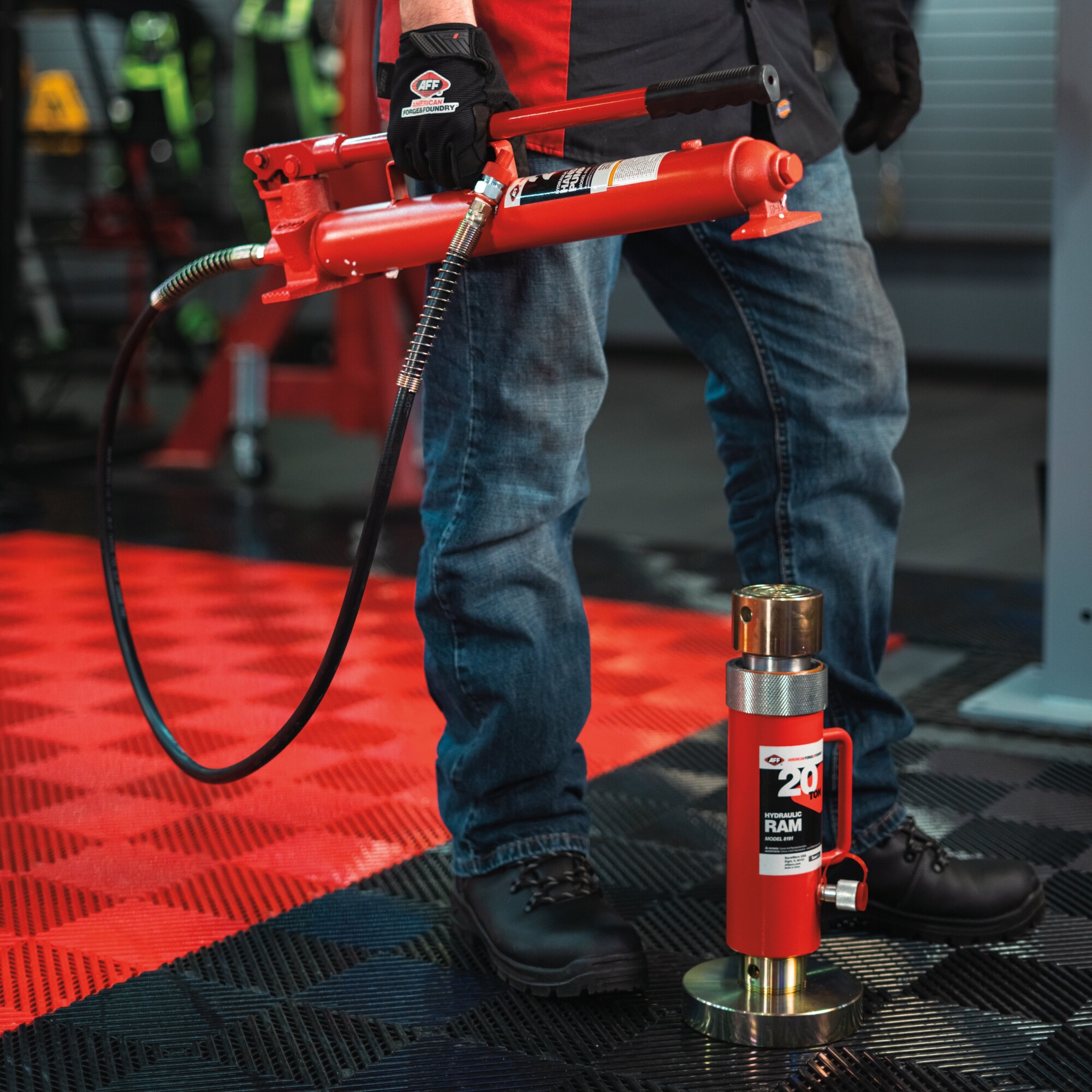

American Forge & Foundry Hydraulic Ram — 20-Ton Capacity, 11.1in. Compressed Length, 16in. Extended Length, 5in. Stroke, Model# 8191
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 20 Ton – 5.00" Stroke - 1/4" 18 NPTF female coupler.
- Designed for use in all positions with high strength allow steel for durability.
- Heavy duty return spring allows smooth return function.
- Baked enamel finish for increased corrosion resistance.
- Collar thread protector. Rod wipers seal out contaminants. Chrome plated ram prevents rust and corrosion. Threaded collar and ram for easy, secure adaptation to extensions and accessories.
Prop 65 Warning: See Details
See full description
See All Rams + Ram Kits
See All American Forge & Foundry Rams + Ram Kits
Currently Viewing This Product
$532.99Reg $589.99Save $57.00Order today to get this price.
Specifications
Ram
Ram System
Ram System
Ram System
20 Tons
10 Tons
20 Tons
10 Tons
1
1
21
17
16 in
17.8 in
16 in
17.8 in
11.1 in
12.68 in
11.1 in
12.68 in
5 in
5.12 in
4.9 in
5.12 in
No
Yes
Yes
Yes
11.5 x 4.0 x 8.0 in
36.5 x 15.8 x 7.0 in
31.9 x 7.5 x 12.0 in
36.6 x 7.5 x 15.8 in
22.0000 lb
72.0000 lb
139.0000 lb
72.0000 lb
-
7,250 PSI
8,937 PSI
8,937 PSI
