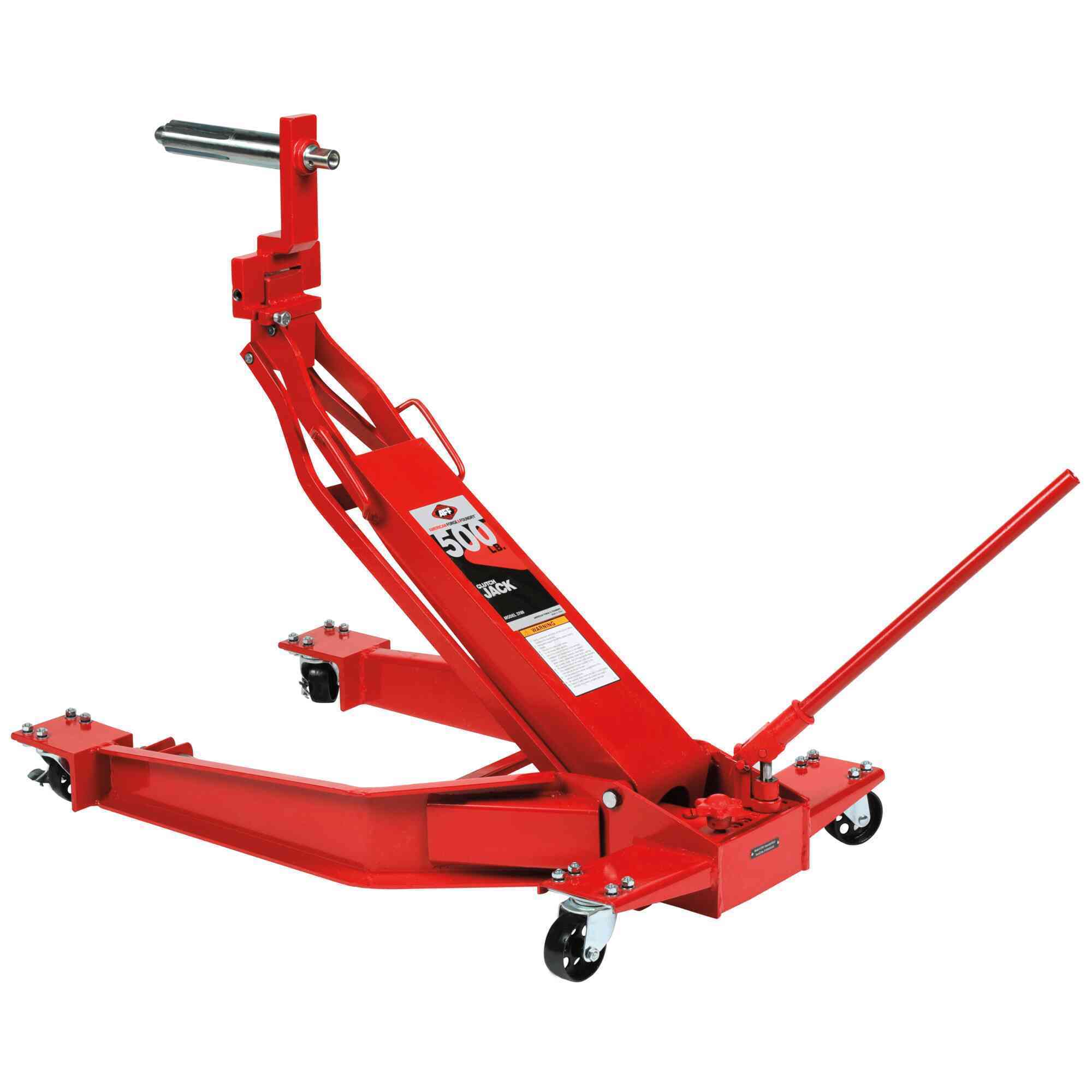

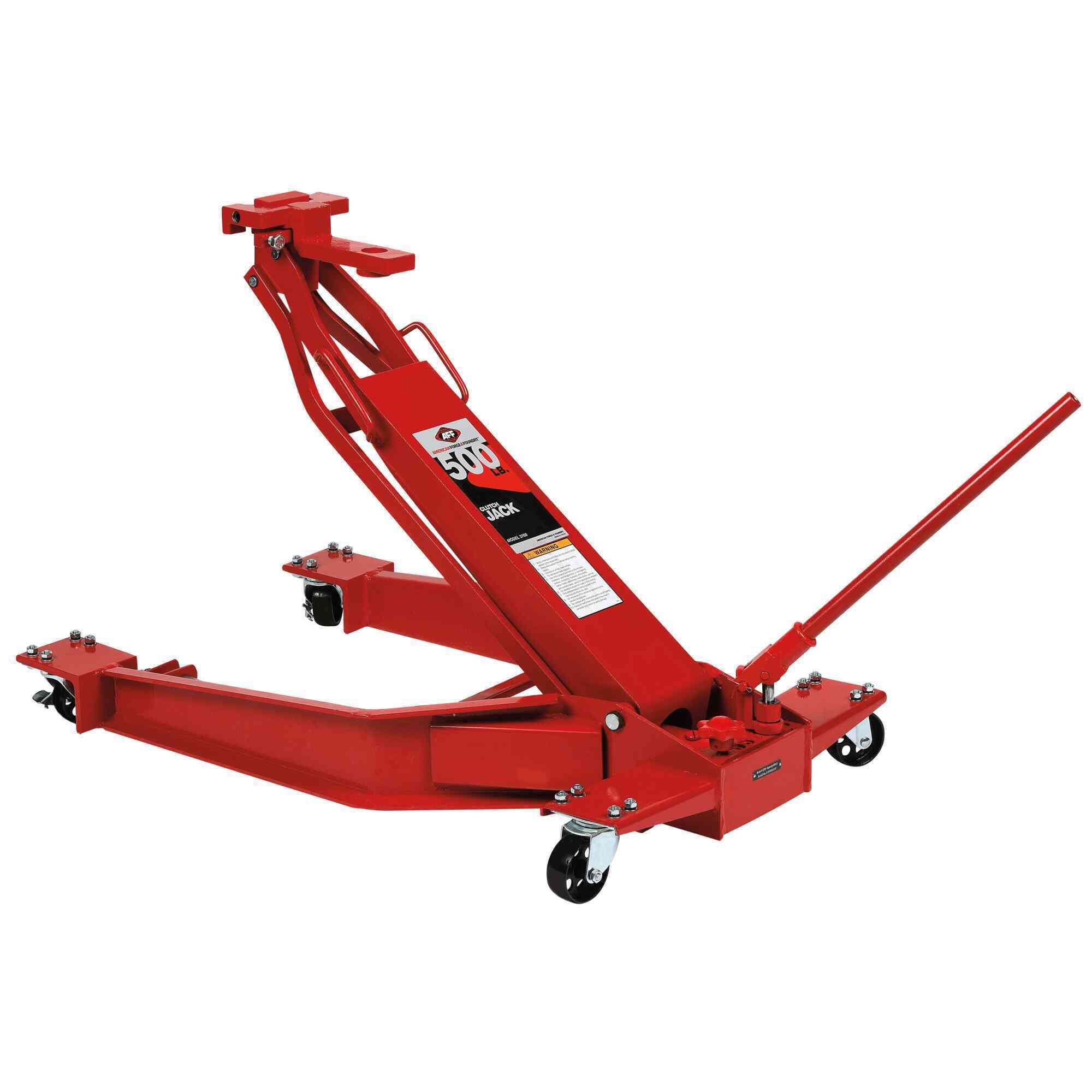

American Forge & Foundry Clutch Jack — 500-Lb. Capacity, Model# 3700
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- A highly efficient design that provides the technician with capabilities to remove, install and transport heavy duty truck clutches. This heavy-duty unit has a greater capacity than most competitive units and has the added versatility of being able to convert the optional adapters for fly wheels, drive shafts, starter motors, auxiliary cases, differentials, brake drums and camel back springs.
- Clutch head assembly turns 360? and pivots side-to-side for efficient clutch/engine alignment.

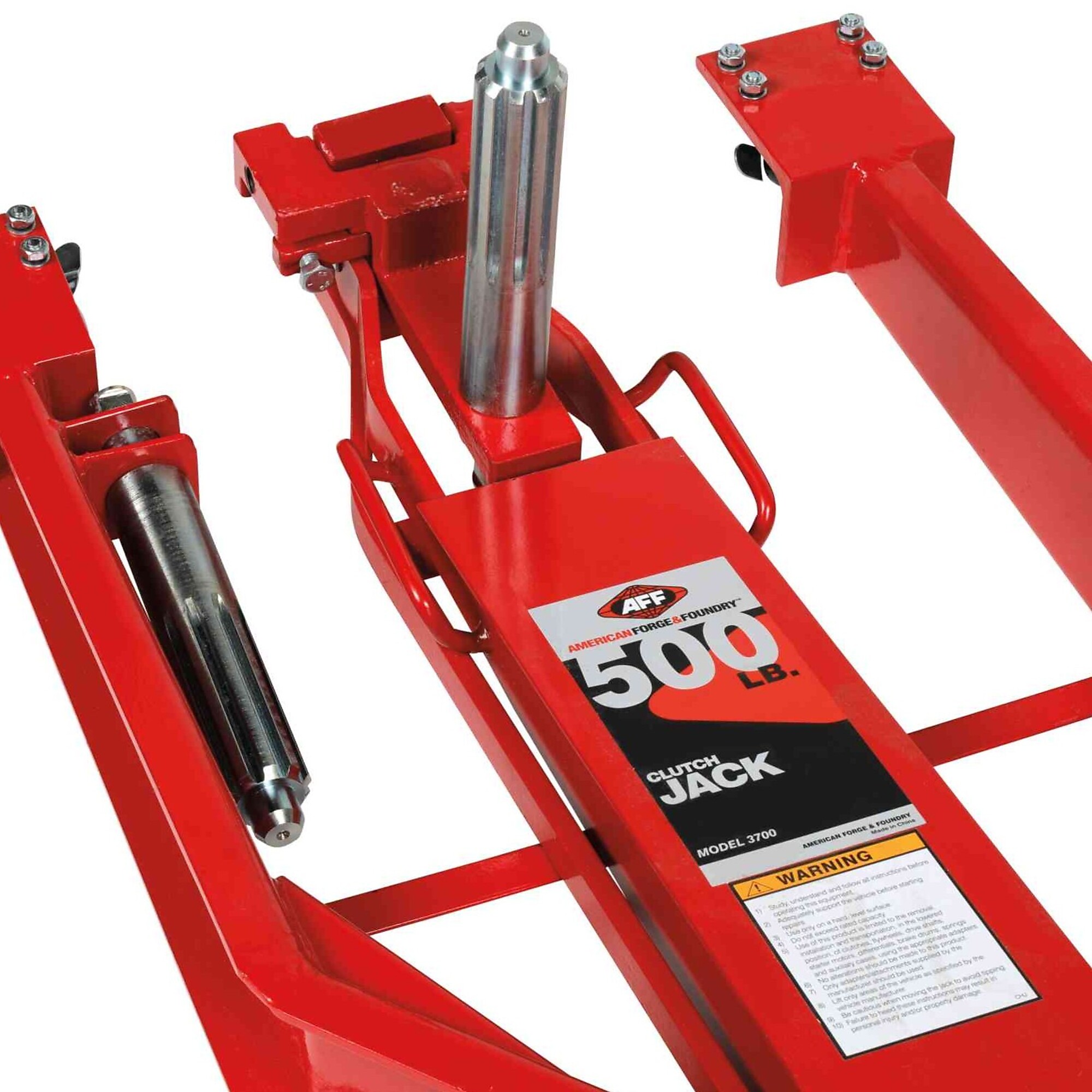

- Two splined alignment shafts (2" OD x 1.18" pilot and 1-3/4" OD x .938" pilot).

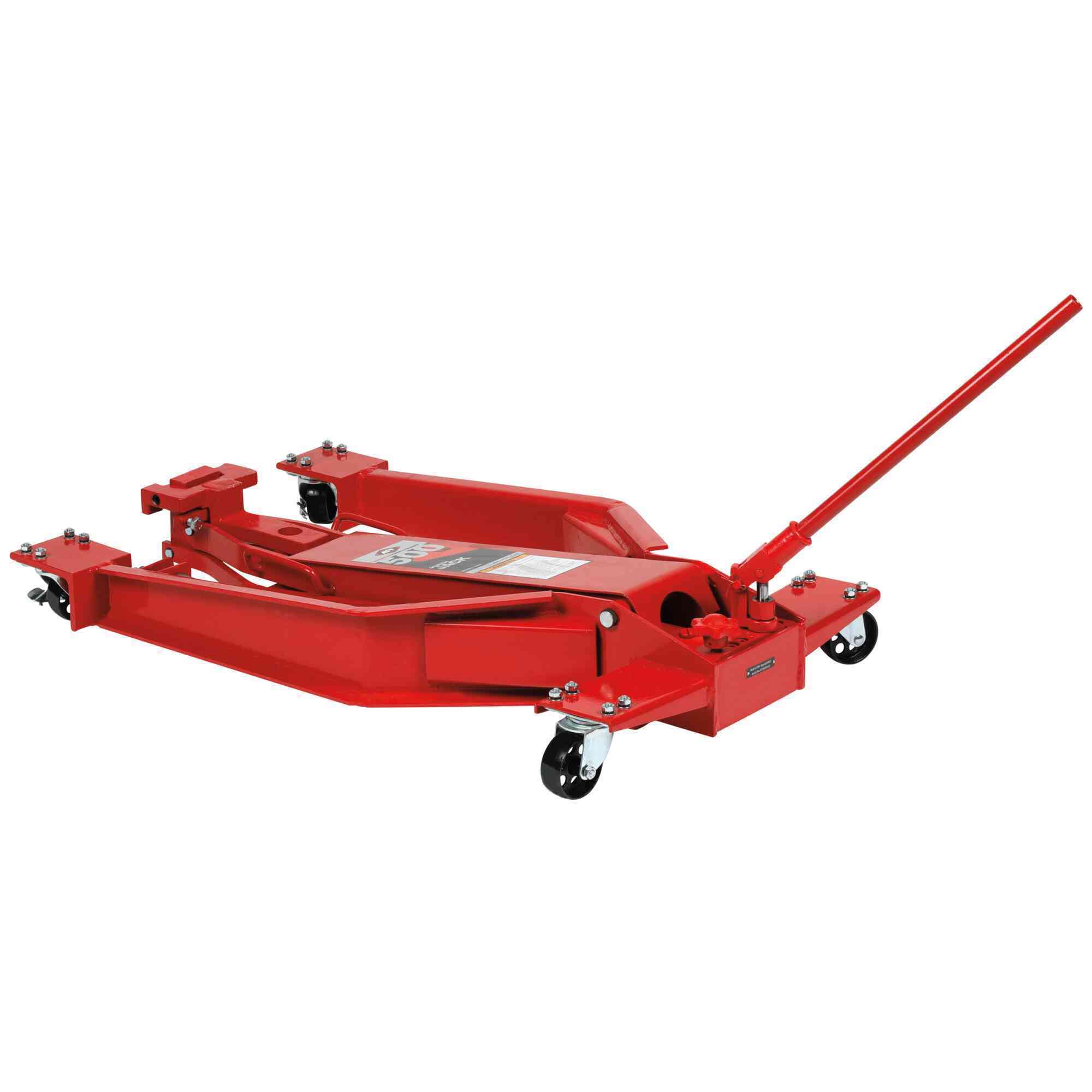

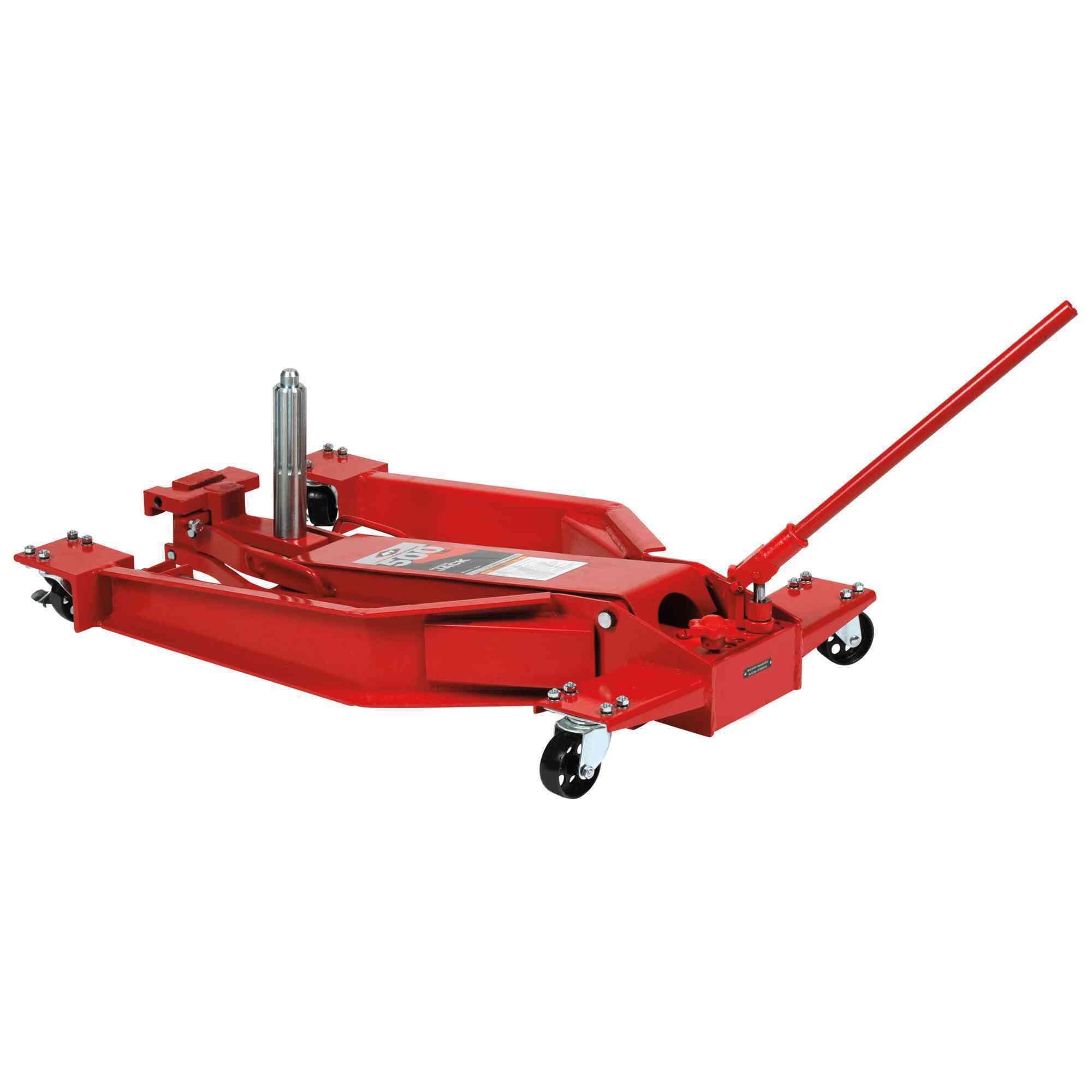

- Clutch assemblies can easily be built on the vertical shaft and then positioned easily under the truck.
- Pump handle rotates 360? for ease of operation in virtually any work position. Unique clevis pinned alignment shaft allows technician to remove jack to install clutch assembly without obstruction. Alignment shafts have "flats" for open end wrench to aid in clutch indexing and internally threaded for slide hammer removal if needed. Capacity: 500 Lbs.
Prop 65 Warning: See Details
See full description
See All Transmission Jacks
See All American Forge & Foundry Transmission Jacks
Currently Viewing This Product
Specifications
500 lb
1,000 lb
1,000 lb
2,000 lb
39 in
35.44 in
65.75 in
44.75 in
13 in
7.06 in
-
10.25 in
Yes
-
Yes
Yes
23.5 in
-
22.24 in
29.875 in
38.4 in
-
21.46 in
48 in
125.0000 lb
164.0000 lb
65 lb
-
41.0 x 9.0 x 25.0 in
36.0 x 21.0 x 9.0 in
-
-
-
60 °
25 °
-
-
13 °
10 °
-
-
Yes
Yes
Yes
-
0 °
25 °
-
-
0 °
10 °
-
