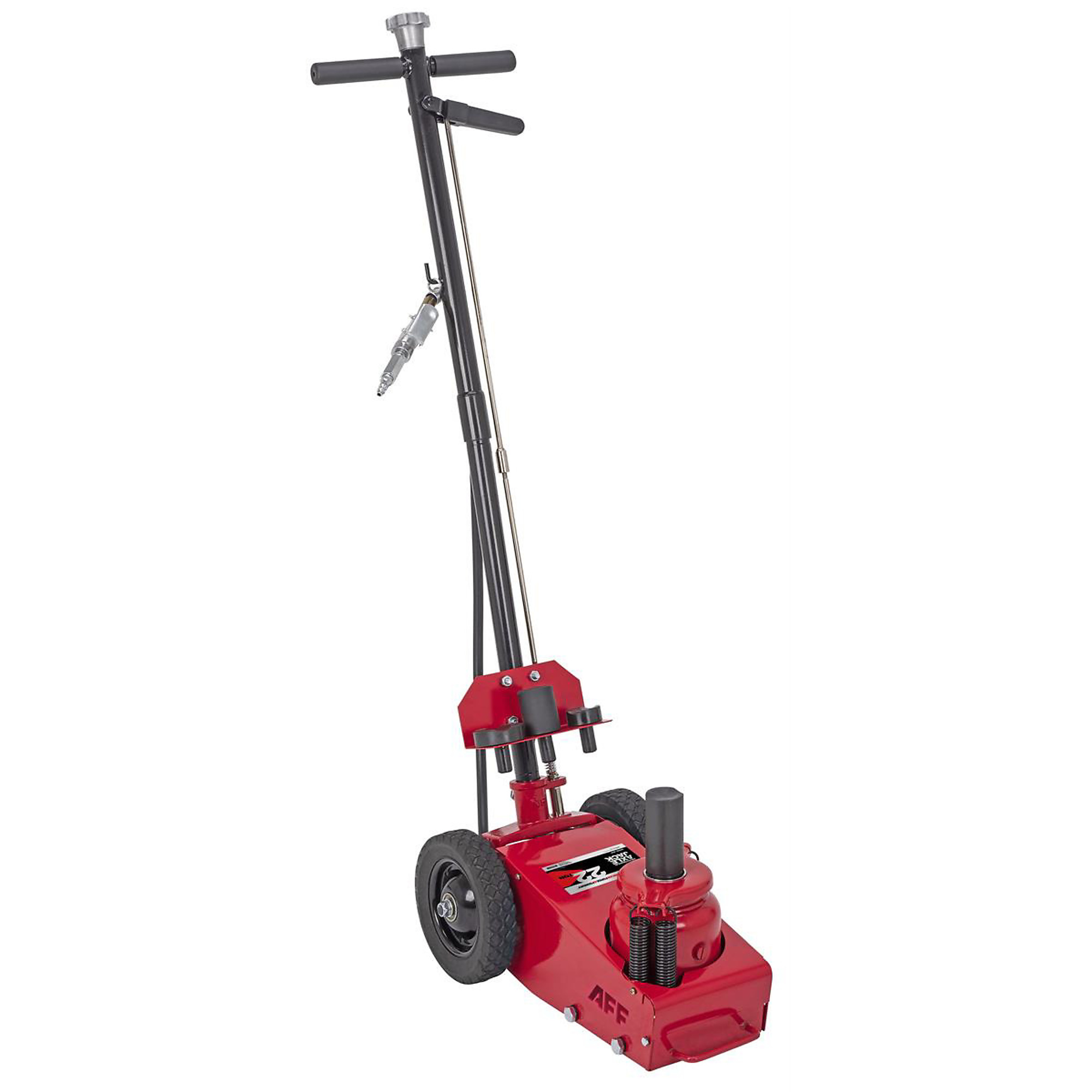

American Forge & Foundry Air/Hydraulic Axle Jack — 22-Ton Capacity, Dual Return Springs, 8.25in.–16.75in. Lift Range, Model# INT565F

Item# 6697144
American Forge & Foundry Air/Hydraulic Axle Jack — 22-Ton Capacity, Dual Return Springs, 8.25in.–16.75in. Lift Range, Model# INT565F

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

American Forge & Foundry Air/Hydraulic Axle Jack — 22-Ton Capacity, Dual Return Springs, 8.25in.–16.75in. Lift Range, Model# INT565F

Click or Tap image to Zoom

$819.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Color: Red/Black
  • Capacity: 22 Tons
  • Product Type: Axle Jack
  • Stages: 1
  • Power Type: Hydraulic

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

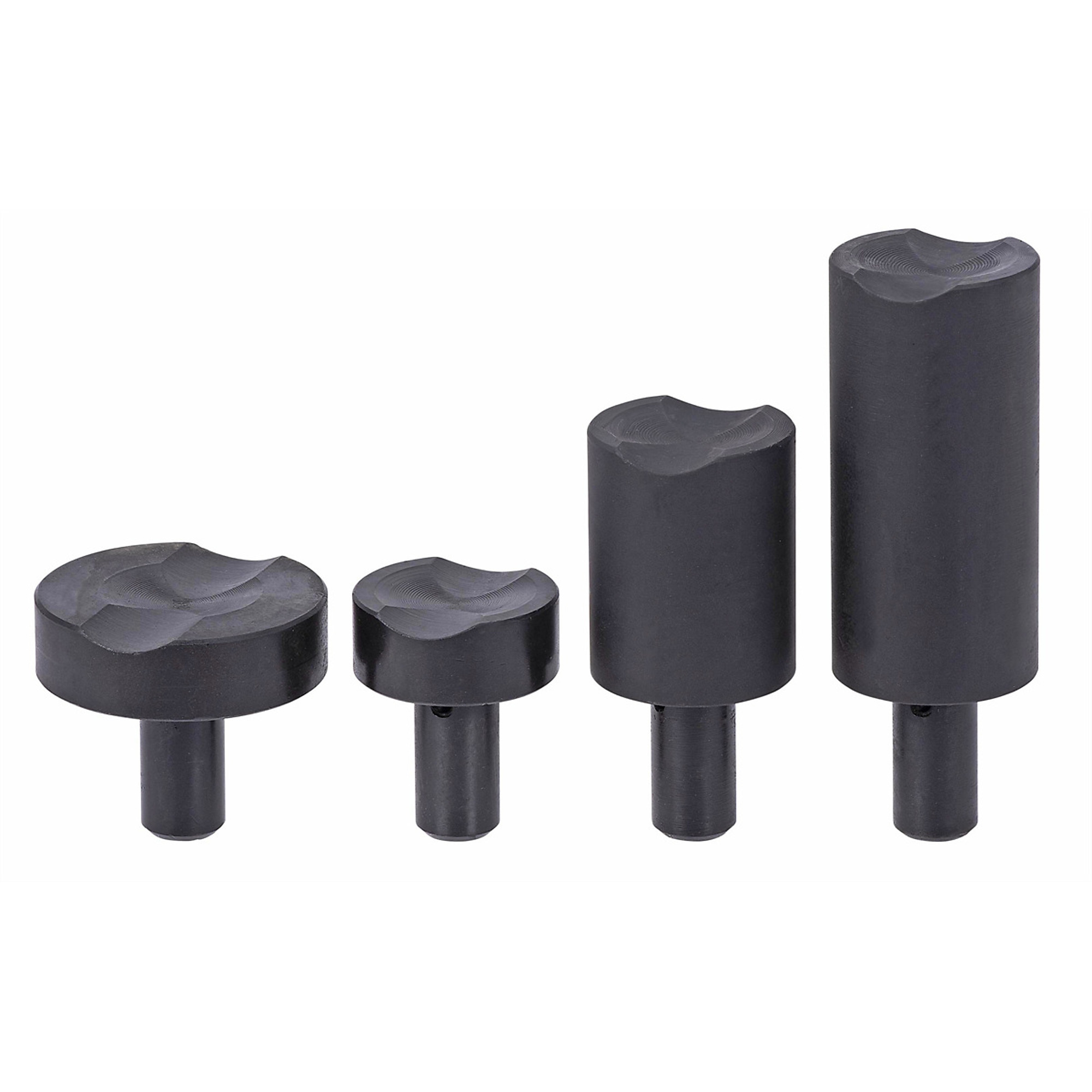

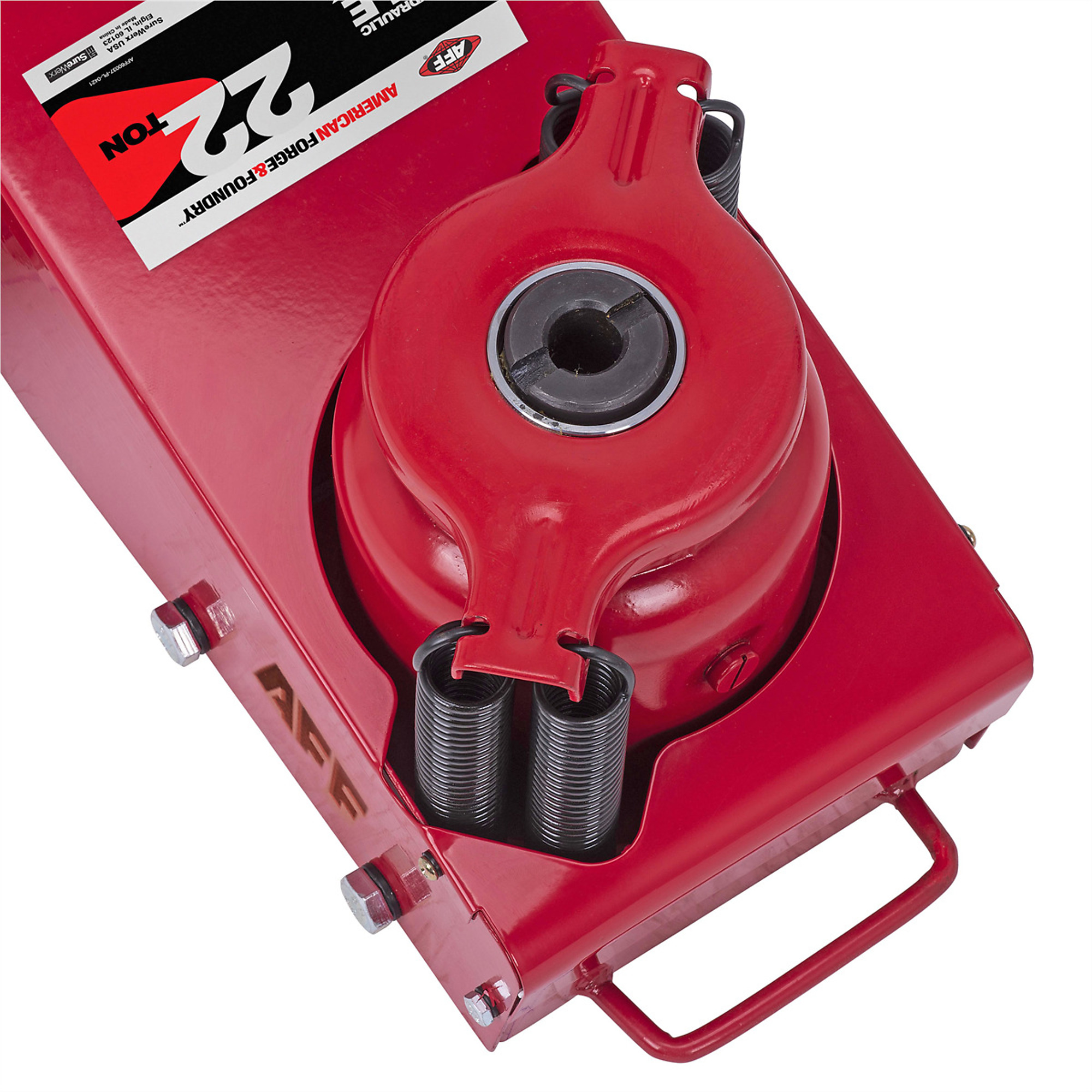

Color: Red/Black; Capacity: 22 Tons; Product Type: Axle Jack; Stages: 1; Power Type: Hydraulic; Operation Type: Air Assist; Duty Level: Heavy Duty; Minimum Height (in.): 8.25in.; Maximum Height without Extensions: 12.75in.; Maximum Height with Extensions: 16.75in.; Ram Lift (in.) - Stage 1: 4.75in.; Ram Lift (in.) - Stage 2: N/A; Ram Lift (in.) - Stage 3: N/A; Capacity (T) - Stage 1: 22 Tons; Capacity (T) - Stage 2: N/A; Capacity (T) - Stage 3: N/A; Handle Length (in.): 42.7in.; Number of Handle Pieces: 2; Handle Locking Positions: 90°/45°/180°; Chassis Length (in.): 20.25in.; Chassis Width (in.): 12.7in.; Saddle Diameter: 2in.; Number of Extensions: 4; Extension Sizes (in.): 3/4in.,1in., 2 3/4in., 4in.; Extension Screw: N/A; Wheel Diameter (in.): 8in.; Working Air Pressure: 90-180 PSI; Weight: 99 Lbs.; Warranty: 1 Year; Certification: ASME/PASE 2019; Special Features: Dual Return Springs|High Speed Air Motor|Overload BypassAmerican Forge Foundry’s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more. ; Designed for heavy duty truck and trailer shop use, rail and bus work and roadside service calls. ; Includes 3 heat treated extensions (3/4”, 2-3/4”, and 4”) for a wide range of lifting options. ; Two Piece handle Included.; High-speed air motor design advances ram to load faster, for quick and more efficient operation. Operates at 90-180 PSI.; Narrow Chassis design fits easily between tandem wheels. Large, 8” diameter rubber wheels for easy maneuverability.; Fully welded hydraulic pump and cylinder construction provide superior strength and leak prevention. Pump, ram, and cylinders are precision machined and inspected to ensure long service life and superior performance.; Chrome plated ram offers additional rust resistance. ; Wiper seals protect hydraulic system from contaminates. ; Overload and bypass safety valves prevent the jack from being used beyond its rated capacity and ram over extension.

What's Included

    (1) Unit

Features + Benefits

  • Color: Red/Black
  • Capacity: 22 Tons
  • Product Type: Axle Jack
  • Stages: 1
  • Power Type: Hydraulic

Key Specs

AttributeSpecification

item#

6697144

Brand

American Forge & Foundry

Manufacturer's Warranty

3 month limited warranty

Ship Weight

151.0 LB

Lift Capacity

22 Tons

Max. Lift Height

21.5 in
AttributeSpecification

Low Profile

No

Product Type

Jack

Min. Lift Height

8.25 in

Product Weight

98.0000 lb

Dimensions L x W x H (in.)

36.0 x 36.0 x 36.0 in

Reviews

Questions & Answers

Questions

  1. do you offer a seal kit for the air side of the jack

    1 answer

    1. At this time, we do not offer a seal kit or other parts for this jack. Please check directly with the manufacturer.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
