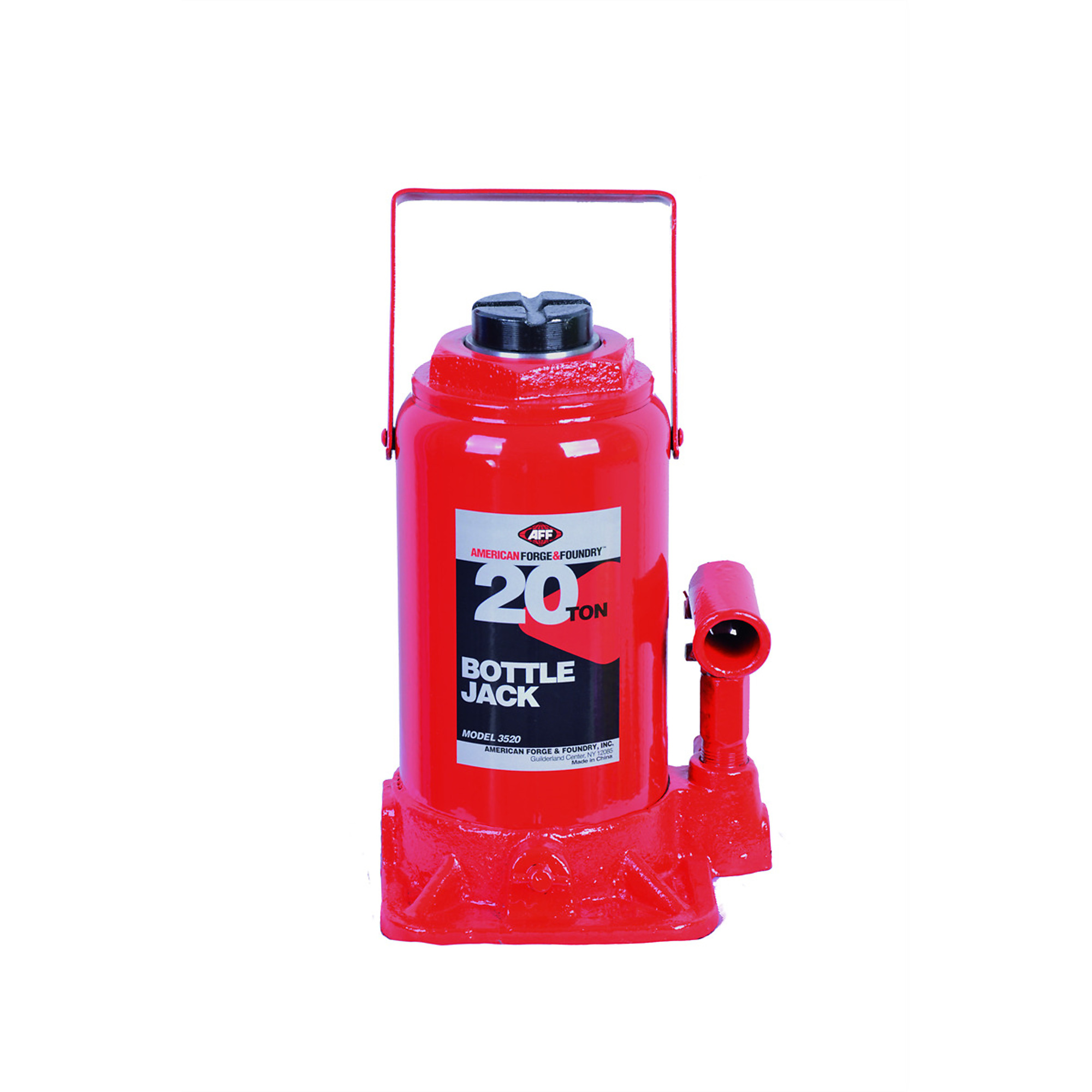

American Forge & Foundry AFF 3520 - Bottle Jack - 20 Ton Capacity - Manual - Heavy Duty

Item# 7234740
New
American Forge & Foundry AFF 3520 - Bottle Jack - 20 Ton Capacity - Manual - Heavy Duty

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

American Forge & Foundry AFF 3520 - Bottle Jack - 20 Ton Capacity - Manual - Heavy Duty

Click or Tap image to Zoom

$146.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Fast and versatile. Quicker hydraulic action than the competition and several times quicker than standard hand operated equipment
  • Heavy duty design perfect for high use professional automotive and industrial settings
  • Designed for manual or pneumatic operation; Extension screws for added height when necessary
  • Air hose can swivel in any direction of connection from air source
  • 2-Piece long handle for pumping ease; Features safety valve overload protection

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Color: Red/Black ; Product Type: Bottle Jack ; Capacity (T): 20 Ton ; Power Type: Hydraulic ; Operation Type: Manual ; Minimum Height (in.): 9.62in. ; Maximum Height (in.): 18.25in. ; Ram Lift (in.): 6.13in. ; Extension (in.): 2.5in. ; Saddle Diameter: 1.8in. ; Base Length (in.): 6.25in. ; Base Width (in.): 6.75in. ; Handle Length (in.): 16.5in. ; Number of Handle Pieces: 2 ; Oil Reservoir Assembly: Crush Fit ; Base Type: Drop Forge ; Release Type: Cross Head Valve ; Working Air Pressure: N/A ; Duty Level: Heavy Duty ; Weight (lb.): 27 Lbs. ; Certification: ASME/PASE 2019 ; The AFF Heavy-Duty bottle jacks are heat treated in critical stress areas to ensure long life and performance. They are ideal for use in automotive, truck, farming, mining, and much more. ; Drop forged alloy steel construction for reliable strength. ; Made with centered pumps and rams with heat treated pistons ; Saddles are made of machine hardened steel for unsurpassed strength. ; Built-in bypass system prevents accidental overload and provides added operator safety. ; Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances. ; Crush Fit Assembly on oil reservoir. ; Comes with carrying handle.

What's Included

    (1) Item

Features + Benefits

  • Fast and versatile. Quicker hydraulic action than the competition and several times quicker than standard hand operated equipment
  • Heavy duty design perfect for high use professional automotive and industrial settings
  • Designed for manual or pneumatic operation; Extension screws for added height when necessary
  • Air hose can swivel in any direction of connection from air source
  • 2-Piece long handle for pumping ease; Features safety valve overload protection

Key Specs

AttributeSpecification

item#

7234740

Brand

American Forge & Foundry

Manufacturer's Warranty

1 year limited warranty

Ship Weight

24.85 LB

Lift Capacity

20 Tons
AttributeSpecification

Max. Lift Height

36 in

Min. Lift Height

18 in

Product Weight

24.8500 lb

Dimensions L x W x H (in.)

10.0 x 7.0 x 7.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
