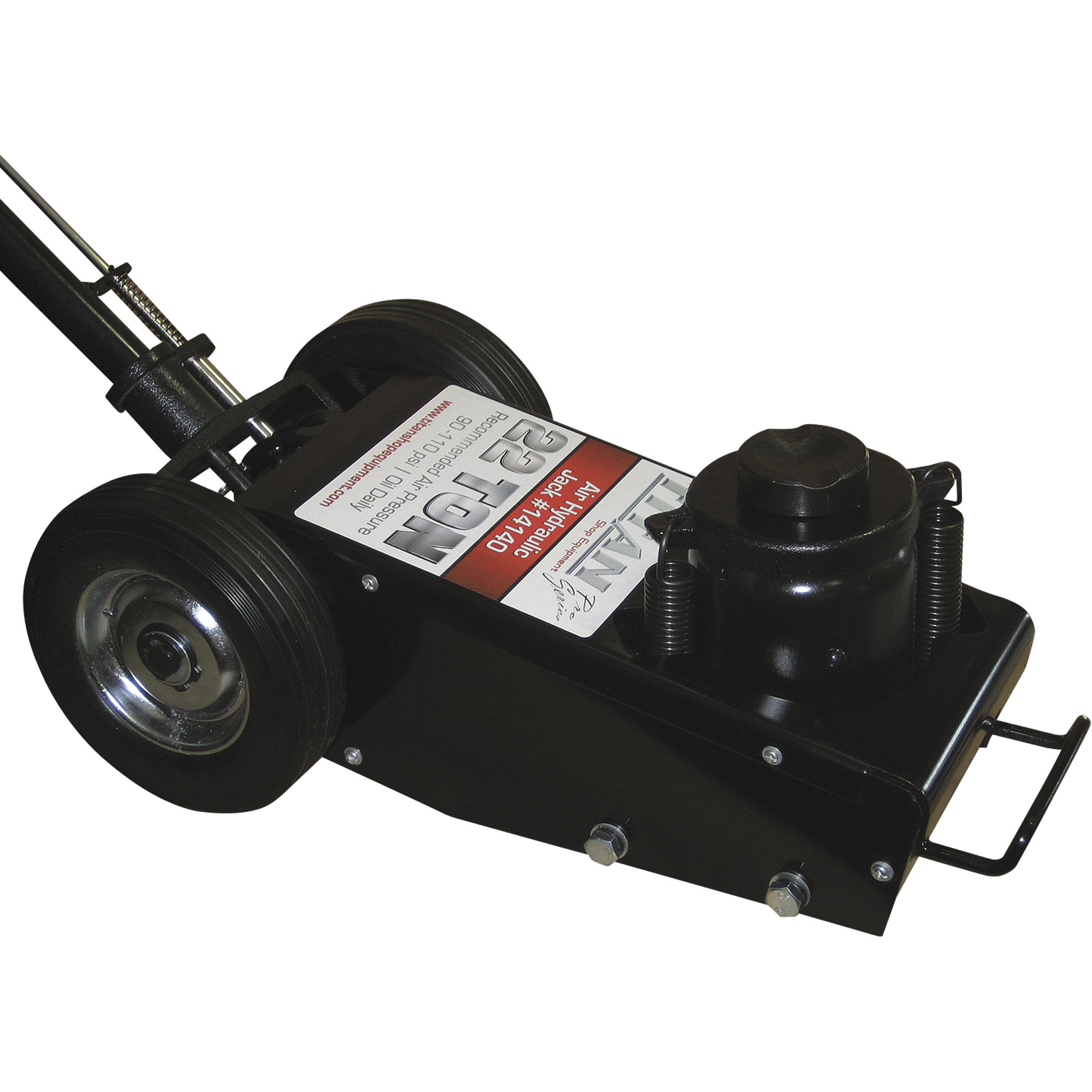

Ame International Titan 22-Ton Air/Hydraulic Service Jack, Model# 14140

Item# 135464
Ame International Titan 22-Ton Air/Hydraulic Service Jack, Model# 14140

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ame International Titan 22-Ton Air/Hydraulic Service Jack, Model# 14140

Click or Tap image to Zoom

$788.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 22-ton capacity handles large trucks, axles, and heavy equipment
  • Air-assisted operation (~80 psi) lets you raise quickly with minimal effort
  • Durable single-piece handle minimizes breakage in harsh service use
  • Includes four extension saddles (1", 2", 4") for flexible lift point reach
  • Compact 9" minimum height & 6" stroke for broad application and clearance

See full description

Complete Your Solution

  • Ame International Titan 22-Ton Air/Hydraulic Service Jack, Model# 14140
  • Ame International 22-Ton Jack Stands, Model# 14400
  • Ame International Non-Skid Jack Plate, 30-Ton Capacity, Model# 14464
Price for all three:

$1264.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

This Ame International Titan 22-Ton Air/Hydraulic Service Jack delivers plenty of muscle to handle big jobs with ease. Works with any automotive or work truck up to 22 tons. Easy to maneuver with heavy-duty rubber wheels. Load releases with a turn of the handle. Able to disconnect air line while load is up. Heavy-duty steel construction.

What's Included

    (1) Wheeled service jack (1) Handle (1) Frame (3) Saddle extensions

Features + Benefits

  • 22-ton capacity handles large trucks, axles, and heavy equipment
  • Air-assisted operation (~80 psi) lets you raise quickly with minimal effort
  • Durable single-piece handle minimizes breakage in harsh service use
  • Includes four extension saddles (1", 2", 4") for flexible lift point reach
  • Compact 9" minimum height & 6" stroke for broad application and clearance

Key Specs

AttributeSpecification

item#

135464

Brand

Titan Shop Equipment

Ship Weight

115.0 LB

Lift Capacity

22 Tons

Max. Lift Height

13 in

Power Source

Air/Hydraulic

Low Profile

No

Product Type

Service Jack
AttributeSpecification

Min. Lift Height

9 in

Ram Travel

6 in

Screw Top Adjustment

4 in

Handle Included

Yes

Safety Valve

Yes

Product Weight

114.0000 lb

Dimensions L x W x H (in.)

26.0 x 14.0 x 10.0 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Does this jack require air? Or can you manually lift with the handle?

    1 answer

    1. The jack could be use manually without air. You would just need to close the air release valve.

      Helpful?

  2. What is the travel on the ram? Not including the part that screws out

    1 answer

    1. The travel on the ram is 6 inches.

      Helpful?

  3. What is the warranty for this product?

    1 answer

    1. This service jack would not include a warranty.

      Helpful?

  4. Where was the Jack Made?

    1 answer

    1. The Ame Interntational Titan Service Jack is made in China.

      Helpful?
