AK Industrial Teardrop Pallet Rack Beam, 72in.L, Model# AK-RBI-72-3

Item# 13878
"AK Industrial Teardrop Pallet Rack Beam, 72in.L, Model# AK-RBI-72-3"
1 Pieces
AK Industrial Teardrop Pallet Rack Beam, 72in.L, Model# AK-RBI-72-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

AK Industrial Teardrop Pallet Rack Beam, 72in.L, Model# AK-RBI-72-3

Click or Tap image to Zoom

$59.99

Buy 6 or more at $57.59 ea.

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Spring lock assembly provides positive beam to column engagement for easy installation -- no tools required
  • Interchangeable teardrop beams available in many profiles and lengths
  • Connect to both existing systems both old and new
  • 1 5/8in. step beam design accommodates safety cross bars and decking
  • 3130-lb. capacity per pair based on uniformly distributed loads

See full description

Complete Your Solution

  • AK Industrial Teardrop Pallet Rack Beam, 72in.L, Model# AK-RBI-72-3
  • AK Industrial Rack Column Protector, 12in., Model# AKCP1200OU
Price for all two:

$125.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

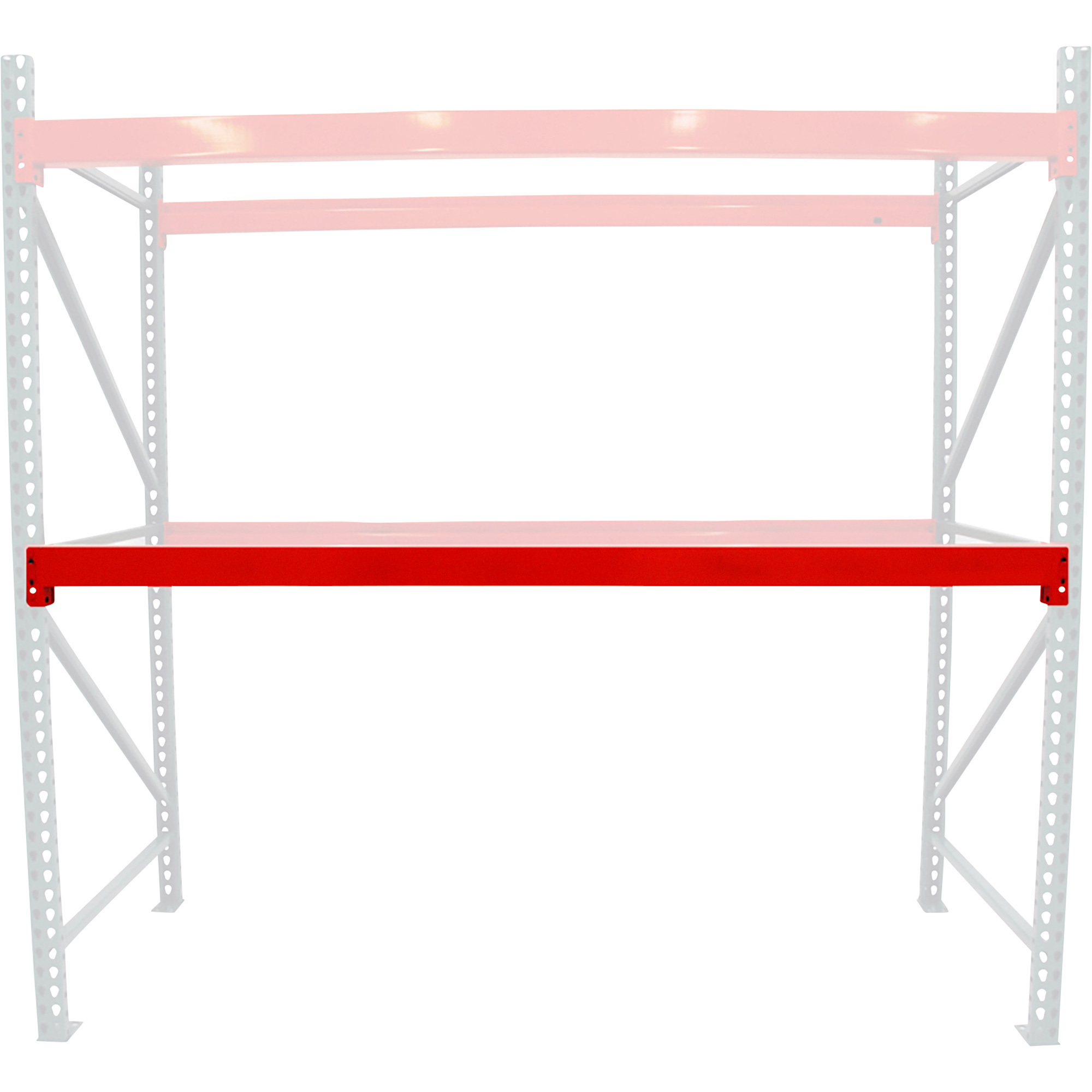

AK Heavy-Duty Steel Teardrop Pallet Rack Beam for storage racking is great for the home, garage or business. Teardrop pallet system provides a robust, patented, automatic lock for improved safety. This is an excellent product for replacing conventional storage that is easy to install for all of your heavy-duty and light-duty applications. Beams complete your pallet rack system when ordering with frames and wire decks. Each sold separately. When ordering, ensure that total level capacity has not exceeded the capacity per pair of beams evenly distributed. Sold individually.

What's Included

    (1) 72-in. teardrop beam

Features + Benefits

  • Spring lock assembly provides positive beam to column engagement for easy installation -- no tools required
  • Interchangeable teardrop beams available in many profiles and lengths
  • Connect to both existing systems both old and new
  • 1 5/8in. step beam design accommodates safety cross bars and decking
  • 3130-lb. capacity per pair based on uniformly distributed loads
  • Powder-coat Safety Orange color

Key Specs

AttributeSpecification

item#

13878

Brand

AK Material

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.0 LB

Product Type

Rack Beam
AttributeSpecification

Pieces (qty.)

1

Color

Orange

Finish Type

Powder-Coat

Length

72 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What is the height of these crossbeams? I know they can range from 3-6" tall depending on capacity.

    1 answer

    1. The height of these rack beams is 2.5 inches tall.

      Helpful?

  2. Hello, what is the overall width of the 72" cross beam and two vertical posts? Does it measure 72" inside or outside of the uprights?

    1 answer

    1. The beam length itself would be 72 inches. Using this beam would result in an inside measurement of 72 inches between the frames.

      Helpful?

  3. What is the item number for the wire deck that fits this rack?

    1 answer

    1. This item is a single rack beam. It is not the full rack. Please see our Pallet Racking Components category for various sizes of end frames, wire decking, and safety rack bars.

      Helpful?

  4. What are the specs of the bracket that bolts on?

    I'm needing to know the specs to determine if this will work for the material rack we have here at the shop.

    1 answer

    1. The AK Industrial teardrop pallet rack beams are universal. The spacing from center of eye to center of eye is 2" and they are constructed of 14 gauge steel. Please see my attachment for an example. There is no bolting required.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty
