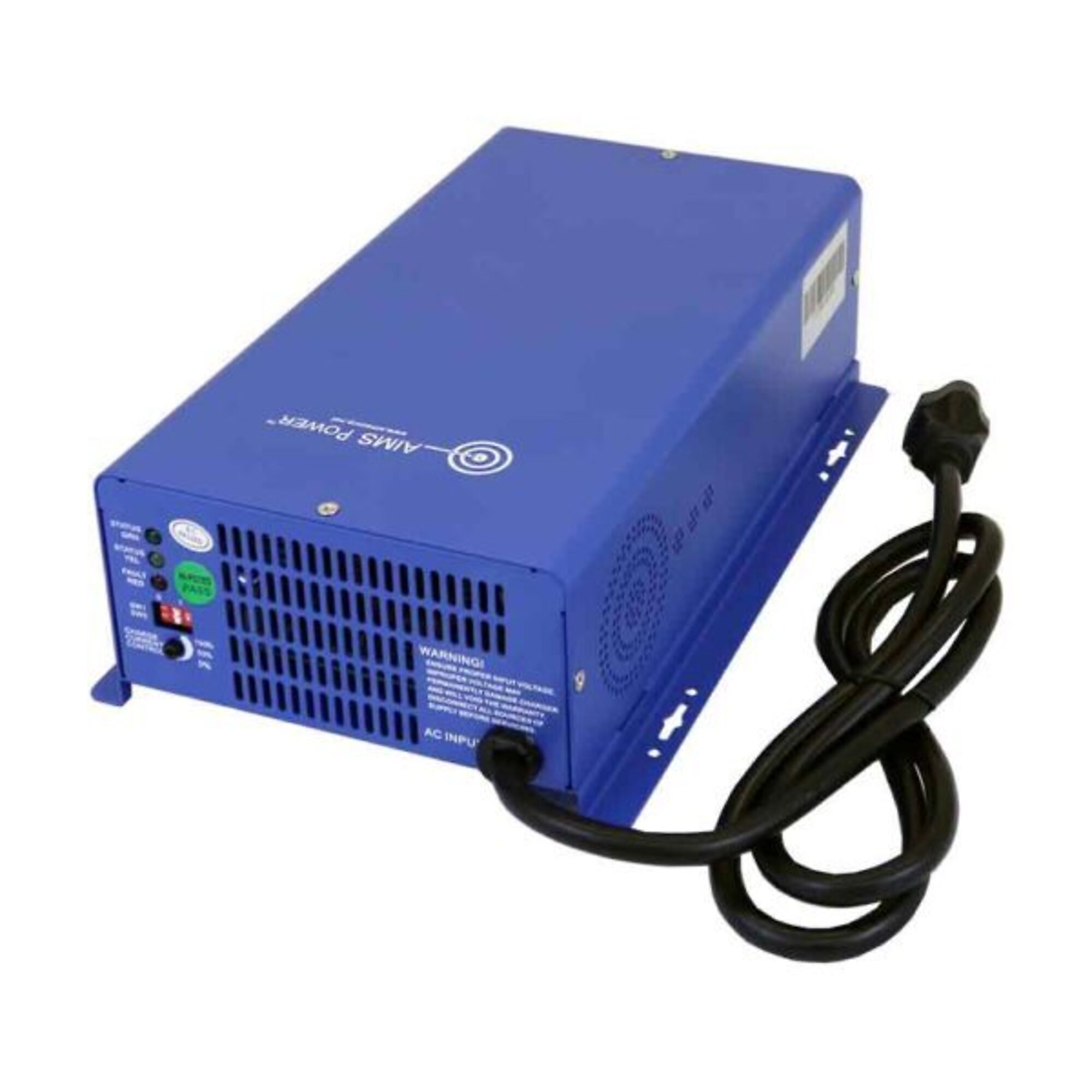

AIMS Power Charger 120V AC, Input Selectable, 36V/25A or 48V/18.75A Output, CON120AC3648DC

Item# 7532958
New1 Included
AIMS Power Charger 120V AC, Input Selectable, 36V/25A or 48V/18.75A Output, CON120AC3648DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

AIMS Power Charger 120V AC, Input Selectable, 36V/25A or 48V/18.75A Output, CON120AC3648DC

Click or Tap image to Zoom

$211.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Large charging capacity design (25 Amp for 36Vdc; 17.5 Amp for 48Vdc) charges a 100 amp hour battery in under an hour up to 90% charge
  • Power supply up to 25 amps at 36Vdc or 18.75 amps at 48Vdc
  • Three stage smart charger with variable charging voltage algorithm for maximizing  battery life (bulk, absorb and float)
  • 4 pre-programmed charging algorithms using the dip switches for the most common charging profiles
  • Charges lead acid, AGM, GEL and LiFePO4 batteries

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The AIMS Power 25/18.5-Amp Converter/Battery Charger handles 36VDC and 48VDC battery banks, selectable by DIP switch, and accepts a broad 70 to 145 VAC input range so it works with generators, shore power, and unstable utility supply. It charges open lead acid, AGM, gel, and LiFePO4 batteries at 25 amps on 36 volts and 18.5 amps on 48 volts, delivering meaningful recovery time for golf carts, RVs, boats, campers, and other higher-voltage systems. Protection circuitry covers reverse polarity, over-voltage, under-voltage, short circuit, and over-temperature conditions.

What's Included

    (1) Converter/Battery Charger (1) Instruction Manual

Features + Benefits

  • Large charging capacity design (25 Amp for 36Vdc; 17.5 Amp for 48Vdc) charges a 100 amp hour battery in under an hour up to 90% charge
  • Power supply up to 25 amps at 36Vdc or 18.75 amps at 48Vdc
  • Three stage smart charger with variable charging voltage algorithm for maximizing  battery life (bulk, absorb and float)
  • 4 pre-programmed charging algorithms using the dip switches for the most common charging profiles
  • Charges lead acid, AGM, GEL and LiFePO4 batteries

Key Specs

AttributeSpecification

item#

7532958

Brand

AIMS Power

Manufacturer's Warranty

No limited warranty

Ship Weight

7.0 LB

USB Ports (qty.)

0

AC Outlets (qty.)

0

Included (qty.)

1

Product Type

Other

Cable Length

4 ft

Application

AC Converter / Battery Charger
AttributeSpecification

LED Indicators

Yes

Low Battery Protection

Yes

High Temperature Protection

Yes

Overload Protection

Yes

Low Voltage Protection

Yes

Cables Included

Yes

Battery Included

No

Product Weight

10.2500 lb

Dimensions L x W x H (in.)

3.25 x 6.5 x 6.75 in
