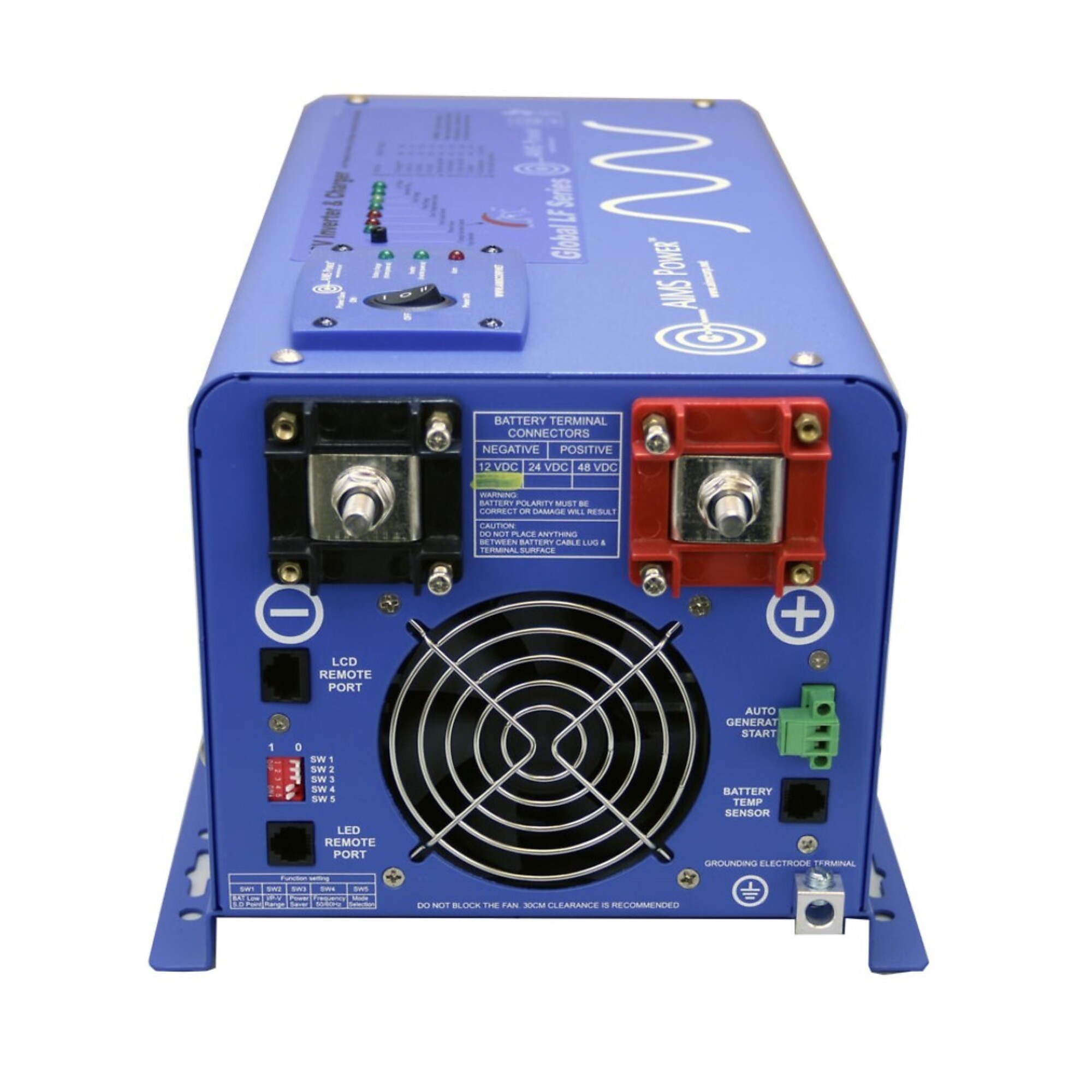

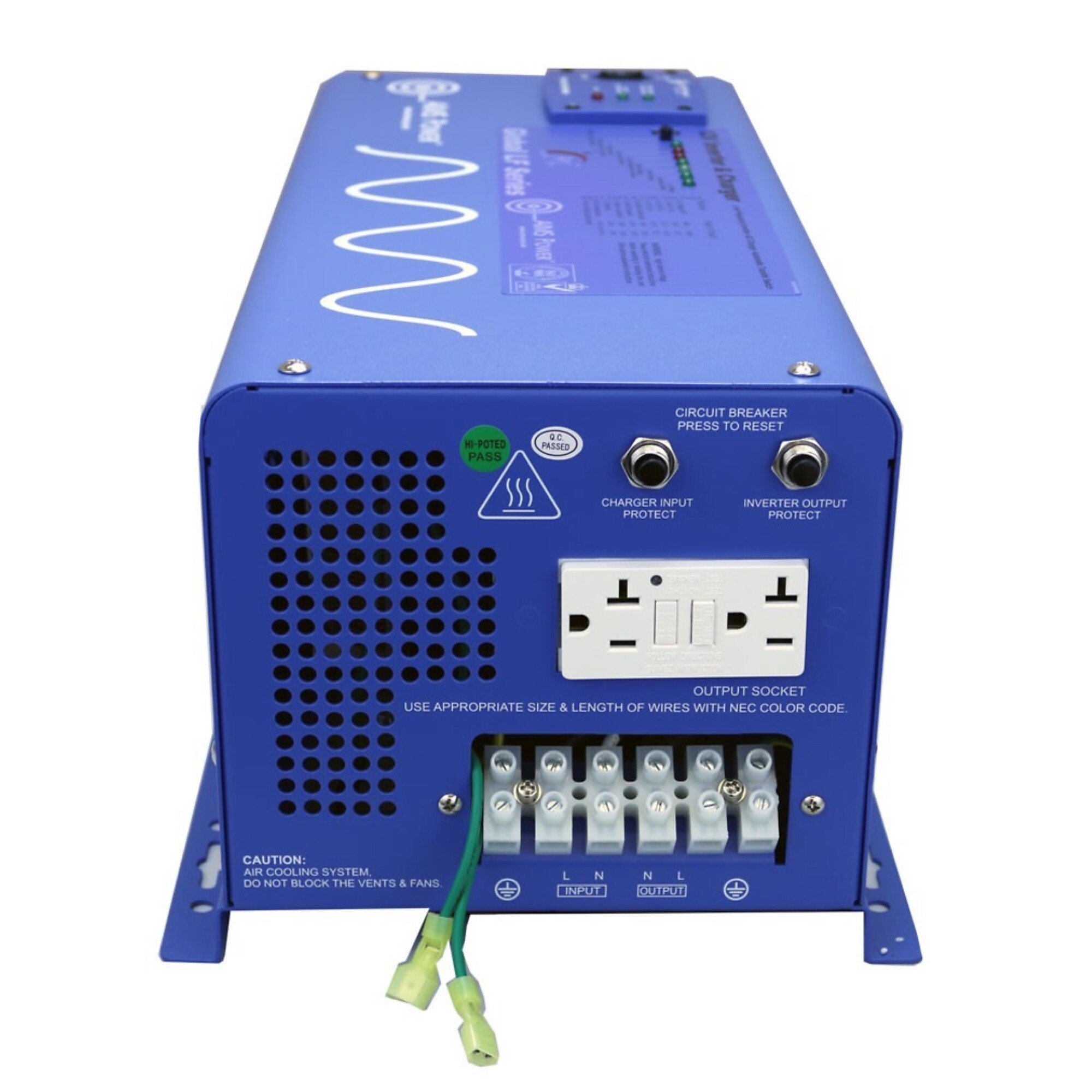

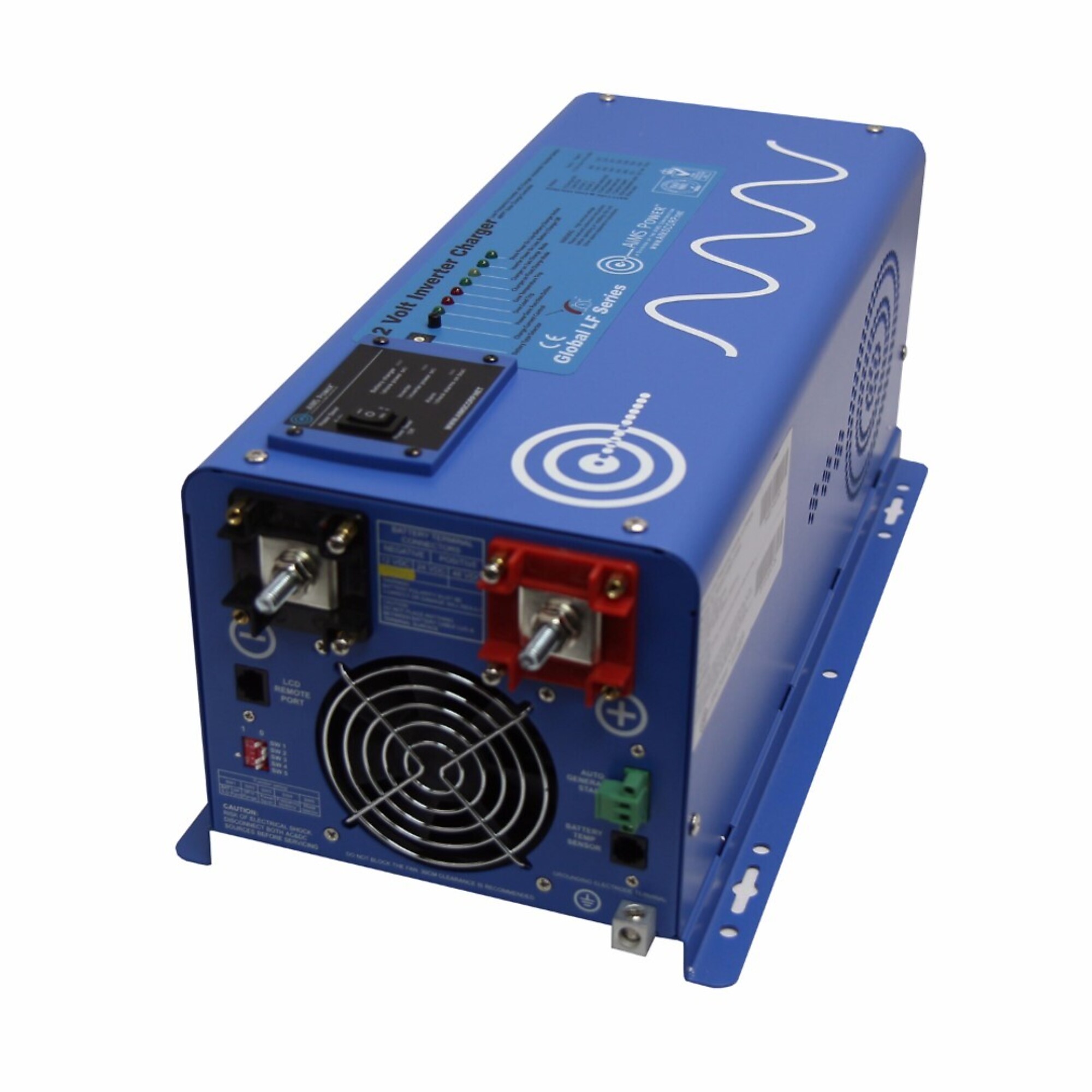

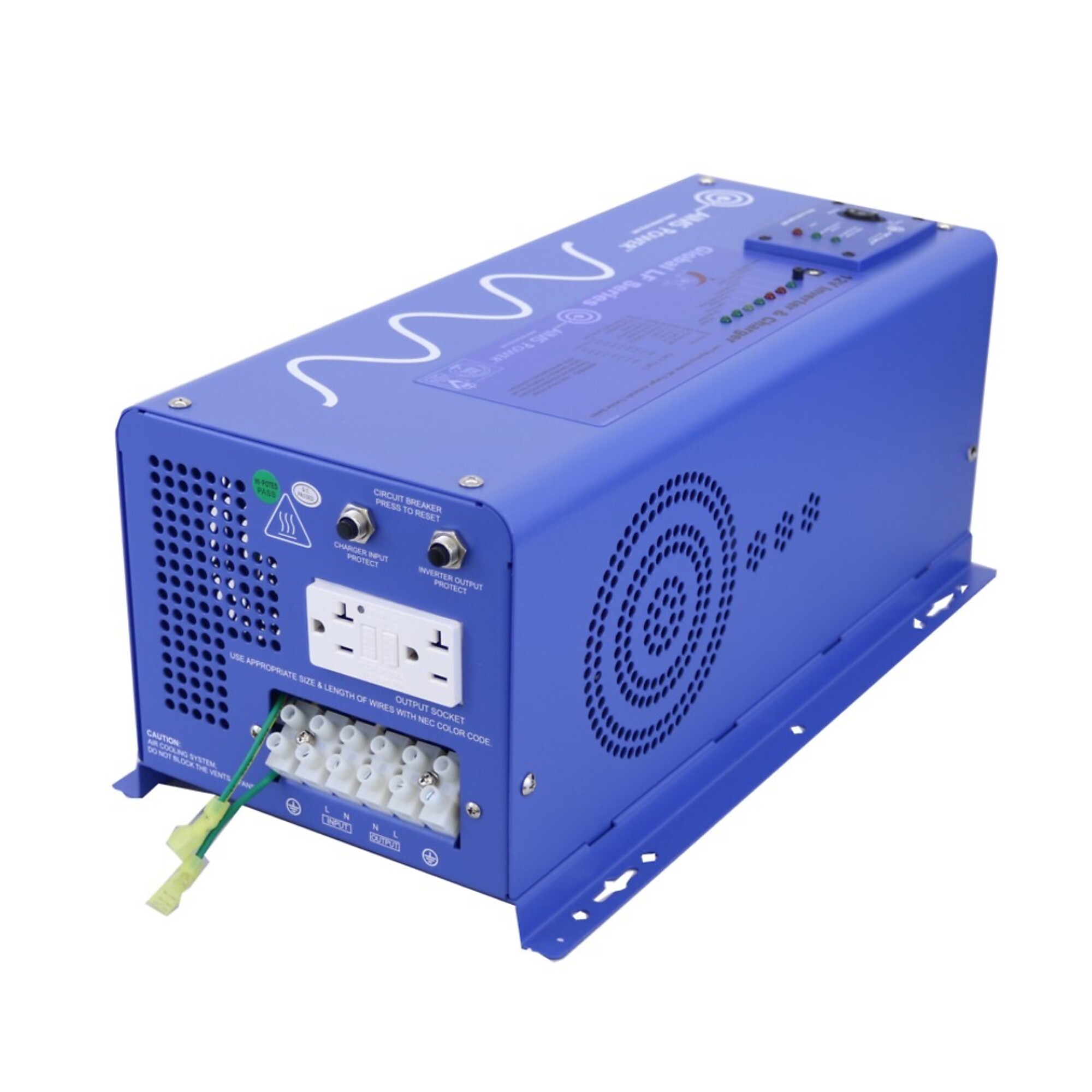

AIMS Power 3000 Watt Pure Sine Inverter Charger, PICOGLF30W12V120VR

Item# 7533176
New1 Included
AIMS Power 3000 Watt Pure Sine Inverter Charger, PICOGLF30W12V120VR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

AIMS Power 3000 Watt Pure Sine Inverter Charger, PICOGLF30W12V120VR

Click or Tap image to Zoom

$1167.10

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3000 watt low frequency inverter
  • 9000 watt surge for 20 seconds -3x surge capability
  • Battery priority selector
  • AC direct connect terminal block
  • GFCI – 15 amps

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The AIMS Power 3000-Watt 12 Volt Low Frequency Inverter Charger is two products in one: an inverter that transforms DC battery power into 120V AC electricity for tools and appliances of all varieties, and a built-in 100-amp battery charger that recharges the bank from grid power or a fuel-powered generator, with a battery-type selector on top of the unit to adjust charging voltage. Its most requested feature is the direct connect terminal block, which supports 300 percent surge capacity for up to 20 seconds and peaks at 9,000 watts — enough to start refrigerators, freezers, microwaves, blow dryers, and motor-driven tools including most electric chainsaws, portable grinders, and shop vacs. Note that the GFCI outlet with two receptacles carries no surge capacity and peaks at 1,500 watts, so the terminal block must be used to access the inverter's full surge capability. Pure sine wave output runs equipment that requires it, including laser printers, computers, televisions, CPAP machines, and other medical devices, and the low frequency design produces lower total harmonic distortion for cleaner, more efficient, quieter operation. An automatic transfer switch keeps power uninterrupted during an outage, detecting the loss of shore power and drawing from the connected battery bank instead — enough to run lights, a refrigerator, a sump pump, or a space heater to keep pipes from freezing, though you should always verify the wattage requirements of your equipment first. Conformal-coated (marine-coated) boards protect against dust and water vapor in mobile and coastal environments, and an optional remote allows on/off operation from a distance. Backed by a 3-year warranty and lifetime tech support.

What's Included

    (1) Power Inverter (1) Instruction Manual

Features + Benefits

  • 3000 watt low frequency inverter
  • 9000 watt surge for 20 seconds -3x surge capability
  • Battery priority selector
  • AC direct connect terminal block
  • GFCI – 15 amps

Key Specs

AttributeSpecification

item#

7533176

Brand

AIMS Power

Manufacturer's Warranty

No limited warranty

Ship Weight

64.0 LB

USB Ports (qty.)

0

AC Outlets (qty.)

2

Watts

3,000

Included (qty.)

1

Product Type

Pure Sine Wave Inverter

Application

Inverter Charger - Backup Power
AttributeSpecification

LED Indicators

Yes

Low Battery Protection

Yes

High Temperature Protection

Yes

Overload Protection

Yes

Low Voltage Protection

Yes

Cables Included

Yes

Battery Included

No

Product Weight

58.0000 lb

Dimensions L x W x H (in.)

16.48 x 8.74 x 7.1 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

No limited warranty
